Powermatic 1791227K Model 64 Artisan 10-Inch Left Tilt 1-1/2-Horsepower Contractor Saw with 30-Inch Accu-Fence and 2 Cast Iron Extension Wings, 115/230-Volt 1-Phase

by Powermatic

Product Description

Amazon.com Product Description

Rugged and powerful, the Powermatic 64 10-Inch Contractor's Table Saw features a left-tilting arbor and is ideal for the contractor, crafter, or home hobbyist. Designed to meet the highest quality and performance standards in the industry, the Powermatic 64 features a cast-iron tabletop and two wings that are ground to a mirror-like finish for incredible accuracy.

The 64 Contractor's Table Saw At a Glance: Precision ground cast-iron table with beveled edge to protect work material Exclusive 3VX belt drive for improved efficiency with less vibration 30" Accu-Fence system ensures accurate cuts T-slot miter gauge with stops permits wider cross cutting Quick-connect power cord reduces assembly time

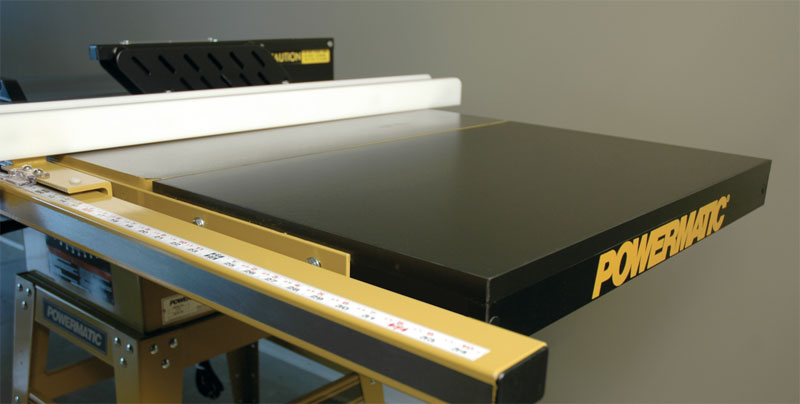

30" rip capacity for shops where space is an issue. View larger.

The Accu-Fence has replaceable sides with easy-access screws. View larger.

The left-tilting arbor lets you tilt the blade away from the fence. View larger.

Accurate and Powerful Left-Tilting Table Saw
Powered by a 1.5-horsepower, single-phase, 115/230-volt motor, the Powermatic 64 features a left-tilting arbor that lets the user tilt the blade away from the fence. This eliminates the need for a sacrificial fence and reduces the risk of your work piece binding under the blade.

It also comes with a beveled front edge to facilitate smooth transitions of the miter gauge as it moves over the front edge of the table.

No matter the size or thickness of the work piece, the Powermatic 64's exclusive 3VX belt offers increased efficiency--especially when compared to standard belts--and less vibration for smooth operation. And when dealing with wider stock, users will appreciate the T-slot miter gauge with positive stops.

Versatile, Expandable Design
For greater versatility, two cast-iron wings, a melamine-surfaced wood extension table, and an independent leaf safety guard come standard, while a lockable push-button switch with removable safety key protects against accidental starts.

And to help users get started right away, the quick-connect power cord reduces assembly time.

Accu-Fence with 30-Inch Rip Capacity
The Powermatic 64 comes equipped with an Accu-Fence with a rip capacity of 30 inches to the right of the blade for reliable accuracy and to help make each job faster and more precise. This fence length is particularly ideal for a home shop where space is an issue.

For greater speed and accuracy, an interior spring applies constant pressure when not locked down, which takes the slop out of fence movement. Also, replaceable sides with easy-access screws allow quick adjustment close enough to the tabletop so that nothing will slip underneath.

Dimensions and Warranty Information
The Powermatic 64 measures 32 x 34 x 50 inches (W x H x D), weighs 343 pounds, and is backed by a five-year warranty.

What's in the Box
One saw body with switch; one stand assembly; two extension wings; one motor; one blade guard; one motor bracket; one dust shroud; one standard insert; one dado insert; one pulley cover seat; one motor base plate; one pulley cover; one miter gauge; one miter gauge bar; two handle assembles; two splitter mount bracket assemblies; one drive belt; one pin; one arbor wrench; one combination wrench; two hex wrenches; five hardware bags; owner's manual; and warranty card.

Product Description

Includes 64A 1-1/2 HP 10-in Single Phase Left Tilt Table Saw with 30-in Accu-Fence - 1791227K, 30-in Accu-Fence System, 4-in Dust Collection Port, Left and Right Cast-Iron Extension Wings, Blade Insert, Dado Insert, Blade Guard and Splitter, Miter Gauge, Open Stand, (Blade Not Included)

See all Product Description

Product Details

• Product Dimensions: 70 x 32 x 34 inches ; 370 pounds
• Shipping Weight: 362 pounds (View shipping rates and policies)
• Shipping: This item can only be shipped to the 48 contiguous states. We regret it cannot be shipped to APO/FPO, Hawaii, Alaska, or Puerto Rico.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B00005OQM5
• California residents: Click here for Proposition 65 warning.
• Item model number: 1791227K
• Average Customer Review: 4.0 out of 5 stars  See all reviews (40 customer reviews)
• Amazon Best Sellers Rank: #116,466 in Home Improvement (See Top 100 in Home Improvement)
  • #45 in Home Improvement > Power & Hand Tools > Power Tools > Saws > Table Saws

Customer Reviews

Most Helpful Customer Reviews

61 of 62 people found the following review helpful:

3.0 out of 5 stars ALMOST....... A GREAT SAW!, March 18, 2003

By

spankee6 "spankee6" - See all my reviews

Amazon Verified Purchase

This review is from: Powermatic 1791227K Model 64 Artisan 10-Inch Left Tilt 1-1/2-Horsepower Contractor Saw with 30-Inch Accu-Fence and 2 Cast Iron Extension Wings, 115/230-Volt 1-Phase (Tools & Home Improvement)

I have owned this saw for just about 15 months, I only use it in the winter months so I think it has had enough use to rate it and I hope you find this information helpful. mostly I will spell out the negatives because I think they are the most helpful when choosing a machine. keeping in mind this is a medium price point piece of equipment so you can't expect everything from it and by no means is it a cheapy so you should expect good things. that being said. It, like everyone says is heavy, feels quite solid when using it. the motor runs well @ 220 and will cut 4/4 very well up until ebony, 6/4 mostly but don't go too fast, and 8/4 ok with the medium to softer woods, if you take your time with harder woods, but will noticeably slow down. the motor is very heavy but the mount is stamped and flimsy causing vibration with the belt that is impossible to eliminate. the blade is not true to the slots ( I'm not sure that the slots are true to the slots) and is near impossible to true up. you must first stand on your head and loosen all the trunnion mounts and try to twist the arbor assembly (need 2 people and good reference equipment)then tighten before it moves again. you will do that a half dozen times. then you need to adjust your tilt stops. here's a beaut!, the blade elevation lock does not work hardly at all!!, fortunately the tilt lock works better, you need to check it frequently!!. the fence (made in USA) not that spiffy, it features smooth slippery nylon faces, very nice but not flat well maybe they are but the metal tubing they are screwed to IS NOT TRUE! and I just fought that in detail tonight when trying to trim for glue joints and kept getting curved cuts. the whole fence itself has a warp in it. go with the biesmeyer if you can. speaking of warp, those wonderful cast extension tables, you guessed it WARPED very difficult to mount properly if you want dead nuts forget it!. you will need 2 people and a large deadblow mallet to try to flatten the tables while you tighten the bolts. and still you will have a lip of .0005 to .0010, same goes for the laminate table. being realistic it is Taiwanese. also it seems to me there was aproblem with the fence sytem when assembling it, having to redrill some holes, but that was a while ago so I'm fuzzy on that. it when together pretty smoothly all in all, but the adjusting and tuning took a long time and seemingly to this day readjusting constantly. I recommend a dial indicator and those slot things for adjusting the blade and critical stuff, unless your just moving up from a little table top saw, but if you are a critical craftsmen then put the time in on the initial set up. with the proper tweaking and patience it can be a good saw. for me I am a bit to anal-retentive for this machine and I am sorry I didn't spend the extra for the unisaw w/ the biesmeyer, the only reason I didn't is because I don't do this commercially and felt this powermatic (not the same company it used to be years ago) would suffice for what I am doing. it does a good job but with extra waste in both material and time. don't get me wrong I am not one of those disgruntled illusionists or chronic complainers, this is a true review. I am not saying don't buy one, just beware of the possible problems. personally I would not buy it again. I think it should be priced in the 6's instead of the 8's. happy cutting!

44 of 45 people found the following review helpful:

4.0 out of 5 stars Powermatic 64, December 20, 2001

By

J. D. Bremer (St Charles, MO USA) - See all my reviews
(REAL NAME)

This review is from: Powermatic 1791227K Model 64 Artisan 10-Inch Left Tilt 1-1/2-Horsepower Contractor Saw with 30-Inch Accu-Fence and 2 Cast Iron Extension Wings, 115/230-Volt 1-Phase (Tools & Home Improvement)

This is my first table saw, pondered many others and settled on the 64. Purchased from local dealer and fit in the back of an Explorer. I completed most of the assembly in one afternoon and by myself. The fence tube was damaged on one end, a replacement from Powermatic took about a month. The hardware kit did not include the bolts etc. for the wood extension table. The glide on the rear of the fence was not attached, had to call Powermatic for instructions. The instructions for the motor bracket were not clear, took several tries. Don't install the blade guard/splitter until after you have aligned the blade. Do not over-tighten the bolts that secure the fence tube. The dealer did not have the mobile base in stock, purchased after the saw was assembled and it took 3 hefty dudes to lift it onto the base, had to loosen the leg bolts to adjust the legs to fit the stand. If you ever intend to move this saw, get a mobile base. Wish the wheels on the base were larger to provide more ground clearance for wheeling over uneven surface. On a scale of 10, fit and finish were about a 7. I have adjusted the wings several times for level, have adjusted the splitter many times to keep it from binding. Purchased in mid November, still waiting for rebate. Fence, once aligned is nice. Friend with Sears model was positively speechless upon viewing the 64, almost worth the price just for that. It is a big improvement over a circular saw. Takes up a lot of space in the garage, so much for the car being inside this winter. Miter gauge was missing everything but the dial, new one sent by Powermatic is cheap, will get a differnet one as soon as possible. Like the left-tilt blade, think it is much better for right-handed persons. Saw is quiet once running. I have been satisfied with the quality and accuracy of the cuts. Comes with dado insert, cannot use guard/splitter with dado insert. Get rollers or build an outfeed, otherwise long pieces bounce off of the motor. Overall, very happy, even have got used to the color! Would buy another.

36 of 38 people found the following review helpful:

5.0 out of 5 stars I really like this saw, October 18, 2001

By A Customer

This review is from: Powermatic 1791227K Model 64 Artisan 10-Inch Left Tilt 1-1/2-Horsepower Contractor Saw with 30-Inch Accu-Fence and 2 Cast Iron Extension Wings, 115/230-Volt 1-Phase (Tools & Home Improvement)

I have been using a Sears 8" bench top saw for the past 35 years and decided that I deserved to move up to a better machine. I have, over the years, made everything from buildings to musical instruments and toys and decided that fighting that little saw was going to get me hurt. I researched all the saws on the internet and visited the stores in the area and decided that this Powermatic 10" saw was what I really wanted. I took the chance and ordered it from Amazon.com.

I'm glad I did. The saw was delivered 3 days after I ordered it in good condition. The delivery man stayed around while I opened the boxes and determined that everything was OK.

I then undertook the task of assembly. If you buy this saw, wait till you are rested, have plenty of uninterupted time, send the wife and kids to the movies (unless they are the helpful type) and enjoy putting this machine together. The instructions are well written and illustrated. Follow them carefully and you should have no problem with assembly. The person who wrote them obviously has assembled this saw himself because all the tips and shortcuts are described in detail.

The fit and finish of all the parts are exquisite and when assembled the saw is a thing of beauty. The cast iron top and wings are smooth and level. The fence system is dead on accurate. The fence has the new slick teflon faces that can be replaced if necessary. I never used the blade guard and splitter on my old saw (It never had one) so I thought I'd at least set up and try to use the guard and splitter on this one. What a great system!! Safety and accuracy all in one smooth move. I bought the Shop Fox mobile base from Grizzly for convenience and to save a little money and it fit up perfectly.

For the price of this saw, Powermatic could have included a better blade. The blade that comes with it is probably good for framing work or rough cuts in dimension stock but with a precision machine like this I found I needed a better blade.

The miter gage isn't the best or is it bad. Just a standard miter gage.

I was a bit surprised to find that the saw is made in Taiwan as is the motor but the fence is labled made in the USA. I can't imagine any one making a better quality machine anywhere but if this is important to you then be advised. To satisfy myself that I had done the right thing I went back to the stores and looked at the Delta and DeWalt saws that I had considered and am satisfied that I got the best saw I could find for the money.

The manufacturer states that this machine can be placed in a truck and hauled to a construction site. Once you see this saw in your shop you'll never want anyone to touch it, least of all haul it off to a construction site. It is so heavy that trying to move it would damage either the saw, the truck or the people trying to move it. Keep this one in the shop for cabinet work and buy something lighter for the job site.
