Powermatic 1792000K Model PM 2000 3 Horsepower Cabinet Saw with 50-Inch Accu-Fence, 2 Cast Iron Extension Wings, Table Board, and Legs, 230-Volt 1 Phase

by Powermatic

Product Description

Amazon.com Product Description

Powered by a three-horsepower, one-Ph motor, the award winning Powermatic PM2000 10-Inch Cabinet Saw sets a new standard for innovation with an array of patented features and massive body design. It boasts the heaviest cast-iron base in its class to virtually eliminate table vibration, oversized cast-iron tables, and a push-button arbor lock that's conveniently accessible from above the tabletop.

The PM2000 10-Inch Cabinet Saw At a Glance: Poly-V drive belt system delivers efficient, quiet operation Push-button arbor lock (patent pending) for rapid blade change Wide-stance heavy-duty trunnion for stability and smooth blade positioning Built-in retractable caster system for immediate shop mobility Industrial-duty 50-inch Accu-Fence system ensures accurate cuts

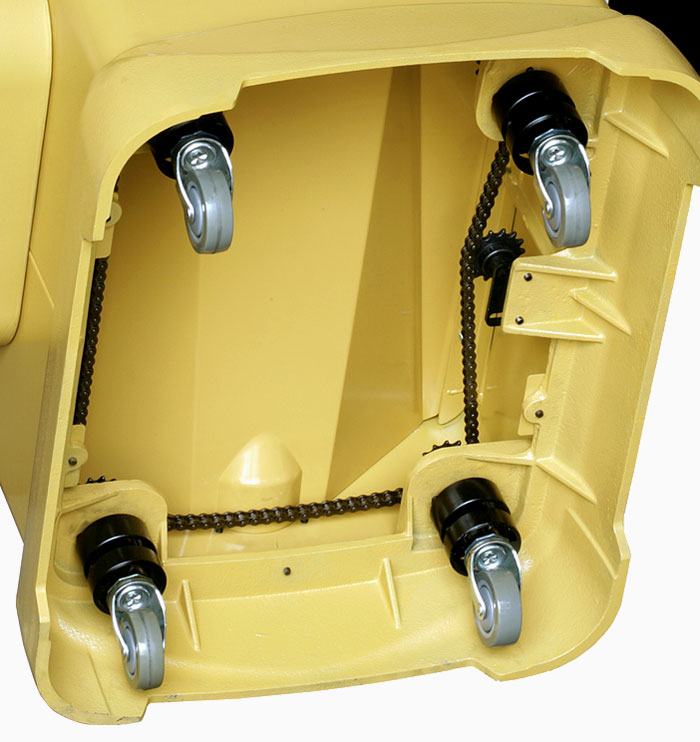

The cast-iron base features a built-in, retractable, 4-wheel caster system. View larger.

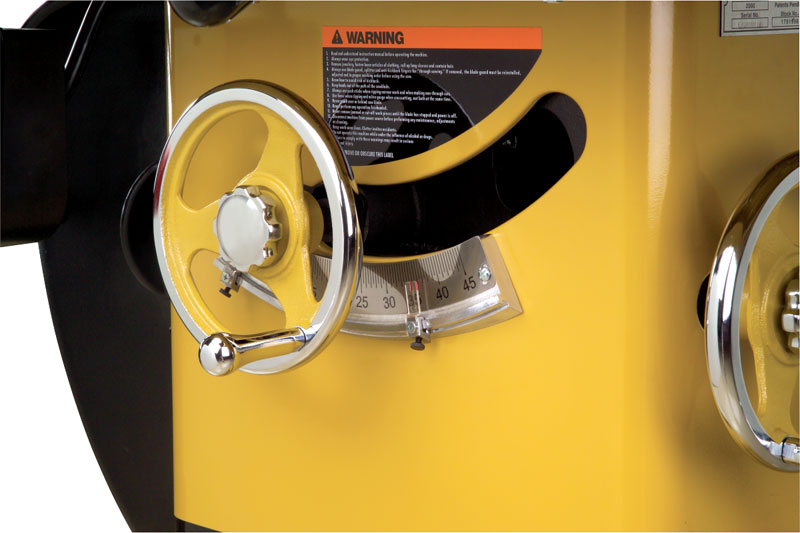

Oversized, cast-iron hand wheels for quick blade adjustment. View larger.

The push-button arbor lock allows for rapid blade changes. View larger.

The built-in dust collection system ensures long motor life. View larger.

Rugged Design for Smooth Operation
Designed with input from professional woodworkers, the PM2000 provides incredible quality, efficient functionality, and long-term durability.

Its refined heavy-duty trunnion mechanism features rigid, box-style cast-iron construction, high-end bearings, and a conical-shaped worm gear drive with an increased contact area to enhance the smooth, solid feel of the tilt and height adjustment.

A pair of oversized, eight-inch-diameter cast-iron hand wheels, each with a large spinner handle, makes blade height and bevel adjustments virtually effortless. And to prevent long-term use from loosening the hand wheels on their shafts, they are locked in place with machined grooves and keys rather than setscrews.

Precision Machined Arbor and Poly-V Drive Belt System
The full-length 5/8-inch diameter arbor is precision machined from stress-proof steel to exceptionally high tolerances for accuracy. It accepts stacked dado sets up to 13/16-inch wide, and because there is no gap between the threads and arbor shank, thin chippers won't hang out of line.

Also, the push-button arbor lock makes for rapid blade changes, while a high quality poly-V drive belt system transmits more power without slippage or excessive noise.

Generously Sized Tables and Extensions
All the high-luster, cast-iron surfaces are finely ground to ensure a smooth, mar-free work surface that provides more support for big jobs and have both a front- and rear-edge bevel for hassle-free work piece positioning.

Measuring approximately 30.5 x 22.0 inches (W x L), the primary cast-iron tabletop expands to 42 inches long when the standard cast-iron extension wings are bolted up, giving you plenty of space for even large work pieces.

Safe, Sturdy Design
The PM2000 also comes equipped with a newly designed magnetic On/Off switch for safety. To prevent accidental start-ups, there's a removable magnetic "key" that disables the switch when it's not in place. For additional protection against damage, a quick-release riving knife greatly reduces binding/kickback risk.

High-Tech Guard System
The PM2000's blade guard and riving knife system can be adjusted tool-free for the job at hand. At the same time, because the riving knife is mounted directly to the blade mechanism, the gap between it and the blade never changes during height or angle adjustments.

This maintains the safety a riving knife affords in virtually all cutting situations.

Get Accuracy and Precision
An industrial-duty 50-inch Accu-Fence System ensures accurate cuts. Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts. Additionally, a heavy-duty, deluxe, micro-adjust miter gauge with a 13-inch extension fence ensures stable workpiece support and easy fine-angle adjustments.

Finally, to facilitate movement in and around the shop, the massive cast-iron base has a built-in retractable, four-wheel caster system.

Dimensions and Warranty Information
The PM2000 measures 37 x 39 x 85 inches (W x H x D), weighs 675 pounds, and is backed by a five-year warranty.

What's in the Box
One table saw; one table insert; one miter gauge assembly; one blade guard assembly; one switch in box; one push stick; one arbor wrench; two lock knobs; two swivel handles; one riving knife and pawl assembly; one hardware bag; two extension tables packed in individual boxes; two hinge pins; one side cover; manual; and warranty card.

Product Description

Includes PM2000 3 HP 10-in Single Phase Left Tilt Table Saw With 50-in Accu-Fence - 1792000K, 50-in Accu-Fence® System, 10-in Standard Left and Right Cast-Iron Extension Wings, Arbor Wrench, Motor Cover, (Blade and Power Cord Not Included)

See all Product Description

Product Details

• Product Dimensions: 85 x 37 x 39 inches
• Shipping Weight: 600 pounds (View shipping rates and policies)
• Shipping: This item can only be shipped to the 48 contiguous states. We regret it cannot be shipped to APO/FPO, Hawaii, Alaska, or Puerto Rico.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B000BWY78I
• Item model number: 1792000K
• Average Customer Review: 4.3 out of 5 stars  See all reviews (31 customer reviews)
• Amazon Best Sellers Rank: #122,704 in Home Improvement (See Top 100 in Home Improvement)
  • #50 in Home Improvement > Power & Hand Tools > Power Tools > Saws > Table Saws

Customer Reviews

Most Helpful Customer Reviews

149 of 149 people found the following review helpful:

5.0 out of 5 stars Excellent saw..great features..some very minor issues..., March 26, 2006

By

Rich S (Madison, WI United States) - See all my reviews

This review is from: Powermatic 1792000K Model PM 2000 3 Horsepower Cabinet Saw with 50-Inch Accu-Fence, 2 Cast Iron Extension Wings, Table Board, and Legs, 230-Volt 1 Phase (Tools & Home Improvement)

I recently purchased a Powermatic 2000 saw, 3hp, 1ph, with a 50" fence. The saw arrived in excellent condition in a big sturdy crate along with several heavy boxes containing the fence and rails. A few comments on this saw. The fit and finish of the saw are excellent. The cast iron top and wings are ground to a fine polish and match up well. The cast iron top on this saw is much larger than that of the Powermatic 66 and the Delta Unisaw. After uncrating and assembling the wings to the top I checked the alignment of the miter slots to the arbor and found it to be less than 0.01" right out of the crate. There was virtually no arbor runout. The arbor is a standard 5/8", but the arbor nut is huge, about double the width of the one on a Unisaw and much thicker. Instead of using a cheap stamped wrench, Powermatic sends you a 27mm box end wrench to use on the arbor nut. Even with the big nut the arbor still accomodates a 13/16" stacked dado head. In addition, the saw has an arbor lock which locks the arbor in place while changing blades. The lock mechanism works well and is fairly sturdy, but I'm a little concerned about its long term durability. The dust collection assembly for this saw is excellent, with the dust being mostly collected immediately below the blade by a "hood" with a dust collection hose hooked to it which is in turn hooked to the dust collection port on the back of the saw. The key to this system is to always run your dust collector whenever you have the saw on, even if its for one or two little cuts, otherwise you'll end up with dust in the cabinet and will have to vacuum that out yourself. The Powermatic 2000 uses a wide flat drive belt instead of the 3 v-belts found on a 66 or Unisaw. The single wide, flat belt seems to work well, but it will be interesting to see how it performs over the long haul. The fence for the 2000 is the same as the one used on the 66, 72A and 74 (in fact my boxes didn't say anything about fitting the 2000) and uses slightly heavier tube than the Biesemeyer and much heavier rails. While the saw itself is made in Taiwan, the fence is stamped "Made in USA". The motions on the saw are very smooth and work effortlessly. The lock knobs for the motions are big in diameter and heavy and work great! The saw cabinet is stamped steel, but the base is cast iron like the old Unisaws were. The On/Off switch is pretty cool and is another massive piece of hardware. The On button is inside a donut shaped red Off button. When the saw is plugged in the On button glows green. The saw starts smoothly and runs really quietly. Now for some of the minor issues...the built in mobile base system works nicely, however it only raises the cast iron base off the floor about 3/16" if that. So unless you have a perfectly level concrete floor you may have some issues moving the saw around. Plus you run the risk of damaging the legs on the extension table due to the lack of floor clearance. I would have like to seen the saw go up 1/2" clear of the floor. One plus is that all four wheels under the base swivel so you can move the saw in any direction you want. The splitter/anti-kickback system is a European style which curves part way around the blade. It also raises and lowers and tilts with the blade which is great. The minor downfall with it is taking it on and off the saw is a little cumbersome since the throat plate and splitter must be put on at the same time and its a little tough to get big hands under the throat plate to throw the lever that locks the splitter in place. Another concern at this time is the lack of availability of accessories. The throat plate for this saw is huge! The saw still has the same amount of clearance ahead of the throat plate as the Unisaw, but the plate extends back a lot further than is does in the Unisaw or 66. At this point I can't purchase a dado insert for the saw, nor can I purchase a zero clearance insert, so I'll have to make some. The stock throat plate uses a total of five allen screws for leveling, three in the front, and two in the rear. Overall this is an excellent saw and I think that it will probably replace the 66 in the future as Powermatic's primary saw for the serious hobbiest or professional user of 10" saws.

40 of 41 people found the following review helpful:

3.0 out of 5 stars How about some quality control?, October 20, 2007

By

George R. Carion III - See all my reviews
(REAL NAME)

This review is from: Powermatic 1792000K Model PM 2000 3 Horsepower Cabinet Saw with 50-Inch Accu-Fence, 2 Cast Iron Extension Wings, Table Board, and Legs, 230-Volt 1 Phase (Tools & Home Improvement)

The first PM2000 shipped by Amazon arrived defective. Here are a list of the problems:

1. When raising the blade the whole trunnion would wander towards he fence by at least .020.

2. The trunnion would twist counter - clockwise on a horizontal plane causing the rear of the blade to wander away from the fence (and the front towards the fence) when raising the blade. Try keeping this one square to the miter slot. Not cool. This was also off by at least .020 front to rear.

3. The nylon shoulders on the fence were far from flat.

4. The fence measurement mark line was in the shape of a thin "V". The V was about 1/16" wide at the top.

5. The insert plate was missing the adjust screws.

6. When WMH sent out the replacement screws it was impossible to get the plate flat with the table.

How did this unit make it out of their factory?

WMH and Amazon were nice enough to send out a whole new saw, and pick up the bad one free of charge, so I can't complain much about their customer service. The new saw is good all around, no twisting etc., and the whole setup was much more accurate out of the box. Even the insert plate was flat to the top. However, it was shipped out without the hardware needed to mount the fence rails to the table top and extension table.

I'm going on a month without a fully functional saw thanks to unacceptable quality control on the part of WMH. I'd also like to mention that this is an incredible hassle. Shipping, unloading, assembling X2, disassembling, disposal of all the cardboard and the pallet X2, multiple calls to customer service. Not cool and incredibly time consuming.

WMH/Powermatic customers deserve better. WMH Tool Group needs to try harder.

20 of 20 people found the following review helpful:

4.0 out of 5 stars Great Saw - Minor Problems, November 16, 2006

By

T. McCabe (Sandy Spring, MD) - See all my reviews
(REAL NAME)

This review is from: Powermatic 1792000K Model PM 2000 3 Horsepower Cabinet Saw with 50-Inch Accu-Fence, 2 Cast Iron Extension Wings, Table Board, and Legs, 230-Volt 1 Phase (Tools & Home Improvement)

Just purchased this saw as an upgrade to a Delta Contractor's Tablesaw. This is sooo much nicer!! Quality throughout. But the fit needed a couple of adjustments:
1. The fence lockdown handle is supposed to screw into the cam lever. Mine came un-tapped! The hole was there but no threads. I could have asked Powermatic for a replacement lever, but I chose to tap the threads myself. Very easy and a quick fix.
2. The molded plastic motor cover needed to have the top plastic hinge enlarged. It would not line up with the steel hinge part mounted on the saw. Again, an easy fix with a drill bit.
Other than these minor gliches, this is a super saw. And getting it off the shipping pallets was a snap with the built-in casters. Normally you have to have a couple fiends help heft it from the pallet. Not this saw. I layed out the 2x4 crate side supports and added a piece of plywood to make a ramp, cranked down the casters and just rolled it off single-handedly! Sweet!

I gave this rating 4 stars due to the above problems, but really its 4 3/4. Don't hesitate to buy this saw because it's not a 5 star rating.
