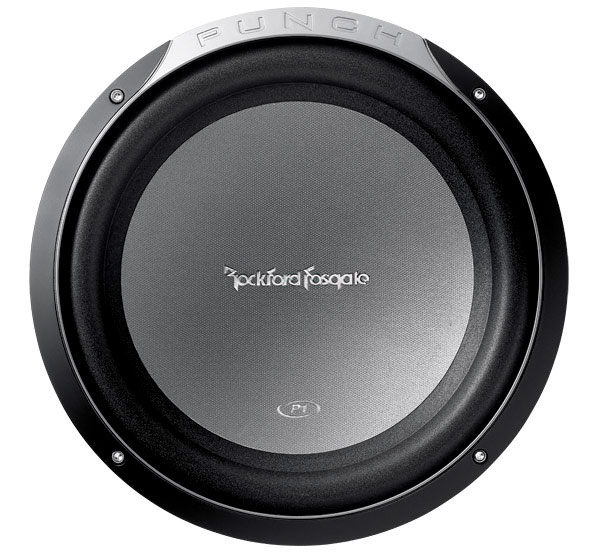

Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm

by Rockford Fosgate

Product Details

User's Guide [864kb PDF]

• Product Dimensions: 14 x 12 x 14 inches ; 9.7 pounds
• Shipping Weight: 12 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B0012Q777K
• Item model number: P1S412
• Average Customer Review: 4.4 out of 5 stars  See all reviews (18 customer reviews)
• Amazon Best Sellers Rank: #30,159 in Electronics (See Top 100 in Electronics)

Product Description

Amazon.com Product Description

You'll certainly get a lot of bass for your buck with the P1 12-inch subwoofers. These subwoofers were made for small sealed and vented enclosures, which make them suitable for a wide range of installations.

Rockford Fosgate Punch Series Subs Featuring innovative parabolic cone designs, oversized surrounds and large motor assemblies, Punch subwoofers deliver deep, loud, aggressive bass--not to mention stunning cosmetics that you'll want to show off. For over 20 years, Punch subwoofers have shown the world that big bass, extended power handling and awesome cosmetics need not cost a fortune. One listen and you'll know why it's called The PUNCH.

---

Punch subwoofers deliver deep, loud, aggressive bass. Click to enlarge.

Anodized aluminum voice coil formers provide excellent heat dissipation. Click to enlarge.

P1S412 Features

Speaker Construction

• Custom 10-AWG nickel plated push terminals
• High density poly-foam surround
• High-temp voice coil with spun-laced Nomex reinforcement collar
• Linear spider with embedded 16 AWG tinsel leads
• Parabolic injection molded ABS/Acrylic dustcap
• Protective PVC textured magnet cover
• Reversable ABS trim ring
• Thermoformed polypropylene cone

Aluminum V/C Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous damand, not instantaneous power handling, that over time, can damage voice coils.

Reversible Mounting
Rockford Fosgate subwoofers can be mounted in either direction. A removable trim ring can be installed on the back or front side of the subwoofer frame. This gives the subwoofer a finished look regardless of mounting configuration.

Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and strain over a greater area, significantly improving the reliability and performance of the subwoofer.

These stitched tinsel leads withstand extreme duty cycles, fatigue and high current that is critical to robust design.

---

P1S412 Specifications

Size:	12"
Impedance:	4-Ohm
Power Handling:	150 Watts RMS 300 Watts Max
Voice Coil Diameter:	1.5" 6-Layer (3.81 cm)
Motor Size:	40 oz.
Speaker Connector:	Dual 10 AWG compression
SPL(1w/1m):	86 dB
Woofer Displacement:	0.048 cu. ft. (1.36 Liters)
Cutout Diameter:	11.125 in. (28.26 cm)
Mounting Depth:	5.875 in. (14.92 cm)

---

Thirty Years of Rockford Fosgate

Rockford Fosgate products have been designed and engineered in Tempe, Arizona since the beginning. Rockford's 30 year reputation is grounded in engineering and manufacturing some of the finest audio products in the world. The company's no-compromise approach has yielded patented iconic products such as the Punch EQ, Punch 45 amplifier and the 3Sixty integrated signal processor. Today, Rockford's new products push the performance envelope even further. Each new product is a step forward--they sound bigger, they play louder, and run longer. Rockford never settles for "good enough."

The 2010 product line represents the company's core philosophy. Rockfords new amplifiers, speakers and subwoofers have raised the bar on the competition.

---

What's in the Box

Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm, Trim Ring, Installation Hardware, User's Manual

---

On a Tighter Budget?

Consider the Prime Series R1S412.

---

Rockford Fosgate Punch Series P1 Subwoofers

Rockford Fosgate Punch P1 P1S410 10-Inch 150-Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P1 P1S415 15-Inch 400 Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P1 P1S48 8-Inch 150-Watt Subwoofer - 4 Ohm
Rockford Fosgate Punch P1 P1S810 10-Inch 150-Watt Subwoofer - 8 Ohm	Rockford Fosgate Punch P1 P1S812 12-Inch 150-Watt Subwoofer - 8 Ohm	Rockford Fosgate Punch P1 P1S815 15-Inch 400 Watt Subwoofer - 8 Ohm	Rockford Fosgate Punch P1 P1S88 8-Inch 150-Watt Subwoofer - 8 Ohm

Product Description

Rockford Fosgate Punch Stage One, 4 Ohm SVC 12" Subwoofer CEA Certified Power 150 Watts RMS, 300 Watts Peak. Optimized for either sealed or vented enclosures Visit www.RockfordFosgate.com 24 hours a day for technical support or call [phone] M-F 7 am to 5 pm MST.

See all Product Description

Customer Reviews

Most Helpful Customer Reviews

1 of 1 people found the following review helpful:

5.0 out of 5 stars Very affordable, if you are patient., June 22, 2011

By

Lynn Ballard "Buddy Lee" (Lawton, OK) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm (Electronics)

I got one of these for my wife's car here on Amazon for about $33. It is running off of a 200 watt rms Kicker amp in a sealed box (1.10 cubic feet) and provides great low end sound in the trunk of her car. I decided to add a second sub to my boat so I figured why not get one of these since it will be in a compartment where it will not get wet, so I looked at Amazon and the sub was somewhere around $65 when I had just paid $33 a month prior. So I kept checking around and noticed that the price fluctuated often on Amazon. Then one day I logged on and it was marked around $26, so I ordered it and now I have that second sub in my boat in a sealed box (1.02 cubic feet). It is running off of a Punch 300 getting about 200 watt rms. They both sound great and I have not had any complaints. They won't blow your doors off like the P3 subs (which I have a pair of in my Expedition), but they sound great in the 150 to 200 RMS watt range in a recommended sealed enclosure. Definitely 5 stars for around $30, considering you get a much higher quality product and sound than what you pay for.

1 of 1 people found the following review helpful:

4.0 out of 5 stars Pay attention to the enclosure, April 21, 2011

By

Hopkins - See all my reviews

Amazon Verified Purchase

This review is from: Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm (Electronics)

To the person who said this sub is junk should be putting most of the blame on the box. I know Rockford recommends a tiny box for their sealed enclosures, which is ONLY good if you care about pure SPL. A sealed box around 1.8-2.5 cu.ft. would be much more suitable for producing less SPL but a much smoother frequency response. This means that you can hit those very low notes much better. Add 3/4 lb/cu.ft. of polyfill (3lbs for $10 at wally world) and you will get an even better response from your new Rockford sub!

A ported enclosure is also a very viable option for a 12" sub. Tuning the box lower than Rockford's spec will, again, lower the SPL, but it will increase the driver's ability to hit lower notes.

Overall, I feel Rockford P1's are a good value with solid performance, especially when had for under fifty dinero.

1 of 1 people found the following review helpful:

5.0 out of 5 stars Chris, April 4, 2011

By

chris graffigna (COARSEGOLD, CA, US) - See all my reviews

Amazon Verified Purchase

This review is from: Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm (Electronics)

This sub sounds great built the box to the specs that came with the sub shakes my car would recommend
