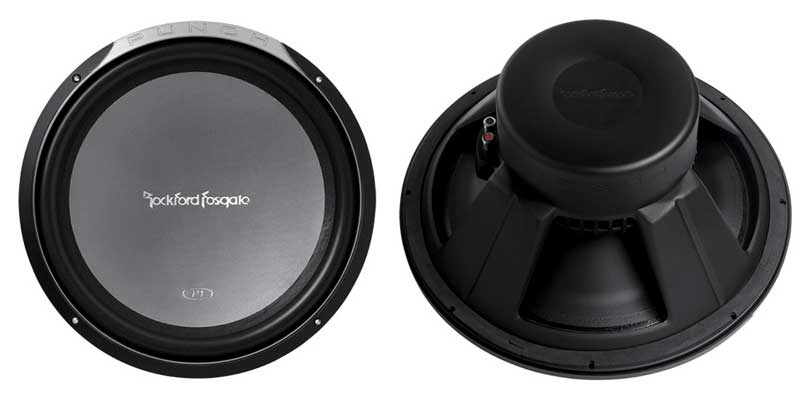

Rockford Fosgate Punch P1 P1S415 15-Inch 400 Watt Subwoofer - 4 Ohm

by Rockford Fosgate

Product Details

User's Guide [864kb PDF]

• Product Dimensions: 16.5 x 16.5 x 9 inches ; 15.4 pounds
• Shipping Weight: 16.4 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B001B6WVHC
• Item model number: P1S415
• Average Customer Review: 4.9 out of 5 stars  See all reviews (7 customer reviews)
• Amazon Best Sellers Rank: #43,177 in Electronics (See Top 100 in Electronics)

Product Description

Amazon.com Product Description

If you're looking for big bass on a budget, look no further than the P1 15-inch subwoofers. They perform best in small sealed and vented enclosures unleashing the deep bass that made Rockford Fosgate famous.

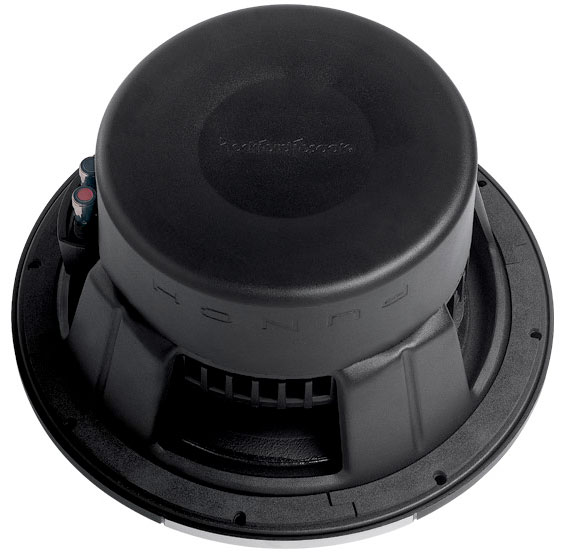

Rockford Fosgate Punch Series Subs Featuring innovative parabolic cone designs, oversized surrounds and large motor assemblies, Punch subwoofers deliver deep, loud, aggressive bass--not to mention stunning cosmetics that you'll want to show off. For over 20 years, Punch subwoofers have shown the world that big bass, extended power handling and awesome cosmetics need not cost a fortune. One listen and you'll know why it's called The PUNCH.

---

Punch subwoofers deliver deep, loud, aggressive bass. Click to enlarge.

Anodized aluminum voice coil formers provide excellent heat dissipation. Click to enlarge.

P1S415 Features

Speaker Construction

• Custom 10-AWG nickel plated push terminals
• High density poly-foam surround
• High-temp voice coil with spun-laced Nomex reinforcement collar
• Linear spider with embedded 16 AWG tinsel leads
• Parabolic injection molded ABS/Acrylic dustcap
• Protective PVC textured magnet cover
• Reversible ABS trim ring
• Thermoformed polypropylene cone

Aluminum V/C Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous damand, not instantaneous power handling, that over time, can damage voice coils.

Reversible Mounting
Rockford Fosgate subwoofers can be mounted in either direction. A removable trim ring can be installed on the back or front side of the subwoofer frame. This gives the subwoofer a finished look regardless of mounting configuration.

Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and strain over a greater area, significantly improving the reliability and performance of the subwoofer.

These stitched tinsel leads withstand extreme duty cycles, fatigue and high current that is critical to robust design.

---

P1S415 Specifications

Size:	15"
Impedance:	4-Ohm
Power Handling:	200 Watts RMS 400 Watts Max
Voice Coil Diameter:	1.5" 6-Layer (3.81 cm)
Motor Size:	54 oz.
Speaker Connector:	Dual 10 AWG compression
SPL(1w/1m):	86 dB
Woofer Displacement:	0.060 cu. ft. (1.7 Liters)
Cutout Diameter:	13.875 in. (35.24 cm)
Mounting Depth:	6.875 in. (16.83 cm)

---

Thirty Years of Rockford Fosgate

Rockford Fosgate products have been designed and engineered in Tempe, Arizona since the beginning. Rockford's 30 year reputation is grounded in engineering and manufacturing some of the finest audio products in the world. The company's no-compromise approach has yielded patented iconic products such as the Punch EQ, Punch 45 amplifier and the 3Sixty integrated signal processor. Today, Rockford's new products push the performance envelope even further. Each new product is a step forward--they sound bigger, they play louder, and run longer. Rockford never settles for "good enough."

The 2010 product line represents the company's core philosophy. Rockfords new amplifiers, speakers and subwoofers have raised the bar on the competition.

---

What's in the Box

Rockford Fosgate Punch P1 P1S415 15-Inch 400 Watt Subwoofer - 4 Ohm, Trim Ring, Installation Hardware, User's Manual

---

Rockford Fosgate Punch Series P1 Subwoofers

Rockford Fosgate Punch P1 P1S410 10-Inch 150-Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P1 P1S412 12-Inch 150-Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P1 P1S415 15-Inch 400 Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P1 P1S48 8-Inch 150-Watt Subwoofer - 4 Ohm
Rockford Fosgate Punch P1 P1S810 10-Inch 150-Watt Subwoofer - 8 Ohm	Rockford Fosgate Punch P1 P1S812 12-Inch 150-Watt Subwoofer - 8 Ohm	Rockford Fosgate Punch P1 P1S815 15-Inch 400 Watt Subwoofer - 8 Ohm	Rockford Fosgate Punch P1 P1S88 8-Inch 150-Watt Subwoofer - 8 Ohm

Product Description

Rockford Fosgate Punch Stage One, 4 Ohm SVC 15" Subwoofer CEA Certified Power 200 Watts RMS, 400 Watts Peak. Optimized for either sealed or vented enclosures Visit www.RockfordFosgate.com 24 hours a day for technical support or call [phone] M-F 7 am to 5 pm MST.
