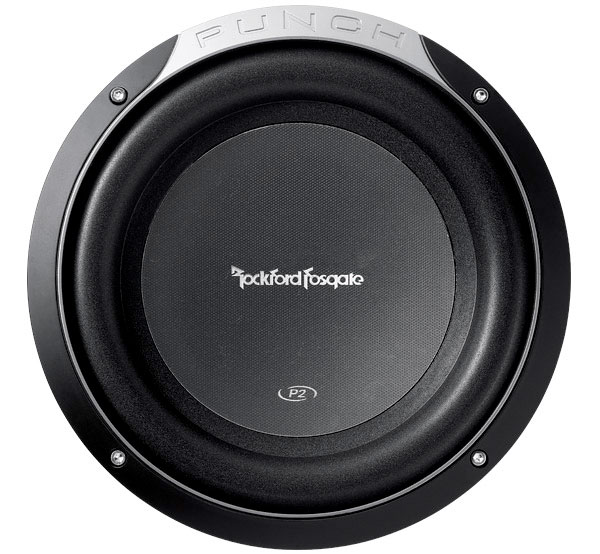

Rockford Fosgate Punch P2 P2D412 12-Inch 250-Watt Subwoofer - 4 Ohm

by Rockford Fosgate

Product Details

User's Guide [993kb PDF]

• Product Dimensions: 14 x 15.5 x 14 inches ; 13 pounds
• Shipping Weight: 16 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001CO9RR0
• Item model number: P2D412
• Average Customer Review: 5.0 out of 5 stars  See all reviews (1 customer review)
• Amazon Best Sellers Rank: #88,776 in Electronics (See Top 100 in Electronics)

Product Description

Amazon.com Product Description

Rockford Fosgate has always been known as "The Punch" and the P2 12-inch subwoofers certainly continue with the tradition. With their 4-Ohm Dual Voice Coils, they are an easy addition to almost any vehicle. The P2 subwoofers perform best in standard sealed and vented enclosures and their double-stacked magnets deliver serious bass!

Rockford Fosgate Punch Series Subs Featuring innovative parabolic cone designs, oversized surrounds and large motor assemblies, Punch subwoofers deliver deep, loud, aggressive bass--not to mention stunning cosmetics that you'll want to show off. For over 20 years, Punch subwoofers have shown the world that big bass, extended power handling and awesome cosmetics need not cost a fortune. One listen and you'll know why it's called The PUNCH.

---

Punch subwoofers deliver deep, loud, aggressive bass. Click to enlarge.

Anodized aluminum voice coil formers provide excellent heat dissipation. Click to enlarge.

P2D412 Features

Speaker Construction

• Custom 10-AWG nickel plated push terminals
• Extended pole piece and bumped backplate
• High density poly-foam surround
• High-temp voice coil with spun-laced Nomex reinforcement collar
• Linear spider with embedded 16 AWG tinsel leads
• Parabolic injection molded ABS/Acrylic dustcap
• Protective PVC textured magnet cover
• Reversible ABS trim ring
• Sturdy 16 gauge compound-bend frame
• Thermoformed polypropylene cone
• Vented spider cavity

Aluminum V/C Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous damand, not instantaneous power handling, that over time, can damage voice coils.

Reversible Mounting
Rockford Fosgate subwoofers can be mounted in either direction. A removable trim ring can be installed on the back or front side of the subwoofer frame. This gives the subwoofer a finished look regardless of mounting configuration.

Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and strain over a greater area, significantly improving the reliability and performance of the subwoofer.

These stitched tinsel leads withstand extreme duty cycles, fatigue and high current that is critical to robust design.

Venturi-Effect Cooling
The "Venturi-Effect" is created by gradually reducing the air-flow exhaust path area, which increases the air speed across the key thermal masses ofthe speaker motor parts maximizing cooling effectiveness.

---

P2D412 Specifications

Size:	12"
Impedance:	4-Ohm x 2
Power Handling:	250 Watts RMS 500 Watts Max
Voice Coil Diameter:	2.0" 4-Layer (5.08 cm)
Motor Size:	62 oz. Double Stacked
Speaker Connector:	Dual 10 AWG compression
SPL(1w/1m):	86 dB
Woofer Displacement:	0.057 cu. ft. (1.61 Liters)
Cutout Diameter:	11.125 in. (28.26 cm)
Mounting Depth:	6.375 in. (16.19 cm)

---

Thirty Years of Rockford Fosgate

Rockford Fosgate products have been designed and engineered in Tempe, Arizona since the beginning. Rockford's 30 year reputation is grounded in engineering and manufacturing some of the finest audio products in the world. The company's no-compromise approach has yielded patented iconic products such as the Punch EQ, Punch 45 amplifier and the 3Sixty integrated signal processor. Today, Rockford's new products push the performance envelope even further. Each new product is a step forward--they sound bigger, they play louder, and run longer. Rockford never settles for "good enough."

The 2010 product line represents the company's core philosophy. Rockfords new amplifiers, speakers and subwoofers have raised the bar on the competition.

---

What's in the Box

Rockford Fosgate Punch P2 P2D412 12-Inch 250-Watt Subwoofer - 4 Ohm, Trim Ring, Installation Hardware, User's Manual

---

Additional 12-Inch Sub Options From Rockford Fosgate

If you need more speaker, step up to the Power Series T1D412.

On a tighter budget? Consider the Prime Series R1S412.

---

Rockford Fosgate Punch Series P2 Subwoofers

Rockford Fosgate Punch P2 P2D410 10-Inch 250-Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P2 P2D412 12-Inch 250-Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P2 P2D415 15-Inch 500 Watt Subwoofer - 4 Ohm	Rockford Fosgate Punch P2 P2D48 8-Inch 400 Watt Subwoofer - 4 Ohm
Rockford Fosgate Punch P2 P2D210 10-Inch 250-Watt Subwoofer - 2 Ohm	Rockford Fosgate Punch P2 P2D212 12-Inch 250-Watt Subwoofer - 2 Ohm	Rockford Fosgate Punch P2 P2D215 15-Inch 500 Watt Subwoofer - 2 Ohm	Rockford Fosgate Punch P2 P2D28 8-Inch 400 Watt Subwoofer - 2 Ohm

Product Description

Rockford Fosgate Punch Stage Two, Dual 4 Ohm DVC 12" Subwoofer CEA Certified Power 250 Watts RMS, 500 Watts Peak. Optimized for either sealed or vented enclosures Visit www.RockfordFosgate.com 24 hours a day for technical support or call [phone] M-F 7 am to 5 pm MST

See all Product Description

Customer Reviews

Most Helpful Customer Reviews

5.0 out of 5 stars Awesome subwoofer!, August 17, 2009

By

James S. Kang "BestdDealGuru" (Ohio) - See all my reviews
(REAL NAME)

This review is from: Rockford Fosgate Punch P2 P2D412 12-Inch 250-Watt Subwoofer - 4 Ohm (Electronics)

Excellent subwoofer at an amazing price! (too bad for me this item is $10 cheaper now that it was when I bought it) I purchased this subwoofer to replace Two 12" MTX Thunder subwoofers in order to free up some trunk space. I am amazed at how loud a single one of these P2's are. I have it installed in a sealed single 12" Scosche box(SE12) that is 1.2 cubic sq ft, and this thing pounds. I have it wired in parallel at 2 ohms for my mono subwoofer amplifier. A single one of these subs feels like about 80% of the Two 12" MTX's that it is replacing. Great value!
