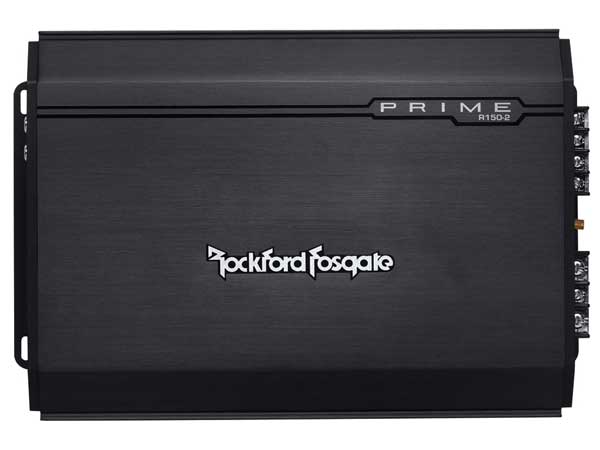

Rockford Fosgate amplification at an unbelievable value. The R150-2 2-channel amplifier pumps out more than enough to power a set full-range or component speakers, or you can bridge it into a 4-ohm load to produce 150 watts for a single R1S410 10" or R1S412 12" woofer.
| || |
Rockford Fosgate Prime Series Amplification A new generation of performance geared toward the "novice" car audio enthusiast or first time buyer. The Prime series amplifiers feature legendary Rockford Fosgate power, controls, and functions while fitting into any budget. Now more than ever, it's easy to get Rockford Fosgate amplifier DNA into your car audio system.
Power and Protect LEDs
The Protect LED illuminates if a short circuit or to low of an impedance is detected at the speaker connections. The amplifier will automatically shut down if this occurs.
RCA Input Jacks
The industry standard RCA jacks provide an easy connection for signal level input. They are nickel-plated to resist the signal degradation caused by corrosion.
RCA Pass-Thru Jacks
This Pass-Thru provides a convenient source for daisy-chaining an additional amplifier without running an extra set of RCA cables from the front of the vehicle to the rear amplifier location.
The input gain control is preset to match the output of most source units.
Selectable switch for 80Hz High-Pass (HP), All Pass (AP), or Low-Pass (LP) operation.
Variable Crossover (Low Pass Only)
A built-in 12dB/octave Butterworth filter with a crossover point variable from 50Hz to 250Hz.
The Punch Bass control provides a bass boost up to 12dB @ 45Hz.
|Number of Channels: ||2 |
|Rated Power: ||50 Watts RMS x 2 @ 4-Ohms |
75 Watts RMS x 2 @ 2-Ohms
150 Watts RMS x 1 @ 4-Ohms Bridged/Mono
|Total Power: ||150 Watts |
|Dynamic Power: ||57 Watts x 2 @ 4-Ohms 0 degrees Res |
83 Watts x 2 @ 2-Ohms 0 degrees Res
|Bridgeable: ||Yes |
|Efficiency (average): ||06% @ 4-Ohm |
54% @ 2-Ohm
|Crossover Controls: ||High-Pass (HP): 80Hz @ 12dB/octave Butterworth |
Low-Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth
|Tone Controls: ||Punch Bass: 0dB to +12dB @ 45Hz |
|Signal Input: ||Low level: 1 RCA pair |
|Signal Output: ||Low level: 1 RCA pair |
|Power Input Connector: ||Block |
|Power Wire Gauge: ||4 AWG |
|Speaker Output Connector: ||Screw terminal barrier strip |
|Speaker Wire Gauge: ||8 AWG |
|Heat Sink Type: ||Extruded aluminum |
|Cooling: ||Convection |
|Remote Controls: ||n/a |
|Visual Indicators: ||Power |
|Circuit Topology Class: ||Class A/B |
|Frequency Response: ||20Hz to 20kHz +/- 1dB |
|Shipping Weight: ||TBA |
|Dimensions (HxWxL): ||2.40 x 7.67 x 11.54 (in) |
6.10 x 19.49 x 29.30 (cm)
Thirty Years of Rockford Fosgate
Rockford Fosgate products have been designed and engineered in Tempe, Arizona since the beginning. Rockford's 30 year reputation is grounded in engineering and manufacturing some of the finest audio products in the world. The company's no-compromise approach has yielded patented iconic products such as the Punch EQ, Punch 45 amplifier and the 3Sixty integrated signal processor. Today, Rockford's new products push the performance envelope even further. Each new product is a step forward--they sound bigger, they play louder, and run longer. Rockford never settles for "good enough."
The 2010 product line represents the company's core philosophy. Rockfords new amplifiers, speakers and subwoofers have raised the bar on the competition.
What's in the Box
Rockford Fosgate Prime R150-2 150 Watt Stereo Amplifier, User's Manual
Need More Amp?
Step up to the Punch Series P200-2
200-watt or the Power Series T400-2
400-watt amplifier (or one of many other Rockford options).
Rockford Fosgate Prime Series Amplification
Rockford Fosgate Prime 150 Watt Stereo amplifer with on-board adjustable crossover, gain control. Amplifier features unregulated power supply, and on board Punch bass. CEA Certified RMS Power Rating 50 watts x2 @ 4 Ohms, 75 watts x2 @ 2 Ohms, 150 watts x1 @ 4 Ohms Briged. Visit www.RockfordFosgate.com 24 hours a day for technical support or call (800)669-9899 M-F 7 am to 5 pm MST.
