Rockler JIG IT Shelving Jig and 1/4'' Bit Set

by Rockler

Product Description

Amazon.com Product Description

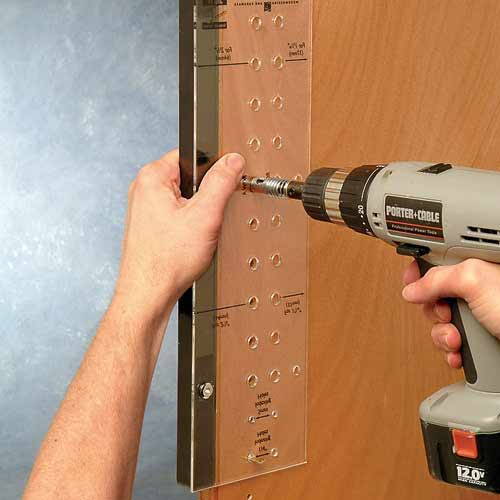

The Rockler JIG IT Shelving Jig is an easy-to-use, see-through template for drilling consistently spaced and centered shelf-pin holes. With a handle that conveniently stores your bits and handle-mounting hardware, the Shelving Jig can be used on assembled or unassembled cabinetry with face-frame or frameless construction. The JIG IT Shelving Jig works with four different bit sizes to quickly and easily drill shelf-pin holes in a wide variety of projects.

JIG IT Shelving Jig and 1/4-Inch Bit Set At a Glance: Achieve consistently spaced and centered shelf-pin holes Clear template features laser-cut accuracy Handle mounts to either side of the template for two different setback options Works with four different bit sizes for shelf pins or pin sleeves Self-centering bits bore to a consistent depth every time

Drills holes either 1-7/16 inches or 2-1/2 inches from edges. View larger.

Consistently Spaced and Centered Shelf Pin Holes
Economical and practical, the Rockler JIG IT Shelving Jig helps eliminate the hassle of trying to drill correctly spaced pin holes on your own. For use with assembled or unassembled cabinetry that features faceless or face-frame construction, the Shelving Jig is the ideal tool for building bookcases, entertainment centers, or cabinetry with adjustable shelves, or for adding shelves to existing units. The clear template features laser-cut accuracy for consistently spaced, and centered, shelf-pin holes.

Handle Provides Stability and Storage
The handle for the Shelving Jig helps you align the template and hold it in place. Mount the handle to the template based on the setback and spacing you want, and then use the handle to secure the template while you drill. You can also insert a shelf pin in the top or bottom position to help hold the jig in place. The handle includes two storage compartments for the mounting hardware, hex wrench, and self-centering bits, keeping all the parts together in one place.

Options for Spacing
With just one Shelving Jig, you can drill holes either 1-7/16 inches (37 millimeters) or 2-1/2 inches (64 millimeters) from the edge. Simply mount the handle on the appropriate side to achieve the setback you want. The shelf-pin holes are spaced 32 millimeters apart.

Works with Four Bit Sizes
The Shelving Jig comes with a 1/4-inch self-centering bit that is preset to bore a consistent depth for fitting shelf pins and sleeves. Additional options are available for a 5-millimeter bit, or for 9/32-inch and 7/32-inch bits for pin sleeves.

What's in the Box
Rockler JIG IT Shelving Jig, handle with storage, hex wrench, and 1/4-Inch Bit Set.

END

---

PRODUCT NAME: Rockler Universal Fence Clamps

Product Description

Our original JIG IT Shelving Jig is now even better!

Get perfectly, consistently spaced and centered shelf-pin holes! Economical and practical, this jig can be used on assembled or unassembled cabinetry.
Re-designed handle includes two storage compartments for self-centering bits!
Ideal for adding shelves to new or existing cabinets.
Drills holes either 1-7/16'' or 2-1/2'' from edge.
Insert shelf pin in top or bottom position to extend jig for continuous drilling.

Product Details

• Shipping Information: View shipping rates and policies
• ASIN: B001DSXUKK
• Average Customer Review: 4.5 out of 5 stars  See all reviews (21 customer reviews)
• Amazon Best Sellers Rank: #7,641 in Home Improvement (See Top 100 in Home Improvement)
  • #41 in Home Improvement > Power & Hand Tools > Power Tool Accessories > Jigs

Customer Reviews

Most Helpful Customer Reviews

10 of 10 people found the following review helpful:

4.0 out of 5 stars Very useful set, with a couple of tweaks, December 23, 2009

By

E. Wolf "Purveyor of fine bits and bytes." (Texas) - See all my reviews
(REAL NAME)

This review is from: Rockler JIG IT Shelving Jig and 1/4'' Bit Set (Misc.)

I recently used this shelf pin jig to put adjustable shelves into a cupboard I built for a customer out of birch plywood. It works very well, with the following, very small complaint: When used on plywood carcasses, mask the surface you are drilling into. The spring is very aggressive, and if you pull the bit back a little too quick from the jig, it is very prone to slightly chip out the edge of the hole with the bit. Masking the surface should fix this problem. I had to go through and redrill once or twice because wood material kept getting hung in the grooves of the bit, but for the price, it is a solid performer. It's no match for a pin jig using a plunge router and straight upcut bit, but for being so portable, it is wonderful. All that said, I recommend it.

4 of 4 people found the following review helpful:

5.0 out of 5 stars Rockler Shelf Jig, October 21, 2010

By

Dave Mac - See all my reviews

Amazon Verified Purchase

This review is from: Rockler JIG IT Shelving Jig and 1/4'' Bit Set (Misc.)

Had seen the product used on New Yankee Workshop and thought it would be a good jig to have. Have used peg boards in the past to do the shelf holes. It works, but left something to be desired. The day my jig arrived, I was building some upper kitchen cabinets and had just finished a small pantry cabinet. All these cabinets needed the adjustable shelving. In the past this process for me would have taken about 2 hours to have done, with all the measuring pencil marking and double checking. Then making sure the tape was at the right depth on the drill bit, and rechecking every few holes. With the Rockler Shelf Jig all I needed to do was to find my center points on the front and back of the sides and line up the marks on the jig itself. Next I had to decide which row (A or B) of holes to use. The jig works great with either framed or frame-less cabinets. The jig was very easy to assemble with the 3 screws supplied. The self-center drill bit made short work of getting the holes centered and aligned. Once the cabinets were hung and the shelves placed, a level was placed on the shelf and it was level. This has been the best jig I have obtained lately. I will be using it to finish my kitchen redo and then the new workshop/garage cabinets.

6 of 7 people found the following review helpful:

5.0 out of 5 stars Wonderful Tool, February 24, 2009

By

Jeremy Paulin - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Rockler JIG IT Shelving Jig and 1/4'' Bit Set (Misc.)

I am very pleased with this product. I dont know how i would have finished my bookcase without this product. All the holes were even and the tool was very easy to maneuver.
