Technical Details
Size: 512 GB
- Brand Name: Samsung
- Model: MZ-7PC512N/AM
- Hard Disk Size: 512.00 GB
- Warranty: 3 year parts
- Hardware Platform: PC, Mac, Unix, Linux
Product DetailsSize: 512 GB
Would you like to update product info or give feedback on images? |
Product Description
Size: 512 GB
From the Manufacturer
Experience fast laptop performance--and prolonged battery life--with the Samsung 830 Series Solid-State Drive. Designed for laptop PCs, this data storage device has a capacity of 512 GB, making it ideal for everyday computing needs like browsing the web, creating documents, viewing multimedia files, or playing PC games. The product features a black-tone, brushed metal design, and at only 0.28 inches thick, it can fit even ultra-thin laptops. A complete laptop installation kit is included along with Norton Ghost 15.0 software that helps you simply and safely migrate your data from your existing hard disk drive to your new SSD.
Samsung 830 Series SSD for Notebook Computers (512 GB)
- Enables you to boot up your computer in as little as 15 seconds
- Energy efficient--improves battery life by up to 30 minutes
- Solid-state design provides greater shock protection for data
- Brushed metal case blocks dust and corrosion
- Superior multi-tasking performance with 3-Core Samsung MCX Controller
- Includes Norton Ghost for fast data migration and backup/recovery support
- Samsung SSD Magician 3.0 software simplifies SSD management
- Laptop upgrade kit provides everything you need to install and maintain your drive
- 100-percent Samsung genuine components
- Backed by a three-year limited warranty
Includes everything you need to simply and safely migrate data from your existing hard disk drive to your new SSD.
Fast Performance for Everyday Computing
The Samsung 830 Series Solid-State Drive boasts superior random read speeds (up to 80,000 IOPS) and fast sequential read and write speeds (up to 520 MB/s and 400 MB/s, respectively). As a result, it's well suited for a wide range of computing needs, like web browsing, document creation, viewing or editing multimedia files, and playing PC games.
The device enables you to boot up your laptop in as little as 15 seconds, and its energy-efficient design can improve your battery life by up to 30 minutes.
This SSD is intended for notebook/laptop computers only. Samsung also offers the 830 Series SSD for Desktop Computers and a basic non-kit version.
Designed for the Latest Laptops
The 830 Series drive is notable for its slim profile and precision design. At only 0.28 inches thick, the device can even accommodate ultra-slim laptop PCs.
Easy Drive Management with SSD Magician Software
Samsung's SSD Magician software eliminates the confusion and uncertainties of SSD management, making it simple for you to maximize the performance and lifetime of your Samsung SSD. The software helps maintain the SSD at its peak condition, giving you the same optimal performance and reliability throughout the life of your PC.
In addition to its performance maintenance features, SSD Magician also provides system information and facilitates performance benchmarking, performance optimization, operating system optimization, firmware updates, securely erasing data, and over-provisioning.
Laptop Installation Kit
Included with the drive is a laptop installation kit that contains a SATA-to-USB adapter cable to facilitate easy data migration, along with a mounting spacer so that laptops with traditional 9.5mm drive bays can accommodate the slim profile of this SSD.
Easy Migration and Backup with Norton Ghost 15.0 Software
All Samsung SSD 830 Series models include a full version of Norton Ghost 15.0 software. In addition to its robust data migration features, Norton Ghost 15.0 offers users advanced data backup and recovery functionality to ensure data integrity throughout the useful lifetime of the drive.
Compatibility and Warranty Information
This Samsung drive is compatible with Microsoft Windows 7 (32-bit and 64-bit), Windows Vista, Windows XP, Mac OS X, and Linux systems. The device measures 0.28 by 2.75 by 3.94 inches (H x W x D) and weighs 2.15 ounces.
The Samsung 830 Series Solid-State Drive is backed by a three-year limited warranty.

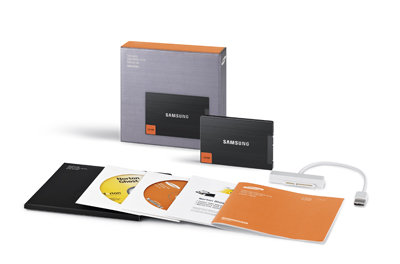

What's in the Box
Samsung 830 Series Solid-State Drive, Samsung SSD Magician software and manual CD, Norton Ghost 15.0 software CD, quick user manual, drive spacer, and SATA-to-USB adapter cable.
 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*The Samsung 830 Series SSD Drives also comes in a basic non-kit version and a desktop kit.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Description
The Samsung SSD 830 Series boasts superior random read speeds and faster sequential read and write speeds (up to 520 MB/s & 400 MB/s respectively). It's the ideal solution for your everyday computing needs, such as web browsing, document creation, viewing or editing multimedia files, playing PC games, etc. As the world's #1 DRAM, NAND Flash, and SSD supplier, Samsung has unique, industry-leading engineering resources, technologies, and manufacturing processes as well as more stringent quality and testing standards. All Samsung SSDs are designed and built completely in-house. Optimized for exceptional, sustained performance, the 830 Series features unrivaled reliability through its specially-engineered wear-leveling and garbage collection algorithms. The Samsung SSD 830 Series features stunning design and precision engineering – inside and out. It measures only 7mm thick, so it can even accommodate the latest ultra-slim laptop PCs. Magician Software Samsung's SSD Magician software eliminates the confusion and uncertainties of SSD management, making it simple for users to maximize the performance and lifetime of their Samsung SSD. The Samsung SSD 830 series is available with both desktop and laptop installation kits. The desktop kit comes with SATA data and power cables, screws, and a 2.5” to 3.5” adapter bracket. The laptop kit includes a SATA to USB adapter cable to facilitate easy data migration and a mounting spacer so that laptops with traditional 9.5mm drive bays can accommodate the Samsung SSD 830 Series' new slim profile. All Samsung SSD 830 Series models include a full version of Norton Ghost 15.0, rather than the limited data migration utilities included with most SSDs today. In addition to its robust data migration features, Norton Ghost 15.0 offers users advanced data backup and recovery functionality to ensure data integrity throughout the useful lifetime of the drive.
What Other Items Do Customers Buy After Viewing This Item?
Customer Reviews
Most Helpful Customer Reviews
170 of 174 people found the following review helpful
By Goodo
Size Name:256 GB|Amazon Verified Purchase
This is my very first Solid State Drive (SSD) purchase, which I put into my late 2008 unibody 15-inch Macbook Pro (MBP) 2.4 GHz Intel Core 2 Duo with 4 GB of RAM. I was initially going to purchase a new laptop as my MBP seemed to be running a bit slower and hung up here and there when I had many applications running. In particular, I experienced considerable slowness and lag after I would finish using my VirtualBox (free virtualization software) to access Windows XP whenever I needed to use Internet Explorer.
My main reason for choosing the Samsung 830 SSD over others, was due to the fact that Samsung makes all the components in this SSD and that Apple themselves currently use Samsung and Toshiba as suppliers for SSD - and we all know how serious Apple is about their quality control and selection of vendors/suppliers they use. In addition, I had read good reviews from online sources such as AnandTech.
I wanted something that was reliable and was easy to set up. In addition, this SSD does not need a separate enclosure as the device itself is enclosed and it comes with the SATA/USB connection cable.
For all of you out there with a Macbook thinking about upgrading, I would highly recommend this. I read through tons of websites and how to's and wanted to share the steps I took below in swapping out my hard drive for the SSD, for those of you out there thinking about upgrading their MBP with a SSD in simple steps. See below (bear in mind that depending on the model and year of your MBP, it maybe easy or more difficult to access your hard drive vs mine)
All I had to do to replace my hard drive with this SSD (for my Macbook Pro) was to:
1) Download Carbon Copy Cloner (free, find it using google)
2) Open the Carbon Copy Cloner application
3) Insert the SATA connection (the SATA/USB connection is included in the box) into the Samsung 830 SSD, and plug in the USB connector into my MBP -> use Disk Utility to format the SSD (do your partitions once it's been formatted if you want)
4) Then using Carbon Copy Cloner -> clone my current hard drive into the Samsung 830 SSD (took me about 2 hours or less to copy over 140GB worth of data)
5) Test the Samsung 830 SSD by booting up through the external Samsung 830 SSD, by restarting the MBP, then holding onto the Option key before the gray screen appears, then boot it up
6) Once external booting through the external SSD is successful, shut down the MBP, open and swap out the hard drive with the SSD (make sure you have the necessary tools to open and access your hard drive in your MBP)
7) Power up your new MBP and enjoy your new and fast Samsung 830 SSD
*After I had cloned my hard drive to my new Samsung 830 SSD, it took me a whole 15-20 minutes to swap out the hard drive and I'm now using my MBP to type this review. I read some PC users installing their SSD's taking ages, reinstalling software and operating systems. This is the easiest and simplest solution for me (thanks to Carbon Copy Cloner as it copies everything including the operating system) and allows me to get back to work on my MBP with little to no down time and no hassles with reinstalling anything* Just in case people were wondering, this was my first time swapping out any hard drive, so I have little experience with computer components, yet it was super easy for me to do.
I'm currently running my new SSD with no issues and enjoying the speed that comes with having a SSD vs the traditional hard drive. I'm glad I chose Samsung. As I use my MBP primarily for work, I need the reliability and do not want the hassle of having my SSD returned or having the controller die on me as I read happens on a lot of other SSD's.
Thanks for reading my very first review/post on amazon and enjoy everyone, hope it will help some of you Mac users out there : )
My main reason for choosing the Samsung 830 SSD over others, was due to the fact that Samsung makes all the components in this SSD and that Apple themselves currently use Samsung and Toshiba as suppliers for SSD - and we all know how serious Apple is about their quality control and selection of vendors/suppliers they use. In addition, I had read good reviews from online sources such as AnandTech.
I wanted something that was reliable and was easy to set up. In addition, this SSD does not need a separate enclosure as the device itself is enclosed and it comes with the SATA/USB connection cable.
For all of you out there with a Macbook thinking about upgrading, I would highly recommend this. I read through tons of websites and how to's and wanted to share the steps I took below in swapping out my hard drive for the SSD, for those of you out there thinking about upgrading their MBP with a SSD in simple steps. See below (bear in mind that depending on the model and year of your MBP, it maybe easy or more difficult to access your hard drive vs mine)
All I had to do to replace my hard drive with this SSD (for my Macbook Pro) was to:
1) Download Carbon Copy Cloner (free, find it using google)
2) Open the Carbon Copy Cloner application
3) Insert the SATA connection (the SATA/USB connection is included in the box) into the Samsung 830 SSD, and plug in the USB connector into my MBP -> use Disk Utility to format the SSD (do your partitions once it's been formatted if you want)
4) Then using Carbon Copy Cloner -> clone my current hard drive into the Samsung 830 SSD (took me about 2 hours or less to copy over 140GB worth of data)
5) Test the Samsung 830 SSD by booting up through the external Samsung 830 SSD, by restarting the MBP, then holding onto the Option key before the gray screen appears, then boot it up
6) Once external booting through the external SSD is successful, shut down the MBP, open and swap out the hard drive with the SSD (make sure you have the necessary tools to open and access your hard drive in your MBP)
7) Power up your new MBP and enjoy your new and fast Samsung 830 SSD
*After I had cloned my hard drive to my new Samsung 830 SSD, it took me a whole 15-20 minutes to swap out the hard drive and I'm now using my MBP to type this review. I read some PC users installing their SSD's taking ages, reinstalling software and operating systems. This is the easiest and simplest solution for me (thanks to Carbon Copy Cloner as it copies everything including the operating system) and allows me to get back to work on my MBP with little to no down time and no hassles with reinstalling anything* Just in case people were wondering, this was my first time swapping out any hard drive, so I have little experience with computer components, yet it was super easy for me to do.
I'm currently running my new SSD with no issues and enjoying the speed that comes with having a SSD vs the traditional hard drive. I'm glad I chose Samsung. As I use my MBP primarily for work, I need the reliability and do not want the hassle of having my SSD returned or having the controller die on me as I read happens on a lot of other SSD's.
Thanks for reading my very first review/post on amazon and enjoy everyone, hope it will help some of you Mac users out there : )
74 of 77 people found the following review helpful
5.0 out of 5 stars
NEED FOR SPEED! You got it... and without losing the factory F4 recovery option. HERE IS HOW!
March 13, 2012
Size Name:512 GB
This drive is FAST, FAST, FAST there is no way going back to traditional mechanical HDD (Hard Disk Drives).
Read no further, if you want a fast drive that works... THIS IS IT!
EASY
Surprisingly easy to set up and to transfer the Win 7 OS (Operating System).
You don't have to be a software expert to do this.
The SSD comes with USB/SATA cable and Norton Ghost 15 for transferring your "old" OS.
Actually, I thought I was in for a major task but it was VERY easy and fast.
Two laptops are now set up with the Samsung 830 Series drives. During this process I learned a couple things (explained below).
DECISIONS BEFORE YOU START
You can either:
1. Ghost the original OS and your installed programs to the new SSD (from the "old" HDD)
2. Or do a clean install of the OS on your new SSD.
You must have a recovery disk(s) (normally made by you when the computer is new) or an original OS disk to perform option 2.
Even an upgrade OS disk will work for a clean install as Microsoft has relaxed their policies (Google: Microsoft Says Windows 7 Install Workaround Is Legal)
Both options were available to me because both of our Samsung laptops came with the FULL version of Win 7 on DVD (very unusual these days - what a delight).
Models: Samsung 17" NP-RF711-S03US (SATA II) and Samsung 15.6" NP700Z5A-S03US (SATA III) now equipped with 256GB and 512GB SSDs respectively.
OPTION 1 - Very Quick
Ghosting is your best choice if the computer and OS is "fresh" out of the box.
It is also preferable if everything is running smoothly and you want to avoid reinstalling all your favorite programs.
You maintain all the drivers, factory software and your own software.
(But you also inherit any problems or bloatware* present on the current system).
*Promotional software you have to pay extra for after a trial period.
OPTION 2 - Takes Longer
A "clean install" is your best choice if your OS has issues or you want to get rid of a lot of bloatware or programs you never use.
Your computer will normally run faster after a clean install.
NOTE: It makes it a lot easier if you download (and Unzip) Drivers and the manufacturers Software from the PC manufactures website before you start the install as you have to load all these after the clean install (or at least the drivers).
Hint: Download them to the C: partition on the HDD "before you do anything else". Then you have easy access after Ghosting - and boy do they install fast!
You just double-click on the Setup.exe (also marked Application) for each driver.
TRANSFERRING THE OPERATING SYSTEM TO THE NEW SSD (Option 1)
The Samsung SSD comes with Norton Ghost and a "custom" User Manual outlining how to transfer your HDD to the new Samsung SSD. This "custom" Manual can be found on the SSD Magician DVD (also included).
Read the "custom" Manual BEFORE you start.
Pay special attention to two important points:
A) You must "initialize" the SSD first. Connect the new SSD with the included cable to a USB port and follow the instructions in the "custom" manual for how to do this (real easy).
B) If your HDD have a 100MB SYSTEM partition you MUST Ghost this partition before any other partitions.
TO MY DISAPPOINTMENT...
GHOST can not transfer the PC manufacturer's recovery partition from the original HDD to the new drive. THIS PARTITION CAN NOT BE COPIED!
This is disappointing especially for laptop users as the F4 option for restoring the system normally presented at boot-up will no longer work.
I have had to recover my old laptop being on the road where F4 saved me (as I don't carry backup disks when I travel).
Anyway, the transfer was easy and after replacing the HDD with the Ghosted SSD everything was just as before EXCEPT THE SPEED. A reboot takes approximately 22 seconds and programs are near instant when you start them. Time wise it seems like a program is already running when you click the icon (except for some very large CAD programs).
Obviously I tried Ghosting the recovery partition anyway, thinking perhaps there was a way - but no - not using Norton Ghost.
Instead while trying different backup and restore schemes I tried EaseUS ToDo Backup Free (a free application for home use). IT DID IT!!!
The recover partition transferred flawlessly using the Clone -> Partition Clone -> Sector by Sector option.
Actually you may be able to use the Clone -> Disk Clone option for the entire drive (NOTE: I have not tried it myself but the option is available)
USING THE "OLD" HDD FOR STORAGE AND BACKUP
My 750GB 5800 RPM HDD was put to use in the 17" laptop as it had two drive bays (one was empty).
The other 750GB 7200 RPM HDD from the 15" laptop was put to use in an ineo I-NA201U-Plus, 2.5-Inch Plus Super Speed USB 3.0 to SATA External Hard Drive Enclosure (Grey) USB 3.0 drive enclosure. Perfect for storage and backup.
The "old" HDD puts out a bit of heat so I opted for the Ineo enclosure because it is made of aluminum and gets rid of heat better than a plastic enclosure.
RECOVERY AND BACKUP
My preference was to use the native Win 7 backup and restore; however it turned out that the backup file became very large because Win 7 would automatically include OS and OS backup from the "old" HDD as well.
My second choice was the backup feature in Norton Ghost, at least I could select what to backup. However it turned out that it excluded the 64 bit drivers in the backup.
My preference turned out to be the backup and restore using the EaseUS ToDo Backup Free. It has nice clean and easy to understand interface.
The only (minor) hurdle was to download and install a free Microsoft AIK (Automated Installation Kit) application prior in order for make a bootable recovery disk.
I did not find out until late in the game that I could restore the F4 recovery partition thus I did not use the Samsung Recovery/Backup/Restore software that came with the Laptop.
Otherwise I would probably have opted for this option.
SAMSUNG SDD MAGICIAN - SOFTWARE
This DVD comes as part of the Samsung SSD kit. Shortly after you have your SSD installed you MUST optimize your OS for SSD operation. With a few clicks it optimized the settings in Win 7 for SSD.
It is very easy to use as it shows a N on a red background for all items that are not "tuned". All you have to do is put a check mark next to each and click tune - you now see a Y on a green background (it only takes a few seconds compared to trying to figure out how to do it from within Windows).
PHYSICAL INSTALLATION OF THE SSD
The 17" laptop was easy because after removing one Philips screw a section of the bottom cover would slide off exposing the drive bays. The laptop also came with a bracket and the SATA cable for connecting the SSD to the internal adapter.
The 15" Samsung Series 7 laptop was a bit more difficult as the entire bottom cover of the laptop had to be separated from the upper half. I used a 2.4 mm (P00) Philips screw driver and a credit card. You may not have the screw driver but I am sure you have a credit card - if you bought a Solid State Drive :)
- anyway make sure you use a high quality screwdriver* as it will be very difficult to remove a screw with a stripped head (also think about warranty).
After removing ALL the screws from the bottom cover, starting from the back (between the hinges) and working the edge of the credit card all the way around it was possible with a lot of patience and care to separate and remove the bottom cover by sliding/pushing/prying the credit card into the joint between the two parts.
*Caution regarding the Samsung Series 7 laptop.
Insert the screwdriver gently into the Philips head and make sure it fits AND it is seated then apply straight downward pressure while turning counter clock wise.
I am a craftsman and have taken a lot of stuff apart but the Samsung Series 7 laptop screws were somewhat tricky. I tried first with a cheap (new) screwdriver and the slight deformation it made (because of poor fit in one of the screw heads) almost prevented me from using the high "craftsman quality" screwdriver afterwards. Do yourself a favor; purchase a P0, P00, P000 and P1 screwdriver before you start (Sears). These are sold separately as opposed to a kit (I have several kits but none of the screwdrivers are high quality).
NOTE: Your laptop brand may be easy to take apart with "any old screw driver".
UPGRADING AN "OLD" COMPUTER
Any "old" computer (Laptop or Desktop) with SATA II - HDD is likely to experience big improvements with an SSD. A Desktop may be easer than a laptop to "operate on" as you have more physical space and probably an extra drive bay so you can continue using the "old" HDD as a second backup drive.
The key to obtain the speed is to install the OS and your programs on the SSD along with the files you normally work on.
Win 7 has native features built-in to facilitate proper operation of SSDs. You may consider an OS upgrade if you are running XP or Vista (however the "custom" manual also tells you how to do it on an XP machine).
Mac users can use OS X 10.6.8 or later.
LESSONS LEARNED
If you back up to an external USB drive/HDD etc. you must use the USB 2.0 port if you are doing a RESTORE from the external drive. Because the driver for the USB 3.0 port is not loaded when you boot from a RECOVERY disk (so it/you can not find the external drive if plugged into the USB 3.0 port). You can obviously disregard this detail if you don't have USB 3.0 port(s). Read more ›
Read no further, if you want a fast drive that works... THIS IS IT!
EASY
Surprisingly easy to set up and to transfer the Win 7 OS (Operating System).
You don't have to be a software expert to do this.
The SSD comes with USB/SATA cable and Norton Ghost 15 for transferring your "old" OS.
Actually, I thought I was in for a major task but it was VERY easy and fast.
Two laptops are now set up with the Samsung 830 Series drives. During this process I learned a couple things (explained below).
DECISIONS BEFORE YOU START
You can either:
1. Ghost the original OS and your installed programs to the new SSD (from the "old" HDD)
2. Or do a clean install of the OS on your new SSD.
You must have a recovery disk(s) (normally made by you when the computer is new) or an original OS disk to perform option 2.
Even an upgrade OS disk will work for a clean install as Microsoft has relaxed their policies (Google: Microsoft Says Windows 7 Install Workaround Is Legal)
Both options were available to me because both of our Samsung laptops came with the FULL version of Win 7 on DVD (very unusual these days - what a delight).
Models: Samsung 17" NP-RF711-S03US (SATA II) and Samsung 15.6" NP700Z5A-S03US (SATA III) now equipped with 256GB and 512GB SSDs respectively.
OPTION 1 - Very Quick
Ghosting is your best choice if the computer and OS is "fresh" out of the box.
It is also preferable if everything is running smoothly and you want to avoid reinstalling all your favorite programs.
You maintain all the drivers, factory software and your own software.
(But you also inherit any problems or bloatware* present on the current system).
*Promotional software you have to pay extra for after a trial period.
OPTION 2 - Takes Longer
A "clean install" is your best choice if your OS has issues or you want to get rid of a lot of bloatware or programs you never use.
Your computer will normally run faster after a clean install.
NOTE: It makes it a lot easier if you download (and Unzip) Drivers and the manufacturers Software from the PC manufactures website before you start the install as you have to load all these after the clean install (or at least the drivers).
Hint: Download them to the C: partition on the HDD "before you do anything else". Then you have easy access after Ghosting - and boy do they install fast!
You just double-click on the Setup.exe (also marked Application) for each driver.
TRANSFERRING THE OPERATING SYSTEM TO THE NEW SSD (Option 1)
The Samsung SSD comes with Norton Ghost and a "custom" User Manual outlining how to transfer your HDD to the new Samsung SSD. This "custom" Manual can be found on the SSD Magician DVD (also included).
Read the "custom" Manual BEFORE you start.
Pay special attention to two important points:
A) You must "initialize" the SSD first. Connect the new SSD with the included cable to a USB port and follow the instructions in the "custom" manual for how to do this (real easy).
B) If your HDD have a 100MB SYSTEM partition you MUST Ghost this partition before any other partitions.
TO MY DISAPPOINTMENT...
GHOST can not transfer the PC manufacturer's recovery partition from the original HDD to the new drive. THIS PARTITION CAN NOT BE COPIED!
This is disappointing especially for laptop users as the F4 option for restoring the system normally presented at boot-up will no longer work.
I have had to recover my old laptop being on the road where F4 saved me (as I don't carry backup disks when I travel).
Anyway, the transfer was easy and after replacing the HDD with the Ghosted SSD everything was just as before EXCEPT THE SPEED. A reboot takes approximately 22 seconds and programs are near instant when you start them. Time wise it seems like a program is already running when you click the icon (except for some very large CAD programs).
Obviously I tried Ghosting the recovery partition anyway, thinking perhaps there was a way - but no - not using Norton Ghost.
Instead while trying different backup and restore schemes I tried EaseUS ToDo Backup Free (a free application for home use). IT DID IT!!!
The recover partition transferred flawlessly using the Clone -> Partition Clone -> Sector by Sector option.
Actually you may be able to use the Clone -> Disk Clone option for the entire drive (NOTE: I have not tried it myself but the option is available)
USING THE "OLD" HDD FOR STORAGE AND BACKUP
My 750GB 5800 RPM HDD was put to use in the 17" laptop as it had two drive bays (one was empty).
The other 750GB 7200 RPM HDD from the 15" laptop was put to use in an ineo I-NA201U-Plus, 2.5-Inch Plus Super Speed USB 3.0 to SATA External Hard Drive Enclosure (Grey) USB 3.0 drive enclosure. Perfect for storage and backup.
The "old" HDD puts out a bit of heat so I opted for the Ineo enclosure because it is made of aluminum and gets rid of heat better than a plastic enclosure.
RECOVERY AND BACKUP
My preference was to use the native Win 7 backup and restore; however it turned out that the backup file became very large because Win 7 would automatically include OS and OS backup from the "old" HDD as well.
My second choice was the backup feature in Norton Ghost, at least I could select what to backup. However it turned out that it excluded the 64 bit drivers in the backup.
My preference turned out to be the backup and restore using the EaseUS ToDo Backup Free. It has nice clean and easy to understand interface.
The only (minor) hurdle was to download and install a free Microsoft AIK (Automated Installation Kit) application prior in order for make a bootable recovery disk.
I did not find out until late in the game that I could restore the F4 recovery partition thus I did not use the Samsung Recovery/Backup/Restore software that came with the Laptop.
Otherwise I would probably have opted for this option.
SAMSUNG SDD MAGICIAN - SOFTWARE
This DVD comes as part of the Samsung SSD kit. Shortly after you have your SSD installed you MUST optimize your OS for SSD operation. With a few clicks it optimized the settings in Win 7 for SSD.
It is very easy to use as it shows a N on a red background for all items that are not "tuned". All you have to do is put a check mark next to each and click tune - you now see a Y on a green background (it only takes a few seconds compared to trying to figure out how to do it from within Windows).
PHYSICAL INSTALLATION OF THE SSD
The 17" laptop was easy because after removing one Philips screw a section of the bottom cover would slide off exposing the drive bays. The laptop also came with a bracket and the SATA cable for connecting the SSD to the internal adapter.
The 15" Samsung Series 7 laptop was a bit more difficult as the entire bottom cover of the laptop had to be separated from the upper half. I used a 2.4 mm (P00) Philips screw driver and a credit card. You may not have the screw driver but I am sure you have a credit card - if you bought a Solid State Drive :)
- anyway make sure you use a high quality screwdriver* as it will be very difficult to remove a screw with a stripped head (also think about warranty).
After removing ALL the screws from the bottom cover, starting from the back (between the hinges) and working the edge of the credit card all the way around it was possible with a lot of patience and care to separate and remove the bottom cover by sliding/pushing/prying the credit card into the joint between the two parts.
*Caution regarding the Samsung Series 7 laptop.
Insert the screwdriver gently into the Philips head and make sure it fits AND it is seated then apply straight downward pressure while turning counter clock wise.
I am a craftsman and have taken a lot of stuff apart but the Samsung Series 7 laptop screws were somewhat tricky. I tried first with a cheap (new) screwdriver and the slight deformation it made (because of poor fit in one of the screw heads) almost prevented me from using the high "craftsman quality" screwdriver afterwards. Do yourself a favor; purchase a P0, P00, P000 and P1 screwdriver before you start (Sears). These are sold separately as opposed to a kit (I have several kits but none of the screwdrivers are high quality).
NOTE: Your laptop brand may be easy to take apart with "any old screw driver".
UPGRADING AN "OLD" COMPUTER
Any "old" computer (Laptop or Desktop) with SATA II - HDD is likely to experience big improvements with an SSD. A Desktop may be easer than a laptop to "operate on" as you have more physical space and probably an extra drive bay so you can continue using the "old" HDD as a second backup drive.
The key to obtain the speed is to install the OS and your programs on the SSD along with the files you normally work on.
Win 7 has native features built-in to facilitate proper operation of SSDs. You may consider an OS upgrade if you are running XP or Vista (however the "custom" manual also tells you how to do it on an XP machine).
Mac users can use OS X 10.6.8 or later.
LESSONS LEARNED
If you back up to an external USB drive/HDD etc. you must use the USB 2.0 port if you are doing a RESTORE from the external drive. Because the driver for the USB 3.0 port is not loaded when you boot from a RECOVERY disk (so it/you can not find the external drive if plugged into the USB 3.0 port). You can obviously disregard this detail if you don't have USB 3.0 port(s). Read more ›
26 of 27 people found the following review helpful
5.0 out of 5 stars
Voice of Reason... the Samsung 830 SSD in a Vaio Z790 Notebook is Fantastic!
January 2, 2012
Size Name:256 GB
This SSD rocks! I dropped the 256GB version into my 2009, Sata Rev. 2, 3Gb/s, Vaio Z790 Notebook (*See Pics) without a single issue, loaded Windows 7 x 64-bit onto it and was up and running in about 15 minutes! The Samsung Magician software "tunes" your SSD by telling you what you should disable when you run it and will do it for you with a single click. After a performance optimization check, you're good to go. You can also leave everything running 'as is' and manage settings on your own if you please as well. Firmware updates can be done right on your desktop without having to use any bootloaders either like the 470 series does but the boot method does still exist as an option.
Even though I have a Sata Rev. 2, 3Gb/s board, I'm still getting 250-280MB/s Sequential Reads & Writes and my whole system is as snappy as can be. I bought this Sata Rev. 3 drive in case I feel like upgrading my laptop in the future which will then take full advantage of a 6Gb/s board, thus improving large file transfer speeds (roughly 350-550MB/s sequential reads & writes) but in no way am I missing out in real world use until that time comes. Sata Rev. 2 speed is more than sufficient for opening programs and bombing around your machine! Transferring large files to my WD 5400 rpm portable back up drive seemed to take as long as ever so it seems to me that one would need an SSD back up drive to hit those high transfer speeds anyway. That luxury can wait 'til another day! : )
I especially love the instant multi-tasking ability. This is where I think you get the value for your money the most. No more lag and dogging it when running a video and then opening 2 or 3 more more windows and other programs as things come to mind. It used to drive me nuts before playing the waiting game. Now it's just click and bang, it opens and it's there. What's really great is that this kind of performance is achieved on my CPU power saver mode which keeps the fan noise to a minimum. Crazy!
I waited 2 years to get one of these because I wouldn't pay the outrageous $600-$800 price tag on principle alone. But for under $400 with a 3 year warranty, the new Batman Game (a 16GB torrent file download BTW!), Full Norton Ghost (on Disk), a Sata to USB cable and a 2.5mm spacer (drive is 7mm) I went for it. It's still pricey but at least it's a satisfying pricey (to me anyway). If a snappy system is worth it to you, then go for it! This SSD removed my sense of impatience which is exactly what I was hoping for.
Intel & Samsung have the most favourable reliability reviews out there and this being the latest to hit the market, being built entirely in house without any third party components or controllers, the stellar reviews on the 470 series, the 3 year warranty and better price is why I chose the Samsung over the Intel.
A couple of technical things to note is that this SSD apparently uses a 256MB cache for user data that is volatile during a sudden power loss. This doesn't concern me because if my notebook ever became accidentally unplugged my battery would take over and it is always charged. If my battery did ever happen to lose its charge and I lost tomorrow's powerpoint presentation that I was working on it would give a new meaning to back up your work at regular intervals! There have also been concerns about TRIM/ GC not occurring until idle but I have already used 180GB of space that isn't going to change much and there is zero slow down with what I have left. I also ran a background program to see TRIM activity and the Magician GC from the TRIM command starts as SOON as you stop doing something. All I can say is listen to the voice of reason here... this SSD is fassst & good enough!
Finally, FYI, the 3 year warranty at the back of the manual (pdf) is broken down into 3 parts. If something ever went wrong with the SSD, credit would be applied as follows...
Within One year 100%
Within Two years 75%
Within Three years 50%
Later!
Even though I have a Sata Rev. 2, 3Gb/s board, I'm still getting 250-280MB/s Sequential Reads & Writes and my whole system is as snappy as can be. I bought this Sata Rev. 3 drive in case I feel like upgrading my laptop in the future which will then take full advantage of a 6Gb/s board, thus improving large file transfer speeds (roughly 350-550MB/s sequential reads & writes) but in no way am I missing out in real world use until that time comes. Sata Rev. 2 speed is more than sufficient for opening programs and bombing around your machine! Transferring large files to my WD 5400 rpm portable back up drive seemed to take as long as ever so it seems to me that one would need an SSD back up drive to hit those high transfer speeds anyway. That luxury can wait 'til another day! : )
I especially love the instant multi-tasking ability. This is where I think you get the value for your money the most. No more lag and dogging it when running a video and then opening 2 or 3 more more windows and other programs as things come to mind. It used to drive me nuts before playing the waiting game. Now it's just click and bang, it opens and it's there. What's really great is that this kind of performance is achieved on my CPU power saver mode which keeps the fan noise to a minimum. Crazy!
I waited 2 years to get one of these because I wouldn't pay the outrageous $600-$800 price tag on principle alone. But for under $400 with a 3 year warranty, the new Batman Game (a 16GB torrent file download BTW!), Full Norton Ghost (on Disk), a Sata to USB cable and a 2.5mm spacer (drive is 7mm) I went for it. It's still pricey but at least it's a satisfying pricey (to me anyway). If a snappy system is worth it to you, then go for it! This SSD removed my sense of impatience which is exactly what I was hoping for.
Intel & Samsung have the most favourable reliability reviews out there and this being the latest to hit the market, being built entirely in house without any third party components or controllers, the stellar reviews on the 470 series, the 3 year warranty and better price is why I chose the Samsung over the Intel.
A couple of technical things to note is that this SSD apparently uses a 256MB cache for user data that is volatile during a sudden power loss. This doesn't concern me because if my notebook ever became accidentally unplugged my battery would take over and it is always charged. If my battery did ever happen to lose its charge and I lost tomorrow's powerpoint presentation that I was working on it would give a new meaning to back up your work at regular intervals! There have also been concerns about TRIM/ GC not occurring until idle but I have already used 180GB of space that isn't going to change much and there is zero slow down with what I have left. I also ran a background program to see TRIM activity and the Magician GC from the TRIM command starts as SOON as you stop doing something. All I can say is listen to the voice of reason here... this SSD is fassst & good enough!
Finally, FYI, the 3 year warranty at the back of the manual (pdf) is broken down into 3 parts. If something ever went wrong with the SSD, credit would be applied as follows...
Within One year 100%
Within Two years 75%
Within Three years 50%
Later!
Most Recent Customer Reviews
5.0 out of 5 stars
AWESOME
FAST. Just plain FAST. I put this in my laptop and my boot up went from about 2 min to about 15 seconds. Everything runs fast now.
Published 7 days ago by Raymond V. Lewis
2.0 out of 5 stars
No Samsung support - Difficult install
Samsung e-mailed, essentially, 'this is not our drive' despite it having Samsung on the exterior, and being recognized, eventually, by my computer as a Samsung 830/128gB SSD. Read more
Published 9 days ago by Michael
5.0 out of 5 stars
Very Easy
I did not even try to use the software that came with the drive - I used their cable and downloaded cloning software directly from Samsung (free) and it did everything I needed. Read more
Published 14 days ago by John Blankenship
5.0 out of 5 stars
works great in my macbook pro
I needed more space, I installed this one, and I couldn't be happier. I do not notice any difference in speed from the stock ssd. Read more
Published 1 month ago by Rex Feany
4.0 out of 5 stars
Speed is great
If it must go quickly than use this product it really speeds up your system. I should have known this sooner.
Published 1 month ago by Rudi Szrek
5.0 out of 5 stars
Old classic. Get them while you still can.
The Samsung 830 is one of the most trusted & reliable SSDs in the market. Sadly, as of this writing, it's been discontinued and increasingly harder to get. Read more
Published 1 month ago by davepy
5.0 out of 5 stars
Espectacular compra!!!
-Indispensable cuando queremos agilizar nuestro notebook. Uno piensa que el problema siempre es el procesador o la memoria y realmente se da cuenta la importancia en la velocidad... Read more
Published 1 month ago by Gabriel Muro
5.0 out of 5 stars
Fantastic!
Excellent ssd drive for the money. Windows 8 detected it and install was flawless. Super fast vs platter HDs. Boot up is amazing. Sticking with Samsung for Ssd drives.
Published 1 month ago by Mark Lachendro
5.0 out of 5 stars
samsung SSD is a good thing in my case!
SSD's are young, they seem to have tempers. Samsung is considered high quality all throughout the interwebs. what? 2-3 months I've had it? Read more
Published 1 month ago by ben
5.0 out of 5 stars
Most impressive hardware upgrade.
fast, fast, fast. Put one of these in my Thinkpad. SSD is the way to go! I am very happy with the purchase.
Published 1 month ago by P. Early
|
|
|||||||
|
