Product DetailsCapacity: 1.5 TB
Would you like to update product info or give feedback on images? |
Product Description
Capacity: 1.5 TB
From the Manufacturer

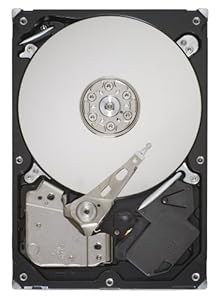

Seagate® Barracuda® drives deliver reliable service and high performance. The Barracuda family has been developed and refined over 12 generations and embodies the highest levels of design for reliability and performance. While Barracuda LP is the low power leader, the entire family of Barracuda drives lead with environmental friendly storage. Typically 70 percent or more of the materials used in each drive are recycled as well as being RoHS compliant. With capacities from 160GB all the way to 2TB, and cache sizes up to 64MB, there is Barracuda drive to fit your needs. Whether it's mainstream PC, high-end PC, gaming PC, desktop RAID or storage for USB/FireWire/eSATA connected external, Seagate offers a Barracuda drive for every need.
| Seagate® Barracuda® 3.5-Inch Internal Drive | What the experts are saying... | ||||||||||||||||
|
| ||||||||||||||||
 |  | ||
| Seagate is thinking green. "Seagate had already begun demanding 'full materials disclosure' of its suppliers, requiring them to report all the chemicals present in their products, when Apple came knocking with its new orders in 2007." � Peter Burrows, BusinessWeek |  | ||
 |  | ||
Seagate® Barracuda® Family Hard Drives: Desktop storage for every need
Barracuda Drive Specifications
| Specifications | 1.5 TB1 | 1 TB1 | 750 GB1 | 500 GB1 | 320 GB1 | 250 GB1 | 160 GB1 |
| Model Number | ST31500341AS | ST31000528AS | ST3750528AS | ST3500418AS ST3500410AS | ST3320418AS | ST3250318AS | ST3160318AS |
| Interface Options | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ | SATA 3Gb/s NCQ |
| Performance | |||||||
| Transfer Rate, Max Ext (MB/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Sustained Data Rate OD (MB/s) | 120 | 125 | 125 | 125 | 125 | 125 | 125 |
| Cache (MB) | 32 | 32 | 32 | 16 | 16 | 8 | 8 |
| Average Latency (ms) | 4.16 | 4.17 | 4.17 | 4.17 | 4.17 | 4.17 | 4.17 |
| Spindle Speed (RPM) | 7200 | 7200 | 7200 | 7200 | 7200 | 7200 | 7200 |
| Configuration/Organization | |||||||
| Bytes per Sector | 512 | 512 | 512 | 512 | 512 | 512 | 512 |
| Reliability/Data Integrity | |||||||
| Contact Start-Stops | 50,000 | 50,000 | 50,000 | 50,000 | 50,000 | 50,000 | 50,000 |
| Nonrecoverable Read Errors per Bits Read | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 | 1 per 10E14 |
| Annualized Failure Rate | 0.34% | 0.34% | 0.34% | 0.34% | 0.34% | 0.34% | 0.34% |
| Limited Warranty (years) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Power Management | |||||||
| Startup Current +12V Peak (A, ±10%) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Operating, Average (W) | <10.8 | <9.4 | <9.4 | <8.0 | <8.0 | <8.0 | <8.0 |
| Idle, Average (W) | <8.3 | <5.0 | <5.0 | <5.0 | <5.0 | <5.0 | <5.0 |
| Environmental | |||||||
| Temperature (�C) | |||||||
| Operating | 0 to 60 | 0 to 60 | 0 to 60 | 0 to 60 | 0 to 60 | 0 to 60 | 0 to 60 |
| Nonoperating | �40 to 70 | �40 to 70 | �40 to 70 | �40 to 70 | �40 to 70 | �40 to 70 | �40 to 70 |
| Shock (Gs) | |||||||
| Operating: 2 ms | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Nonoperating: 1 ms | 300 | 300 | 300 | 350 | 350 | 350 | 350 |
| Acoustics (bels � sound power) | |||||||
| Idle | 2.6 | 2.5 | 2.5 | 2.6 | 2.6 | 2.6 | 2.6 |
| Seek | 2.7 | 2.7 | 2.7 | 2.75 | 2.75 | 2.75 | 2.75 |
| Physical | |||||||
| Height (in/mm) | 1.02/26.11 | 1.02/26.1 | 1.02/26.1 | 0.78/20 | 0.78/20 | 0.78/20 | 0.78/20 |
| Width (in/mm) | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 | 4.00/101.6 |
| Depth (in/mm) | 5.78/146.99 | 5.787/146.99 | 5.787/146.99 | 5.787/146.99 | 5.787/146.99 | 5.787/146.99 | 5.787/146.99 |
| Width (in/mm) | 1.4/0.64 | 1.4/0.64 | 1.4/0.64 | 1.2/0.54 | 1.2/0.54 | 1.2/0.54 | 1.2/0.54 |
1 One gigabyte, or GB, equals one billion bytes and one terabyte, or TB, equals one trillion bytes when referring to hard drive capacity.
| How much will it store? |  |  |  |  |  |
| Capacity | Digital Music (Hours) | Digital Photos (Files) | Digital Videos (Hours) | DVD Quality (Movies) | HD Video (Hours) |
| 160 GB | 2,666 | 51,200 | 160 | 40 | 40 |
| 250 GB | 4,165 | 80,000 | 250 | 63 | 63 |
| 320 GB | 5,331 | 102,400 | 320 | 80 | 80 |
| 500 GB | 8,330 | 160,000 | 500 | 125 | 125 |
| 640 GB | 10,662 | 204,800 | 640 | 160 | 160 |
| 750 GB | 12,495 | 240,000 | 750 | 188 | 188 |
| 1.0 TB | 16,660 | 320,000 | 1,000 | 250 | 250 |
| 1.5 TB | 24,990 | 480,000 | 1,500 | 375 | 375 |
| Average file size using cameras highest resolution JPEG mode | Based on standard 2 hour movie | Based on H.264 compression at a 6.75Mbs bitrate |
 |  | ||
 | Users can expect a performance boost when using Seagate hard drives with Windows 7
| ||
 |  |
Product Description
The Barracuda 7200.11 drive delivers up to 43 percent power savings over the previous Seagate desktop generation without sacrificing performance, giving customers the ability to manufacture PC systems and external storage systems that meet energy-savings requirements. Like all other Seagate drives, the Barracuda 7200.11 product family complies with the Restriction of Hazardous Substance (RoHS) directive that limits the use of hazardous materials in electronic goods.With the Barracuda 7200.11 drive, our customers can have the best of both worlds—top hard-drive performance and a high-capacity drive with a very small eco-footprint. Seagate is committed to minimizing the impact of our products and operations on the environment. We have implemented production efficiency measures, such as replacing or renovating less-efficient equipment, resulting in a 20 percent increase in production efficiency on a perhard-drive basis. In just six months this delivered a savings of 158.93 million kWh, or enough energy to power nearly 15,000 U.S. homes for one year. Seagate also has deployed aggressive waste minimization and recycling programs in facilities worldwide.
What Other Items Do Customers Buy After Viewing This Item?
Customer Reviews
Most Helpful Customer Reviews
287 of 307 people found the following review helpful
By Honest Guy
Size Name:1.5 TB
NEVER SHOULD HAVE HAPPENED:
I've watched the issue with these drives carefully for about 2 months. It looks like Seagate solved the problem and that a vocal few were ever really affected. By few I mean relative to the thousands sold. And I am not defending Seagate. This whole fiasco was unacceptable.
MY SYSTEM:
I picked up 8 of these drives. I'm running them in 4 separate DLink DNS-321 RAID boxes. I've copied about 4TB of data back and forth across them for days. My only firmware update needed was for the DLink so that it could properly handle the new 1.5TB drives.
In the end I believe all is well with both the drives and the DLink DNS-321. I will of course update this review immediately if I see any problems.
PERFORMANCE:
We are able to watch movies from this drive arrangement on 3 computers simultaneously across a 100mb network from the same drive while adding new files to the drive from a 4th computer.
This means I can be adding movies unattended to the system while watching an Epic Man movie on the plasma in the living room... while the kids are watching Monsters Inc in the bedroom... and the wife is off watching some chic flick in the Den. :)
The combination of DLink and these 1.5TB drives is fantastic and seems as stable as the WD 1TBs I was using previously.
PROPER DIAGNOSIS:
Don't confuse your drive DIEING after a week with the previous firmware problems of this particular drive. Blame the vendor that shipped the drive like it could bounce !
ON A SIDE NOTE:
I will say I am sick of Amazon, Tiger and other vendors shipping hard drives like they are indestructible ROCKS. Even if they arrive working, this inadequate packaging is certainly taking years off the life of our drives.... Read more ›
I've watched the issue with these drives carefully for about 2 months. It looks like Seagate solved the problem and that a vocal few were ever really affected. By few I mean relative to the thousands sold. And I am not defending Seagate. This whole fiasco was unacceptable.
MY SYSTEM:
I picked up 8 of these drives. I'm running them in 4 separate DLink DNS-321 RAID boxes. I've copied about 4TB of data back and forth across them for days. My only firmware update needed was for the DLink so that it could properly handle the new 1.5TB drives.
In the end I believe all is well with both the drives and the DLink DNS-321. I will of course update this review immediately if I see any problems.
PERFORMANCE:
We are able to watch movies from this drive arrangement on 3 computers simultaneously across a 100mb network from the same drive while adding new files to the drive from a 4th computer.
This means I can be adding movies unattended to the system while watching an Epic Man movie on the plasma in the living room... while the kids are watching Monsters Inc in the bedroom... and the wife is off watching some chic flick in the Den. :)
The combination of DLink and these 1.5TB drives is fantastic and seems as stable as the WD 1TBs I was using previously.
PROPER DIAGNOSIS:
Don't confuse your drive DIEING after a week with the previous firmware problems of this particular drive. Blame the vendor that shipped the drive like it could bounce !
ON A SIDE NOTE:
I will say I am sick of Amazon, Tiger and other vendors shipping hard drives like they are indestructible ROCKS. Even if they arrive working, this inadequate packaging is certainly taking years off the life of our drives.... Read more ›
375 of 410 people found the following review helpful
By John
VINE™ VOICE
Size Name:1.5 TB
Update: I wrote this review before a firmware update was made available and my comments reflect the situation at the time. When the updates were made available, I flashed my 5 drives and they've been working fine ever since. I'd change the rating to a 4 star if the editor allowed.
I and many others have been experiencing serious problems with these drives including:
* dropping out of RAID configurations for no apparent reason
* being ejected from a RAID configuration due to read / write errors
* freezing for up to 30 seconds
These problems have been reported on Linux, Vista, XP, and OS X and appear to be related to how the drives flush their write cache. In many cases, the drives work fine for days or weeks before problems appear. In my case, I bought five of these for my Qnap TS-509 Pro and they worked great for about two weeks under various read / write loads. Since then, I've had all three of the problems mentioned above on different drives and they are growing progressively worse. The latest problem was three of the five drives disappearing from the RAID5 volume while I was attempting to copy the files to a different NAS.
A work-around that has been successful for some is to disable the disk write cache. Other than the obvious performance penalty and reduced lifespan this causes, some systems do not provide a means of disabling disk write cache (such as the Qnap).
References to these problems can be found on many forum threads:
Qnap: [...]
Netgear: [...]
Synology: [...]
AVSForum: [...]
macrumors: [...]
Ubuntu: [...]
Slashdot: [...]
Amazon: http://www.amazon.com/review/product/B00066IJPQ/ref=dp_top_cm_cr_acr_txt?... Read more ›
I and many others have been experiencing serious problems with these drives including:
* dropping out of RAID configurations for no apparent reason
* being ejected from a RAID configuration due to read / write errors
* freezing for up to 30 seconds
These problems have been reported on Linux, Vista, XP, and OS X and appear to be related to how the drives flush their write cache. In many cases, the drives work fine for days or weeks before problems appear. In my case, I bought five of these for my Qnap TS-509 Pro and they worked great for about two weeks under various read / write loads. Since then, I've had all three of the problems mentioned above on different drives and they are growing progressively worse. The latest problem was three of the five drives disappearing from the RAID5 volume while I was attempting to copy the files to a different NAS.
A work-around that has been successful for some is to disable the disk write cache. Other than the obvious performance penalty and reduced lifespan this causes, some systems do not provide a means of disabling disk write cache (such as the Qnap).
References to these problems can be found on many forum threads:
Qnap: [...]
Netgear: [...]
Synology: [...]
AVSForum: [...]
macrumors: [...]
Ubuntu: [...]
Slashdot: [...]
Amazon: http://www.amazon.com/review/product/B00066IJPQ/ref=dp_top_cm_cr_acr_txt?... Read more ›
91 of 106 people found the following review helpful
Size Name:1.5 TB
Here's the "consumable" snippet from an email that was sent to tech support/sales/AE's, etc.:
Seagate 1.5TB Customers,
Some Seagate Barracuda 7200.11 1.5TB hard drives may show uncharacteristic
operation when used with Mac and Linux operating systems in multi-drive
configurations. Users may experiences pauses in video streaming applications
or a dropped drive from RAID arrays. Customers seeing these symptoms should
contact Seagate Technical Support for a firmware upgrade.
In order to assure the proper application of the new firmware, please email a
description of the issues youre seeing to Seagate ([...])
Please include the following disk drive information: model number, serial
number and current firmware revision. Also, please describe your
system,operating system and the application in use when the issue arose. We
will respond, promptly, to your email request with appropriate instructions.
Seagate 1.5TB Customers,
Some Seagate Barracuda 7200.11 1.5TB hard drives may show uncharacteristic
operation when used with Mac and Linux operating systems in multi-drive
configurations. Users may experiences pauses in video streaming applications
or a dropped drive from RAID arrays. Customers seeing these symptoms should
contact Seagate Technical Support for a firmware upgrade.
In order to assure the proper application of the new firmware, please email a
description of the issues youre seeing to Seagate ([...])
Please include the following disk drive information: model number, serial
number and current firmware revision. Also, please describe your
system,operating system and the application in use when the issue arose. We
will respond, promptly, to your email request with appropriate instructions.
24 of 25 people found the following review helpful
1.0 out of 5 stars
I wish I could give it zero stars - these drives are STILL faulty as of Jun '09!
July 8, 2009
By Zeev Suraski
Size Name:1.5 TB
If you do NOT value your time, money or data - then I highly recommend this drive. For everyone else - STAY AWAY!
As I said in the title, I truly wish I could give this drive 0 stars, and 0 stars for Seagate's support procedures, too (emphasis on procedures - I have nothing against their support reps). I've used dozens of hard drives from many different vendors over the years (including WD, Seagate, Toshiba, Fujitsu), some were better and some were worse - but I never came close to experience anything quite like what I experienced here.
Bottom line - both the original drive I purchased, as well as the replacement drive I received - crashed within a couple of months of fairly low usage. Read on if you'd like the full details.
When I first bought the drive, it was towards the end of 2008, when Seagate was already acknowledging an issue, and began providing new firmwares. I figured that a big company like Seagate won't be able to afford not-to-fix that issue, and decided the buy the drive despite the negative reports. A clear mistake.
Within several days after purchase I started experiencing the same symptoms people were reporting - the drive slows to a halt, disappears from Windows, and also began to 'develop' a handful of bad sectors. Upgrading the firmwares (multiple times, as they were released) seemed to improve the situation - but didn't really. After less than 4 months, the drive died completely failing to spin up and manifesting the dreaded click of death.
It was the first time ever a drive failed on me while in warranty (discounting a drive that crashed when I dropped my laptop a few years ago - which was completely my fault), so it was an unpleasant surprise to receive a refurbished drive in return.... Read more ›
As I said in the title, I truly wish I could give this drive 0 stars, and 0 stars for Seagate's support procedures, too (emphasis on procedures - I have nothing against their support reps). I've used dozens of hard drives from many different vendors over the years (including WD, Seagate, Toshiba, Fujitsu), some were better and some were worse - but I never came close to experience anything quite like what I experienced here.
Bottom line - both the original drive I purchased, as well as the replacement drive I received - crashed within a couple of months of fairly low usage. Read on if you'd like the full details.
When I first bought the drive, it was towards the end of 2008, when Seagate was already acknowledging an issue, and began providing new firmwares. I figured that a big company like Seagate won't be able to afford not-to-fix that issue, and decided the buy the drive despite the negative reports. A clear mistake.
Within several days after purchase I started experiencing the same symptoms people were reporting - the drive slows to a halt, disappears from Windows, and also began to 'develop' a handful of bad sectors. Upgrading the firmwares (multiple times, as they were released) seemed to improve the situation - but didn't really. After less than 4 months, the drive died completely failing to spin up and manifesting the dreaded click of death.
It was the first time ever a drive failed on me while in warranty (discounting a drive that crashed when I dropped my laptop a few years ago - which was completely my fault), so it was an unpleasant surprise to receive a refurbished drive in return.... Read more ›
Most Recent Customer Reviews
2.0 out of 5 stars
Seagate 750GB SATA Hard Drive
This hard drive came with my new computer and it is now toast after 3.5 years. I started getting the click of death about a month ago. Read more
Published 16 hours ago by Dr Who
1.0 out of 5 stars
weak life span
I have two dell pc's identical both about four years old. One hard drive lasted 1 1/2 years and the other last 3 1/2 . Read more
Published 5 days ago by niteowl100
5.0 out of 5 stars
couldn't beat the price!
for a 1Tb drive the price was awesome ... it was also an exact replacement for my sister's HP ... her drive crashed after 2. Read more
Published 7 days ago by Yzzy
5.0 out of 5 stars
great drove works for me
its a fast hard drive not like my ssd'd but it getf the job dont in my games i love it
Published 1 month ago by Troy
4.0 out of 5 stars
Suited the purpose!
We bought this as a mirror for the drive that was already in place, so we set up a RAID1 mirror. As with all the drives of this particular model, it had to be flashed upgraded to... Read more
Published 1 month ago by Scott Fair
5.0 out of 5 stars
Great drive
Works flawlessly after almost two years. It has outlasted every Western Digital that I've had, which only made a year each
Published 1 month ago by MikeyNC
3.0 out of 5 stars
OK drive - failed after 2 years
I used the 1.5TB version of this drive in my home NAS for about 2 years. It worked great and then the drive died. Read more
Published 1 month ago by John
4.0 out of 5 stars
Love it!!!
This is a really fast HD compare to others that I own gaming or basic use this is one great buy
Published 1 month ago by Fernando Limon
4.0 out of 5 stars
Lots of space.
Hard drive was working good until my external enclosure killed it. I would give it 5 stars, but after less than 6 months of use, I can only hope it would of lasted longer in... Read more
Published 1 month ago by Raymond Oxx
5.0 out of 5 stars
Great hard drive for the money
I picked this had drive up to store my media on and back up my important files.
The HD has been in constant use for 3 years now and had preformed flawlessly. Read more
The HD has been in constant use for 3 years now and had preformed flawlessly. Read more
Published 1 month ago by Jeffrey C. Lewis
