Skil 5680-01 14 Amp 7-1/4-Inch Circular Saw with Laser Beam

by Skil

Product Description

Amazon.com Product Description

The 5680-01 7-1/4-inch SKILSAW is lighter and more compact than previous models, while providing more power to get the job done quickly. User-friendly features, such as a Single Beam Laser Cut Line™ and a wider, more stable foot, allow users to get the job done right the first time. With over 80 years of engineering experience, the 5680-01 combines lightweight design with the power and durability you have come to expect from a SKILSAW.

1 Beam Laser Cut Line™ produces straight, accurate cuts.

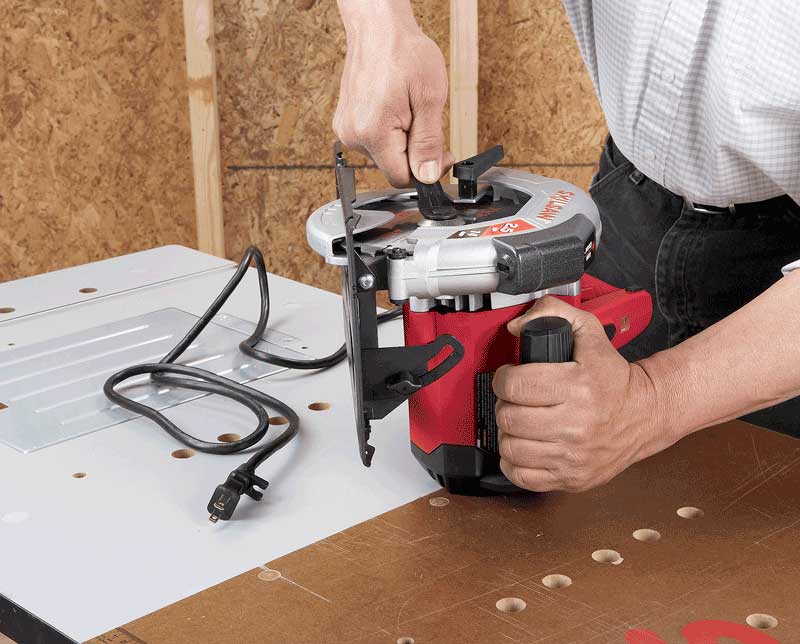

On-tool wrench storage for quick and easy blade changes. View larger.

Equipped with a 24-tooth carbide blade capable of cutting through a variety of materials.

14-amp, 2.5-HP motor with durable ball-bearing construction extends the life of the saw 1 Beam Laser Cut Line™ ensures an accurate cut 1/2 lb lighter and 15% faster than predecessor* Power-on LED alerts the user that tool is plugged in Safety lock-out switch minimizes accidental starts Patented Anti Snag lower guard provides smooth operation for small cut-off pieces Rear lever depth-adjustment quickly assures accurate cut depth in material Wide foot guarantees more stability and control when making cuts On-tool wrench storage for quick and easy blade changes *SKILSAW 5750-01

Innovative Features and Benefits
The 5680-01 SKILSAW has a 14-amp, 2.5-horsepower motor that supplies ample strength for ripping through all varieties of wood, while the 7-1/4-inch 24-tooth carbide blade provides the cutting capacity to tackle a variety of projects, including building decks, fencing, sheds, or wooden furniture. The 5680-01 is also 1/2 of a pound lighter and 15% faster than its predecessor (5750-01), reducing user fatigue while increasing efficiency. And the 1 Beam Laser Cut Line™ helps the user make accurate cut lines.

The 5680-01 SKILSAW possesses many innovative safety features including a patented Anti Snag lower guard, which reduces hang-ups in materials when making narrow cutoffs. A rear depth adjustment lever enables the user to easily adjust the depth of cut, while the trigger safety lock prevents accidental starts. A power-on LED alerts the user that the tool is plugged in, and a wide foot guarantees stability and control when making cuts.

SKIL Heritage
SKIL Power Tools is a leader in portable electric power tools and accessories that serves the consumer do-it-yourself and professional construction markets. Founded in 1924 with the invention of the SKILSAW Worm Drive, SKIL now delivers a complete line of power tools designed and engineered to help do-it-yourselfers achieve home project success, while providing professionals durable, cost-conscience tools for the jobsite.

What's in the Box
5680-01 SKILSAW, 24-tooth carbide blade, wrench, and carrying bag.

Product Specifications Amperage: 14 Arbor Size: 5/8" Round Blade Diameter: 7-1/4" Blade Size: 7-1/4" Certifications: cULus Cord Length: 6' Depth of Cut at 45°: 1-15/16" max cut Depth of Cut at 90°: 2-7/16" max cut Hertz: 50-60 Hz Max. Motor HP: 2.5 HP No Load RPM: 5,300 Power/Duty: 2.3 HP Rating: 12 amp Voltage: 120V Weight: 10.6 lbs

Product Description

Skil, 7-1/4", 14A, Circular Saw With Laser, 2.5HP Motor With Ball Bearing Construction, 1 Beam Cut Line Laser, Power On LED For Powered Tool Alert, Includes: 24T Carbide Blade & Carry Bag, Rear Lever Depth Adjustment For Quick Cut Depth Changes, Safety Lock Out Switch Minimizes Accidental Starts, 15% More Speed For Faster Cuts, Better Finish 1/2 LB Less Weight Reduces User Fatigue, 20% Wider Foot Makes Saw More Stable, Accu-Sight Cut Guide For Cutting Accuracy, Anti-Snag Lower Guard For Small Cut Offs On Tool Wrench Storage For Quick & Easy Blade Changes.

See all Product Description

Product Details

View Demo [PDF]

• Product Dimensions: 10.8 x 17.1 x 10 inches
• Shipping Weight: 16.2 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S. and to APO/FPO addresses. For APO/FPO shipments, please check with the manufacturer regarding warranty and support issues.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B0019RTAHW
• Item model number: 5680-01
• Average Customer Review: 4.4 out of 5 stars  See all reviews (18 customer reviews)
• Amazon Best Sellers Rank: #21,086 in Home Improvement (See Top 100 in Home Improvement)
  • #44 in Home Improvement > Power & Hand Tools > Power Tools > Saws > Circular Saws

Customer Reviews

Most Helpful Customer Reviews

37 of 37 people found the following review helpful:

5.0 out of 5 stars Good value, January 3, 2010

By

Philip J. Bohlken (Caldwell, Idaho) - See all my reviews
(REAL NAME)

This review is from: Skil 5680-01 14 Amp 7-1/4-Inch Circular Saw with Laser Beam (Tools & Home Improvement)

I bought this as a gift for my son. I always check the base plate on a circular saw for flex. Too many saws, even more expensive than this one, have weak base plates that bend a little from the weight of your hand on the saw. The result is that cuts are not accurate and may wander. This saw has a surprisingly rigid base plate. The fact the saw's motor draws 14 amps indicates it has plenty of power, especially with a carbide tipped blade. The motor also has ball bearings. I like the release lever on the depth of cut adjustment that is in place of a simple wing nut. This is a good solid saw. I did use the saw a couple of times and found the laser fell a bit more to one side of the line than it should. The laser can not be adjusted. The electrical cord is very stiff and does not hang loosely. A couple of times its stiffness almost caused it to come into the path of the blade.

31 of 31 people found the following review helpful:

5.0 out of 5 stars As a "beginner" I love this saw, June 25, 2010

By

J. S. Carr (Michigan USA) - See all my reviews
(TOP 1000 REVIEWER)    (REAL NAME)

Amazon Verified Purchase

This review is from: Skil 5680-01 14 Amp 7-1/4-Inch Circular Saw with Laser Beam (Tools & Home Improvement)

I'm not going to pretend to know a lot about this type of saw, or compare it to similar models. I've used very few circ saws in my life, but hopefully my experience with this product as someone inexperienced overall with circ saws will be helpful.

This saw was very easy to get acquainted with. It's easy to change the blades. It's easy to set the cutting depth. The laser guide is not only super cool but also quite useful. I made a hardboard fence as described in the video on the cheap and it works awesome for cutting wider boards too. I've used this saw to cut up to 2x12's for benches I made to go on our deck after getting this saw. It was so quick & easy I built us new deck tables too, and getting straight clean cuts was very easy. I think with just those 2 projects the saw more than paid for itself vs buying pre-made furniture (I used Google SketchUp to design them which tremendously helped them come out well!). Now my lady is crazy about our new deck furniture, thinks I'm just handy as you please, and the investment in this saw quickly paid itself off plus makes me look good. Seriously, what more could you want? Plus I get to say I have a LASER Saw. Heck yeah 5 stars!

Update 3/25/11 (9 months later)
Still loving this saw. This update is actually because I want to point out some things about the laser setting / adjustability, which seems to be a point of (what I feel is) undeserved criticism by many reviews. If you already understand the laser guide don't worry about the rest of this. If you're looking at reviews and have some concerns this should be helpful.

On page 10 of the manual (see [...] ) the manufacturer explains that the laser line guide is set at the factory to the kerf of the blade supplied with the saw, and shows a diagram with the laser line on the right of the line by the appropriate amount. That's the way it's *supposed* to be. This might mean you run the laser on the measurement while the notch on the foot is to the left but again: read the manual. It says right there "If using the laser line guide for cutting you do not need the line guide incorporated in the foot as it may be in a different setting than the laser line guide." Call me crazy but if you get a product that is set up exactly how the manual describes it should be then the product doesn't have a problem.

That said, yes different blades will have different kerfs / cut widths. However, all this means is you use the laser guide positioning the exact same way as the measurements / notches on the foot. Yes you need to use your head and track the laser on the left side, right side, or dead center on your marked line. If you ran the saw using one of the measurements or notches on the shoe you'd have to do the same so I really don't see the problem.

The laser guide is supposed to be easier to see than the notches / measurements on the foot, which it is by A LOT (although you may want to turn so the sun is not directly on it on a particularly bright day). It is also supposed to help you align the saw between measurements which it also does a great job of. The laser line extends pretty far in front of the saw and has allowed me to make perfectly straight cuts between measurements along edges of relatively wide boards without using a straight-edge to mark a line between them, for instance.

The laser guide IS NOT supposed to let you stop using your head. You have a 14 Amp power saw running in your hands. This is not the time to turn off your brain, period.

14 of 15 people found the following review helpful:

5.0 out of 5 stars awsome product, November 24, 2008

By

R. DeVore (cheyenne, wy) - See all my reviews
(REAL NAME)

This review is from: Skil 5680-01 14 Amp 7-1/4-Inch Circular Saw with Laser Beam (Tools & Home Improvement)

I didn't realize how bad my old 20 year old saw was. First time I used this new one I cut thru my sawhorse without even realizing it! Highly recommend the laser, makes even my cuts look like a pro did it!
