  • Smallparts Spur Gear, 20 Degree Pressure Angle, Polyoxymethylene, Inch, 24 Pitch
  • Sorry, this item is not available in
  • Image not available
  • To view this video download Flash Player

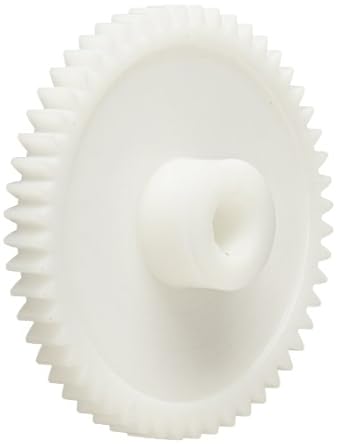

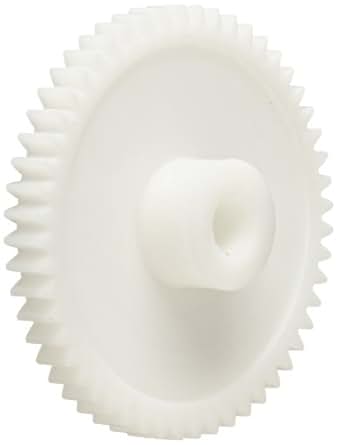

Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

Smallparts Spur Gear, 20 Degree Pressure Angle, Polyoxymethylene, Inch, 24 Pitch

Available in multiple versions


Price: $2.50 - $21.31
Product Specifications
Brand Name Small Parts
Material Type Polyoxymethylene_(POM)
Face Width 1/4  inches
Pitch 24
UNSPSC Code 31171707

This polyoxymethylene spur gear with 20-degree pressure angle (PA) and a di... Read full product description


Currently showing 1-20 of 23 Next »
Pitch Diameter Outside Diameter Bore Diameter Number of Teeth Part Number Price Quantity

0.667 inches 0.750 inches 3/16 inches 16 B000FN0DBS
In Stock (1)
$11.44
Prime Eligible
1.167 inches 1.250 inches 1/4 inches 28 B000FMY7SO
In Stock (2)
$10.46
Prime Eligible
1.416 inches 1.500 inches 1/4 inches 34 B000FMW4S4
In Stock (2)
$13.21
Prime Eligible
1.66 inches 1.750 inches 5/16 inches 40 B000FMW53I
In Stock (2)
$13.69
Prime Eligible
2.166 inches 2.250 inches 5/16 inches 52 B000FMY842
In Stock (3)
$6.24
Prime Eligible
24 inches 1.041 inches 3/16 inches 23 B000FMUAAS
In Stock (3)
$12.36
Prime Eligible
24 inches 1.583 inches 1/4 inches 36 B000FMUAG2
In Stock (1)
$13.38
Prime Eligible
24 inches 1.833 inches 5/16 inches 42 B000FMUAQ2
Temporarily out of stock. Order now and we'll deliver when available.
$7.59
Prime Eligible
24 inches 2.417 inches 5/16 inches 56 B000FMUB9S
In Stock (1)
$14.94
Prime Eligible
24 inches 0.833 inches 3/16 inches 18 B000FMW4F2
In Stock (2)
$9.80
Prime Eligible
24 inches 1.416 inches 1/4 inches 32 B000FMW57E
In Stock (5)
$2.50
Prime Eligible
24 inches 0.959 inches 3/16 inches 21 B000FMY798
In Stock (1)
$12.20
Prime Eligible
24 inches 1.125 inches 1/4 inches 25 B000FMY7KW
In Stock (1)
$12.51
Prime Eligible
24 inches 1.041 inches 1/4 inches 25 B000FMY7MA
In Stock (1)
$21.31
Prime Eligible
24 inches 1.164 inches 1/4 inches 26 B000FMY7OS
In Stock (1)
$7.80
Prime Eligible
24 inches 2.083 inches 5/16 inches 48 B000FMY7YI
In Stock (1)
$12.70
Prime Eligible
24 inches 2.167 inches 5/16 inches 50 B000FMY82E
In Stock (1)
$11.50
Prime Eligible
24 inches 2.333 inches 5/16 inches 54 B000FMY85G
In Stock (1)
$11.81
Prime Eligible
24 inches 0.625 inches 3/16 inches 15 B000FN0DAO
In Stock (1)
$16.43
Prime Eligible
24 inches 0.750 inches 3/16 inches 18 B000FN0DHM
In Stock (1)
$16.16
Prime Eligible
Currently showing 1-20 of 23 Next »
Could not load your selection

We're sorry. An error occured when we tried to load your product family table. Rest assured, we're working to resolve the problem as soon as possible. Please refresh the page.


Product Features

  • Transmits torque between parallel shafts to provide rotational power to another part of a motorized system
  • Pressure angle of 20 degrees for a lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles
  • Diametral pitch of 24 for applications where controlling changes in speed and direction of rotation with precision is more important than transferring torque
  • Polyoxymethylene for quiet operation, low friction and moisture absorption, and high resistance to heat and abrasion

Product Details

  • Shipping Information: View shipping rates and policies
  • Domestic Shipping: Item can be shipped within U.S.
  • International Shipping: This item is not eligible for international shipping. Learn More
  • ASIN: B007NO75E0
  • Average Customer Review: 5.0 out of 5 stars  See all reviews (3 customer reviews)
  • Manufacturer’s warranty can be requested from customer service. Click here to make a request to customer service.

     Would you like to give feedback on images?


Product Description

This polyoxymethylene spur gear with 20-degree pressure angle (PA) and a diametral pitch (DP) of 24 transmits torque between parallel shafts to provide rotational power to another part of a motorized system. It has a 20-degree pressure angle for lower contact ratio between gears, resulting in higher load capacity than smaller pressure angles, and a 24-diametral pitch for applications for applications where controlling changes in speed and direction of rotation with precision is more important than transferring torque. This spur gear, which can mesh only with spur gears that have the same pressure angle and diametral pitch, is made of polyoxymethylene for quiet operation, low friction and moisture absorption, and high resistance to heat and abrasion. This SmallParts spur gear is suitable for use in a variety of commercial and industrial applications, such as construction equipment, aeronautics, conveyors, and manufacturing equipment, among others.

Spur gears, the most common gear type, have a circular or cylindrical shape with teeth bordering the outer perimeter and are used for transmitting rotational torque and motion between parallel rotating shafts. A spur gear's pressure angle (PA), diametral pitch (also called DP or pitch), and its material are important factors to consider when purchasing. Gears come in several types for use in different power transmission configurations and for different applications, including bevel and miter gears (for rotating shafts perpendicular to each other), change gears (to increase or decrease torque and speed), helical gears (for high rates of rotational speed), internal gears (where one gear is nested inside the other), rack and pinion gears (for turning rotational motion into linear motion), and worm gears (for perpendicular shafts in tight spaces and quiet operation). Gears are suitable for use in the agriculture, automotive, construction, mining, and packaging industries, and can be found in a variety of machines, including bicycles, automobiles, and elevators, among others.
