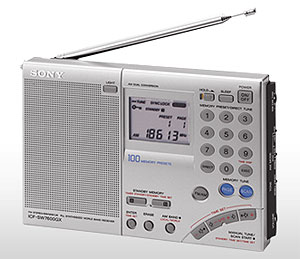

Sony ICF-SW7600GR AM/FM Shortwave World Band Receiver with Single Side Band Reception, plus External Plug-in Antenna

by Sony

Product Features

• PLL digital tuner receives FM, MW/AM, SSB, shortwave and longwave
• MY-memory tuning memorizes and scans up to 100 frequencies
• Four tuning methods: direct, manual, scan and preset
• World clock and dual clock functions; built-in timer
• Label presets with 6 alphanumeric letters

Product Details

Product Manual [7.65mb PDF]

• Product Dimensions: 7.5 x 1.2 x 4.8 inches ; 1.4 pounds
• Shipping Weight: 3 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B00006IS4X
• Item model number: ICF-SW7600GR
• Average Customer Review: 4.1 out of 5 stars  See all reviews (274 customer reviews)
• Amazon Best Sellers Rank: #2,877 in Electronics (See Top 100 in Electronics)
  • #35 in Electronics > Home Audio & Theater > Radios > Shortwave Radios
  • #51 in Electronics > Portable Audio & Video > Radios
• Date first available at Amazon.com: September 22, 2002

Product Description

From the Manufacturer

Enjoy programming from around the globe with this FM stereo multi-band world band receiver radio. Listen to the airwaves in virtually any country with the ICF-SW7600GR multi-band world band receiver radio. Features include an AM (LW/MW/SW)/FM Stereo, which provides accurate reception with stereo FM capability over a wide range of frequencies and 10 Key Direct Access tuning, which lets you capture distant stations directly. A sharp LCD display provides digital frequency read-out of the selected station. And you can store to 100 of your favorite stations.

Enjoy programming from around the globe with this FM stereo world band receiver radio

AM (LW/MW/SW)/FM Stereo

The ICF-SW7600GR provides accurate reception with stereo FM capability over a wide range of frequencies from LW and MW(AM) to SW and FM.

Hold Button

The built-in hold button prevents accidental changes to preset station settings.

SSB (Single Side Band) Reception with 1kHz Step Tuning

SSB reception allows for fine tuning and optimum multi-mode reception with reduced interference on the narrow AM band, for better overall sound. Use the fine 1kHz step tuning for fast, precise station reception by tuning at 1kHz intervals.

Headphone Jack

A 3.5mm headphone jack is built in for private listening enjoyment and improved sound clarity in noisy environments.

Antennas Included

The ICF-SW7600GR includes a built-in ferrite bar antenna for AM and LW, and telescoping antenna for FM and SW.

LCD Display

See digital frequency read-out information of the selected station on the built-in LCD display.

Synchronous Detection Circuitry

Reduce fading and annoying "beat" frequency interference from adjacent stations with the radio's synchronous detection circuitry, as well as distortion due to fading AM reception.

Auto Scan Tuning/Memory Scan

Auto scan tuning provides professional-type microprocessor-controlled tuning functions to scan--one at a time--all 100 memory presets and let you listen for a few seconds before deciding whether to remain on a particular station or let scanning continue.

World Time Clock/Dual Clock

Dual world time clocks allow you to display the current time at various locations around the globe as well the time where you live.

10-Key Direct Access Tuning

Sony's Direct Access Tuning lets you capture distant stations directly, with the ease of using a pocket calculator.

PLL Quartz Frequency Synthesized Tuning

PLL tuning is an extremely accurate method of tuning, with optimum stability that reduces drift to a minimum.

100 Station Memory Presets

The built-in station memory presets let you quickly and easily tune into up to 100 stations that you select to be saved in memory.

Dual Standby Function

Use the dual standby function to set the alarm for two different wake-up times or wake you to two different radio stations.

Technical Specifications

• Power Requirements: DC 6.0V, optional AC Adapter
• Output Power: 380mW (at 10% harmonic distortion)
• Battery Type: "AA" x 4 batteries (not included)
• Battery Life: Up to 47 hours
• Display: Backlit LCD
• Frequency Range: FM: 87.6-108MHz; LW/MW/SW: 150-29,999kHz
• Antenna System: FM/SW: Telescopic Antenna; LW/AM: Built-in Ferrite Bar Antenna
• Tuner Type: PLL Quartz Frequency Synthesized Tuning
• Station Presets: 100
• Tuning: 10 Direct Access Buttons
• Circuit System: LW/MW/SW/FM: Super heterodyne
• Speaker Dimensions: 3" (77mm)
• Speaker Type: Stereo
• Weight: 1 lb 5-3/4 oz (615g) w/batteries
• Dimensions: 7-1/2" x 4-3/4" x 1-2/5" (190 x 118.8 x 35.3mm)

Product Description

Enjoy programming from around the globe with the this FM stereo multi-band world band receiver radio. Listen to the airwaves in virtually any country with the ICF-SW7600GR multi-band world band receiver radio. Features include an AM (LW/MW/SW)/FM Stereo, which provides accurate reception with stereo FM capability over a wide range of frequencies and 10 Key Direct Access™ tuning, which lets you capture distant stations directly. A sharp LCD display provides digital frequency read-out of the selected station. And you can store to 100 of your favorite stations.

Most Helpful Customer Reviews

461 of 469 people found the following review helpful

5.0 out of 5 stars Very good Radio August 13, 2003

By R. Subramanian

I am fairly new to SW radios. I bought a Grunding S350 and was annoyed with the drift . I would tune into a station and it would slowly tune out. I returned it and bought a Grunding YB400PE. It was much better that S350 but the SSB performance was dismal. Also I just could not lock on to some weak signals or to a station that was very close to a more powerful station.

I went in for the sony 7600GR and have been very happy. The synchronous detection helps a lot. You can select between LSB and USB when doing synchronous detection. This helps you with those pesky neighbouring stations.If it is on the Lower freq. choose USB and vice versa.

The audio quality is a little inferior to the YB400. It also does not have a handy snooze button. But I am yet to meet a person who buys SW radios for audio quality or as an alarm clock.
The YB400 comes with a AC mains power adapter but the sony does not. The Reel antenna is included in both.

If you are looking for a radio that can tune into weak signals ,provide SSB functionality , synchronous detection , variable attenuation to drown out noisy interference then this is the adio for you. A keeper.

324 of 328 people found the following review helpful

5.0 out of 5 stars Best Value -- Get one while you can December 10, 2004

By Arne W Flones

For many reasons this is absolutely the best valued shortwave receiver on the market.

1. Synchronous detector! It enables the radio to lock

onto signals with tenacity. It reduces fading and noise and

enables you to eliminate interference by selecting a sideband

on the other side of the interfering signal. On the SW7600GR

it works very well. No other radio at this price has sync

detector.

2. Build quality. Made in Japan. The radio even feels

robust. It is.

3. Sensitivity.

4. Great portability.

Of course there are also some liabilities.

Sound through the little speaker is not as good as some

competing products. But given that this little Sony blows

the competitors away in almost all other respects,

this is a minor quibble. The sound isn't bad; it just

isn't room filling. As a personal radio this isn't such

a liability. Plus, you can always use earphones or connect

to auxiliary speakers (Cambridge Soundworks?).

The memory system is simple, without alphabetic labels.

There is no tuning dial, just jog buttons for scanning

the bands. Simplicity makes for easy operation, though.

FM reception is respectable (much better than the very

expensive big brother the Sony ICF-SW77). Standard AM

reception is good, possibly very good. But if you are

interested in DXing the AM bands, you already have a

GE Super Radio.

It doesn't have an AC adaptor (and you should AVOID buying

the horrible--and horribly expensive--official Sony adaptor).

If you want to power from AC, get an inexpensive one. I power

mine with rechargeable NiMH batteries which work better than

alkalines and can be reused hundreds of times. Buy two

sets of batteries and you'll always have a set charged and

ready to go. Battery drain is respectively low and the unit

functions perfectly on the slightly lower voltage NiMHs.

As a travel radio, or as an introduction to shortwave, I can't

think of a better unit. Probably the best recommendation for

the 7600GR is that in spite of all the laudable reviews, using

one for the first time still surprises. Originally priced

at just under $200 US, current street prices make this an

incredible value.

Now for the bad news. Sony is getting out of the world band

radio business. These little gems may soon be unavailable.

So if you're interested in the 7600GR, now is the time.

256 of 261 people found the following review helpful

5.0 out of 5 stars Best shortwave radio under $200.00 June 18, 2003

By "jkihn"

I bought this radio after trying out several Grundig portables including the YB400. The Grundigs were all cheaply made and have less than desirable reception.

Furthermore, I bought the AN-LP1 loop antenna made by Sony. This must be the perfect set up for someone that does not want to pay loads of money but still wants a "very" satisfying SWL experience. I love mine and would recommend it to anyone. Especially if you travel alot like me for you business. Portable and Powerful!

Finally, you will be suprised how easy it is to learn and operate. Most of the buttons I figured out without the user manual. However, there are a few nifty items I found in the user manual so don't forget to read it.
