Spectra Precision Laser LL500 Exterior Self-Leveling Laser Level With HL700 Receiver

by Spectra Precision Laser

Product Description

Amazon.com Product Description

The Spectra Precision Laser LL500 Laser Level Kit (with LL500 Transmitter, HL700 Receiver, and Case) contains the LL500, which is a one-person leveling system designed for longer range measurements across the entire jobsite. Rugged, stable, and reliable, this indispensable tool ensures precision and accuracy job after job. This kit also comes with the HL700 Receiver and a heavy-duty case for portability and protection.

The LL500 Laser Level Kit At a Glance: LL500 Transmitter with HL700 Receiver and rod clamp Performs two-person leveling tasks with just one person LL500 Transmitter sends a continuous, self-leveled 360-degree reference up to 1,600 feet in diameter Rugged design for proven accuracy in all kinds of conditions The LL-500 is backed by a two-year warranty; the HL700 Receiver is backed by a three-year warranty

Click here to view a list of hand-held and mounted Spectra Precision Lasers.

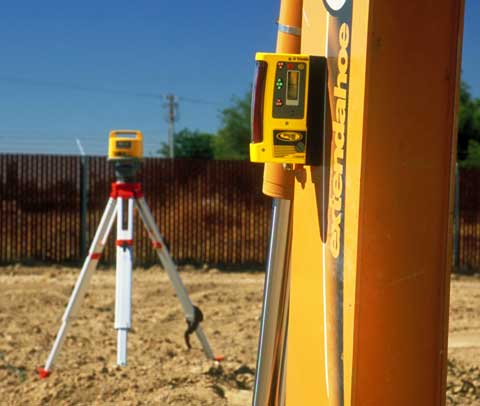

By mounting the CR600 magnetic mount receiver (packaged with the model LL500-10 Kit) on the backhoe, the operator can stay on grade without an assistant. View larger.

The LL500 Laser Level is easy to read, even in full daylight.

Two-Person Leveling with Just One Person
Machine control compatible, the LL500 is ideal for a range of jobs, including checking and setting elevations, concrete forms, footings, and foundations for medium to large-sized jobs, as well as longer range machine control applications. You can also tackle excavating, digging footings, and septic tanks or sub-base leveling with skid steer loaders by using the LL500 with the CR600 Receiver (not included).

Laser Level Offers Long-Range Accuracy
The LL500 features a 1,600-foot (500-meter) working diameter and accuracy range of +/-1/16-inch at 1,000 feet to increase productivity by reducing the need for multiple setups on a large jobsite. To improve efficiency, the LL500 is self-leveling with a built-in out-of-level shut-off that maintains accuracy over the entire work area while minimizing errors. And to make it easier and faster to find the on-grade position, a visible "spotting" beam determines receiver mounting placement.

Temperature Compensation for Precise Readings
Designed to deliver optimum precision, the LL500 boasts temperature compensation for highly stable, repeatedly accurate readings, even under dramatic temperature changes. Two power options--alkaline or rechargeable batteries--keep the unit working consistently to minimize down-time due to power loss.

HL700 Receiver: Accurate and Easy to Use
The perfect partner for the LL500, the HL700 Receiver accurately measures elevations across the jobsite. It is compatible with any rotating transmitter.

The HL700, which can be used in rod-mounted or hand-held position, features a digital readout of elevation that provides a numeric display of +/-2 inches. The readout is displayed on the large front and rear LCDs and shows exactly how far the elevation is from on-grade. To save you time, accurate measurements can be made without moving the rod clamp, and selectable units of measure can be displayed to meet your application: millimeters, centimeters, feet, or fractional inches.

A 5-inch reception height, more than double the industry standard, allows quick acquisition of the laser beam, and an anti-strobe sensor prevents false readings from site strobe lights. There's also a capture function that captures and retains a measurement when the display is difficult to see.

Incredibly durable, the HL700 is built to survive harsh jobsite conditions: it's completely waterproof and can withstand a drop of up to 10 feet on concrete. The HL700 is backed by a three-year "no excuses" warranty.

Warranty Information
The LL-500 transmitter is backed by a two-year warranty, and the HL700 Receiver is backed by a three-year warranty.

What's in the Box
LL500 Transmitter, HL700 Receiver, rod clamp, multi-language instruction manual

The LL500 boasts temperature compensation for highly stable, repeatedly accurate readings, even under dramatic temperature changes.

Product Description

The Spectra Precision Laser LL500 Laser Level is a one-person leveling system designed for longer range measurements across your entire site. Features a 1600-ft. (500m) working diameter which increases productivity by reducing the need for multiple setups on a large jobsite. Leveling Type: Self leveling, Horizontal Leveling: Yes, Vertical Leveling: No, Accuracy: 1/16 in at 100 ft, Rotation Speed: 600 RPM, Beam Type: Single, Beam Rating: 670 nm, Laser Beam Color: Red, Grade Capability: Manual, Self Leveling Range: ± 11 arc minutes, Working Range (in.): 1,600, Visual or Audible Indicator: Visual, Scanning Modes (qty.): 5, Indicator Type: Low battery, Working Temperature: -4deg F to 122deg F, Battery Type: D, Battery Included: Yes, Battery Life: 80 Hours, Single, Pair, or Set: Set, Tripod Mount Dimensions (in.): 5/8 - 11, Material Type: Weather proof housing, Class Rating: Class II, Case Type: Hardshell case

See all Product Description
