Superwinch 1120210 LT2000 ATV Winch

by Superwinch

Product Features

• Heavy duty latched hook with rope thimble
• Rated line pull (bottom layer) of 2,000 lbs (907 kg)
• Low-amp, permanent magnet motor
• Pull-and-turn freespooling clutch
• Bonus pulley block and D shackle

Product Details

• Shipping Weight: 17.6 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B0015D4ZH0
• Item model number: 1120210
• Average Customer Review: 3.9 out of 5 stars  See all reviews (42 customer reviews)
• Amazon Best Sellers Rank: #18,553 in Automotive (See Top 100 in Automotive)
  • #19 in Automotive > Exterior Accessories > Towing Products & Winches > ATV Winches
  • #29 in Automotive > Motorcycle & ATV > Accessories > Towing Products & Winches

Product Description

Amazon.com

Powerful, versatile, and easy to use, the Superwinch LT2000 ATV winch can be permanently mounted or used as a portable winch with optional quick-connect wiring and mounting kits. Full metal planetary gear train provides strong yet quiet operation. Several additional features, including dynamic braking, circuit breaker, and low amp draw system, ensure big performance at a surprisingly affordable price.

High Efficiency, Low Amp Draw Motor
Providing efficient pulling power whenever and wherever you need it, the Superwinch LT2000 winch features a high efficiency, low amp draw sealed permanent magnetic motor. This combined with the unit's solenoid, which disconnects your winch's electrical system from the battery when your vehicle is turned off, as well as circuit breaker protection ensures that users will always have all the power that they need without taking a toll on their ATV's battery.

Affordable ATV winching power. View larger.

Compact but powerful. View larger.

Everything you need right out of the box. View larger.

Dynamic Braking
Safety should always be an important consideration with any piece of machinery. With this in mind the bi-directional action of the Superwinch LT2000 ATV winch features dynamic braking of the winch drum to provide the variety of stopping power needed for each job.

Standard Features:

• Power in and power out.
• Differential planetary.
• Pull and turn freespooling clutch.
• Low amp, permanent magnet motor.
• Circuit breaker protected.
• Heavy duty latched hook with rope thimble.
• Sealed, handle bar mounted rocker switch.
• Bonus: pulley block and D shackle.

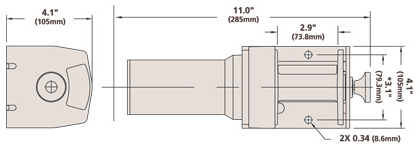

Specifications: Rated line pull 2000 lb (906 kg) Motor 1.0 hp (0.8kW) PM Motor, 12V DC Gearing Differential planetary Gear Ratio 153:1 Braking Dynamic Freespool Clutch Pull and turn action Wire rope 5/32" x 49' (3.9mm x 15m) Dimensions 11.0" l. x 4.1" d. x 4.1" h. Drum diameter 1.25" (31.8mm) Drum length 2.83" (72.0mm) Installed Weight 14.5 lb (6.6 kg) Switching method Handlebar mounted rocker Switching mechanism Protected relay Roller fairlead Standard, 4-way (Requires mount kit) Color-coated wiring Yes Ship Weight 19.4 lb (8.8 kg)

Performance 12VDC (1st layer on drum): Line Pull Motor Line Speed LB  (kg) AMPS FPM (m/m) 0 0 10 10.0 (3.0) 500 (227) 25 8.0 (2.4) 1000 (454) 50 6.5 (2.0) 1500 (680) 70 4.8 (1.4) 2000 (907) 100 2.5 (0.8)

About Superwinch, LLC
Superwinch products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. With their sleek, compact construction, Superwinch products are designed for fast, easy installation - whether portable or permanent. Available in capacities ranging from 1,000 to 30,000 pounds, Superwinch has the right winch for your application.

Limited Lifetime Warranty
Superwinch, LLC warrants to the original buyer that the mechanical components of all genuine Superwinch winch models shall be free from defects in materials and workmanship from the date of purchase of new products for the lifetime of the winch and that the electrical components shall be free from defects in materials and workmanship for one year from the provable date of purchase. Any product that Superwinch determines to be defective will be repaired or replaced at Superwinch’s discretion without charge to buyer upon buyer’s compliance with disclosed procedures.

Product Description

The Superwinch ATV LT2000 Series Winch makes it easy to power loads in and out. It features a differential planetary gear system and can withstand a working load limit up to 2000 lbs. Powerful, versatile, and easy to use, it can be permanently mounted or used as a portable winch with optional quick-connect wiring and mounting kits. The full metal planetary gear train provides strong yet quiet operation. Several additional features, including dynamic braking, built-in circuit breaker protection, and a low-amp draw system ensure big performance at a surprisingly affordable price. The LT2000 ATV Winch also comes equipped with a handle bar mounted rocker switch, a heavy-duty latched hook with rope thimble, and a pull-and-turn freespooling clutch. Superwinch backs this winch with a one-year limited warranty.

Customer Reviews

Most Helpful Customer Reviews

11 of 11 people found the following review helpful:

3.0 out of 5 stars Nice for the money, October 2, 2010

By

J. Thompson (WV United States) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Superwinch 1120210 LT2000 ATV Winch (Automotive)

A nice package at a nice price.

Pros: It does everything that I bought it for: getting an atv out of the mud.

Cons: 1)The wires leading from the solenoid to the winch are at least a foot too short as other reviewers have stated. Expect to pay for connectors, ends, and at least another foot of 8 gauge wire. 2)The snatch block that is included will require wrenches to take apart and thread. Not a great thing when you are stuck in the mud, so while I was at the hardware store picking up the above parts, I picked up a new bolt, washer and wingnut. 3)The winch is a bit loud but I wasn't expecting it to be quiet.

All in all not a bad investment for the money, just don't be surprised if you have to take a trip to the hardware store. I had a hard time finding connectors and ends for 8 gauge wire and they were expensive (3$ a piece +-).

10 of 10 people found the following review helpful:

5.0 out of 5 stars great winch for the money, November 13, 2009

By

Robert S. Urdzik "jet head" (Pittsburgh, PA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Superwinch 1120210 LT2000 ATV Winch (Automotive)

This winch kit is a great value. My only complaint would be that the two wires running from the regulator to the winch motor could be a foot or so longer. I mounted the regulator in the storage box under the seat and had to splice a foot or more of #8 wire to make my connections on the motor. Other than that everything seems of very good quality and it should give me years of trouble free operation.

4 of 4 people found the following review helpful:

5.0 out of 5 stars Works, January 11, 2011

By

Ryan C. Reichardt "Always into something" (Ramsey, MN United States) - See all my reviews
(REAL NAME)

This review is from: Superwinch 1120210 LT2000 ATV Winch (Automotive)

I had one of these on my 08 Kawi Brute Force 750i. I say had because I went into some deep water and smoked the relays for the switch. I ended up with a fancy non working attachment and removed it. I will say that while it was installed it worked well and took a good bit of abuse. Pulled trees down with it, cleared trails with it, pulled a CanAm DS650, buried seat deep in sand out with nothing more than the winch's own power.

It's a good unit. Mount the black box high or seal it in something cause when it gets full of water and you hit that button you'll hear a light POP and that's it...game over. I tried to find new relays to just repair it but came up empty and scrapped it. The leads are short as others have said. A good stereo shop will sell you bulk wire for a DIY install. There is no good place to mount the box on a stock Kawi Brute with no storage boxes. It doesn't fit under the seat.
