Superwinch 1125220 Terra 25 2500lb Winch with Cable

by Superwinch

Product Features

• High efficiency, low amp draw, sealed 1.3 hp permanent magnet motor featuring mechanical load holding and dynamic brake
• 50' of 3/16" steel wire rope and ergonomic cam action freespooling clutch
• All steel planetary gear twice as wide as those used by the competition and utilizing machined-in, oil pocket bronze bearings
• Circuit breaker protected and weather sealed solenoid contact
• 4-way roller fairlead, heavy duty latched hook with thimble and limited lifetime warranty

Product Details

• Item Weight: 31.9 pounds
• Shipping Weight: 32.4 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B0034ZP29C
• Item model number: 1125220
• Average Customer Review: 4.0 out of 5 stars  See all reviews (13 customer reviews)
• Amazon Best Sellers Rank: #10,016 in Automotive (See Top 100 in Automotive)
  • #10 in Automotive > Exterior Accessories > Towing Products & Winches > ATV Winches
  • #13 in Automotive > Motorcycle & ATV > Accessories > Towing Products & Winches

Product Description

Amazon.com Product Description

The Superwinch Terra 25 (1125220) provides the power, versatility and durability that powersport users need. A true workhorse right out of the box, it possesses a superior all-steel 3-stage planetary gear train with machined-in, oil pocket bronze bearings, a 2,500-lb pull rating, a 1.3 horsepower low-amp draw engine, 50-feet of durable 3/16" steel wire rope, a 4-way roller fairlead, multiple operation switching options and more, making it equally suited to recreational and work uses alike. High Performance ATV Winching Power Conceived with the toughest terrains in mind, the Superwinch 1125220 Terra 25 ATV winch delivers on the promise to get you out of virtually anything you get into. Designed to be compatible with most four-bolt pattern ATV winch mount kits available on the market today, the Terra 25 is a fit for virtually any powersport vehicle you ride. Along with a hefty 2,500-LB line pull rating via 50-feet of 3/16" steel wire rope and a 1.3 hp weather-sealed permanent magnet motor powered by an easy to establish permanent connection to your vehicle battery, the Terra 25 features the power and reliability of a heavy-duty all-metal 3-stage planetary gear train. Unlike planetary gears used by competitors, its rugged all steel gears are twice as wide as those used by the competition and utilize machined-in, oil pocket bronze bearings guaranteeing smooth, uncompromised movement for years to come, no matter the weather conditions. Additional features include, a handlebar mounted switch, an ergonomic cam action freespooling clutch allowing users to quickly disengage the motor and manually draw out as much winch rope as needed, at any time, a four-way roller fairlead (mounting plate sold separately), a heavy duty latched hook with thimble and a limited lifetime warranty. High performance ATV winching power. View larger. All steel planetary gears with oil pocket bronze bearings vs. competitor's standard gears. View larger. Easy to engage and disengage ergonomic freespool control. View larger. Important Safety Features As with all Superwinch products, safety is an important consideration of the Terra winch series. With this in mind the Terra 25 contains a wealth of valuable safety features standard. These include mechanical load holding and dynamic braking to minimize the possibility of wire rope slippage in the event of power failure or surge, and to provide quick stopping of the drum; a sealed solenoid and circuit breaker protection to ensure safe, reliable, electromagnetic power in all weather conditions; and a rubberized remote switch with a 10-foot extension cable, allowing for safe distances and positioning between the user and winch during off vehicle use. Standard Features: Powers load in and out 50' of 3/16" steel wire rope Mechanical load holding and dynamic brake All steel planetary gear twice as wide as those used by the competition and utilizing machined-in, oil pocket bronze bearings Ergonomic cam action freespooling clutch High efficiency, low amp draw, sealed 1.3 hp permanent magnet motor Circuit breaker protected Weather sealed solenoid contact 4-way roller fairlead Heavy duty latched hook with thimble Limited lifetime warranty. What's in the Box 1-Terra 25 2,500-LB winch, 1-standard 4-way roller fairlead, color-coated leads for connection to battery, 1-50' length of 3/16 (15.2m x 4.8mm) steel rope, 1-heavy duty latched hook with thimble, 1-rubber handheld remote with 10' rubber , 1-handlebar switch with 8' cable, 1-4" handsaver strap, mounting hardware, 1-sealed solenoid, 1-circuit breaker component, 1-set of plastic ties, 1-users manual. Specifications: Rated line pull 2,500 lb (1,134 kg) bottom layer Motor 1.3 hp Motor, 12V DC Gearing 3-stage planetary Gear ratio 140:1 Braking Mechanical and Dynamic Freespool clutch Cam action Wire rope 3/16" (4.8mm) x 50' (15.2m) Dimensions 13.2" l. x 4.5" d. x 4.8" h. (335mm l. x 114mm d. x 122mm h.) Drum Diameter 2.0" (50.8mm) Drum Length 3.2" (81.3mm) Weight 18 LB (8.16kg) Switching method Handlebar mounted toggle Switching mechanism Heavy duty, sealed solenoid Roller fairlead Standard, 4-way Color-coated wiring Yes Handheld remote Yes, 10' Wireless remote Optional Performance 12VDC (Bottom layer on drum): Line Pull Motor AMPS Line Speed LB  (kg) 12V FPM (m/m) 0 0 25 25.0 (7.6) 500 (227) 49 21.0 (6.4) 1,000 (454) 71 18.0 (5.5) 1,500 (680) 102 15.5 4.7 2,000 (907) 130 12.5 3.8 2,500 (1,134) 162 9.5 2.9 Limited Lifetime Warranty Superwinch, Inc. warrants to the original buyer that the mechanical components of all genuine Superwinch winch models shall be free from defects in materials and workmanship from the date of purchase of new products for the lifetime of the winch and that the electrical components shall be free from defects in materials and workmanship for one year from the provable date of purchase, or otherwise specified time period. Any product that Superwinch determines to be defective will be repaired or replaced at Superwinch�s discretion without charge to buyer upon buyer�s compliance with disclosed procedures. About Superwinch, Inc. Superwinch products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. With their sleek, compact construction, Superwinch products are designed for fast, easy installation - whether portable or permanent. Available in capacities ranging from 1,000 to 30,000 pounds, Superwinch has the right winch for your application.

Product Description

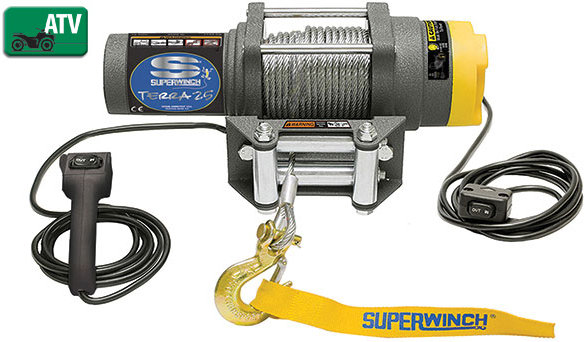

Superwinch Terra 25 Winch cable version comes with a roller fairlead, mounting plate, handlebar mount toggle, and handheld remote. Steel drum is designed for use with either cable or synthetic rope.

Customer Reviews

Most Helpful Customer Reviews

1 of 1 people found the following review helpful:

5.0 out of 5 stars I Love This Winch, October 27, 2011

By

AM Colorado "amcolorado" (Colorado Springs) - See all my reviews

Amazon Verified Purchase

This review is from: Superwinch 1125220 Terra 25 2500lb Winch with Cable (Automotive)

I bought this winch to replace a Warn winch that was damaged in an ATV rollover. This Superwinch was less expensive and it's as good, or better than the Warn. I installed it myself on my Bombardier Outlander Max 800. It probably took me 6 hours to install, but it was the first time I ever did any work on the Bombardier myself, so much of that time was just figuring out how to remove bolts, bumpers, running wires, etc. I did buy a mounting kit, which is absolutely essential to mounting this winch on the Bombardier. I'm hoping it'll get its real first serious workout in 3 weeks when I take it elk hunting. I highly recommend this product.

1 of 1 people found the following review helpful:

5.0 out of 5 stars A little tight for Rancher 420, May 13, 2011

By

Rancher 420 - See all my reviews

This review is from: Superwinch 1125220 Terra 25 2500lb Winch with Cable (Automotive)

I purchased this winch to go on my 2011 Rancher 420. I must say that so the wiring installation was straight forward. I also purchased the Superwinch mounting plate to match. This winch is a little large "framed" to fit on the fourwheeler. I did make it fit but it was a tight one. Rubber hammer was a necessity. Overall I believe it was a good value and definately a step up in quality from the cheap ebay winches.

1 of 1 people found the following review helpful:

5.0 out of 5 stars AWESOME!, April 24, 2011

By

joshl - See all my reviews

Amazon Verified Purchase

This review is from: Superwinch 1125220 Terra 25 2500lb Winch with Cable (Automotive)

Very good winch! Ours is mounted to a Polaris RZR S. I used the three piece mount kit that you can find for around 50.00. Works very well and has proved itself a few times. You can tell its a high quality unit as soon as you open the box. I have off-roaded since I was a small kid and I have always heard the name superwinch compared to warn and it definatly compares. I would reccommend to anyone.
