Superwinch 1130210 ATV 3000 Series Winch with Roller Fairlead and Handlebar Mount Toggle

by Superwinch

Product Features

• A high efficiency, low amp draw 15 hp motor that provides reliable power without impacting your battery, as well as overall circuit breaker protection
• Winch line pull rating of up to 3,000-pounds (1361 kg), a full metal, 3-stage planetary gear-train and a cam action freespooling clutch
• Fully sealed motor and solenoid that provide all-weather protection across all types of terrain
• Mechanical and dynamic braking of winch mechanism for a combination of strength and security
• Handlebar mounted on/off toggle standard, plus the option to upgrade to a wired or wireless handheld remote

Product Details

• Shipping Weight: 26.4 pounds
• Shipping: This item is also available for shipping to select countries outside the U.S.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B001ROAEHC
• Item model number: 1130210
• Amazon Best Sellers Rank: #170,688 in Automotive (See Top 100 in Automotive)
  • #89 in Automotive > Exterior Accessories > Towing Products & Winches > ATV Winches
• Discontinued by manufacturer: Yes

Product Description

Amazon.com

Designed to provide maximum performance within the toughest ATV terrains imaginable, the Superwinch ATV3000 winch features a full metal three-stage planetary gear train, a new sealed switching system that gets users out of virtually anything they get into, as well as multiple mounting options and capacities up to 3,000 pounds. Taken together these make it an optimal hardware choice for both serious recreation and work duty.

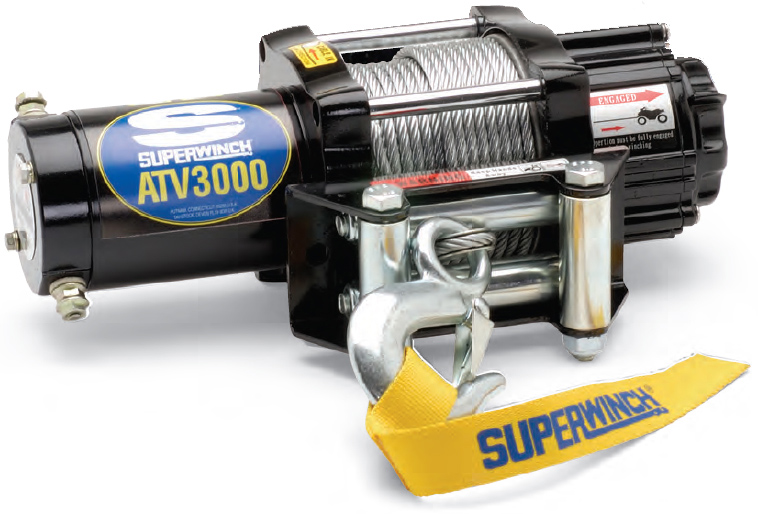

View larger.

High Efficiency, Low Amp Draw Motor
Providing efficient pulling power whenever and wherever you need it, the Superwinch ATV3000 winch features a high efficiency, low amp draw sealed permanent magnetic motor. This combined with the unit's solenoid, which disconnects your winch's electrical system from the battery when your vehicle is turned off, as well as circuit breaker protection ensures that users will always have all the power that they need without taking a toll on their ATV's battery.

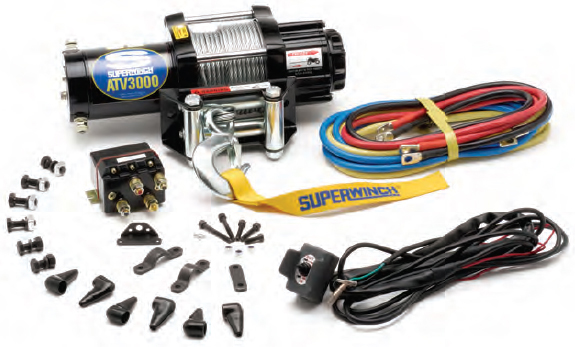

Everything you need right out of the box. View larger.

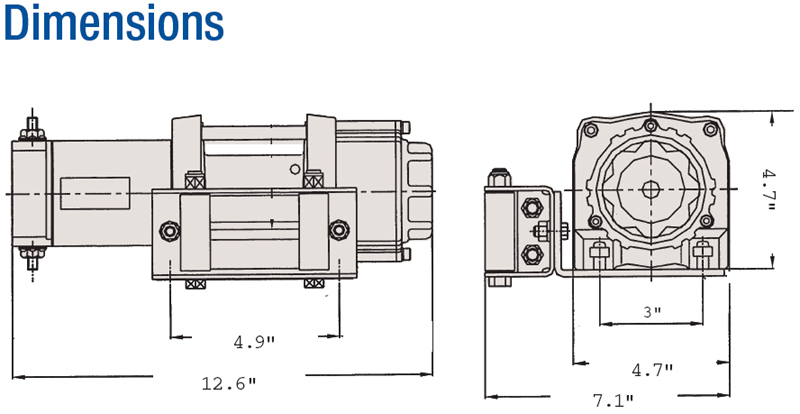

Compact but powerful. View larger.

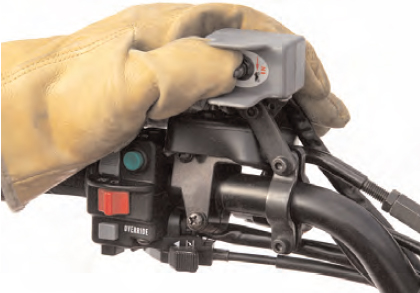

Multiple on/off toggle options. View larger.

Mechanical Load Holding and Dynamic Braking
Safety should always be an important consideration with any piece of machinery. With this in mind the bi-directional action of the Superwinch ATV3000 features mechanical load holding to minimize the possibility of cable slippage in the event of power failure or surge, as well as dynamic braking of the winch drum to provide the variety of stopping power needed for each job.

Wired and Wireless Remote Switching Options
Although the Superwinch ATV3000 features a standard handlebar mounted on/off toggle switch, real-world conditions and terrain in the field can often make flexibility in how you operate your winch an important consideration. With this in mind the Superwinch ATV3000 features the optional freedom of both a 10-foot wired handheld on/off toggle remote or a wireless remote (both sold separately).

Standard Features:

• Power in and power out.
• Mechanical load holding and dynamic brake.
• Full metal, 3-stage planetary gear-train.
• Cam action freespooling clutch.
• High efficiency, low amp draw, sealed permanent magnet motor.
• Circuit breaker protected.
• Weather sealed solenoid contactor.
• 4-way roller fairlead.
• Heavy duty latched hook with thimble.

What's in the Box
Winch motor/drum/gearbox assembly, solenoid, handlebar mounted toggle switch kit, wire rope assembly, unit mounting hardware kit, lead wire kit, circuit breaker.

Specifications: Rated line pull 3000 lb (1361 kg) Motor 1.5 hp Gearing 3-stage planetary Gear Ratio 145:1 Braking Mechanical & dynamic Freespool Clutch Cam action Wire rope 3/16" (4.8mm) x 50' (15.2m) Dimensions 12.6" l. x 4.7" d. x 4.7" h. Drum diameter 2.2" (55.9mm) Drum length 2.9" (73.6mm) Weight 16 lb (7.26 kg) Switching method Handlebar mounted toggle Switching mechanism Heavy duty, sealed solenoid Roller fairlead Standard, 4-way Color-coated wiring Yes Handheld remote, 10' Optional Wireless remote Optional

Performance 12VDC (1st layer on drum): Line Pull Motor Line Speed LB  (kg) AMPS FPM (m/m) 0 0 14 18.0 (5.5) 500 (227) 50 15.5 (4.7) 1000 (454) 80 13.0 (3.9) 1500 (680) 120 10.3 (3.1) 2000 (907) 160 8.3 (2.5) 2500 (1134) 210 6.3 (1.9) 3000 (1361) 250 3.3 (1.0)

About Superwinch, Inc.
Superwinch products are the winches trusted by professionals and weekenders alike for everything from racing to recovery, boating to off-roading. With their sleek, compact construction, Superwinch products are designed for fast, easy installation - whether portable or permanent. Available in capacities ranging from 1,000 to 30,000 pounds, Superwinch has the right winch for your application.

Limited Lifetime Warranty
Superwinch, Inc. warrants to the original buyer that the mechanical components of all genuine Superwinch winch models shall be free from defects in materials and workmanship from the date of purchase of new products for the lifetime of the winch and that the electrical components shall be free from defects in materials and workmanship for one year from the provable date of purchase. Any product that Superwinch determines to be defective will be repaired or replaced at Superwinch’s discretion without charge to buyer upon buyer’s compliance with disclosed procedures.

Product Description

Superwinch ATV3000 Series Winch with Roller Fairlead and Handlebar Mount Toggle powers load in and out ensuring high efficiency winching. It features mechanical load holding and dynamic brake which accounts for great strength as well as security. The winch can withstand a working load limit up to 3000 lbs. It also includes cam action freespooling clutch and high efficiency low amp draw sealed permanent magnet motor. Circuit breaker protector, weather sealed solenoid contactor, 4-way roller fairlead, heavy duty latched hook with thimble, handle bar mount switch and mounting hardware makes it a completely dependable winch. In addition, this winch is backed by a limited life time warranty.
