Tripp Lite APS2012 2000W 12V DC to AC Inverter with Automatic Line-to-Battery 100/25-Amp Charger

by Tripp Lite

Product Details

• Product Dimensions: 16.2 x 8.5 x 7.2 inches ; 42 pounds
• Shipping Weight: 44 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B00006HNY1
• Item model number: APS2012
• Average Customer Review: 4.4 out of 5 stars  See all reviews (10 customer reviews)
• Discontinued by manufacturer: Yes
• Date first available at Amazon.com: August 29, 2002

Product Description

From the Manufacturer

Do you need a clean, quiet, reliable power source for automotive, remote site, industrial, commercial or residential applications? Tripp Lite's APS2012 Inverter/Charger is the solution you seek! This DC-to-AC inverter/charger powers the equipment you commonly use at home or work—power tools, pumps, portable lighting, notebook computers and more. It's the ideal power solution for RVs, commercial and fleet vehicles, emergency vehicles, construction sites, remote worksites and any other application that requires a clean, quiet AC power source. The APS2012 efficiently converts 12V DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers. Unlike portable generators, the APS2012 requires no fuel and produces no noise or fumes. The APS2012 also features automatic line-to-battery transfer and an integrated battery charging system for UPS (uninterruptible power supply) applications where an AC power source is present. In UPS mode, the APS2012 powers connected equipment while keeping connected batteries fully charged. If AC power becomes unavailable, the APS2012 automatically switches to battery power. With its 2000-watt capacity, this inverter/charger can handle heavy-duty loads like drills, saws and pumps with ease. The APS2012 also features OverPower™ and DoubleBoost™ capability, providing extra power when required for heavy loads and power-hungry equipment start-ups.

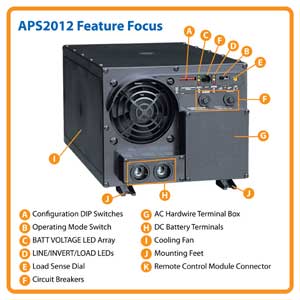

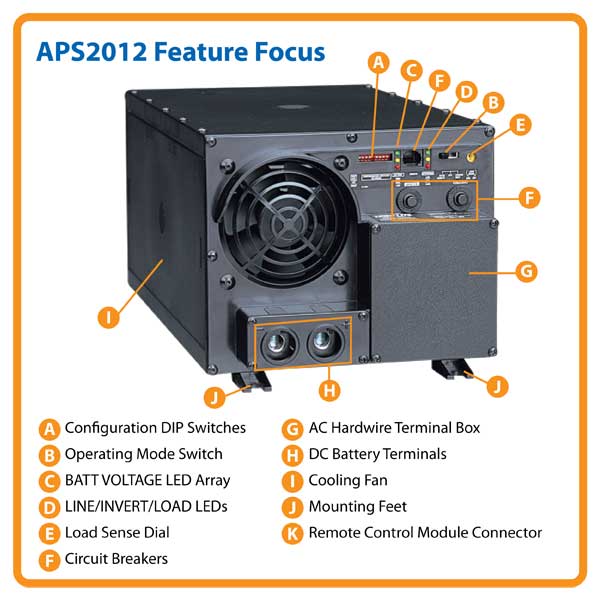

Feature Focus

Tripp Lite's APS2012 Inverter/Charger Offers: Computer-grade AC power from an AC or DC power source 2000 watts continuous output power; up to 4000 watts peak power Auto transfer switching option for battery backup (UPS) operation Heavy-duty construction for harsh environments 1-year warranty

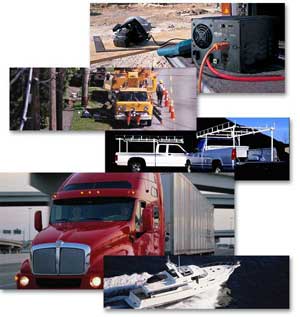

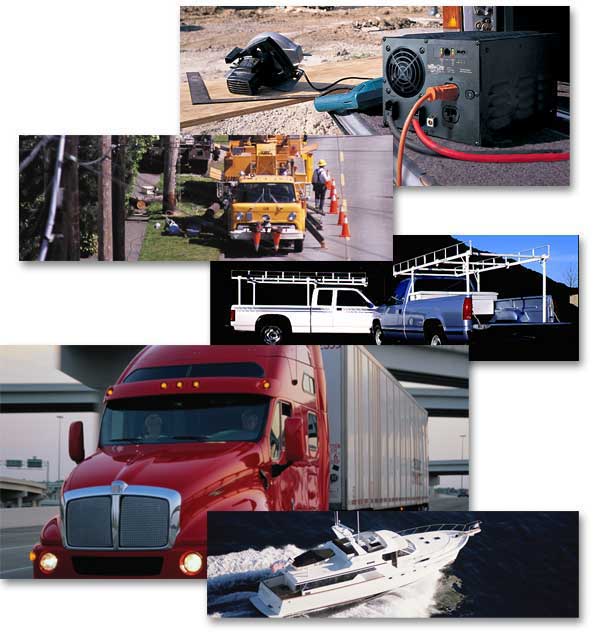

Portable Power Whenever You Need it
Click here for a larger image

Industrial-Strength Output Power
Click here for a larger image

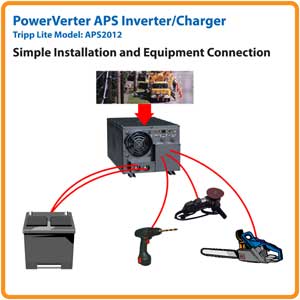

Simple Installation and Equipment Connection
Click here for a larger image

Industrial-Strength Output Power

The APS2012 efficiently converts 12V DC power from a vehicle battery into 120V AC power for any type of equipment, from heavy-duty drills, saws and pumps to computers and sensitive monitoring equipment. The APS2012 provides safe, stable, AC output power to help connected equipment perform at its peak. A frequency control feature ensures that devices dependent on tightly regulated AC line frequency, such as computers, VCRs and DVD/CD players, receive clean computer-grade power.

Extended Peak Surge Power

Many tools, appliances and printers require extra power for start-up. Others, such as refrigerators and pumps, have fluctuating power demands. When operating in inverter mode, the APS2012 accommodates these peak surge demands by providing up to 200% more output power than its continuous rating of 2000 watts. In OverPower mode, the APS2012 can deliver 3000 watts for up to an hour, providing ample reserve power to keep tools and equipment running longer. In DoubleBoost mode, it can deliver 4000 watts for up to 10 seconds to support power-hungry equipment start-ups and motor cycling requirements. When connected to an AC power source, the APS2012 can provide up to 2400 watts continuous power.

Auto-Transfer Switching for UPS Operation

When the APS2012 is connected to an AC power source, power is passed through to connected equipment and the battery set is charged via a three-stage, 25/100-amp selectable charging system with adjustable settings for wet/gel battery types. In the event of a power failure or severe voltage fluctuation, the APS2012 responds with a near-instantaneous (16.6 millisecond) automatic transfer to battery power. Any number of user-supplied batteries may be connected to the APS2012 to provide extended battery backup support for critical equipment. A three-position switch enables you to select AUTO mode for automatic transfer between utility and battery power, CHARGE-ONLY mode to maintain a full battery charge with no automatic transfer switching when the APS2012 is connected to AC power, or SYSTEM OFF mode.

Diagnostic LEDs

The APS2012 features six front-panel diagnostic LEDs to indicate load level (high, medium and low), battery charge (high, medium and low), shutdown status and system fault status.

Overload Protection

To prevent damage to the inverter and connected equipment, the APS2012 will shut down automatically if an overload is detected at the AC output connection. The red Load Level Indicator LED will flash to alert you that an overload has occurred. Additional overload protection is provided by a 25-amp AC input circuit breaker, a 20-amp AC output circuit breaker, and a built-in two-speed cooling fan.

Heavy-Duty Construction

The APS2012 features a rugged, moisture-resistant polycarbonate housing that withstands vibration, impact and high-humidity environments—ideal for use at remote worksites, in trucks, RVs and other vehicles, on boats or anywhere that reliable AC power is needed.

Simple Installation and Equipment Connection

The APS2012 features integral mounting slots for permanent installation on any rigid, horizontal surface, such as the bed of a pickup truck. Connecting the APS2012 to your battery system is quick and easy with readily available user-supplied cables. A grounding lug on the side of the unit connects the inverter/charger to earth ground or vehicle grounding system. AC input power and AC output power for connected equipment is provided via a hardwire junction box on the front of the unit. Four configuration dip switches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts. A second set of four configuration dip switches support four levels of charger limiting relative to output load size, a battery equalization program and battery charger low/high settings.

Optional Remote Control Capability

The APS2012 is equipped with an RJ45 port for connection of an optional Remote Control LED/Switch Module (Tripp Lite model APSRM4), enabling you to control and monitor the inverter/charger from virtually anywhere within a vehicle.

Peace of Mind

The APS2012 comes with a 1-year product warranty and a rapid-response repair/replacement policy that's unmatched in the industry.

Also Available

Tripp Lite manufactures a full line of power and connectivity solutions—UPS systems, power distribution units, surge suppressors, cables and connectivity solutions, rack enclosures and more—for every application, from the desktop to the datacenter.

Technical Specifications

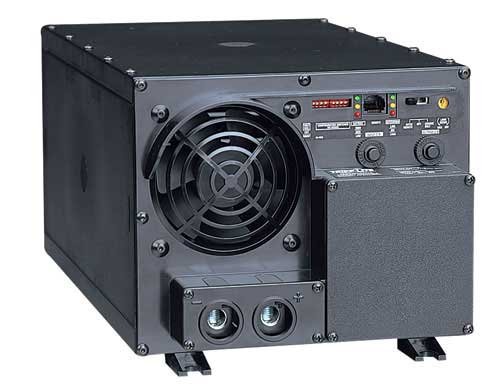

Tripp Lite APS2012 Inverter/Charger

Click here for a larger image

Model:	APS2012
Voltage compatibility:	12 VDC
Frequency compatibility:	60 Hz
Output voltage:	120 VAC
Output capacity (continuous):	2000 watts (inverter), 2400 watts (utility power)
Output capacity (OverPower):	3000 watts/1 hour (inverter)
Output capacity (DoubleBoost):	4000 watts/10 seconds (inverter)
Overload protection:	Input and output circuit breakers
Cooling method:	Fan
Input connection:	2 x DC input terminals (user supplies cables) Hardwire (user supplies cabling)
Output connection:	Hardwire (user supplies cabling)
Switches/LEDs/alarms:	3-position On/Off/Remote switch 8 x Configuration dip switches 6 x diagnostic LEDs
Dimensions (HWD):	7.25 x 8.5 x 16.25 in.
Weight:	40 lbs.
Material of construction:	Black polycarbonate

Equipment Sizing Guide*

The APS2012 can be used to power a wide range of equipment, including:

Power Tools	Pumps	Appliances	Audio/Video	Mobile Office
Finishing Sander (200-225w)	1/6-hp Submersible Sump Pump (1200/800w)	Can Opener (200w)	Game System (10-200w)	Battery Charger (25w)
Bench Grinder (240-1000w)	1/4-hp Submersible Sump Pump (1300/900w)	3-Speed Fan—12 in. (250w)	VCR/DVD Player (50w)	Inkjet Printer (100w)
1/4-in. Drill (250w)	1/3-hp Submersible Sump Pump (1600/1050w)	Mixer/Blender (200-400w)	CD Changer/Mini System (50w)	Laptop Computer (75-150w)
Heat Gun (500-1500w)	1/2-hp Submersible Sump Pump (1400w)	Food Processor (400w)	LCD TV—13-19 in. (50-100w)	Fax Device (150w)
Jigsaw (450-600w)		Portable Vacuum (800w)	LCD TV—25-36 in. (120-135w)	Computer/Monitor (250w)
Standard Reciprocating Saw (450-600w)		Toaster Oven (1200w)	LCD TV—43-60 in. (200-250w)	Portable Laser Printer (350w)
Disk Grinder (600w)		Coffeemaker (800-1200w)	Stereo Amplifier (240w)
1/2-in. Reversible Drill (700w)		Microwave (600-2000w)
10-Gallon Wet/Dry Vacuum (1000w)
Circular Saw (800-1000w)
Router (500-1800w)
14-in. Chain Saw (1200-1600w)

*Based on typical wattage or wattage range. For sump pumps, wattages reflect startup/continuous operation wattage.

Keep Your Equipment Powered with Tripp Lite

APS2424 PowerVerter® APS Inverter/Charger

The APS2424 efficiently converts 24V DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers while keeping connected batteries charged. With its 2400-watt capacity, the APS2424 powers heavy-duty loads like drills, saws and pumps with ease. Hardwire output connection delivers power to connected equipment. OverPower™ and DoubleBoost™ capabilities provide extra power when required for heavy loads and power-hungry equipment start-ups. Auto-transfer switching enables the APS2424 to operate as a UPS. Rugged moisture-resistant polycarbonate housing stands up to harsh environments. 1-year warranty.

98-121 12V DC Battery

Sealed, maintenance-free 12V DC battery. Compatible with any Tripp Lite PowerVerter inverter or APS inverter/charger that accepts 12V DC battery connections.

BP-260 Battery Cabinet

Sturdy metal battery cabinet accommodates two Tripp Lite 98-121 12V DC batteries (sold separately). Includes heavy-gauge cabling, nut-and-bolt connectors and battery terminal isolators for easy installation. 2-year warranty.

APSRM4 Remote Control Module

The APSRM4 remotely controls select Tripp Lite inverters and inverter/chargers from any location inside a vehicle or boat. The module connects to the inverter with an included 50-ft. cord, providing multiple installation options for a wide range of vehicles and boats. An on/off switch controls the inverter. Two sets of intuitive "traffic light" LEDs indicate battery charge, inverter load level and other operational conditions. An attractive face plate is provided for front-panel mounting. Lifetime warranty.

TLP810NET Protect It!™ A/V Surge Suppressor

Economical protection for A/V components and all electronics. This surge suppressor features a high-impact plastic housing, 3240-joule surge protection rating, 8 outlets with built-in safety covers, gold coaxial surge protection, tel/DSL (RJ11) and tel/Ethernet (RJ45) surge protection, and 10-ft. power cord with right-angle plug. $250,000 Ultimate Lifetime Insurance; lifetime warranty.

Product Description

Tripp Lite APS2012 PWRINV APS 2012 2000W 12VDC HWIRE

Customer Reviews

Most Helpful Customer Reviews

7 of 7 people found the following review helpful:

5.0 out of 5 stars Great long run time UPS for your office or home, November 13, 2006

By

Edison "hightech lover" (United States) - See all my reviews

This review is from: Tripp Lite APS2012 2000W 12V DC to AC Inverter with Automatic Line-to-Battery 100/25-Amp Charger (Electronics)

We have three of these running as UPS for extended long run. They work great. With a 100AmpH deep cycle battery, it can run three servers for 5 hours. The built-in three stage charger with battery and charge indicators show the status of the battery and inveter. Many adjustment dip switch to select different battery or switching voltage.

When AC lost, it will automatically switch to battery power in about 5 ms, so that computers have no downtime.

The only problem with them is that the float charge phase is always on. When power outage is not that frequent, it could cause battery being overcharged. I had contacted factory to see if we can turn that float charge off or off after certain hours to avoid the battery overcharge. But they told me there is no modification allowed. The result of that is the battery dying in about 18 month to two years.

Still, that is a much better solution than those regular UPS, since the battery in resular UPS can only last 15 minutes. During summer, when we have the rolling black, which lasts about two hours each time, we don't have to shutdown our computers due to power outage.

5 of 5 people found the following review helpful:

5.0 out of 5 stars Powerverter APS 2012 2000W UPS, September 27, 2005

By

Terrence Bynoe (Georgetown, Guyana) - See all my reviews
(REAL NAME)

This review is from: Tripp Lite APS2012 2000W 12V DC to AC Inverter with Automatic Line-to-Battery 100/25-Amp Charger (Electronics)

This product is all it was advertised to be. I am most pleased with the ability to monitor the battery charge level and the status of the powerverter. It's UPS qualities are also a plus.

3 of 3 people found the following review helpful:

3.0 out of 5 stars Trip Lite Inverter, September 11, 2010

By

John M. Lane "Feaquent Flyer" (Alaska) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Tripp Lite APS2012 2000W 12V DC to AC Inverter with Automatic Line-to-Battery 100/25-Amp Charger (Electronics)

It works like they say it supposed to.
It is a bit loud with the humm.
After a month of use, my inverter, starts to "lurch" with the power, and kicks the normal power off for just a second. Not sure what is happening, but it is an inconvenience.
when on battery power, things work great.
The humming is always there.
