Technical Details
- 2400 watts continuous output power; up to 4800 watts instantaneous power
- Extended peak surge power handles heavy connected loads
- Auto-transfer switching option for battery backup (UPS) operation
- Hardwire AC input/output; rugged moisture-resistant polycarbonate housing
- 1-year warranty
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
Do you need a clean, quiet, reliable power source for automotive, remote site, industrial, commercial or residential applications? Tripp Lite's APS2424 Inverter/Charger is the solution you seek! This DC-to-AC inverter/charger powers the equipment you commonly use at home or work—power tools, pumps, portable lighting, notebook computers and more. It's the ideal power solution for RVs, commercial and fleet vehicles, emergency vehicles, construction sites, remote worksites and any other application that requires a clean, quiet AC power source. The APS2424 efficiently converts 24V DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers. Unlike portable generators, the APS2424 requires no fuel and produces no noise or fumes. The APS2424 also features automatic line-to-battery transfer and an integrated battery charging system for UPS (uninterruptible power supply) applications where an AC power source is present. In UPS mode, the APS2424 powers connected equipment while keeping connected batteries fully charged. If AC power becomes unavailable, the APS2424 automatically switches to battery power. With its 2400-watt capacity, this inverter/charger can handle heavy-duty loads like drills, saws and pumps with ease. The APS2424 also features OverPower™ and DoubleBoost™ capability, providing extra power when required for heavy loads and power-hungry equipment start-ups.

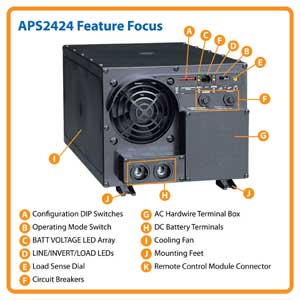

Feature Focus
|
Click here for a larger image
Click here for a larger image
Click here for a larger image
Industrial-Strength Output Power
The APS2424 efficiently converts DC power from a vehicle battery into 120V AC power for any type of equipment, from heavy-duty drills, saws and pumps to computers and sensitive monitoring equipment. The APS2424 provides safe, stable, AC output power to help connected equipment perform at its peak. A frequency control feature ensures that devices dependent on tightly regulated AC line frequency, such as computers, VCRs and DVD/CD players, receive clean computer-grade power.
Extended Peak Surge Power
Many tools, appliances and printers require extra power for start-up. Others, such as refrigerators and pumps, have fluctuating power demands. When operating in inverter mode, the APS2424 accommodates these peak surge demands by providing up to 200% more output power than its continuous rating of 2400 watts. In OverPower mode, the APS2424 can deliver 3600 watts for up to an hour, providing ample reserve power to keep tools and equipment running longer. In DoubleBoost mode, it can deliver 4800 watts for up to 10 seconds to support power-hungry equipment start-ups and motor cycling requirements. When connected to an AC power source, the APS2424 can provide up to 2400 watts continuous power.
Auto-Transfer Switching for UPS Operation
When the APS2424 is connected to an AC power source, power is passed through to connected equipment and the battery set is charged via a three-stage, 14/55-amp selectable charging system with adjustable settings for wet/gel battery types. In the event of a power failure or severe voltage fluctuation, the APS2424 responds with a near-instantaneous (16.6 millisecond) automatic transfer to battery power. Any number of user-supplied batteries may be connected to the APS2424 to provide extended battery backup support for critical equipment. A three-position switch enables you to select AUTO mode for automatic transfer between utility and battery power, CHARGE-ONLY mode to maintain a full battery charge with no automatic transfer switching when the APS2424 is connected to AC power, or SYSTEM OFF mode.
Diagnostic LEDs
The APS2424 features six front-panel diagnostic LEDs to indicate load level (high, medium and low), battery charge (high, medium and low), shutdown status and system fault status.
Overload Protection
To prevent damage to the inverter and connected equipment, the APS2424 will shut down automatically if an overload is detected at the AC output connection. The red Load Level Indicator LED will flash to alert you that an overload has occurred. Additional overload protection is provided by a 25-amp AC input circuit breaker, a 20-amp AC output circuit breaker, and a built-in multi-speed-speed cooling fan.
Heavy-Duty Construction
The APS2424 features a rugged, moisture-resistant polycarbonate housing that withstands vibration, impact and high-humidity environments—ideal for use at remote worksites, in trucks, RVs and other vehicles, on boats or anywhere that reliable AC power is needed.

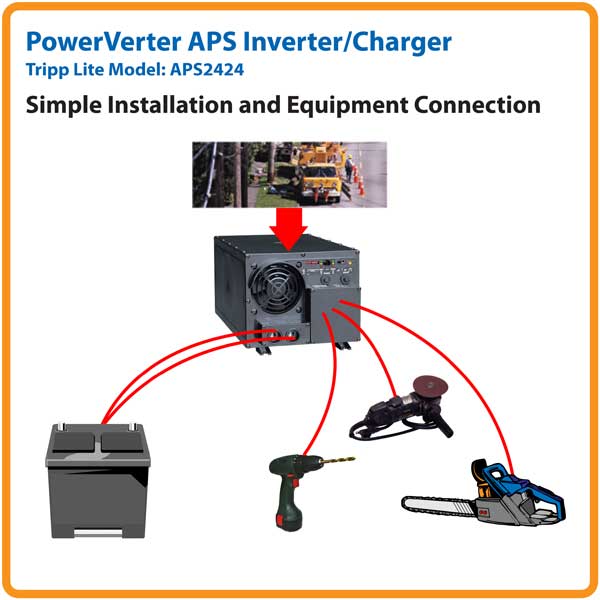

Simple Installation and Equipment Connection
The APS2424 features integral mounting slots for permanent installation on any rigid, horizontal surface, such as the bed of a pickup truck. Connecting the APS2424 to your battery system is quick and easy with readily available user-supplied cables. A grounding lug on the side of the unit connects the inverter/charger to earth ground or vehicle grounding system. AC input power and AC output power for connected equipment is provided via a hardwire junction box on the front of the unit. A load-sensing control dial enables the load threshold to be adjusted to automatically turn the inverter on and off in DC mode as load conditions change. Four configuration dip switches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts. A second set of four configuration dip switches support four levels of charger limiting relative to output load size, a battery equalization program and battery charger low/high settings.
Optional Remote Control Capability
The APS2424 is equipped with an RJ45 port for connection of an optional Remote Control LED/Switch Module (Tripp Lite model APSRM4), enabling you to control and monitor the inverter/charger from virtually anywhere within a vehicle.
Peace of Mind
The APS2424 comes with a 1-year product warranty and a rapid-response repair/replacement policy that's unmatched in the industry.
Also Available
Tripp Lite manufactures a full line of power and connectivity solutions—UPS systems, power distribution units, surge suppressors, cables and connectivity solutions, rack enclosures and more—for every application, from the desktop to the datacenter.
Technical Specifications

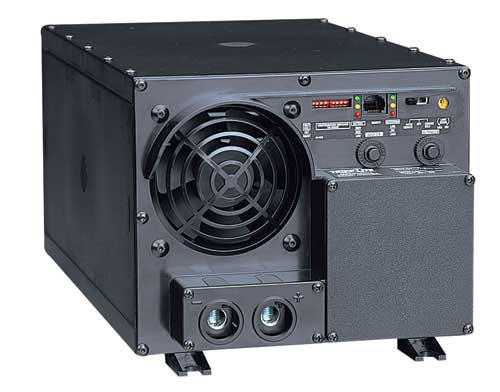

Tripp Lite APS2424 Inverter/Charger
| Model: | APS2424 |
|---|---|
| Voltage compatibility: | 12 VDC |
| Frequency compatibility: | 60 Hz |
| Output voltage: | 120 VAC |
| Output capacity (continuous): | 2400 watts (inverter), 2400 watts (utility power) |
| Output capacity (OverPower): | 3600 watts/1 hour (inverter) |
| Output capacity (DoubleBoost): | 4800 watts/10 seconds (inverter) |
| Overload protection: | Input and output circuit breakers |
| Cooling method: | Multi-speed fan |
| Input connection: | 2 x DC input terminals (user supplies cables) Hardwire (user supplies cabling) |
| Output connection: | Hardwire (user supplies cabling) |
| Switches/LEDs/alarms: | 3-position On/Off/Remote switch 6 x diagnostic LEDs |
| Dimensions (HWD): | 7.25 x 8.5 x 16.25 in. |
| Weight: | 39 lbs. |
| Material of construction: | Black polycarbonate |
| Certifications: | RoHS |
Equipment Sizing Guide*
The APS2424 can be used to power a wide range of equipment, including:
| Power Tools | Pumps | Appliances | Audio/Video | Mobile Office |
|---|---|---|---|---|
| Finishing Sander (200-225w) | 1/6-hp Submersible Sump Pump (1200/800w) | Can Opener (200w) | Game System (10-200w) | Battery Charger (25w) |
| Bench Grinder (240-1000w) | 1/4-hp Submersible Sump Pump (1300/900w) | 3-Speed Fan—12 in. (250w) | VCR/DVD Player (50w) | Inkjet Printer (100w) |
| 1/4-in. Drill (250w) | 1/3-hp Submersible Sump Pump (1600/1050w) | Mixer/Blender (200-400w) | CD Changer/Mini System (50w) | Laptop Computer (75-150w) |
| Heat Gun (500-1500w) | 1/2-hp Submersible Sump Pump (1400w) | Food Processor (400w) | LCD TV—13-19 in. (50-100w) | Fax Device (150w) |
| Jigsaw (450-600w) | Portable Vacuum (800w) | LCD TV—25-36 in. (120-135w) | Computer/Monitor (250w) | |
| Standard Reciprocating Saw (450-600w) | Toaster Oven (1200w) | LCD TV—43-60 in. (200-250w) | Portable Laser Printer (350w) | |
| Disk Grinder (600w) | Coffeemaker (800-1200w) | Stereo Amplifier (240w) | ||
| 1/2-in. Reversible Drill (700w) | Microwave (600-2400w) | |||
| 10-Gallon Wet/Dry Vacuum (1000w) | ||||
| Circular Saw (800-1000w) | ||||
| Router (500-2000w) | ||||
| 14-in. Chain Saw (1200-1600w) |
*Based on typical wattage or wattage range. For sump pumps, wattages reflect startup/continuous operation wattage.
Keep Your Equipment Powered with Tripp Lite
APS2448UL PowerVerter® APS Inverter/Charger
The APS2448UL efficiently converts 48V DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers while keeping connected batteries charged. With its 2400-watt capacity, the APS2448UL powers heavy-duty loads like drills, saws and pumps with ease. Hardwire output connection delivers power to connected equipment. OverPower™ and DoubleBoost™ capabilities provide extra power when required for heavy loads and power-hungry equipment start-ups. Auto-transfer switching enables the APS2448UL to operate as a UPS. Rugged moisture-resistant polycarbonate housing stands up to harsh environments. 1-year warranty.
98-121 12V DC Battery
Sealed, maintenance-free 12V DC battery. Compatible with any Tripp Lite PowerVerter inverter or APS inverter/charger that accepts 12V DC battery connections.
BP-260 Battery Cabinet
Sturdy metal battery cabinet accommodates two Tripp Lite 98-121 12V DC batteries (sold separately). Includes heavy-gauge cabling, nut-and-bolt connectors and battery terminal isolators for easy installation. 2-year warranty.
APSRM4 Remote Control Module
The APSRM4 remotely controls select Tripp Lite inverters and inverter/chargers from any location inside a vehicle or boat. The module connects to the inverter with an included 50-ft. cord, providing multiple installation options for a wide range of vehicles and boats. An on/off switch controls the inverter. Two sets of intuitive "traffic light" LEDs indicate battery charge, inverter load level and other operational conditions. An attractive face plate is provided for front-panel mounting. Lifetime warranty.
TLP810NET Protect It!™ A/V Surge Suppressor
Economical protection for A/V components and all electronics. This surge suppressor features a high-impact plastic housing, 3240-joule surge protection rating, 8 outlets with built-in safety covers, gold coaxial surge protection, tel/DSL (RJ11) and tel/Ethernet (RJ45) surge protection, and 10-ft. power cord with right-angle plug. $250,000 Ultimate Lifetime Insurance; lifetime warranty.
Product Description
Customer Reviews
|
Share your thoughts with other customers:
|
||||||||||||||||||||||
|
Most Helpful Customer Reviews
1 of 1 people found the following review helpful:
5.0 out of 5 stars
Excellent Product,
By
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite APS2424 2400W 24V DC to AC Inverter with Automatic Line-to-Battery 55/14-Amp Charger (Electronics)
I purchased this inverter for loads that have heavy inductive startup motors. Refrigerator, well pump, etc which are powered off my solar battery system. Works perfectly where an Aims 5000 watt unit failed repeatedly. Handles startup currents from inductive loads perfectly as long as you are in the rated overload capacity. Workmanship is excellent. Instructions are detailed. Well worth the extra cost in quality and ruggedness. Very happy with unit.
3 of 4 people found the following review helpful:
5.0 out of 5 stars
Excellent Customer Service,
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite APS2424 2400W 24V DC to AC Inverter with Automatic Line-to-Battery 55/14-Amp Charger (Electronics)
I just purchased the APS2424 after a fantastic phone call with their technical support team.I had been considering installing this unit in our Wood-Fired Pizza Truck (BasicKneadsPizza.com). We had purchased a nice generator, but after installing one on another truck, I wasn't blown away, even the quiestest Honda 3000 still stinks like a traffic jam. James from Tripp-Lite's technical support line picked up quickly and gave me a free refresher course on physics; 36v input means 3 batteries in series, 24v=2 batteries. To double the capacity, a second bank in parallel would cost ~1/3 less with the 24v APS2424. Not to mention the Auto-Transfer switch, and load sensor, this unit is basically going to be my prep table's personal assistant. Our truck is going to rock this unit and two batteries in series. I am going to return an $80 transfer switch, sell a Parallax converter/charger for $100 and a Honda Eu3000is for $1200. Generator system= ~$1600, noisy, stinky, needs gas and oil changes, huge amount of work to install. Inverter system= ~$850, silent, maintenence free. Sold.
