Tripp Lite APS3636VR 3600W 36V DC to AC Inverter with Automatic Line-to-Battery 30-Amp Charger

by Tripp Lite

Product Details

• Product Dimensions: 16.2 x 8.5 x 7.2 inches ; 60 pounds
• Shipping Weight: 61 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B00006HO5G
• Item model number: APS3636VR
• Average Customer Review: 5.0 out of 5 stars  See all reviews (2 customer reviews)
• Discontinued by manufacturer: Yes
• Date first available at Amazon.com: August 29, 2002

Product Description

From the Manufacturer

Do you need a clean, quiet, reliable power source for automotive, remote site, industrial, commercial or residential applications? Tripp Lite's APS3636VR Inverter/Charger is the solution you seek! This DC-to-AC inverter/charger powers the equipment you commonly use at home or work—power tools, pumps, portable lighting, notebook computers and more. It's the ideal power solution for RVs, commercial and fleet vehicles, emergency vehicles, construction sites, remote worksites and any other application that requires a clean, quiet AC power source. The APS3636VR efficiently converts DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers. Unlike portable generators, the APS3636VR requires no fuel and produces no noise or fumes. The APS3636VR also features automatic line-to-battery transfer and an integrated battery charging system for UPS (uninterruptible power supply) applications where an AC power source is present. In UPS mode, the APS3636VR powers connected equipment while keeping connected batteries fully charged. If AC power becomes unavailable, the APS3636VR automatically switches to battery power. Built-in Automatic Voltage Regulation (AVR) protects batteries and connected equipment from damage due to voltage fluctuations. With its 3600-watt capacity, this inverter/charger can handle heavy-duty loads like drills, saws and pumps with ease. The APS3636VR also features OverPower™ and DoubleBoost™ capability, providing extra power when required for heavy loads and power-hungry equipment start-ups.

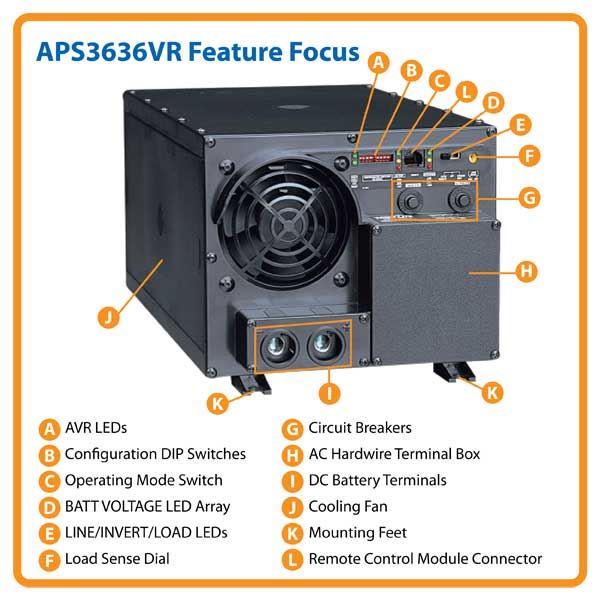

Feature Focus

Tripp Lite's APS3636VR Inverter/Charger Offers: Computer-grade AC power from an AC or DC power source 3600 watts continuous output power; up to 7200 watts peak power Auto transfer switching option for battery backup (UPS) operation Automatic Voltage Regulation (AVR protection) 1-year warranty

Portable Power Whenever You Need it
Click here for a larger image

Industrial-Strength Output Power
Click here for a larger image

Simple Installation and Equipment Connection
Click here for a larger image

Industrial-Strength Output Power

The APS3636VR efficiently converts 36V DC power from a vehicle battery into 120V AC power for any type of equipment, from heavy-duty drills, saws and pumps to computers and sensitive monitoring equipment. The APS3636VR provides safe, stable, AC output power to help connected equipment perform at its peak. A frequency control feature ensures that devices dependent on tightly regulated AC line frequency, such as computers, VCRs and DVD/CD players, receive clean computer-grade power.

Extended Peak Surge Power

Many tools, appliances and printers require extra power for start-up. Others, such as refrigerators and pumps, have fluctuating power demands. When operating in inverter mode, the APS3636VR accommodates these peak surge demands by providing up to 200% more output power than its continuous rating of 3600 watts. In OverPower mode, the APS3636VR can deliver 5400 watts for up to an hour, providing ample reserve power to keep tools and equipment running longer. In DoubleBoost mode, it can deliver 7200 watts for up to 10 seconds to support power-hungry equipment start-ups and motor cycling requirements. When connected to an AC power source, the APS3636VR can provide up to 3600 watts continuous power.

Auto-Transfer Switching for UPS Operation

When the APS3636VR is connected to an AC power source, power is passed through to connected equipment and the battery set is charged via a three-stage, 30-amp charging system with adjustable settings for wet/gel battery types. In the event of a power failure or severe voltage fluctuation, the APS3636VR responds with a near-instantaneous (16.6 millisecond) automatic transfer to battery power. Any number of user-supplied batteries may be connected to the APS3636VR to provide extended battery backup support for critical equipment. A three-position switch enables you to select AUTO mode for automatic transfer between utility and battery power, CHARGE-ONLY mode to maintain a full battery charge with no automatic transfer switching when the APS3636VR is connected to AC power, or SYSTEM OFF mode.

Automatic Voltage Regulation

The APS3636VR features built-in automatic voltage regulation (AVR) to correct AC brownouts as low as 75V and overvoltages up to 145V without consuming battery power. AVR operates in both UPS standby mode and battery charge mode, protecting connected equipment and batteries from damage due to voltage fluctuations.

Diagnostic LEDs

The APS3636VR features six front-panel diagnostic LEDs to indicate load level (high, medium and low), battery charge (high, medium and low), shutdown status and system fault status.

Overload Protection

To prevent damage to the inverter and connected equipment, the APS3636VR will shut down automatically if an overload is detected at the AC output connection. The red Load Level Indicator LED will flash to alert you that an overload has occurred. Additional overload protection is provided by a 25-amp AC input circuit breaker, a 30-amp AC output circuit breaker, and a built-in multi-speed cooling fan.

Heavy-Duty Construction

The APS3636VR features a rugged, moisture-resistant polycarbonate housing that withstands vibration, impact and high-humidity environments—ideal for use at remote worksites, in trucks, RVs and other vehicles, on boats or anywhere that reliable AC power is needed.

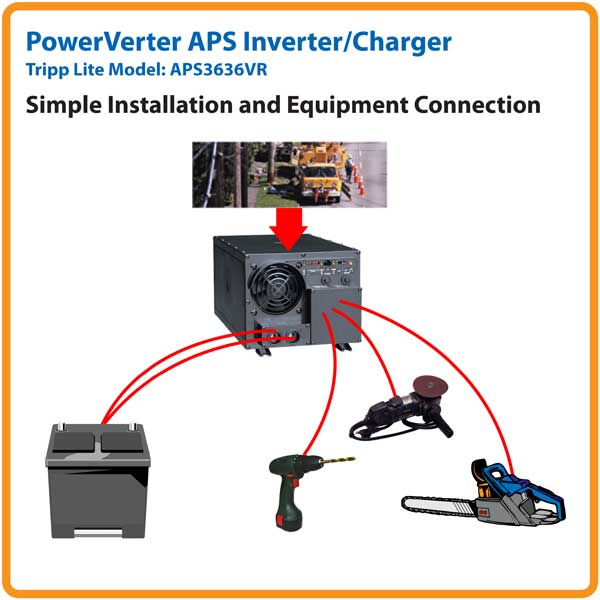

Simple Installation and Equipment Connection

The APS3636VR features integral mounting slots for permanent installation on any rigid, horizontal surface, such as the bed of a pickup truck. Connecting the APS3636VR to your battery system is quick and easy with readily available user-supplied cables. A grounding lug on the side of the unit connects the inverter/charger to earth ground or vehicle grounding system. AC input power and AC output power for connected equipment is provided via a hardwire junction box on the front of the unit. A load-sensing control dial enables the load threshold to be adjusted to automatically turn the inverter on and off in DC mode as load conditions change. Four configuration dip switches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts. A second set of four configuration dip switches support four levels of charger limiting relative to output load size, a battery equalization program and battery charger low/high settings.

Optional Remote Control Capability

The APS3636VR is equipped with an RJ45 port for connection of an included Remote Control LED/Switch Module (Tripp Lite model APSRM4), enabling you to control and monitor the inverter/charger from virtually anywhere within a vehicle.

Peace of Mind

The APS3636VR comes with a 1-year product warranty and a rapid-response repair/replacement policy that's unmatched in the industry.

Also Available

Tripp Lite manufactures a full line of power and connectivity solutions—UPS systems, power distribution units, surge suppressors, cables and connectivity solutions, rack enclosures and more—for every application, from the desktop to the datacenter.

Technical Specifications

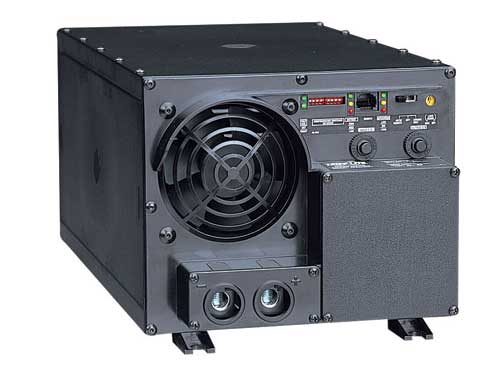

Tripp Lite APS3636VR Inverter/Charger with AVR

Click here for a larger image

Model:	APS3636VR
Voltage compatibility:	12 VDC
Frequency compatibility:	60 Hz
Output voltage:	120 VAC
Output capacity (continuous):	3600 watts (inverter/utility power)
Output capacity (OverPower):	5400 watts/1 hour (inverter)
Output capacity (DoubleBoost):	7200 watts/10 seconds (inverter)
Overload protection:	Input and output circuit breakers
Cooling method:	Multi-speed fan
Input connection:	2 x DC input terminals (user supplies cables) Hardwire (user supplies cabling)
Output connection:	Hardwire (user supplies cabling)
Switches/LEDs/alarms:	3-position On/Off/Remote switch 8 x Configuration dip switches 6 x diagnostic LEDs
Dimensions (HWD):	7.25 x 8.5 x 16.25 in.
Weight:	55.8 lbs.
Material of construction:	Black polycarbonate
Certifications:	RoHS

Equipment Sizing Guide*

The APS3636VR can be used to power a wide range of equipment, including:

Power Tools	Pumps	Appliances	Audio/Video	Mobile Office
Finishing Sander (200-225w)	1/6-hp Submersible Sump Pump (1200/800w)	Can Opener (200w)	Game System (10-200w)	Battery Charger (25w)
Bench Grinder (240-1000w)	1/4-hp Submersible Sump Pump (1300/900w)	3-Speed Fan—12 in. (250w)	VCR/DVD Player (50w)	Inkjet Printer (100w)
1/4-in. Drill (250w)	1/3-hp Submersible Sump Pump (1600/1050w)	Mixer/Blender (200-400w)	CD Changer/Mini System (50w)	Laptop Computer (75-150w)
Heat Gun (500-1500w)	1/2-hp Submersible Sump Pump (1400w)	Food Processor (400w)	LCD TV—13-19 in. (50-100w)	Fax Device (150w)
Jigsaw (450-600w)		Portable Vacuum (800w)	LCD TV—25-36 in. (120-135w)	Computer/Monitor (250w)
Standard Reciprocating Saw (450-600w)		Toaster Oven (1200w)	LCD TV—43-60 in. (200-250w)	Portable Laser Printer (350w)
Disk Grinder (600w)		Coffeemaker (800-1200w)	Stereo Amplifier (240w)
1/2-in. Reversible Drill (700w)		Microwave (600-2400w)
10-Gallon Wet/Dry Vacuum (1000w)
Circular Saw (800-1000w)
Router (500-2000w)
14-in. Chain Saw (1200-1600w)

*Based on typical wattage or wattage range. For sump pumps, wattages reflect startup/continuous operation wattage.

Keep Your Equipment Powered with Tripp Lite

APS2448UL PowerVerter® APS Inverter/Charger

The APS2448UL efficiently converts 48V DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers while keeping connected batteries charged. With its 2400-watt capacity, the APS2448UL powers heavy-duty loads like drills, saws and pumps with ease. Hardwire output connection delivers power to connected equipment. OverPower™ and DoubleBoost™ capabilities provide extra power when required for heavy loads and power-hungry equipment start-ups. Auto-transfer switching enables the APS2448UL to operate as a UPS. Rugged moisture-resistant polycarbonate housing stands up to harsh environments. 1-year warranty.

98-121 12V DC Battery

Sealed, maintenance-free 12V DC battery. Compatible with any Tripp Lite PowerVerter inverter or APS inverter/charger that accepts 12V DC battery connections.

BP-260 Battery Cabinet

Sturdy metal battery cabinet accommodates two Tripp Lite 98-121 12V DC batteries (sold separately). Includes heavy-gauge cabling, nut-and-bolt connectors and battery terminal isolators for easy installation. 2-year warranty.

APSRM4 Remote Control Module

The APSRM4 remotely controls select Tripp Lite inverters and inverter/chargers from any location inside a vehicle or boat. The module connects to the inverter with an included 50-ft. cord, providing multiple installation options for a wide range of vehicles and boats. An on/off switch controls the inverter. Two sets of intuitive "traffic light" LEDs indicate battery charge, inverter load level and other operational conditions. An attractive face plate is provided for front-panel mounting. Lifetime warranty.

TLP810NET Protect It!™ A/V Surge Suppressor

Economical protection for A/V components and all electronics. This surge suppressor features a high-impact plastic housing, 3240-joule surge protection rating, 8 outlets with built-in safety covers, gold coaxial surge protection, tel/DSL (RJ11) and tel/Ethernet (RJ45) surge protection, and 10-ft. power cord with right-angle plug. $250,000 Ultimate Lifetime Insurance; lifetime warranty.

Product Description

36V DC - 120V AC - Continuous Power:3600W

Customer Reviews

Most Helpful Customer Reviews

3 of 3 people found the following review helpful:

5.0 out of 5 stars Great backup, March 31, 2011

By

Arturas Grazulis "Artsman gasman" (Middle of nowhere, Illinois) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Tripp Lite APS3636VR 3600W 36V DC to AC Inverter with Automatic Line-to-Battery 30-Amp Charger (Electronics)

I used it to create back-up for my basement sump pumps (3 pumps with 30Amps total power). Connected with 3 110 Ah Farm and fleet deep cycle batteries. Works perfectly and able to handle full load for significant amount of time. Consider connecting basement freezers and refrigerators to it as well and probably servers. Why to pay for useless 12 V backup pumps (they handle max 2000gal/h each), when you can connect your regular pumps through this charger/converter.

2 of 2 people found the following review helpful:

5.0 out of 5 stars The better back up power for my home, May 26, 2011

By

Olwing Ponce Garay (Honduras) - See all my reviews
(REAL NAME)

This review is from: Tripp Lite APS3636VR 3600W 36V DC to AC Inverter with Automatic Line-to-Battery 30-Amp Charger (Electronics)

I installed 2 of this beautiful machines on my home and i'm very satisfied in power outage may works for more than 24 hours if i use only lights, surely you need more batteries for make it work for that amount of time i have 9 batteries of 80 amps for each inverter and works smoothly, i highly recommend this product since it protect all things of low voltage andd over voltage, i have mines since 2 years and never fails, only bad thing is that some appliance articles like satellite receivers, motion detection lamps and some desktop pc sometimes turns off because the 20ms transfer time is not enough for this devices, but 98% of my devices connected works like a charm. and the remote control let you see how the battery is draining, usually i see my lcd tv for 3 hours before battery gets the 70% of 100%, and the tv is connected with satellite receiver,dvd,sound system, and lights of home, so i think this is a very useful inverter for any appliances on home.even i'm able to use microwave oven since it supports 3,600 watts continous, so it mean 6 KVA. hardwire is relly required for batteries specially.
