Technical Details
- Protects PCs, peripherals, workstations, point-of-sale systems and more
- Prevents damage, data loss and performance problems due to power problems
- Automatic Voltage Regulation corrects brownouts and overvoltages without draining battery
- 8 outlets (4 UPS-supported, 4 surge only) plus single-line tel/DSL surge protection
- Free PowerAlert software for safe unattended computer shutdown and file saves
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
Power problems—including blackouts, brownouts, power surges and line noise—threaten your investment! They can damage or destroy PCs and other expensive equipment, wipe out valuable data and files, and degrade component performance. Get protected against these all-too-common power threats with Tripp Lite's AVR550U desktop UPS system. It provides reliable battery backup that can keep a basic desktop PC operational for up to 17 minutes during blackouts. Automatic voltage regulation (AVR) corrects low-voltage conditions (brownouts) back to safe 120V power without draining the UPS battery. Surge suppression and EMI/RFI line noise filtering prevent hardware damage and performance problems such as poor-quality audio and video output.
The AVR550U's 550VA/300-watt power rating provides ample capacity for a wide range of home and office PC setups, workstations, point-of-sale systems and more. It features 4 battery-supported AC outlets for computer, monitor and other vital system peripherals, plus 4 surge suppression-only outlets for accessories not requiring battery support. One set of tel/DSL (RJ11) jacks protects connected equipment on a tel/DSL line. One USB communication port plus free PowerAlert software (available via Web download) enables unattended system shutdown and file saves in case of a prolonged power failure. The AVR550U comes with $100,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only) and a 3-year product warranty.

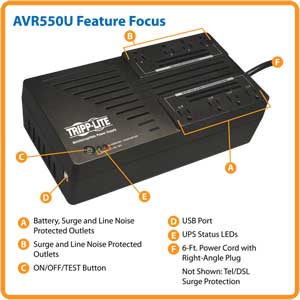

Key Features
|
Click here for a larger image
Click here for a larger image

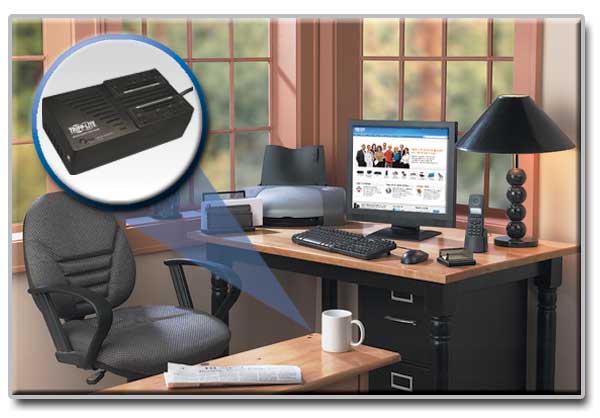

Ideal for Protection of Home or Office PCs and Peripherals

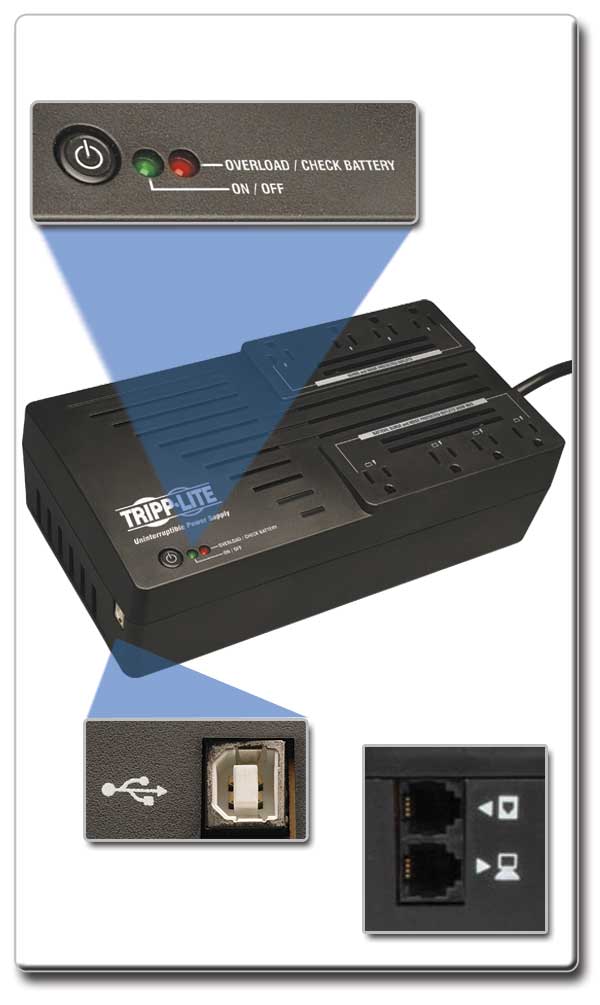

With reliable battery backup, automatic voltage regulation, surge suppression, line noise filtering, tel/DSL jacks and an HID-compliant USB port, the AVR550U offers a complete power protection solution for a wide range of home and office electronics. The AVR550U features a split-outlet design with 8 total AC outlets: 4 to provide battery backup support and surge protection for computers, monitors and other critical components; 4 to provide surge protection only for peripherals such as printers and scanners that do not need battery backup.
Automatic Voltage Regulation (AVR)
AVR protects your equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions (brownouts) and overvoltages. The AVR550U automatically corrects brownouts as low as 83V and overvoltages as high as 147V back to 120V without drawing on battery backup power that may be needed to support your equipment during a blackout.
Green High-Efficiency Design
99% efficiency saves energy, lowering your electric bill and reducing your carbon footprint. High-efficiency models also consume fewer resources during manufacture and distribution.
Keep Working During Power Failures

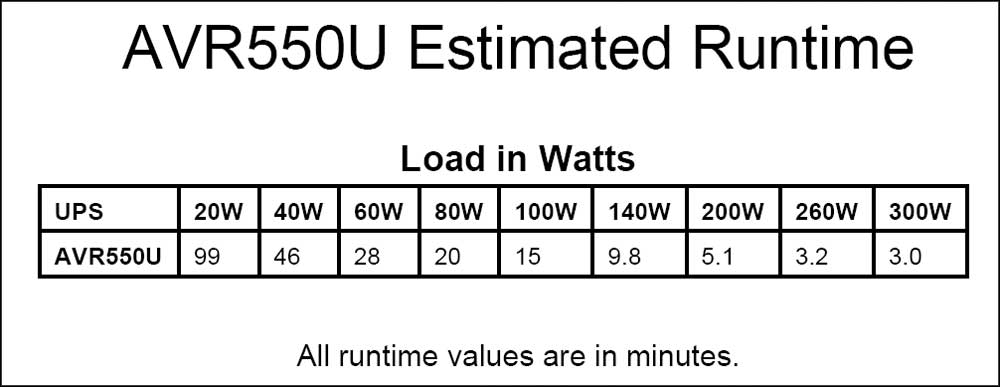

UPS battery backup support enables you to work through short power failures, and provides time to save files and perform an orderly system shutdown in case of a prolonged blackout. The AVR550U features an internal battery that provides 3 min. of battery support for a full load (300 watts), 9 min. for a half load (150 watts) or 17 min. for a basic desktop PC. During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available when needed.
Protect Electronics Against Damaging Surges
A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The AVR550U features built-in surge suppression to protect all connected components and the data they contain.
EMI/RFI Line Noise Filtering
Various electromagnetic and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The AVR550U incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.
Click here for a larger image
Data Line Protection
The AVR550U includes one set of tel/DSL (RJ11) jacks to protect a standard telephone, fax, dialup modem or DSL connection.
USB Port and Free PowerAlert Software
The AVR550U features an HID-compliant USB port (USB cable included). Used with Tripp Lite's free PowerAlert software (available from Tripp Lite as a Web download), this USB port enables safe unattended system shutdown and file saves in the event of a prolonged power failure. The USB port also enables integration with built-in power management and auto shutdown features of Windows®, Linux® and Mac OS® X.
Versatile Installation Options
The AVR550U features a space-saving, ultra-compact housing that fits on a desktop, a shelf or almost anywhere. Its 6-ft. power cord features a right-angle plug that allows furniture to be placed flush against the wall. The AVR550U's housing is equipped with integrated keyhole mounting slots for secure wall-mount installation.
Environmentally Responsible
The AVR550U is manufactured in compliance with strict RoHS (Restriction of Hazardous Substances) guidelines to minimize the use of hazardous materials, and its internal battery is 100% recyclable.
Ultimate Peace of Mind
The AVR550U comes with $100,000 Ultimate Lifetime Insurance coverage for connected equipment and a 3-year warranty.
Technical Specifications
Tripp Lite AVR550U Standby UPS System
| Model: | AVR550U |
|---|---|
| Voltage compatibility: | 120 VAC |
| Frequency compatibility: | 60 Hz |
| VA/Wattage Capacity: | 550/300 |
| Battery runtimes (half/full): | 9 min./3 min. |
| Outlet quantity/type: | 8 x 5-15R (4 UPS/surge, 4 surge only) |
| Signal line protection: | RJ11 tel/DSL jacks (1 set) |
| Communications ports: | 1 x HID-compliant USB |
| Input cord: | 6 ft. |
| Input plug: | 5-15P right-angle |
| Switches/LEDs/alarms: | On/Off/self-test switch 2 diagnostic LEDs Audible alarm |
| Dimensions (HWD): | 3.1 x 10.8 x 5.7 in. |
| Weight: | 6.5 lb. |
| UPS housing material: | ABS plastic |
| Agency approvals: | UL 1778 (US) / CSA (Canada) NOM (Mexico) FCC Part 15 Category B (EMI) RoHS |

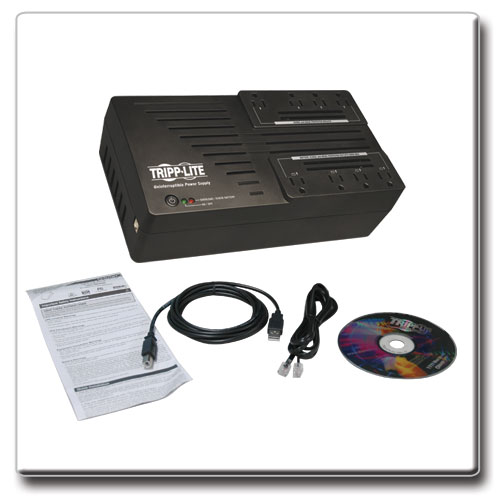

What's in the Box
- AVR550U UPS System
- USB Cable
- Instruction Manual
Tripp Lite Keeps You Protected and Connected
Tripp Lite UPS Systems, Surge Suppressors and accessories are available with a wide range of features to provide reliable, cost-effective power protection for all electronics.
AVR750U Automatic Voltage Regulation UPS System
Economical automatic voltage regulation and battery backup protection for PCs and all electronics. The AVR750U provides 750VA/450W power capacity with 12 outlets (6 UPS/surge, 6 surge only) plus single-line tel/DSL (RJ11) surge protection. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The AVR750U supports entry-level PCs for up to 40 minutes during power failures. $100,000 Ultimate Lifetime Insurance (USA/Canada only); 3-year warranty.
OMNI650LCD Digital UPS System
Automatic voltage regulation and battery backup protection for PCs and all electronics. The OMNI650LCD provides 650VA/350W power capacity with 8 outlets (4 UPS/surge, 4 surge only). A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The OMNI650LCD supports a basic desktop PC for up to 40 minutes during power failures. $200,000 Ultimate Lifetime Insurance; 3-year warranty.
P022-001 Power Extension/Adapter Cable—1 ft.
Attaches to an existing power cord to extend its length by 1 ft. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Standard 5-15R receptacle and 5-15P plug. Lifetime warranty.
U026-016 USB 2.0 A/A Active Extension Cable—16-ft.
Increases the length of a device cable without signal loss and/or performance problems. Daisy-chain up to 5 U026-016 cables to extend total USB cable length up to 80 ft. Premium double-shielded cables with tinned copper braid and aluminum Mylar foil.
U222-004-R 4-Port USB 2.0 Certified Ultra-Mini Hub
Connects up to four USB devices to a single USB port on a PC, Mac or notebook computer. This hub is certified to support high-speed data transmission rates up to 480Mbps, and is ideal for both the desktop and the mobile user. Lifetime warranty.
TLP606B Protect It!™ Surge Suppressor
Economical surge protection for all electronics. This surge suppressor features an attractive all-black, high-impact plastic housing, 720-joule surge protection rating, 6 outlets including one transformer outlet, 6-ft. power cord, $20,000 Ultimate Lifetime Insurance and lifetime warranty.
