- 2-Port Desktop KVM Switch with Audio and USB KVM Cable Kits
- Controls 2 computers from a single monitor, keyboard and mouse
- Lets 2 computers share an audio device
- Compatible with all major operating systems
- 1-year warranty
What Other Items Do Customers Buy After Viewing This Item?
Technical Details
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
Are you looking for a simple way to control multiple computers in a home office or small office? Tripp Lite's B004-DUA2-K-R 2-Port Desktop KVM Switch with Audio is the optimal solution! It enables you to control two computers using a single keyboard, mouse and monitor, and also includes an independent audio/microphone switching function that lets you listen to audio from one computer even when you switch to the other computer. The B004-DUA2-K-R is compatible with all major operating systems and setup is quick and simple. With its compact, space-saving design, B004-DUA2-K-R is easy to integrate into any home office/small office setup.
Key Features
|

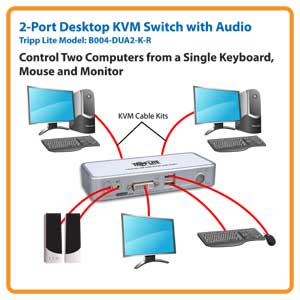

The B004-DUA2-K-R lets you control two computers from a single keyboard, mouse and monitor
Click here for a larger image
Click here for a larger image
Quick and Simple Setup
The B004-DUA2-K-R is easy to configure for your system. Just install the included KVM Switcher Software, connect your computers and audio components to the switch using the included USB KVM cable kits and audio cable kits, plug in the power adapter and you're ready to play!
Control Two Computers
The B004-DUA2-K-R lets you to control two computers from a single keyboard, mouse and monitor. Keyboard hot keys and a front-mounted port selection buttons give you two convenient ways to select a computer. In Auto Scan mode, the B004-DUA2-K-R automatically cycles between the ports at regular 5-second intervals, enabling you to monitor computer activity with no need to manually switch between computers.
Independent Audio Switching
The B004-DUA2-K-R features independent audio switching capability that allows you to listen to audio from one computer even when switched to the other computer, for an uninterrupted audio experience.
Hot-Swap Capability
The B004-DUA2-K-R's KVM ports are hot-swappable, allowing you to add or remove computers without powering down either the KVM switch or computers. This handy feature enables you to swap out a computer without disrupting the overall system.
Universal Compatibility
The B004-DUA2-K-R is compatible with all operating systems, including Windows Server 2008 and Win7, and supports Microsoft® IntelliMouse® and the scrolling wheel on most mice. It incorporates DVI technology to reduce undesirable video distortion from conventional analog/digital conversion. Both DVI single-link digital video (up to 1920 x 1200) and DVI analog video (up to2048 x 1536) are supported. Since compatibility is based on common hardware standards, almost any type of computer can be connected to the switch.
Easy-to-Use Software
The B004-DUA2-K-R comes with innovative KVM Switcher Software that works with both Windows and Macintosh platforms. A small client application facilitates KVM switching operations such as computer selection, hot key sequence programming, auto-scanning, auto-scan delay time programming, simultaneous audio/computer switching and more.
Peace of Mind
The B004-DUA2-K-R is backed by a 1-year warranty and a rapid-response, no-questions-asked replacement policy that's unmatched in the industry.

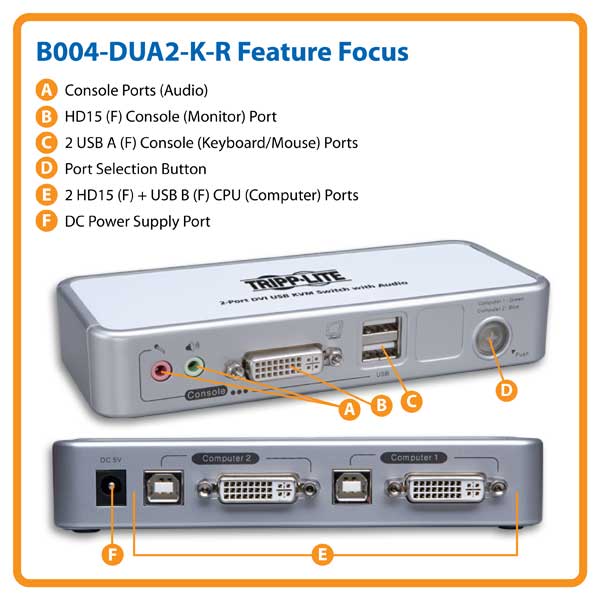

Technical Specifications
| Model: | B004-DUA2-K-R |
|---|---|
| Maximum computers: | 2 |
| CPU ports: | 2 x HD15 (female), 2 x USB B (female) |
| Monitor port: | 1 x HD15 (female) |
| Keyboard/mouse ports: | 2 x USB A (female) |
| AC adapter port: | 1 x AC 5V |
| Audio ports: | 2 x 3.5mm audio (female) |
| Switches: | Port selection switch |
| Dimensions (HWD): | 1.0 x 7.0 x 3.5 in. |
| Weight: | 1.2 lbs. |
| Material of construction: | Metal |
| Agency approvals: | CE FCC Class A RoHS |

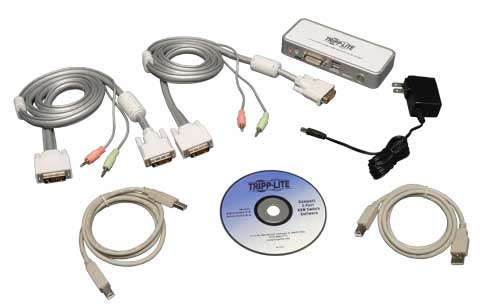

What's in the Box
- B004-DUA2-K-R 2-Port Desktop KVM Switch
- 2 x 6-ft. USB KVM Cable Kits
- 2 x 3.5mm Audio Cable Kits
- DC Power Adapter
Tripp Lite Controls and Protects Your Computers
P562-001-45L DVI Dual Link 45-Degree Left Extension Cable (DVI-D M/F)—1 ft.
Premium double-shielded digital video cable with 24K gold-plated connectors. Left-angled connector reduces strain on equipment connectors in tight spaces. For use with dual link-capable digital CRT displays, flat-panel displays, HDTV and projectors; PC and Mac compatible. Lifetime warranty.
P562-006 DVI Dual Link Extension TMDS Cable (DVI-D M/F)—6 ft.
Premium double-shielded digital video cable with 24K gold-plated copper contacts. For use with dual link-capable digital CRT displays, flat-panel displays, HDTV and projectors. Supports 2560 x 1600 resolution; PC and Mac compatible. Lifetime warranty.
P118-000 DVI-D to DVI-I Adapter (DVI-D M to DVI-I FF)
Enables two DVI digital cables to be connected together. Converts a DVI-I Male connector to a DVI-D Male connector. Fully molded construction; gold-plated pins to minimize signal loss.
B004-VPA2-K-R 2-Port Compact PS/2 KVM Switch w/Audio and Cable
Compact desktop KVM switch lets you control two computers from one keyboard, mouse and monitor. Independent audio switching enables audio components to be shared between connected computers. Plug-and-play setup; no special software required. The B004-VPA2-K-R is compatible with all operating systems. Includes two PS/2 KVM cable kits and two 3.5mm audio cable kits. 1-year warranty.
B004-VUA2-K-R 2-Port Compact USB KVM Switch w/Audio and Cable
Compact desktop KVM switch lets you control two computers from one keyboard, mouse and monitor. Independent audio switching enables audio components to be shared between connected computers. Plug-and-play setup; no special software required. The B004-VUA2-K-R is compatible with all operating systems. Includes two USB KVM cable kits and two 3.5mm audio cable kits. 1-year warranty.
SMART1000LCD Digital UPS System
Advanced automatic voltage regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1000LCD provides 1000VA/500W power capacity with 8 outlets (4 UPS/surge, 4 surge only) plus single-line tel/DSL and coaxial protection. A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The SMART1000LCD supports entry-level PCs for up to 60 minutes during power failures. $250,000 Ultimate Lifetime Insurance; 3-year warranty.
Product Description
2 x 1 - 2 x DVI-I Monitor - KVM Switch
Customer Reviews
|
Share your thoughts with other customers:
|
||||||||||||||||||||||
|
Most Helpful Customer Reviews
1 of 1 people found the following review helpful:
1.0 out of 5 stars
Replacement unit worked for less than 1 year,
By Rodney L. Ashcroft (Westminster, CO United States) - See all my reviews
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite B004-DUA2-K-R 2 Port DVI USB KVM Switch w Audio and Cables (Personal Computers)
I purchased the Tripp Lite model B004-DUA2-K-R-2 less than 1 year ago. The original unit didn't work at all. Tripp did agree to sent a replacement free of charge.The replacement unit worked intermittently, and occasionally had to be unplugged for awhile before it would work correctly. In less than 1 year it finally stopped working. Tripp has issued a return authorization, freight to be paid at my own expense and is not reimbursable. Instead of investing additional freight costs, I'll be investigating different manufacturers. IO GEAR and ATEN look promising. (I understand IO Gear and Aten are affiliate companies.)
1 of 1 people found the following review helpful:
2.0 out of 5 stars
Great tech support, but it still wouldn't work,
By
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite B004-DUA2-K-R 2 Port DVI USB KVM Switch w Audio and Cables (Personal Computers)
I went through a period of trying one KVM switch after another to find one that would switch between two Macintoshes. This one couldn't do it, although TL techies tried mightily to make it functional by phone. It may work for PC's; I don't know. Good company, but product not ready for prime time.
2.0 out of 5 stars
Mac Users Beware,
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite B004-DUA2-K-R 2 Port DVI USB KVM Switch w Audio and Cables (Personal Computers)
The cables supplied with this do not work with Mac. Macs use Mini DVI to DVI and these cables are DVI-D. This a very hard adapter to find, even Tripp-lite doesn't make it. The trade off is buy DVI cables but then the audio doesn't switch. This is too bad because the switching is great and event the non std mouse signals work. It would be very easy for Tripp Lite to offer, even for a cost, Mac adapters
