Tripp Lite B114-004-R VGA/SVGA 350MHz Video Splitter - 4 Port

by Tripp Lite

Product Details

Product Manual [234kb PDF]

• Product Dimensions: 13.2 x 8.5 x 4 inches ; 2.1 pounds
• Shipping Weight: 2.1 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B00005V524
• Item model number: B114-004-R
• Date first available at Amazon.com: February 29, 2008

Product Description

From the Manufacturer

Spread your message far and wide—extend a VGA/SVGA signal up to 210 ft. on up to 64 different monitors! By cascading 3 levels of units, this Tripp Lite 4-Port VGA/SVGA Splitter delivers peak video performance by VGA-enabled digital video components across as many as 64 monitors, which makes it ideal for digital signage applications in schools, churches, retail displays, trade show presentations and more. The splitter can be placed up to 25 ft. away from the source and 185 ft. away from a connected monitor, giving you 210 ft. of total cable distance, while the built-in signal booster can support resolutions of up to 1920x1080 (60Hz) with 350 Mhz bandwidth support, assuring that you enjoy crystal-clear picture at all points of your installation. The B114-004-R is completely plug-and-play for convenience, making it easy and efficient to set up even when cascading multiple units.

B114-004-R 4-Port VGA/SVGA Splitter Key Features: Ideal for digital signage applications, video presentations or sharing information with multiple users Simultaneously display VGA/SVGA video from a single source on 4 monitors Built-in booster provides crystal clear 1920x1080 (60Hz) with 350 Mhz bandwidth support Plug-and-play—no drivers required Environmentally responsible

The Smart Solution for Digital Signage Applications
Click here for a larger image

Convenient Plug-and-Play Setup
Click here for a larger image

Key Features

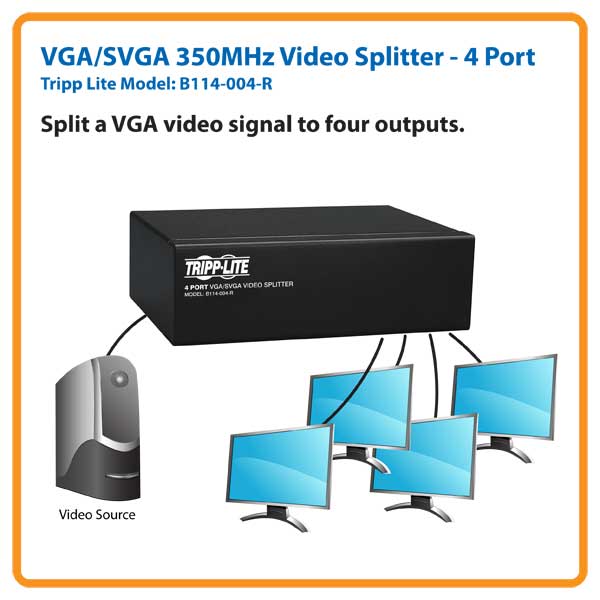

The Smart Solution for Digital Signage Applications

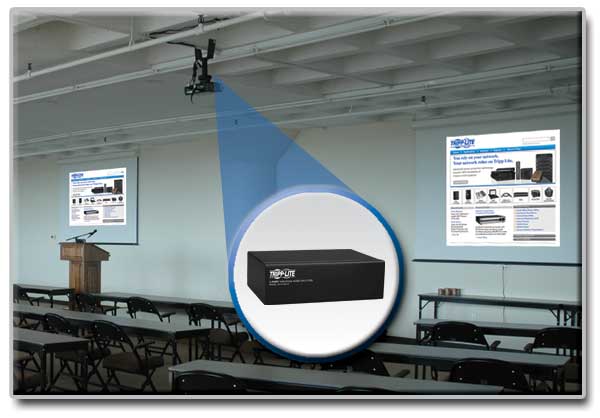

The B114-004-R splits a single VGA/SVGA signal into 4 separate signals, making it the ideal solution for digital signage applications requiring many displays connected to one source, ranging from schools and churches to retail, point-of-sale displays and trade show presentations. By cascading three levels of units together, you can connect up to 64 monitors to a single video source. The B114-004-R allows for the video source to be in a secure, remote location for controlled access while still delivering the signal to devices in another area.

Greater Distance—Greater Flexibility

This Tripp Lite 4-Port VGA/SVGA Splitter allows extension of a VGA signal beyond regular distance limitations. With its built-in signal booster, the B114-004-R can extend a 1920x1080 (60Hz) resolution up to 210 ft. away from its source. The splitter can be placed up to 25 ft. away from the video source and up to 185 ft. away from a connected monitor. For optimal performance, use Tripp Lite VGA/SVGA or VGA cables like the P500-025 and P502-025. The B114-004-R also features 350 Mhz bandwidth support and allows for cascading up to three levels of units for additional connected displays.

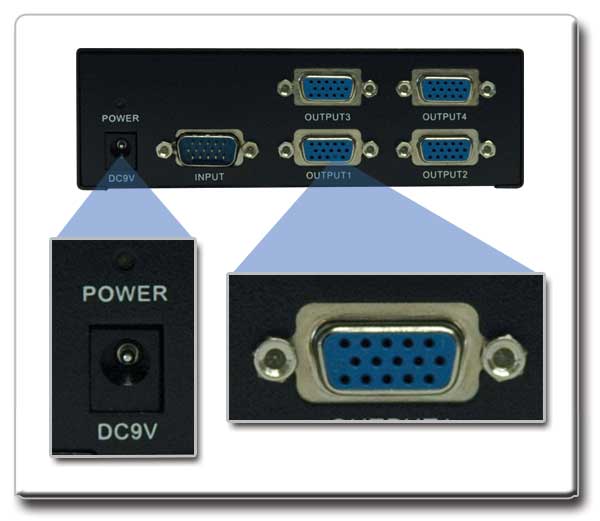

Convenient Plug-and-Play Setup

With no software or drivers to install, the B114-004-R's plug-and-play setup gets your application up and running faster. Simply connect unit's external power supply, then connect the unit to the video source and to the remote displays and watch as the B114-004-R provides crystal clear resolution.

Durable, All-Metal Case for Long-Term Functionality

The B114-004-R is built with an all-metal housing to ensure long-term usability and a durable product. The metal housing stands up to and beyond the rigors of everyday use in indoor environments. It is also fully shielded for maximum EMI/RFI protection and superior signal quality.

Environmentally responsible

The B114-004-R is manufactured in compliance with strict RoHS (Restriction of Hazardous Substances) guidelines to minimize the use of hazardous materials.

Technical Specifications

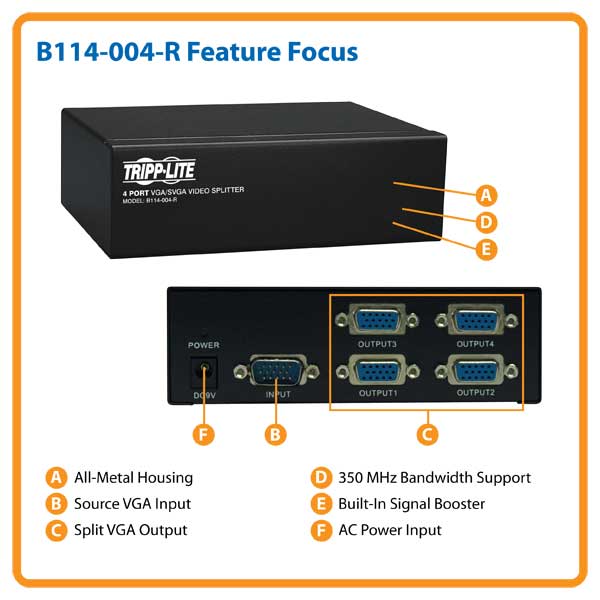

Tripp Lite B114-004-R 4-Port VGA/SVGA Splitter

Click here for a larger image

Click here for a larger image

Type:	4-Port VGA/SVGA Splitter
Connectors:	1 x HD15 Male 2 x HD15 Female
Housing:	Metal
Resolution/Range:	210 ft. @ 1920x1080 (60Hz)
AC Adapter:	9V, 0.8A
Certifications:	RoHS, CE, FCC Part 15
Warranty:	1 year

What's in the Box

• B114-002-R VGA/SVGA 2-Port Splitter
• AC Adapter
• Owner's Manual

Tripp Lite Connects All Your Electronics

P500-025 SVGA/VGA Monitor Extension Cable (HD15 M/F)—25 ft.

Premium double-shielded cable for maximum EMI/RFI protection and superior signal quality. HD15 connectors are gold plated for superior conductivity. Lifetime warranty.

P502-025 Gold SVGA/VGA Monitor Cable (HD15 M/M)—25 ft.

Premium double-shielded cable for maximum EMI/RFI protection and superior signal quality. HD15 male connectors are gold plated for superior conductivity. Lifetime warranty.

B114-002-R VGA/SVGA Video Splitter—2-Port (HD15 M/2xF)

Splits one VGA/SVGA signal into 2 separate signals that can be routed to 2 different displays. Up to 3 levels of splitters can be connected in a cascade to increase the number of supported monitors. A built-in booster allows a 1920 x 1080 (60Hz) signal to be transmitted up to 210 ft. away from the source. 350Mhz bandwidth support. The splitter can be located up to 25 ft. from the connected computer and 185 ft. from the connected monitors. One-year limited warranty.

TLP606B Protect It!™ Surge Suppressor

Economical surge protection for all electronics. This surge suppressor features an attractive all-black, high-impact plastic housing, 720-joule surge protection rating, 6 outlets including one transformer outlet, 6-ft. power cord, $20,000 Ultimate Lifetime Insurance and lifetime warranty.

SMART1000LCD Smart Digital UPS System

Advanced Automatic Voltage Regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1000LCD provides 1000VA/500W power capacity with 8 outlets (4 UPS/surge, 4 surge only) plus single-line tel/DSL (RJ11) and coaxial protection. A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The SMART1000LCD supports entry-level PCs for up to 60 minutes during power failures. $250,000 Ultimate Lifetime Insurance; 3-year warranty.

Green ECO650LCD Standby ECO-UPS™ System

Environmentally friendly battery backup protection for PCs and all electronics. The ECO650LCD provides 650VA/325W power capacity with 6 outlets (4 UPS/surge, 3 ECO/surge, 1 surge only) plus single-line tel/DSL (RJ11) surge protection. ECO outlets with GreenOutlet™ technology eliminate energy-wasting phantom loads to reduce your electric bill. Interactive LCD user interface provides UPS status/control options with detailed UPS and site electrical information. USB port works with free PowerAlert software to enable safe unattended system shutdown and file saves. The ECO650LCD supports a basic desktop PC for up to 17 minutes during power failures. $100,000 Ultimate Lifetime Insurance; 3-year warranty.

Product Description

Tripp Lite's 4-Port VGA/SVGA Video Splitter provides bandwidth support at 350MHZ, allowing simultaneous display of video on up to 4 monitors. In addition, a built-in booster allows a video signal (up to 1920 x 1080 @ 60Hz) to be transmitted up to 210 ft. from the source. Four standard HD15 female ports are used to connect the monitors, while a fifth HD15 male port is used to connect the CPU. The splitter can be located up to 25 ft. from the connected computer, and up to 185 ft. from the connected monitors. The number of connected monitors can be expanded by cascading up to 3 levels of splitters together. 1 year limited warranty.
