Tripp Lite KVM Console Unit 1U Rackmount with 17-Inch LCD

by Tripp Lite

Product Details

• Product Dimensions: 29.8 x 23.4 x 7.1 inches ; 41.1 pounds
• Shipping Weight: 43 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B000E65HNA
• Item model number: B021-000-17
• Date first available at Amazon.com: July 7, 2004

Product Description

From the Manufacturer

Easy to install and simple to operate, Tripp Lite's B021-000-17 Rackmount Console is the smart solution for controlling a computer, server or KVM switch in IT applications where rack space is at a premium. The console is housed in a sliding 1U drawer that stores neatly in the rack when not in use. The B021-000-17's heavy-duty all-metal construction, high-quality LCD, premium connectors, uncomplicated controls and broad compatibility ensure trouble-free operation in demanding high-availability environments.

Key Features

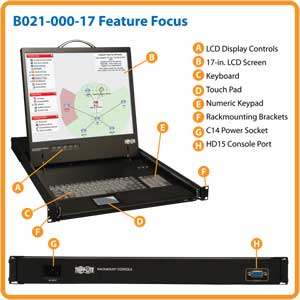

B021-000-17 Rackmount Console Offers: Complete control solution in 1U of rack space Includes keyboard, numeric keypad, touch pad and 17-in. LCD Space-saving 1U rackmount drawer design Compatible with PS/2 and USB computers, servers and KVM switches 1-year warranty

All-in-One Control Solution
Click here for a larger image

High-Resolution LCD
Click here for a larger image

All-in-One Control Solution

The B021-000-17 combines a full keyboard, numeric keypad, touchpad and 17-in. color LCD in a 1U rack drawer for compact storage and easy access. No server-resident software is required, so server performance and reliability are never compromised. The B021-000-17 is also compatible with most PS/2 and USB KVM switches, making it easy to integrate with an existing system.

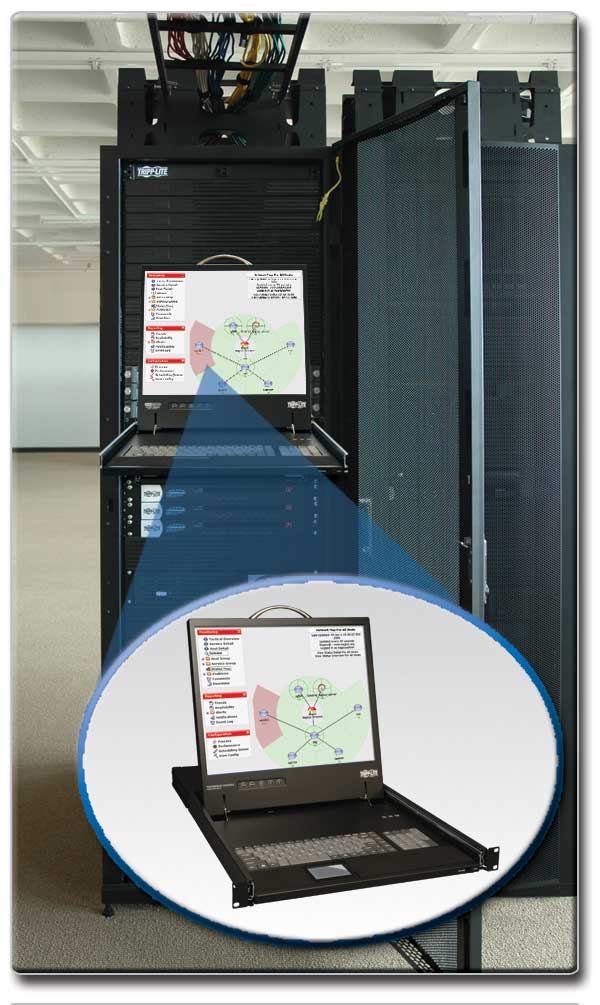

Space-Saving Design

The B021-000-17 can be mounted in racks with depths ranging from 27 to 42 inches (rackmounting hardware included). The console is housed in an all-metal 1U sliding drawer. Simply pull it out and flip up the screen when needed, and store it back in the rack when finished. This keeps the keyboard and screen from blocking access to rack equipment when the console is not in use.

Supports Multiple Platforms

The B021-000-17 supports both PS/2 and USB connections (USB to PS/2 adapter cable included). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated, including UNIX®, Linux, Windows®, Mac OS®, Solaris™ and more. The B021-000-17 is also compatible with most KVMs that are equipped with PS/2 and USB console ports. This enables the B021-000-17 to be integrated into an existing system, providing enhanced management capabilities without a major investment in new hardware.

High-Resolution LCD

The B021-000-17's 17-in. LCD screen supports video resolutions of up to 1280 x 1024 at 75Hz. DDC, DDC2 and DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

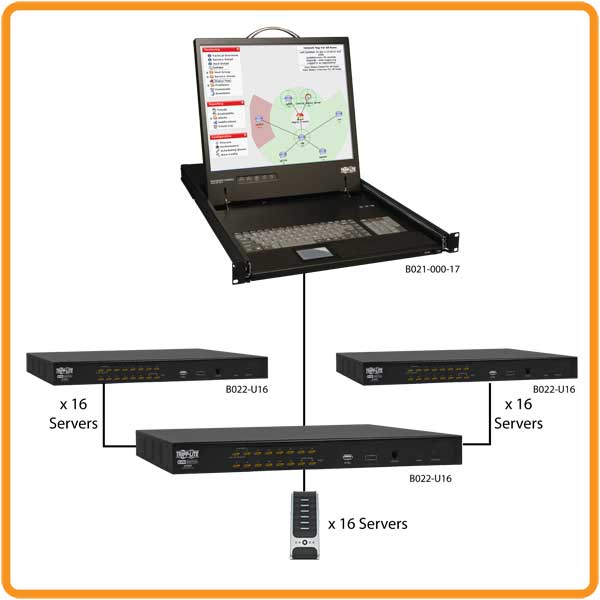

B021-000-17 Diagram
Click here for a larger image

Technical Specifications

Tripp Lite B021-000-17 Rackmount Console

Click here for a larger image

Model:	B021-000-17
LCD:	17 in.
Maximum video resolution:	1280 x 1024, DDC2B
Local console port:	HD15
Dimensions (HWD):	1.73 x 19.0 x 28.0 in. (1U)
Weight:	36 lb
Material of construction:	Metal housing
Agency approvals:	CE NOM RoHS
Warranty:	1 year

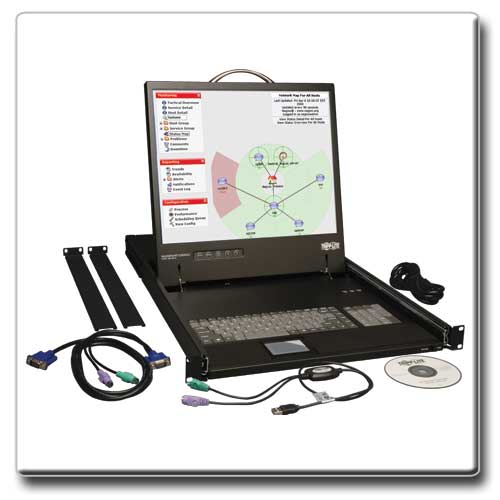

What's in the Box

• B021-000-17 Rackmount Console
• 1 x PS/2 KVM Cable Kit
• 1 x USB to PS/2 Adapter Cable
• 1 x C13 to 5-15P Power Cord
• Rackmounting Hardware
• Owner's Manual CD

Network Control Solutions from Tripp Lite

Tripp Lite UPS offers a wide range of products to provide reliable, cost-effective network control solutions for network data centers and other IT applications.

P778-Series USB+PS/2 Combo KVM Cable Kits

Connect a USB or PS/2 server/computer to a Tripp Lite KVM Switch. Combines USB and PS/2 keyboard/mouse cables and a monitor cable bonded into a single unit. Available in 6-, 10- and 15-ft. lengths.

P778-006 � P778-010 � P778-015

The above cable kits are compatible with the following Tripp Lite KVM Switches:

B020-U08-19-K � B020-U16-19-K � B022-U16

B022-U16 NetDirector™ Rackmount KVM Switch

Controls an entire network in just 1U of rack space. The B022-U16 can directly control 16 servers/computers from a single console. Compatible with PS/2 and USB servers/computers. Simple port switching via on-screen display (OSD) or keyboard hot keys. Multiple B022-U16 units can be daisy-chained from compatible Tripp Lite rackmount console KVM switches to control up to 512 servers/computers. Includes two USB+PS2 combo KVM cable kits and rackmounting hardware. 1-year warranty.

B042-008 8-Port Rackmount KVM Switch

Controls an entire network in just 1U of rack space. The B042-008 can directly control 8 servers/computers from a single console. Compatible with PS/2 and USB servers/computers. Simple port switching via on-screen display (OSD) or keyboard hot keys. Multiple B042-series units can be daisy-chained to control up to 248 servers/computers. Includes multi-national AC power adapter, daisy-chain cable and rackmounting hardware. 1-year warranty.

B019-000 2-Post Rackmount Bracket

Mounts a console or console KVM switches to a 2-post rack, allowing the console to be opened with the drawer in any position. Heavy-duty 14-gauge steel construction provides stability and prevents console frame from twisting. Easy installation; all required hardware included. Compatible with Tripp Lite B020-, B021-, B040-, and B070- series rackmount consoles and rackmount console KVM switches.

SMART2200RMXL2U SmartPro� UPS System

Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment in 2U of rack space. The SMART2200RMXL2U provides 2200VA/1600W power capacity with 8 outlets including 3 outlets that are individually controllable for remote equipment reboots or load shedding. USB and DB9 ports, an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SMART2200RMXL2U supports connected equipment for 16 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs, sold separately. $250,000 Ultimate Lifetime Insurance; 2-year warranty.

SR42UB SmartRack� Enclosure

Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

Product Description

Tripp Lite's B021-000-17 1U Rackmount Console features an integrated 17" LCD panel, full 88-key keyboard, and touchpad, all in a 1U rackmountable housing. This console is designed for use with a PS/2 server or KVM switch. Tripp Lite warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase.
