Tripp Lite HT10DBS 10-Outlet Home Theater Surge Protector (3570 Joules, Tel/Ethernet/Coax)

by Tripp Lite

Product Details

• Product Dimensions: 2.2 x 0.8 x 14.2 inches ; 3.5 pounds
• Shipping Weight: 7 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B0002QPC28
• Item model number: HT10DBS
• Average Customer Review: 4.5 out of 5 stars  See all reviews (44 customer reviews)
• Amazon Best Sellers Rank:
  • #99 in Electronics > Accessories & Supplies > Batteries, Chargers & Accessories > Power Converters
• Date first available at Amazon.com: January 14, 2006

Product Description

From the Manufacturer

Protect your valuable home theater components from damage and performance problems with Tripp Lite's HT10DBS Isobar® A/V Surge Suppressor! In one compact, cost-effective unit, the HT10DBS provides comprehensive protection for small to medium A/V installations and all electronics. It features exclusive isolated filter banks and EMI/RFI line noise filtering to eliminate interference and ensure peak audio/video performance. You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans.

The HT10DBS features a high 3570-joule surge suppression rating—more joules mean more protection. A total of 10 AC outlets with built-in safety covers provide the capacity you need to protect all your components. Three-line gold coaxial surge protection, single-line RJ11 tel/modem surge protection and single-line RJ45 surge protection Ethernet protection safeguard every incoming line through which a damaging surge could reach your equipment. The HT10DBS comes with $500,000 Ultimate Lifetime Insurance protection for connected equipment, and a lifetime product warranty.

Key Features

HT10DBS Isobar® Home/Business Theater Surge Suppressor Offers: Premium surge protection for home/business theater components and all electronics 3570 joule surge suppression rating—more joules mean more protection Exclusive isolated filter banks and EMI/RFI line noise filtering eliminate interference 10 surge protected AC outlets; plus coaxial, tel/DSL and Ethernet line protection Lifetime warranty; $500,000 Ultimate Lifetime Insurance for connected equipment

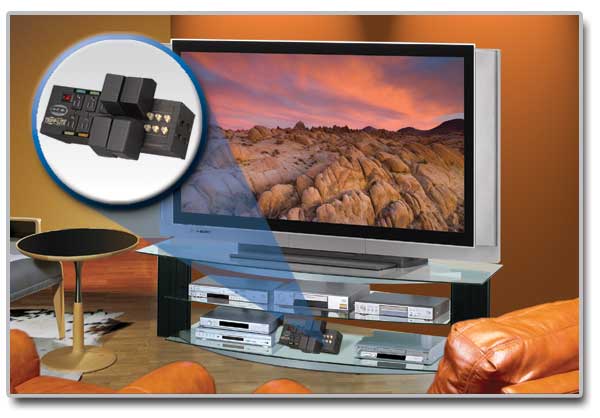

Premium Protection for Home/Business Theater Installations and More
Click here for a larger image

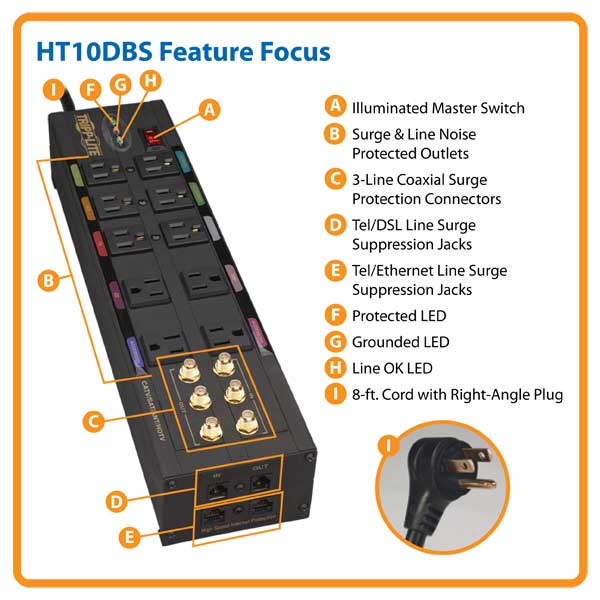

Protection on Every Connection and Built-In Diagnostic Capabilities
Click here for a larger image

Improved Component Performance
Click here for a larger image

Premium Protection for Home/Business Theater Installations and More

The HT10DBS offers premium surge protection and performance enhancement for A/V components, PCs, peripheral devices and all electronics. It provides a total of 10 AC outlets, arranged to accommodate up to 4 bulky transformers without blocking remaining outlets. Outlets are color-coded to identify component connections. The HT10DBS also features a durable all-metal case, an 8-ft. cord, enabling connection to a distant wall outlet, and a space-saving right-angle plug that allows furniture to be placed flush against the wall.

Protection on Every Connection

In addition to AC line protection, the HT10DBS includes built-in RJ11 jacks to prevent surges from damaging your modem/fax/phone equipment (6-ft. telephone cord included), built-in RJ45 jacks to prevent surges from damaging 10BT equipment (6-ft. network cable included), and built-in gold, Type F coax jacks prevent surges from damaging your cable/satellite equipment (digital broadband quality accommodates 2.2GHz bandwidth; 6-ft. coax cable included).

Improved Component Performance

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The HT10DBS incorporates exclusive Isobar technology including isolated filter banks to eliminate interference between connected components, plus full EMI/RFI line noise filtering, to ensure peak audio and video performance.

Powerful AC Line Surge Suppression

The HT10DBS features the highest surge protection rating in its class—3570 joules of surge suppression to prevent even the strongest surges from damaging your valuable electronics. A total of 10 AC outlets, arranged to accommodate up to 4 bulky transformers without blocking remaining outlets, provide protection for multiple components.

Built-In Diagnostic Capabilities

Three diagnostic LEDs alert users to protection, line power and ground status. The green “protected” LED indicates that the surge suppression components are intact and providing complete protection against surges. If this LED does not illuminate, some of the surge suppression components are not functioning, and the unit should be replaced. The red “grounded” LED assures you that the wall outlet is grounded and surge protection can function. The second green “Line OK” LED assures you that the wall outlet is properly wired and no fault condition exits. An illuminated master switch provides one-touch power control over all components.

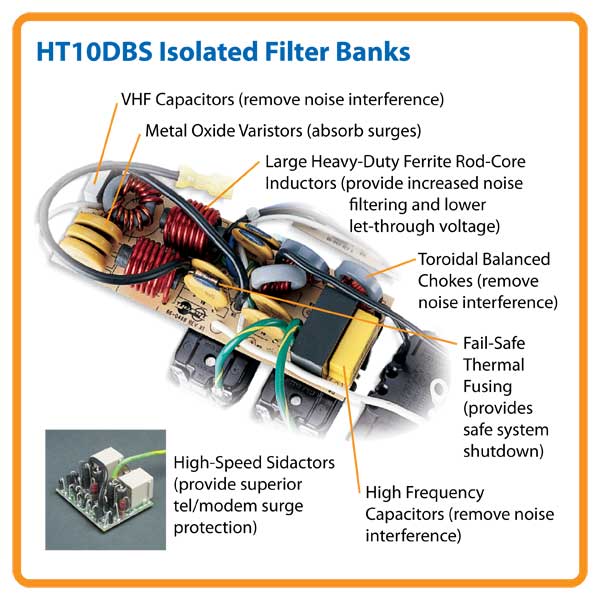

Isolated Filter Banks
Click here for a larger image

Ultimate Peace of Mind

The HT10DBS comes with a lifetime product warranty plus $500,000 Ultimate Lifetime Insurance (USA/Canada only) covering connected components against surge damage—for life!

Technical Specifications

Tripp Lite HT10DBS Isobar® Home/Business Theater Surge Suppressor

Click here for a larger image

Model:	HT10DBS
Voltage compatibility:	120 V (AC)
Frequency compatibility:	50/60 Hz
Output watts:	1440
Output volt amp capacity (amps):	12
Overload protection:	12-amp circuit breaker
AC suppression rating (joules):	3570
Outlet quantity/type:	10 x 5-15R
Signal line protection:	RJ11 tel/modem jacks (1 set) RJ45 network/Ethernet jacks (1 set) Gold coaxial jacks (3 sets)
Input cord:	8 ft.
Input plug:	5-15P right-angle
Switches/LEDs/alarms:	On/Off power/circuit breaker switch 3 diagnostic LEDs Audible alarm
Dimensions (HWD):	14.25 x 2.25 x 3.5 in.
Weight:	3.5 lb
Material of construction:	Metal
Agency approvals:	UL 1449, UL 1363 & UL 497A FCC Part 68 / Industrie Canada (telecom) RoHS

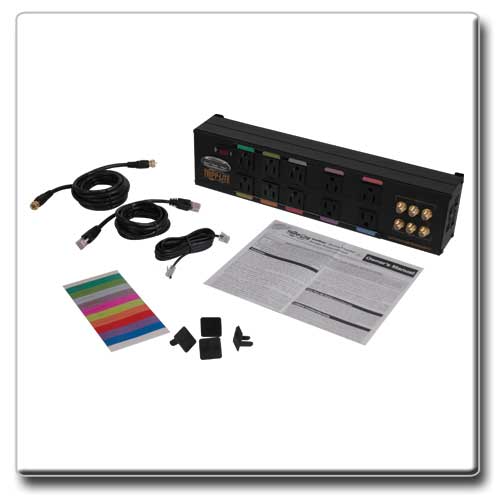

What's in the Box

• HT10DBS Home/Business Theater Surge Suppressor
• 6-ft. DSS Cable
• 6-ft. phone Cord
• 6-ft. network Cable
• Color-Coordinated Plug/Outlet Labels
• Outlet Safety Covers
• Owner's Manual

Tripp Lite Keeps You Protected and Connected

Tripp Lite UPS Systems, Surge Suppressors and accessories are available with a wide range of features to provide reliable, cost-effective power protection for all electronics.

ISOBAR6DBS Isobar® Audio/Video Surge Suppressor

Best for medium A/V installations. This all-metal surge suppressor features a 2850-joule surge protection rating, 6 outlets, isolated filter banks, 2-line gold coaxial surge protection, single-line tel/DSL (RJ11) surge protection, 6-ft. power cord with right-angle plug, $250,000 Ultimate Lifetime Insurance and lifetime product warranty.

HT810ISOCTR Isobar® Audio/Video Power Center

Perfect for large home/business theater installations. This home theater power center features a 5700-joule surge suppression rating, 8 surge-protected AC outlets, digital LCD status screens, 3-line gold coaxial surge protection (2 x 6-ft. coax cables included), single-line tel/DSL surge protection (6-ft. phone cord included), and a 10-ft. power cord with right-angle plug. $100,000 Ultimate Lifetime Insurance and lifetime product warranty.

Green ECO650LCD Standby UPS System

Battery backup protection for PCs and all electronics. The ECO650LCD provides 650VA/325W power capacity with 6 outlets (4 UPS/surge, 3 ECO/surge, 1 surge only) plus single-line tel/DSL (RJ11) surge protection. ECO outlets eliminate energy-wasting phantom loads to reduce your electric bill. Interactive LCD user interface provides UPS status/control options with detailed UPS and site electrical information. USB port works with free PowerAlert software to enable safe unattended system shutdown and file saves. The ECO650LCD supports a basic desktop PC for up to 17 minutes during power failures. $100,000 Ultimate Lifetime Insurance; 3-year warranty.

SMART1500LCD Smart Digital UPS System

Advanced Automatic Voltage Regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1500LCD provides 1500VA/900W power capacity with 8 UPS-supported outlets plus single-line tel/Ethernet (RJ45) and coaxial protection. A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port and one DB9 port with included cabling and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The SMART1500LCD supports entry-level PCs for up to 60 minutes during power failures. $250,000 Ultimate Lifetime Insurance; 3-year warranty.

SMART1000LCD Smart Digital UPS System

Advanced Automatic Voltage Regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1000LCD provides 1000VA/500W power capacity with 8 outlets (4 UPS/surge, 4 surge only) plus single-line tel/DSL (RJ11) and coaxial protection. A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The SMART1000LCD supports entry-level PCs for up to 60 minutes during power failures. $250,000 Ultimate Lifetime Insurance; 3-year warranty.

Product Description

Tripp Lite Lite Isobar Home/Business Theater Surge Suppressor HT10DBS Surge Suppressors

Customer Reviews

Most Helpful Customer Reviews

21 of 21 people found the following review helpful:

5.0 out of 5 stars Tripp Lite Home Theater Surge Protector (HT10DBS), September 15, 2006

By

Adam "'12'" (California) - See all my reviews

Amazon Verified Purchase

This review is from: Tripp Lite HT10DBS 10-Outlet Home Theater Surge Protector (3570 Joules, Tel/Ethernet/Coax) (Electronics)

This surge protector was recommended by several audio and home theatre internet sites. It's solid in construction and is aesthetically pleasing. There are three indicator lights that serve as a heads up as to wether the surge protector is working properly or not. The 10 outlets are labeled (DVD, Amp, receiver,CBL/SAT, etc.). It also comes with additional labels if you have two of any electronic device or do not like the label arrangment on the surge protector. The outlets are spaced out so its easy to fit as many as 6 transformers onto the surge protector. On the side of the surge protector are inputs for a phoneline and an internet line. The device also allows protection for up to three coaxial cables. The output Watt capacity is 1440 watts. This surge protector has allowed me to safely and adequately protect everything in my room. It is great if you want to organize all the wires behind a desk or TV/audio stand. I am thoroughly impressed with the device and would recommend it to anyone.

16 of 16 people found the following review helpful:

5.0 out of 5 stars Great Price, Great Performance, January 11, 2007

By

Riyad Kalla - See all my reviews
(VINE VOICE)    (REAL NAME)

Amazon Verified Purchase

This review is from: Tripp Lite HT10DBS 10-Outlet Home Theater Surge Protector (3570 Joules, Tel/Ethernet/Coax) (Electronics)

So I built a new home theater recently with the following devices:
* 65" WD-65831 TV
* XBox 360 + HD-DVD Player
* Nintendo Wii
* Sony VCR
* Motorola 6200 Set Top Box
* Onkyo 990 THX Sound System (Receiver + Sub use power)

So every single plug on this thing is full... I was really worried I hadn't bought big enough even though this is the 2nd from the top of the line Tripp Lite that is made and I have to say it's been performing like an absolute champ. I've never had a surge or power failure. Even when I flip all 3 of the most power hungry devices on at once (using Harmony remote) there is no indication that there isn't enough power.

My wife and I have watched a few movies through some pretty serious monsoons here with no ill effects... I wouldn't advise that, but we were right in the middle of the movie and didn't want to stop.

I would absolutely buy this again or anything else from Tripp Lite. The power block itself is really heavy, made out of strong steel, nicely labeled and just a top notch piece of electronics. Not to mention the warranty covering damage due to a power surge up to 200k I believe.

14 of 14 people found the following review helpful:

5.0 out of 5 stars Saved my AV system, February 18, 2007

By

Mark (Chicago) - See all my reviews

This review is from: Tripp Lite HT10DBS 10-Outlet Home Theater Surge Protector (3570 Joules, Tel/Ethernet/Coax) (Electronics)

I purchased the HT10DBS about 2 years ago. It has great price to performance ratio. Tripp lite is well known for their Isobar surge suppression units which are top of the line. I have always used their products for my computers. When it was time to a high end home theater system, I opted for the HT10DBS. I do not regret it. The unit has sturdy construction and has a line conditioner built in. Last fall we had a lightning strike in our front yard while my system was on and it totally saved my AV units while frying one of the neighbor's cars (the electrical system was toast!). There are other more famous and marketed brands out there which charge more for their products (you know who they are). Don't bother with them, stick with Tripp lite!
