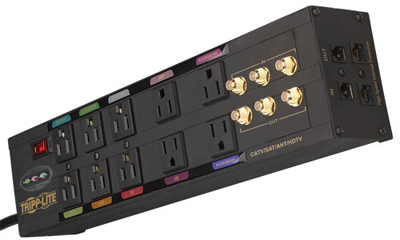

Tripp Lite HT10DBS 10-Outlet Home Theater Surge Protector (3570 Joules, Tel/Ethernet/Coax)

by Tripp Lite

Product Details

• Product Dimensions: 17.5 x 9.2 x 3.2 inches ; 5 pounds
• Shipping Weight: 5 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B0002QPC28
• Item model number: HT10DBS
• Average Customer Review: 4.6 out of 5 stars  See all reviews (31 customer reviews)
• Amazon Bestsellers Rank

  #43 in	Automotive > Tools & Equipment > Jump Starters, Battery Chargers & Portable Power
  #15 in	Electronics > Accessories & Supplies > Batteries, Chargers & Accessories > Power Converters

• Date first available at Amazon.com: January 14, 2006

Product Description

From the Manufacturer

Tripp Lite's HT10DBS Isobar A/V Surge Suppressor – Protects A/V Installations and Electronics

Protect your valuable home theater components from damage and performance problems with Tripp Lite's HT10DBS Isobar® A/V Surge Suppressor! In one compact, cost-effective unit, the HT10DBS provides comprehensive protection for small to medium A/V installations and all electronics. It features exclusive isolated filter banks and EMI/RFI line noise filtering to eliminate interference and ensure peak audio/video performance.

The HT10DBS also features a high 3570-joule surge suppression rating--more joules mean more protection. A total of 10 AC outlets with built-in safety covers provide the capacity you need to protect all your components. Three-line gold coaxial surge protection, single-line RJ11 tel/modem surge protection and single-line RJ45 surge protection Ethernet protection safeguard every incoming line through which a damaging surge could reach your equipment. The HT10DBS comes with $500,000 Ultimate Lifetime Insurance protection for connected equipment, and a lifetime product warranty.

Premium Protection for Home/Business Theater Installations and More

The HT10DBS offers premium surge protection and performance enhancement for A/V components, PC, peripheral devices and all electronics. It provides a total of 10 AC outlets, arranged to accommodate up to 4 bulky transformers without blocking remaining outlets. Outlets are color-coded to identify component connections. The HT10DBS also features a durable all-metal case, an 8-ft. cord, enabling connection to a distant wall outlet, and a space-saving right-angle plug that allows furniture to be placed flush against the wall.

Improved Component Performance

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The HT10DBS incorporates exclusive Isobar technology including isolated filter banks to eliminate interference between connected components, plus full EMI/RFI line noise filtering, to ensure peak audio and video performance.

Powerful AC Line Surge Suppression

The HT10DBS features the highest surge protection rating in its class--3570 joules of surge suppression to prevent even the strongest surges from damaging your valuable electronics. A total of 10 AC outlets, arranged to accommodate up to 4 bulky transformers without blocking remaining outlets, provide protection for multiple components.

Includes built-in RJ11 and RJ45 jacks

Protection on Every Connection

In addition to AC line protection, the HT10DBS includes built-in RJ11 jacks to prevent surges from damaging your modem/fax/phone equipment (6-ft. telephone cord included), built-in RJ45 jacks to prevent surges from damaging 10BT equipment (6-ft. network cable included), and built-in gold, Type F coax jacks prevent surges from damaging your cable/satellite equipment (digital broadband quality accommodates 2.2GHz bandwidth; 6-ft. coax cable included).

Built-In Diagnostic Capabilities

Three diagnostic LEDs alert users to protection, line power and ground status. The green "protected" LED indicates that the surge suppression components are intact and providing complete protection against surges. If this LED does not illuminate, some of the surge suppression components are not functioning, and the unit should be replaced. The red "grounded" LED assures you that the wall outlet is grounded and surge protection can function. The second green "Line OK" LED assures you that the wall outlet is properly wired and no fault condition exits. An illuminated master switch provides one-touch power control over all components.

Ultimate Peace of Mind

The HT10DBS comes with a lifetime product warranty plus $500,000 Ultimate Lifetime Insurance (USA/Canada only) covering connected components against surge damage--for life.

---

Technical Specifications

Voltage compatibility: 120 VAC
Frequency compatibility: 50/60 Hz
Output watts: 1440
Output volt amp capacity (amps): 12
Overload protection: 12-amp circuit breaker
AC suppression rating (joules): 3570
Outlet quantity/type: 10 x 5-15R
Signal line protection: RJ11 tel/modem jacks (1 set), RJ45 network/Ethernet jacks (1 set), Gold coaxial jacks (3 sets)
Input cord: 8 ft.
Input plug: 5-15P right-angle
Switches/LEDs/alarms: On/Off power/circuit breaker switch, 3 diagnostic LEDs, Audible alarm
Dimensions (HWD): 14.25 x 2.25 x 3.5 inches
Weight: 3.5 lbs.
Material of construction: Metal
Agency approvals: UL 1449, UL 1663, UL497A, FCC Part 68 / Industrie Canada (telecom), RoHS

---

Product Description

HT10DBS Isobar Home/Business Theater Surge Suppressor provides premium protection, 3570 joules energy rating, stopping damaging surges and filtering disruptive line noise so components perform at their peak! You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans.

Main Features

Manufacturer: Tripp Lite

Manufacturer Part Number: HT10DBS

Manufacturer Website Address: www.tripplite.com

Plug/Connector Type: NEMA 5-15P

Receptacles: 10 x NEMA 5-15R

Dataline Protection: RJ-11 Phone/Modem, RJ-45 10/100Base-T Ethernet, Type F Connector Coaxial Cable Line

Input Voltage: 120 V AC

Output Voltage: 120 V AC

Current: Included

Power Cord/Cable: 8 ft

Dimensions: 14.25" Height x 2.25" Width x 3.5" Depth

Weight: 3.5 lb

Standard Warranty: Lifetime

Customer Reviews

Most Helpful Customer Reviews

13 of 13 people found the following review helpful:

5.0 out of 5 stars Tripp Lite Home Theater Surge Protector (HT10DBS), September 15, 2006

By	Adam "'12'" (California) - See all my reviews

Amazon Verified Purchase

This review is from: Tripp Lite HT10DBS 10-Outlet Home Theater Surge Protector (3570 Joules, Tel/Ethernet/Coax) (Electronics)

This surge protector was recommended by several audio and home theatre internet sites. It's solid in construction and is aesthetically pleasing. There are three indicator lights that serve as a heads up as to wether the surge protector is working properly or not. The 10 outlets are labeled (DVD, Amp, receiver,CBL/SAT, etc.). It also comes with additional labels if you have two of any electronic device or do not like the label arrangment on the surge protector. The outlets are spaced out so its easy to fit as many as 6 transformers onto the surge protector. On the side of the surge protector are inputs for a phoneline and an internet line. The device also allows protection for up to three coaxial cables. The output Watt capacity is 1440 watts. This surge protector has allowed me to safely and adequately protect everything in my room. It is great if you want to organize all the wires behind a desk or TV/audio stand. I am thoroughly impressed with the device and would recommend it to anyone.

10 of 10 people found the following review helpful:

5.0 out of 5 stars Great Price, Great Performance, January 11, 2007

By	Riyad Kalla - See all my reviews (VINE VOICE)    (REAL NAME)

Amazon Verified Purchase

This review is from: Tripp Lite HT10DBS 10-Outlet Home Theater Surge Protector (3570 Joules, Tel/Ethernet/Coax) (Electronics)

So I built a new home theater recently with the following devices:
* 65" WD-65831 TV
* XBox 360 + HD-DVD Player
* Nintendo Wii
* Sony VCR
* Motorola 6200 Set Top Box
* Onkyo 990 THX Sound System (Receiver + Sub use power)

So every single plug on this thing is full... I was really worried I hadn't bought big enough even though this is the 2nd from the top of the line Tripp Lite that is made and I have to say it's been performing like an absolute champ. I've never had a surge or power failure. Even when I flip all 3 of the most power hungry devices on at once (using Harmony remote) there is no indication that there isn't enough power.

My wife and I have watched a few movies through some pretty serious monsoons here with no ill effects... I wouldn't advise that, but we were right in the middle of the movie and didn't want to stop.

I would absolutely buy this again or anything else from Tripp Lite. The power block itself is really heavy, made out of strong steel, nicely labeled and just a top notch piece of electronics. Not to mention the warranty covering damage due to a power surge up to 200k I believe.

8 of 8 people found the following review helpful:

5.0 out of 5 stars Saved my AV system, February 18, 2007

By	Mark (Chicago) - See all my reviews

This review is from: Tripp Lite HT10DBS 10-Outlet Home Theater Surge Protector (3570 Joules, Tel/Ethernet/Coax) (Electronics)

I purchased the HT10DBS about 2 years ago. It has great price to performance ratio. Tripp lite is well known for their Isobar surge suppression units which are top of the line. I have always used their products for my computers. When it was time to a high end home theater system, I opted for the HT10DBS. I do not regret it. The unit has sturdy construction and has a line conditioner built in. Last fall we had a lightning strike in our front yard while my system was on and it totally saved my AV units while frying one of the neighbor's cars (the electrical system was toast!). There are other more famous and marketed brands out there which charge more for their products (you know who they are). Don't bother with them, stick with Tripp lite!
