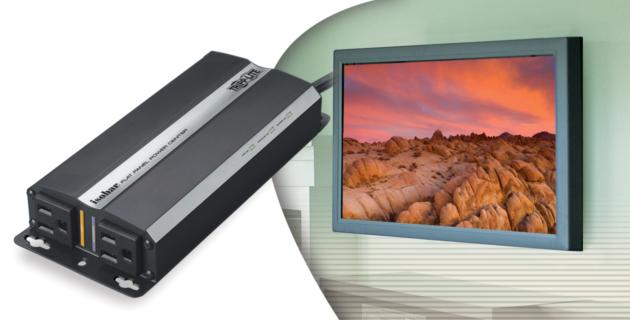

Tripp-Lite HT2210ISOCTR 2-Outlet Home Theater Isobar A/V Power Center (5100 Joules)

by Tripp Lite

Product Details

• Product Dimensions: 8.8 x 3.5 x 1.5 inches ; 2.6 pounds
• Shipping Weight: 4 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B000PBT4EM
• Item model number: HT2210ISOCTR
• Average Customer Review: 4.5 out of 5 stars  See all reviews (8 customer reviews)
• Discontinued by manufacturer: Yes
• Date first available at Amazon.com: July 7, 2004

Product Description

From the Manufacturer

Tripp Lite's HT2210ISOCTR Isobar® Audio/Video Power Center provides ultimate protection—5100 joules—stopping damaging surges and filtering disruptive line noise so components perform at their peak. You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans. Built-in protection circuitry shields components against damaging surges, even the most powerful ones caused by lightning strikes. Premium Isobar surge protection technology features larger and more robust surge-blocking components for the most effective protection available.



The HT2210ISOCTR is designed to install neatly behind flat-panel TVs. Features include low-profile, all-metal housing, detachable 10-ft and 18-in. cords with right-angle plugs, 24K gold plug contacts, 2 AC outlets, 3 diagnostic LEDs, circuit breaker, fail-safe thermal fusing, audible alarm and mounting brackets. An included remote AC/DC control jack enables remote on/off control from an external component. The HT2210ISOCTR comes with $100,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only), and a lifetime product warranty.

Protect your valuable electronics without the complicated setup

Key Features

Optimized for Protection of Flat-Panel TVs

The HT2210ISOCTR’s low-profile cabinet is designed for easy, unobtrusive installation behind a flat-panel TV. Included mounting brackets plus detachable 10-ft. and 18-in. cords with right-angle 5-15P plugs facilitate convenient placement anywhere within a home/business theater system. Color-coordinated outlet/plug labels easily identify power cords and corresponding outlets.



Powerful Surge Protection and Performance Enhancement

More joules mean more protection. The HT2210ISOCTR’s 5100-joule surge suppression rating, Isobar surge protection technology and rugged all-metal housing shield connected equipment from even the strongest surges. EMI/RFI line noise filtering helps A/V components perform at their peak. Line noise filtering eliminates the audio static and video “snow” caused by radio transmissions, fluorescent lighting and appliances, assuring sharper, crisper video, deeper, fuller audio, and longer component life spans.



Comprehensive Protection

The HT2210ISOCTR provides multiple layers of protection for connected components. Two surge-protected 5-15R outlets safeguard a flat-panel TV and one accessory against surges on the AC line. Corrosion-resistant 24K gold plug contacts help to assure clean, even AC input power. A built-in circuit breaker protects against dangerous system overload. Fail-safe thermal fusing functions as an additional circuit breaker, shutting down the unit and connected components in the event of a catastrophic surge. The HT2210ISOCTR is TUV tested to UL standards 1449 and 962A.



Built-In Diagnostic and Alarm Capabilities

Three diagnostic LEDs (LINE OK, GROUND OK, and SURGE OK) show power and protection status. If protection circuitry suffers damage, an audible alarm sounds--perfect for installations where the LEDs are not visible. An illuminated master switch provides one-touch power control over all components. For additional flexibility, a remote AC/DC control jack is provided for remote on/off power control from an external component.

.

Ultimate Peace of Mind

The HT2210ISOCTR comes with a lifetime product warranty plus $100,000 Ultimate Lifetime Insurance (USA/Canada only) covering connected components against surge damage—for life.

---

Technical Specifications

• Voltage compatibility:  120 VAC
• Frequency compatibility:  50/60 Hz
• Output watts:  1440
• Output volt amp capacity (amps):  12
• Overload protection:  12-amp circuit breaker
• AC suppression rating (joules):  5100
• Outlet quantity/type:  2 x 5-15R
• Input cords:  10 ft. and 18 in., detachable
• Input plug:  5-15P right-angle with 24K gold contacts
• Switches/LEDs/alarms:  On/off power/circuit breaker switch
• Remote AC/DC control jack
• 3 diagnostic LEDs
• Audible alarm
• Dimensions (HWD):  1.5 x 3.5 x 8.75 in.
• Weight:  2.6 lbs.
• Material of construction:  Metal
• Agency Approvals:   TUV tested to UL standards 1449 & 962A
• RoHS compliant


---

How Much Protection Do You Need?



Tripp Lite A/V Power Centers and Surge Suppressors are available with a wide range of features to provide reliable, cost-effective surge protection and performance enhancement for home and business audio/video systems of all sizes.

	Tripp Lite HT810ISOCTR Isobar Audio/Video Power Center--Best for medium to large A/V installations. This 1U rack/console component power center features a 5700-joule surge protection rating, 8 AC outlets, 3 isolated filter banks, 3-line HD-compatible 2.2+ GHz bandwidth gold coaxial surge protection, single-line RJ11 tel/modem surge protection with built-in splitter, 10-ft. power cord with right-angle plug, $100,000 Ultimate Lifetime Insurance and lifetime product warranty.
	Tripp Lite HT10DBS Isobar Audio/Video Surge Suppressor--Best for medium to large A/V installations. This all-metal surge suppressor features a 3570-joule surge protection rating, 10 outlets, 2 isolated filter banks, 3-line gold coaxial surge protection, single-line RJ11 tel/modem surge protection, single-line RJ45 network/Ethernet surge protection, 8-ft. power cord with right-angle plug, $500,000 Ultimate Lifetime Insurance and lifetime product warranty.
	Tripp Lite ISOBAR6DBS Isobar Audio/Video Surge Suppressor--Best for small to medium A/V installations. This all-metal surge suppressor features a 2850-joule surge protection rating, 6 outlets, 3 isolated filter banks, 2-line gold coaxial surge protection, single-line RJ11 tel/modem surge protection, 6-ft. power cord with right-angle plug, $250,000 Ultimate Lifetime Insurance and lifetime product warranty.
	Tripp Lite TLP810NET Protect It.™ A/V Surge Suppressor--Economical protection for small to medium A/V installations. This surge suppressor features a high-impact plastic housing, 3690-joule surge protection rating, 8 outlets with built-in safety covers, single-line gold coaxial surge protection, 2-line RJ11 tel/modem surge protection and single-line RJ45 network/Ethernet surge protection, 10-ft. power cord with right-angle plug, $250,000 Ultimate Lifetime Insurance and lifetime product warranty.

Product Description

Tripp Lites HT2210ISOCTR Isobar Audio/Video Power Center provides ultimate protection5100 joules stopping damaging surges and filtering disruptive line noise so components perform at their peak You can see and hear the difference sharper, crisper video deeper, fuller audio and longer component life spans.

Customer Reviews

Most Helpful Customer Reviews

1 of 1 people found the following review helpful:

3.0 out of 5 stars Pay attention to the type of plug you wish to use with this product, June 30, 2011

By

RTS - See all my reviews

Amazon Verified Purchase

This review is from: Tripp-Lite HT2210ISOCTR 2-Outlet Home Theater Isobar A/V Power Center (5100 Joules) (Electronics)

A nice product in concept and with good performance specifications. However, if what you want to plug into this surge protector had a flat, offset plug the mounting strip for the unit may prevent you from plugging it in, your wire may hit the mounting flange preventing plugging your item in. Check your plugs and look at the photos of the product to make sure your plugs will work without hitting the mounting strip. I have this same unit on other items that the plugs do fit and it works fine. I can't believe it was designed this way, what an oversight. I had to send mine back. It's useless if you can't plug into it.

2 of 3 people found the following review helpful:

5.0 out of 5 stars Great product to protect your tv, November 7, 2009

By

jray (usa) - See all my reviews

Amazon Verified Purchase

This review is from: Tripp-Lite HT2210ISOCTR 2-Outlet Home Theater Isobar A/V Power Center (5100 Joules) (Electronics)

This unit is very compact and fits perfectly behind a wall mounted lcd. While the unit is fairly small in size it weighs more than much bigger surge protectors that i have elsewhere. Also at 5100 joules it offers some major protection for your flat panel. The short cord is just right to keep things nice and neat. I read many reviews on Tripp-Lite products and how they saved others components from actual lightening strikes while other components using cheap surge protectors got fried. One less thing to worry about. At just over $30 on special its a no brainer.

Update: I attached an image of this mounted. You can see it by clicking on customer images. If you look you will see it has two green LED's that are lit. The reason why I mention this is that the center one is not lit. After reading the manual that center one that is not lit indicated that the ground to the power center was not correct. As it turned after checking the outlet I found the polarity was reversed even though the outlet was grounded. Using a test light i confirmed the outlet had the hot and neutral wires reversed. After fixing this now all three lights are lit and I know its properly connected and protected. The other two LED's light green to tell you 1) the surge compression components are intact and providing full protection for you component 2) Indicates nominal AC power is present with no wiring faults detected.

This indicator lights are not just for show and do work.

4.0 out of 5 stars Good buy, October 7, 2010

By

Jayesh Patel - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Tripp-Lite HT2210ISOCTR 2-Outlet Home Theater Isobar A/V Power Center (5100 Joules) (Electronics)

Does what it was intended to do. I have it hooked up to a Flat Pane. (58" Panny). Fits snugly behind it right on the wall mount.
