Tripp Lite ISOTEL6ULTRA 6 Outlet Isobar Surge Protector (3330 Joules, Tel/DSL)

by Tripp Lite

Product Details

• Product Dimensions: 11.7 x 7.1 x 2.8 inches ; 3.2 pounds
• Shipping Weight: 7 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B0000511WW
• Item model number: ISOTEL6 ULTRA
• Average Customer Review: 5.0 out of 5 stars  See all reviews (5 customer reviews)
• Date first available at Amazon.com: June 29, 2004

Product Description

From the Manufacturer

With more than 18 million satisfied customers worldwide, Tripp Lite's Isobar® is the world's number-one selling premium surge suppressor. Tripp Lite's exclusive Isobar surge suppression technology, combined with a nearly indestructible metal case, stops even the strongest surges before they can damage or destroy sensitive equipment. The ISOTEL6ULTRA features unique isolated filter banks that block disruptive EMI/RFI line noise interference and prevent mutual interference between connected components. These premium features make the ISOTEL6ULTRA ideal for a wide range of applications: factories, warehouses, retail outlets, home offices and more.

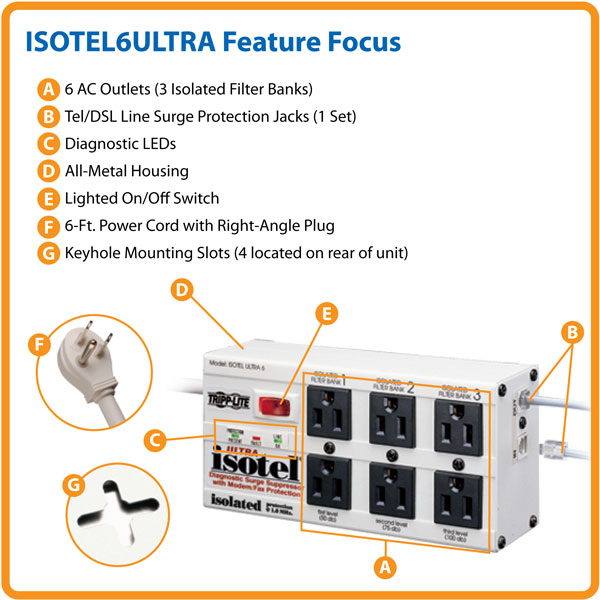

Feature Focus

Tripp Lite's ISOTEL6ULTRA Offers: Ultimate protection with 3330-joule surge suppression rating Exclusive isolated filter banks eliminate line noise interference 6 surge-protected AC outlets plus tel/DSL line protection Indestructible all-metal case won't crack, burn or melt $50,000 Ultimate Lifetime Insurance; lifetime warranty

Tripp Lite's ISOTEL6ULTRA Surge Suppressor
Click here for a larger image

Ultimate Protection for All Electronics
Click here for a larger image

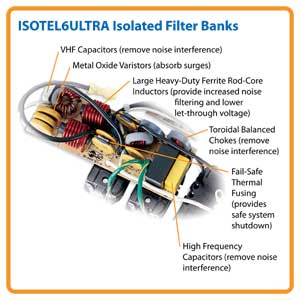

Exclusive Isolated Filter Banks
Click here for a larger image

Built-In Diagnostic Capability
Click here for a larger image

Ultimate Protection for All Electronics

The ISOTEL6ULTRA offers powerful surge protection for all electronics. It provides six AC outlets arranged in three isolated filter banks. Outlets are widely spaced to accommodate up to four large transformers without blocking remaining outlets. A set of four plug-in covers is included to safeguard unused outlets. Diagnostic LEDs confirm power availability, line fault and surge protection status at a glance. A 6-ft. cord enables connection to a distant wall outlet and a space-saving right-angle plug allows furniture to be placed flush against the wall. Four keyhole slots on the back of the unit enable the ISOTEL6ULTRA to be wall mounted.

Powerful Surge Suppression and Performance Enhancement

More joules mean more protection! The ISOTEL6ULTRA's 3330-joule surge suppression rating, Isobar surge protection technology and rugged all-metal housing shield connected equipment from even the strongest surges. EMI/RFI line noise filtering helps components perform at their peak. Line noise filtering eliminates performance problems that can be caused by radio transmissions, fluorescent lighting and appliances, while promoting longer component life spans.

Exclusive Isolated Filter Banks

Devices connected to the same surge suppressor can interfere with one another's performance—for instance when office equipment or household appliances (printers, copiers, blenders, vacuums, fans) degrade TV picture and sound quality. The Isobar is the only surge suppressor with internal barriers (called isolated filter banks) that prevent disruptive line noise from causing A/V distortion, computer lock-ups, data errors and similar problems. Isolated filter banks ensure that peripheral devices and appliances don't degrade the performance of computers and sensitive A/V components.

Phone Line Protection

A phone connection represents a potential back door through which a damaging surge could reach your equipment. The ISOTEL6ULTRA includes one set built-in tel/DSL (RJ11) jacks to prevent surges from damaging your modem/fax/phone equipment (6-ft. telephone cord included).

Built-In Diagnostic Capability

The ISOTEL6ULTRA features 3 diagnostic LEDs (LINE OK, GROUND OK & SURGE OK) that show power and protection status at a glance. An illuminated master switch provides one-touch power control over all connected components.

Versatile Installation Options

The ISOTEL6ULTRA features a 6-ft. cord to reach distant outlets. A space-saving right-angle plug allows office furniture, cabinets, etc. to be placed flush against the wall. The ISOTEL6ULTRA's rugged all-metal case stands up to harsh environments such as warehouses, garages and factory floors. The case is equipped with keyhole mounting tabs to facilitate permanent installation on or under counters and worktables, on walls, etc. Included outlet covers (set of four) may be used to safeguard unused outlets.

Ultimate Peace of Mind

The ISOTEL6ULTRA comes with $50,000 Ultimate Lifetime Insurance coverage for connected equipment—guaranteed lifetime protection against damage due to surges, including direct lightning strikes. Ultimate Lifetime Insurance coverage begins the moment you purchase your Tripp Lite surge suppressor—no forms to fill out or send in! Additionally, all Tripp Lite surge suppressors are backed by a lifetime product warranty and a rapid-response, no-questions-asked replacement policy.

Technical Specifications

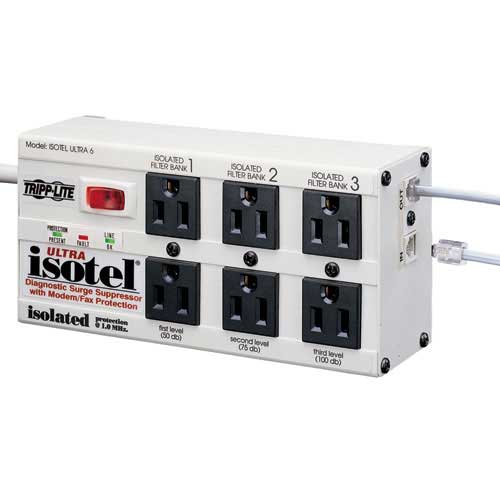

Tripp Lite ISOTEL6ULTRA Premium Surge Suppressor

Click here for a larger image

Model:	ISOTEL6ULTRA
Voltage compatibility:	120 VAC
Frequency compatibility:	50/60 Hz
Output volt amp capacity (amps):	12
Overload protection:	12-amp circuit breaker
AC suppression rating (joules):	3330
Outlet quantity/type:	6 x 5-15R (includes 4 outlet safety covers) RJ11 tel/DSL jacks (1 set)
Input cord:	6 ft.
Input plug:	5-15P right-angle
Switches/LEDs:	Illuminated On/Off power switch Circuit breaker reset button 3 diagnostic LEDs
Dimensions (HWD):	2.5 x 7.0 x 3.5 in.
Weight:	2.3 lbs.
Material of construction:	Metal
Agency approvals:	UL 1449, UL 1363, UL 497A & UL 1283 FCC Part 68 RoHS

What's in the Box

• ISOTEL6ULTRA Surge Suppressor
• 1 x 6-ft. RJ11 Phone Cord
• Set of 4 Outlet Safety Covers

Tripp Lite Protects and Connects All Your Electronics

Tripp Lite manufactures a full line of power and connectivity solutions—UPS systems, power distribution units, surge suppressors, cables and connectivity solutions, rack enclosures and more—for every application, from the desktop to the datacenter.

ISOTEL8ULTRA Isobar® Premium Surge Suppressor

Ultimate surge protection for all electronics. The ISOTEL8ULTRA features a 3840-joule surge protection rating, rugged all-metal housing, 8 outlets spaced to accommodate 4 transformers, 4 isolated filter banks that eliminate line noise interference, single-line tel/DSL (RJ11) surge protection and 12-ft. cord with right-angle plug. Premium Isobar surge suppression technology stops even the strongest surges. $50,000 Ultimate Lifetime Insurance; lifetime warranty.

ISOBAR6ULTRA Isobar® Premium Surge Suppressor

Ultimate surge protection for all electronics. The ISOBAR6ULTRA features a 3330-joule surge protection rating, rugged all-metal housing, 6 outlets spaced to accommodate 3 transformers, 3 isolated filter banks that eliminate line noise interference and 6-ft. cord with right-angle plug. Premium Isobar surge suppression technology stops even the strongest surges. $50,000 Ultimate Lifetime Insurance; lifetime warranty.

P410-007-SR Fax/Modem Flat Patch Cable (RJ11 M/M)—7 ft.

Connect a fax device or computer modem to an RJ11 wall jack or the RJ11 jack of a surge suppressor with phone line protection. Lifetime warranty.

P022-001 18AWG Power Extension/Adapter Cable—1 ft.

Attaches to an existing power cord to extend its length by 1 ft. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Standard 5-15R receptacle and 5-15P plug. Lifetime warranty.

Green ECO550UPS Standby UPS System

@ battery backup protection for PCs and all electronics. The ECO550UPS provides 550VA/300W power capacity with 8 outlets (4 UPS/surge, 3 ECO/surge, 1 surge only) plus single-line tel/DSL (RJ11) surge protection. ECO outlets eliminate energy-wasting phantom loads to reduce your electric bill. The ECO550UPS supports a basic desktop PC for up to 17 minutes during power failures. $100,000 Ultimate Lifetime Insurance; 3-year warranty.

SMART1000LCD Digital UPS System

Automatic voltage regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1000LCD provides 1000VA/500W power capacity with 8 outlets (4 UPS/surge, 4 surge only) plus single-line tel/DSL (RJ11) and coaxial protection. A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The SMART1000LCD supports entry-level PCs for up to 60 minutes during power failures. $250,000 Ultimate Lifetime Insurance; 3-year warranty.

Product Description

Tripp Lite Lite Isobar 6 Outlets 120V Surge Suppressor ISOTEL6ULTRA Surge Suppressors

Customer Reviews

Most Helpful Customer Reviews

3 of 3 people found the following review helpful:

5.0 out of 5 stars Isotel 6 Ultra with phone line protection, November 9, 2006

By

Guy - See all my reviews

Amazon Verified Purchase

This review is from: Tripp Lite ISOTEL6ULTRA 6 Outlet Isobar Surge Protector (3330 Joules, Tel/DSL) (Electronics)

Like the heavy duty construction, compact size,wide spacing between outlets. Green LEDs also indicate line and protection status.

Can't think of anything I dislike about this unit.

2 of 2 people found the following review helpful:

5.0 out of 5 stars It Does It's Job..., October 8, 2007

By

Ivy Vine (Berkeley, CA USA) - See all my reviews
(VINE VOICE)

This review is from: Tripp Lite ISOTEL6ULTRA 6 Outlet Isobar Surge Protector (3330 Joules, Tel/DSL) (Electronics)

What can I say? It works. I needed a new surge protector/power bar for the kitchen as we have ONE outlet for the whole kitchen and this has to have the fridge and our new Upright Freezer (reason for purchase)plug into it, plus all the other appliances like the microwave, coffee/espresso maker, toaster, etc. We have a twin window fan plugged into this as well.

I wanted to go with something VERY sturdy and able to take a slight beating, and that could handle the 2 larger appliances with the smaller ones as well.

This Surge Outlet Bar works great, is heavy duty with it's all metal construction, has a long enough cord for my needs, and I can feel comfortable using it and knowing it will help keep my appliances safe.

A "must get" purchase, IMO.

5.0 out of 5 stars Crossed Lines, July 15, 2010

By

joe - See all my reviews

This review is from: Tripp Lite ISOTEL6ULTRA 6 Outlet Isobar Surge Protector (3330 Joules, Tel/DSL) (Electronics)

This surge protector gave it's life to save my TV and entertainment system. The two main powerlines entering my apartment building ended up touching each other sending some intense power surges. The tripplite was a little charred but it saved my equipment and prevented a fire.
Thanks,
JOE
