Tripp Lite LC1200 1200W Line Conditioner w/ Isobar Protection 4 outlets 120V

by Tripp Lite

Product Details

• Product Dimensions: 7 x 6 x 7.2 inches ; 15.2 ounces
• Shipping Weight: 9 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B0000512LA
• Item model number: LC1200
• Average Customer Review: 4.4 out of 5 stars  See all reviews (17 customer reviews)
• Amazon Best Sellers Rank:
  • #98 in Electronics > Accessories & Supplies > Power Protection > Surge Protectors
• Discontinued by manufacturer: Yes
• Date first available at Amazon.com: June 6, 2007

Product Description

From the Manufacturer

Tripp Lite's LC1200 Line Conditioner keep your equipment working through brownouts without using emergency power such as UPS systems and auxiliary generators. It automatically adjusts under- and overvoltages to provide safe, computer-grade AC power meeting ANSI C84.1 specifications. Additionally, because printers have a high current draw and a tendency to cause localized brownouts, Hewlett-Packard® recommends the use of a line conditioner with their laser printers. Surges, spikes and EMI/RFI line noise wear down sensitive circuitry and can cause premature aging or total failure of your equipment. The LC1200 exceeds the IEEE-587 standard for surge suppression (both categories A and B). It features the widest voltage correction range of any comparable units. Using multiple levels of voltage correction, the LC1200 automatically adjust under- and overvoltages to keep you working through brownouts and prolonged overvoltage conditions. The LC1200 also protects your valuable equipment with built-in premium surge suppression.

Key Features

Tripp Lite's LC1200 Line Conditioner Offers: Brownout and overvoltage protection in a single cost-effective unit Powerful 1200-joule surge suppression rating 4 AC outlets; 7-ft. cord $25,000 Ultimate Lifetime Insurance coverage for connected equipment 2-year product warranty

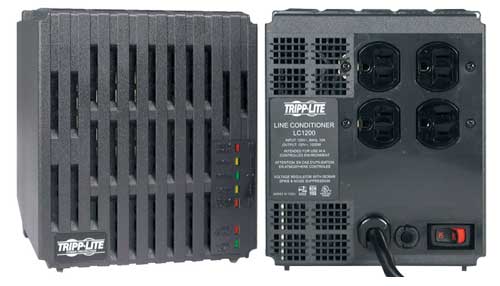

Versatile Protection for Sensitive Electronics
Click here for a larger image

Brownout and overvoltage protection in a single cost-effective unit
Click here for a larger image

Built-In Diagnostic Capability
Click here for a larger image

Versatile Protection for Sensitive Electronics

The LC1200 provides comprehensive protection and performance enhancement for computers, A/V components and all electronics. It features built-in automatic voltage regulation to protect sensitive equipment from the harmful effects of brownouts and overvoltages, plus a 1200-joule surge suppression rating to protect against catastrophic surge damage. The LC1200 also filters out disruptive line noise that can cause performance problems and corrupt or erase data. With its 1200-watt output rating and four outlets, the LC1200 provides ample capacity for multiple items of connected equipment.

Advanced Automatic Voltage Regulation

To protect connected equipment from the harmful effects of voltage fluctuations, the LC1200 features built-in automatic voltage regulation (AVR) with three levels of voltage stabilization to provide a targeted response to overvoltages, undervoltages and severe brownouts. The LC1200 corrects brownouts as low as 89V and overvoltages up to 147V back to safe, nominal 120V power. AVR protection prevents equipment damage, data loss and power-related performance problems.

EMI/RFI Line Noise Filtering

Various electromagnetic and radio sources can cause disruptive interference on the AC line. This EMI/RFI line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The LC1200 incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment or corrupting data.

Powerful AC Line Surge Suppression

The LC1200 provides 1200 joules of surge suppression to prevent even the strongest surges from damaging your valuable electronics. Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression.

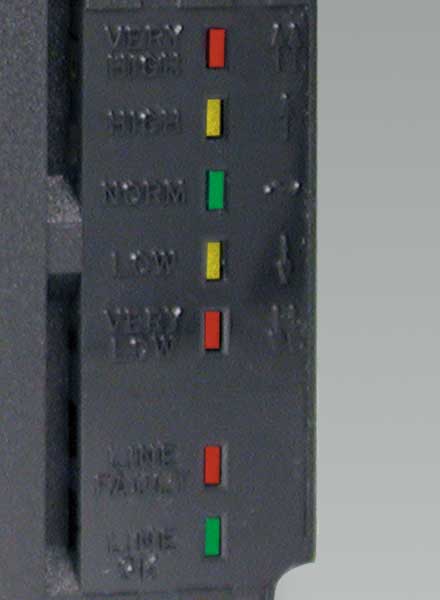

Built-In Diagnostic Capability

Seven diagnostic LEDs provide complete power status information: AC power (green = NORM), incoming voltage level (2 x yellow = HIGH/LOW, 2 x red = VERY HIGH/VERY LOW) and AC line status (green = LINE OK, red = LINE FAULT). An On/Off switch located on the rear of the unit provides one-touch power control over all components.

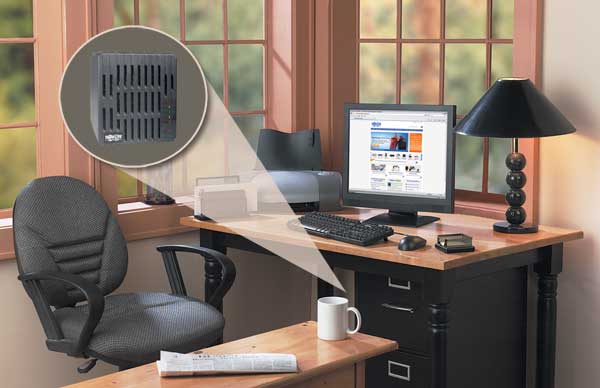

Compact Design

The LC1200's compact cabinet (less than eight inches in height) and 7-ft. cord make it easy to integrate into a wide range of applications: a desktop computer setup, a home theater setup, a lab bench and more. Four AC outlets provide ample capacity for connected equipment.

Ultimate Peace of Mind

The LC1200 comes with $25,000 Ultimate Lifetime Insurance—guaranteed lifetime protection for your equipment in case of surge damage, including direct lightning strikes. And it's simple: Ultimate Lifetime Insurance coverage begins the moment you purchase the LC1200, with no forms to fill out or send in. Additionally, this Tripp Lite Line Conditioner is backed by a 2-year warranty.

Technical Specifications

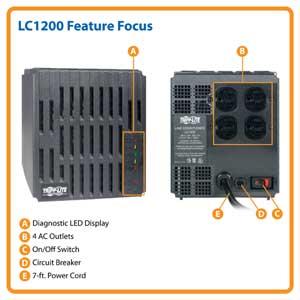

Tripp Lite LC1200 Line Conditioner

Click here for a larger image

Model:	LC1200
Voltage compatibility:	120 VAC
Frequency compatibility:	60 Hz
Output watts:	1200
Output amp capacity:	10
Overload protection:	15-amp circuit breaker
AC suppression rating (joules):	1200
Outlet quantity/type:	4 x 5-15R
Input cord:	7 ft.
Input plug:	5-15P
Switches/LEDs/alarms:	On/Off power switch 7 diagnostic LEDs
Dimensions (HWD):	7.25 x 6.0 x 7.0 in.
Weight:	2.09 lbs.
Material of construction:	Plastic
Agency approvals:	UL 1012 (USA/Canada) NOM (Mexico) RoHS

Tripp Lite Protects and Connects All Your Electronics

Tripp Lite manufactures a full line of power protection solutions—UPS systems, power line conditioners, surge suppressors and more—for every application, from the desktop to the datacenter.

LC1800 Line Conditioner

Advanced automatic voltage regulation (AVR), surge protection and line noise filtering for computers, scientific instrumentation, A/V components and all electronics in a compact tower format. The LC1800 protects sensitive equipment from the harmful effects of brownouts, overvoltages and power surges with built-in AVR plus a 1440-joule surge suppression rating. The LC1800 also filters out disruptive line noise that can cause performance problems and corrupt or erase data. Features include 1800-watt output rating, 6 AC outlets and 6-ft. cord. $25,000 Ultimate Lifetime Insurance; 2-year warranty.

LC2400 Line Conditioner

Advanced automatic voltage regulation (AVR), surge protection and line noise filtering for computers, scientific instrumentation, A/V components and all electronics in a compact tower format. The LC2400 protects sensitive equipment from the harmful effects of brownouts, overvoltages and power surges with built-in AVR plus a 1440-joule surge suppression rating. The LC2400 also filters out disruptive line noise that can cause performance problems and corrupt or erase data. Features include 2400-watt output rating, 6 AC outlets and 6-ft. cord. $25,000 Ultimate Lifetime Insurance; 2-year warranty.

LCR2400 Line Conditioner

Advanced automatic voltage regulation (AVR), surge protection and line noise filtering for computers, scientific instrumentation, A/V components and all electronics in a 3U rackmount format. The LCR2400 protects sensitive equipment from the harmful effects of brownouts, overvoltages and power surges with built-in AVR plus a 1440-joule surge suppression rating. The LCR2400 also features exclusive Isobar® isolated filter banks to filter out disruptive line noise that can cause performance problems and corrupt or erase data. Features include 2400-watt output rating, 14 AC outlets and 6-ft. cord. $25,000 Ultimate Lifetime Insurance; 2-year warranty.

SMART1000LCD Digital UPS System

Automatic voltage regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1000LCD provides 1000VA/500W power capacity with 8 outlets (4 UPS/surge, 4 surge only) plus tel/DSL (RJ11) and coaxial surge protection. A large illuminated LCD display shows power and UPS operating conditions in real time; LCD rotates to accommodate tower or 2U rackmount (shelf) installations. A USB port with included cabling and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The SMART1000LCD supports a basic desktop PC for up to 60 minutes during power failures. $250,000 Ultimate Lifetime Insurance; 3-year warranty.

TLP810NET Protect It!™ A/V Surge Suppressor

Economical protection for A/V components and all electronics. This surge suppressor features a high-impact plastic housing, 3240-joule surge protection rating, 8 outlets with built-in safety covers, gold coaxial surge protection, tel/DSL (RJ11) and tel/Ethernet (RJ45) surge protection, and 10-ft. power cord with right-angle plug. $250,000 Ultimate Lifetime Insurance; lifetime warranty.

Product Description

Tripp Lite Lite 1200W Mini Tower Line Conditioner LC1200 Line Conditioners

Customer Reviews

Most Helpful Customer Reviews

34 of 34 people found the following review helpful:

4.0 out of 5 stars Adequate performance, large voltage steps, June 29, 2007

By

Application Software Developer (Brookline, MA, USA) - See all my reviews

This review is from: Tripp Lite LC1200 1200W Line Conditioner w/ Isobar Protection 4 outlets 120V (Electronics)

June 29, 2007

We purchased a Tripp-Lite model LC1200 wide-range AVR when the voltage tolerance of an Ultra Products model ULT33045 power protector proved inadequate to cope with our local power conditions. Inserted between the line power outlet and the Ultra, the Tripp-Lite adds enough boost-buck range to cope. We draw 100-250 W through the pair, well below rated capacity of both these units.

At 85 VAC line voltage, the combination boosts to 114 VAC, remaining within 5% tolerance with respect to 120 VAC usually recommended for the most reliable operation of electronic equipment. Observing performance over time, we find that the combination maintains 5% tolerance about 90 percent of the time and 10% tolerance all the time. We would probably not be able to obtain this quality of regulation with the Tripp-Lite alone, because its large voltage steps, 9-10 percent.

As of late June, 2007, Tripp-Lite has changed LC1200 specifications slightly since those shown here, promising regulation of 120 VAC to within -12% with input of 89 VAC. Newer units have black rather than white or gray cases.

The Tripp-Lite does not disconnect when line voltage goes lower, at least down to 85 VAC, but its maximum boost remains about 19 percent. It has a plastic hardshell case, not metal, but remains fairly cool. There is no appreciable magnetic shielding, Working near a ViewSonic P225 21-inch CRT monitor, we found that with the centers of the ViewSonic and Tripp-Lite in the same plane, the distance between the units had to be at least 0.9 m (36 in) to eliminate flicker from the Tripp-Lite's magnetic leakage.

10 of 10 people found the following review helpful:

4.0 out of 5 stars Does the job well, but faint "hum"., May 8, 2009

By

David Whittle (Knoxville, TN United States) - See all my reviews
(VINE VOICE)    (REAL NAME)

Amazon Verified Purchase

This review is from: Tripp Lite LC1200 1200W Line Conditioner w/ Isobar Protection 4 outlets 120V (Electronics)

I use this to protect an Apple Mac tower computer and CinemaDisplay monitor. We have a problem with our older house's wiring -- every time the Heating/AC kicks on there's a brief power lag.

The Tripp Lite LC1200 smooths out the power during these occasional brief lags, and we know it's working because I can hear the Tripp Lite "click" when the AC kicks on.

The only negative, and it could be a big one for some people, is the LC1200 gives off a slight "hum". I wrote Tripp Lite's tech support about this and they said this sound is normal. So I wouldn't use this in a room intended to be completely quiet, like a home theater.

2 of 2 people found the following review helpful:

5.0 out of 5 stars New color, November 2, 2008

By

David E. (Florida, USA) - See all my reviews

Amazon Verified Purchase

This review is from: Tripp Lite LC1200 1200W Line Conditioner w/ Isobar Protection 4 outlets 120V (Electronics)

The case is black if that matters to you. Simple plug and go. I have plugged my battery backup into this. I was surprised at the number of voltage drops it detected and protected my valuable audio video gear. More than I realized. Good price for basic protection.
