Tripp Lite PDUV15 Vertical Power Distribution Unit PDU 14 Outlets 15 Amp

by Tripp Lite

Product Features

• Safe, reliable power distribution ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more
• 15-amp electrical capacity with circuit breaker
• 14 NEMA 5-15R outlets
• 36-inch mountable strip with 15-ft. power cord
• Includes integrated button mount and hardware for 0U configuration in rack enclosures as well as horizontal mounting in raceways and more

Product Details

• Product Dimensions: 40 x 3.5 x 5 inches ; 3.6 pounds
• Shipping Weight: 4 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B001AZRD68
• Item model number: PDUV15
• Average Customer Review: 5.0 out of 5 stars  See all reviews (1 customer review)
• Amazon Best Sellers Rank: #4,535 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden)
  • #27 in Electronics > Accessories & Supplies > Batteries, Chargers & Accessories > PDUs
  • #78 in Electronics > Accessories & Supplies > Batteries, Chargers & Accessories > Power Strips

Product Description

From the Manufacturer

Do you need a dependable, space-saving, cost-effective solution for powering multiple loads in high-density IT or similar environments? Tripp Lite's PDUV15 Basic Power Distribution Unit is the answer! With fourteen outlets, a 15-ft. power cord and a rugged all-metal housing, the PDUV15 supports vertical 0U rack installation as well as wall-mount, workbench, under-counter and similar installations. It is also configurable for toolless button-mount vertical installation in compatible rack enclosures.

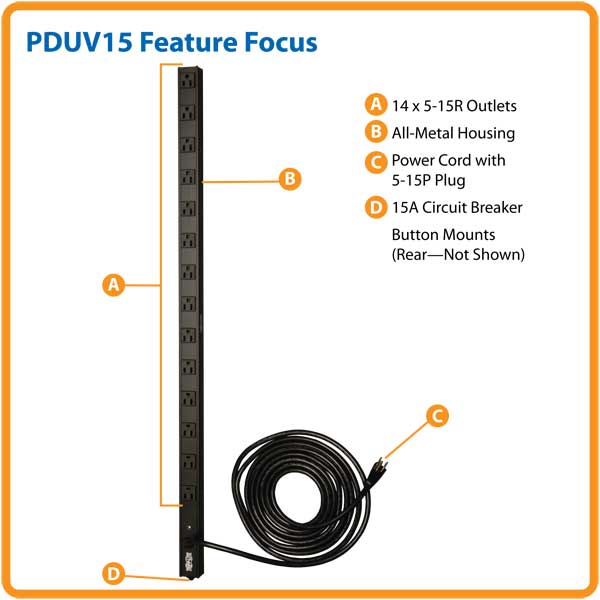

Key Features

Reliable IT Power Distribution
Click here for a larger image

Optimized for Demanding Applications

The PDUV15 is designed for reliable distribution of AC power to supported equipment in IT, industrial and similar applications. It features a rugged all-metal case, high-quality outlets and plug, a 15A circuit breaker and a switchless design to prevent accidental shutoff.

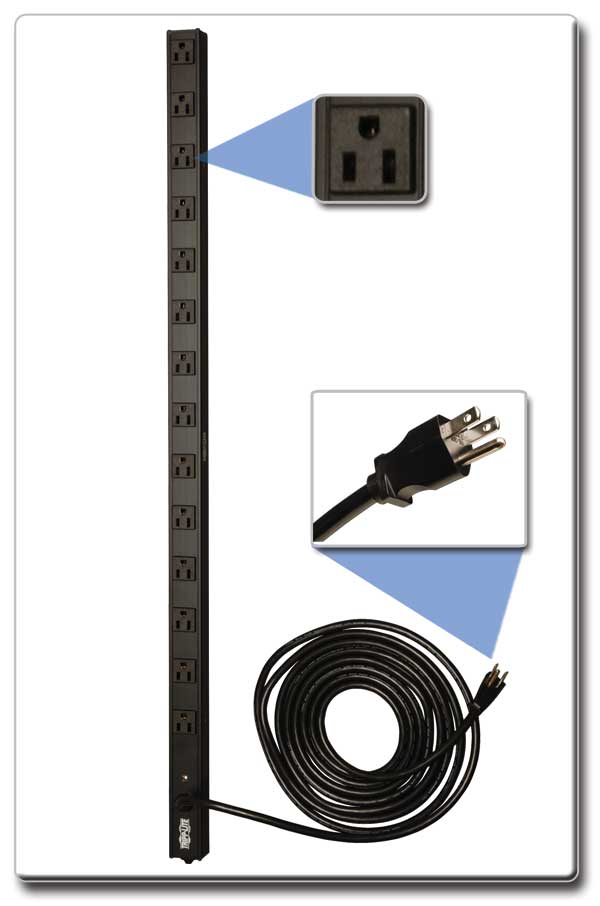

Outlets and Plug
Click here for a larger image

Reliable IT Power Distribution

Unfiltered electrical pass-through makes the PDUV15 ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures, network closets, and more. It provides fourteen 5-15R outlets and a 15-ft. cord with 5-15P plug in a space-saving all-metal housing that can be configured for multiple installations configurations.

Versatile Installation Options

The PDUV15 is easy to integrate with a wide range of data center and network applications. Included mounting hardware enables the PDU to be installed in 0U vertical rackmount configurations, wall-mount, workbench, under-counter and similar applications. The PDUV15 is also configurable for toolless button-mount 0U vertical installation in compatible rack enclosures. The included mounting buttons can be installed on the rear, right or left surface of the PDU for rear, center or forward-facing outlet orientation in the rack.

Switchless Design

The PDUV15's switchless design prevents accidental shutoff and safeguards against downtime due to human error.

Peace of Mind

The PDUV15 comes with a lifetime warranty.

Technical Specifications

Tripp Lite PDUV15 Basic Power Distribution Unit

Click here for a larger image

Model:	PDUV15
Voltage compatibility:	120 VAC
Frequency compatibility:	50/60 Hz
Amps:	15
Outlet quantity/type:	14 x 5-15R
Input cord/plug:	15 ft./5-15P
Circuit breaker:	1 x 15A
Dimensions (HWD):	33 x 1.25 x 1.75 in. (0U)
Weight:	3.3 lb
Material of construction:	Metal
Agency approvals:	UL 60950-1 (US/Canada) RoHS
Warranty:	Lifetime

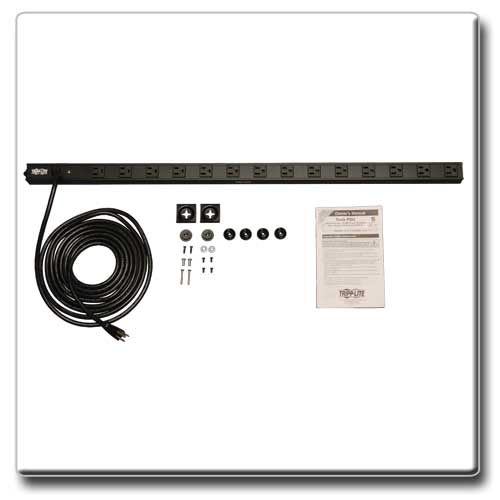

What's in the Box

• PDUV15 Basic PDU
• Mounting Hardware
• Owner's Manual

Protect, Power, Organize and Control with Tripp Lite

Tripp Lite UPS Systems and accessories are available with a wide range of features to provide reliable, cost-effective power protection and connectivity solutions for all electronics.

PDUMV15 Metered Power Distribution Unit

Metered 0U (vertical) rackmount PDU with 16 x 5-15R outlets and 15-ft. cord with 5-15P plug. The PDUMV15 provides a digital amp meter for on-site monitoring of total PDU load. Lighted power switch with transparent safety cover prevents accidental shut-off. Supports toolless button-mount vertical installation in all Tripp Lite and other compatible rack enclosures. Lifetime warranty.

PDUMNV15 Monitored Power Distribution Unit

Monitored 0U (vertical) rackmount PDU with 16 x 5-15R outlets and 10-ft. cord with 5-15P plug. The PDUMNV15 provides 15A 120V capacity, remote power monitoring via a secure web/network interface, digital amp meter for on-site monitoring of total PDU load, and sequential outlet power-on capability to prevent inrush-related equipment interaction on startup. Switchless, circuit breaker-free design prevents accidental shut-off. Supports toolless button-mount vertical installation in all Tripp Lite and other compatible rack enclosures. 2-year warranty.

SU1500RTXL2Ua SmartOnline™ UPS System

True on-line operation with pure sine wave output and zero transfer time provides the highest level of protection for mission-critical equipment. The SU1500RTXL2Ua provides 1500VA/1200W power capacity with 6 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SU1500RTXL2Ua supports connected equipment for 14 minutes during power failures at a half load of 600 watts. Runtime is expandable with optional external battery packs. $250,000 Ultimate Lifetime Insurance; 2-year warranty.

B020-U08-19-K NetDirector™ Console KVM Switch

Controls an entire network in just 1U of rack space. The B020-U08-19-K combines a keyboard, 19-in. LCD screen, touch pad, numeric keypad, and 8-port KVM switch in a 1U slide-out unit. It is USB or PS/2 compatible with 8 included PS2/USB Combo Cable Kits to connect switch to servers. Controls up to 504 servers by daisy-chaining additional KVMs. Includes two front-mounted USB ports: one for attachment of a separate USB mouse and one to connect USB peripherals (flash drive, external hard drive, etc.) that can be shared between connected servers.

SRCOOL12K Self-Contained Portable Air Conditioning Unit

Compact, portable air conditioning unit is ideal for wiring closets and other space-critical locations where facility air conditioning can't reach. 12,000 BTU of cooling power. Connects to a standard 5-15R receptacle; no adapter required. Uses EPA-compliant R410a refrigerant. Standard louvered vent for general room cooling; ducted vent to direct cold air where needed. Requires no floor drain or water collection tank. 1-year warranty.

SR42UB SmartRack™ Enclosure

Premium 42U rack enclosure with doors and side panels. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

Product Description

Tripp Lite's PDUV15 Basic Vertical Power Distribution Unit offers 15-amp, 120V multi-outlet AC power distribution in a convenient 36-inch mountable housing. It offers vertical power distribution in rackmount, raceway and workbench applications. Includes 12 NEMA 5-15R output receptacles, 15-ft. AC line cord. Sturdy all-metal aluminum housing stands up to demanding network, laboratory or factory environments. Unfiltered electrical pass-through makes the PDUV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 14 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15-amp circuit breaker in rugged metal case design with universal and button mounting options. PLUG/OUTLETS - Input: NEMA 5-15P; Output: 12 NEMA 5-15R; ELECTRICAL - 120V AC, 50/60Hz, 15A; FORMAT - 36-inch mountable strip.
