Tripp Lite PV1000HF PowerVerter Ultra-Compact Inverter 12V to 120VAC 1000 Watts (4) 5-15R Outlets

by Tripp Lite

Product Details

• Product Dimensions: 13 x 6 x 4.2 inches ; 7 pounds
• Shipping Weight: 7 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B00006HQ92
• Item model number: PV1000HF

Product Description

From the Manufacturer

Are you tired of filling heavy gas cans? Are you looking for a clean, reliable alternative to a portable generator? The PV1000HF PowerVerter® Ultra-Compact Inverter is the solution you seek! The PV1000HF powers the equipment you commonly use at home or work—power tools, portable lighting, notebook computers and more—wherever life takes you. It's the ideal power solution for RVs, commercial and fleet vehicles, emergency vehicles, remote sites and any other application that requires a clean, quiet AC power source. The PV1000HF efficiently converts DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers. And unlike portable generators, the PV1000HF requires no fuel and produces no noise or fumes. With its 1000-watt capacity and 4 AC outlets, this inverter can power multiple items of equipment with ease. The PV1000HF also provides DoubleBoost™ capability to support power-hungry equipment start-ups.

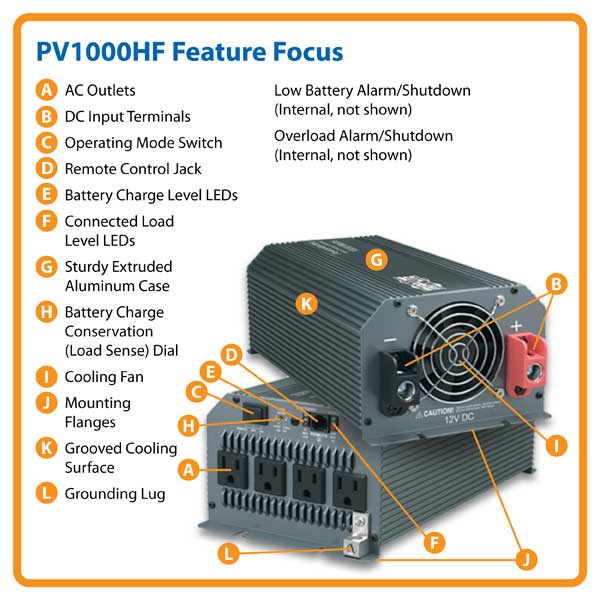

Feature Focus

Tripp Lite's PV1000HF Ultra-Compact Power Inverter Offers: Computer-grade AC power from a vehicle battery 1000 watts continuous output power; up to 2000 watts instantaneous power Clean, quiet operation—no fumes or noise Compact design; simple installation 1-year warranty

Portable Power Whenever You Need it
Click here for a larger image

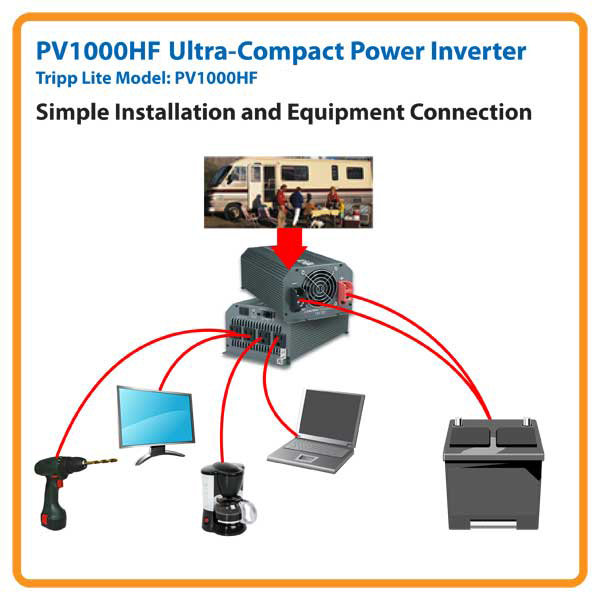

Simple Installation and Equipment Connection
Click here for a larger image

Computer-Grade Output Power

The PV1000HF efficiently converts DC power from a vehicle battery into 120V AC power for any type of equipment, from heavy-duty drills, saws and pumps to computers and sensitive monitoring equipment. The PV1000HF provides safe, stable, AC output power to help connected equipment perform at its peak. A frequency control feature ensures that devices dependent on tightly regulated AC line frequency, such as computers, VCRs and DVD/CD players, receive clean computer-grade power.

Extended Peak Surge Power

Many tools, appliances and printers require extra power for start-up. The PV1000HF accommodates these peak surge demands by providing up to 200% more output power than its continuous rating. In DoubleBoost mode, it can deliver 2000 watts for up to 10 seconds to support power-hungry equipment start-ups and motor cycling requirements.

Diagnostic LEDs

The PV1000HF features two sets of diagnostic LEDs to indicate load level (high, medium and low) and battery charge (high, medium and low).

Automatic Overload Shutdown

To prevent damage to the inverter and connected equipment, the PV1000HF will shut down automatically if an overload is detected at the inverter outlets. The red Load Level Indicator LED will flash to alert you that an overload has occurred.

Efficient and Safe for Batteries

With its 94% efficiency rating, the PV1000HF maximizes battery performance to run connected equipment longer. It also features a Load Sense (battery charge conservation) setting to prevent overtaxing your batteries. An automatic low-battery shutdown feature ensures you'll always have sufficient battery power available to start your vehicle.

Rugged Construction

The PV1000HF features an all-metal housing that's built to withstand vibration and impact—ideal for use at remote worksites, in trucks, RVs and other vehicles, on boats or anywhere that reliable AC power is needed. The housing is constructed with a grooved surface to promote more efficient cooling.

Simple Installation and Equipment Connection

The PV1000HF features integral mounting slots for permanent installation on any rigid, horizontal surface, such as the bed of a pickup truck. Connecting the PV1000HF to your battery system is quick and easy with readily available user-supplied cables. AC power is provided to connected equipment via four AC receptacles on the front of the unit. The PV1000HF is also equipped with an RJ45 port for connection of an optional Remote Control LED/Switch Module (Tripp Lite model APSRM4), enabling you to control and monitor the inverter from virtually anywhere within a vehicle.

Peace of Mind

The PV1000HF comes with a 1-year product warranty and a rapid-response repair/replacement policy that's unmatched in the industry.

Also Available

Tripp Lite manufactures a full line of power and connectivity solutions—UPS systems, power distribution units, surge suppressors, cables and connectivity solutions, rack enclosures and more—for every application, from the desktop to the datacenter.

Technical Specifications

Click here for a larger image

Model:	PV1000HF
Voltage compatibility:	12 VDC
Frequency compatibility:	60 Hz
Output voltage:	120 VAC
Output capacity (continuous):	1000 watts
Output capacity (DoubleBoost):	2000 watts/10 seconds
Overload protection:	Output circuit breaker
Cooling method:	Fan
Input connection:	2 x DC input terminals (user supplies cables)
Outlet quantity/type:	4 x 5-15R
Switches/LEDs/alarms:	3-positon On/Off/Remote switch 6 x diagnostic LEDs Low voltage alarm/automatic shutdown
Dimensions (HWD):	4.25 x 6.0 x 13.0 in.
Weight:	6.0 lbs.
Material of construction:	Aluminum

Equipment Sizing Guide*

The PV1000HF can be used to power a wide range of equipment, including:

Power Tools	Pumps	Audio/Video	Appliances	Mobile Office
Finishing Sander (200-225w)	1/6-hp Submersible Sump Pump (1200/800w)	Game System (10-200w)	Can Opener (200w)	Battery Charger (25w)
Bench Grinder (240-1000w)	1/4-hp Submersible Sump Pump (1300/900w)	VCR/DVD Player (50w)	3-Speed Fan—12 in. (250w)	Inkjet Printer (100w)
1/4-in. Drill (250w)		CD Changer/Mini System (50w)	Mixer/Blender (200-400w)	Laptop Computer (75-150w)
Heat Gun (500-1500w)		LCD TV—13-19 in. (50-100w)	Food Processor (400w)	Fax Device (150w)
Jigsaw (450-600w)		LCD TV—25-36 in. (120-135w)	Portable Vacuum (800w)	Computer/Monitor (250w)
Standard Reciprocating Saw (450-600w)		LCD TV—43-60 in. (200-250w)	Coffeemaker (800-1000w)	Portable Laser Printer (350w)
Disk Grinder (600w)		Stereo Amplifier (240w)	Microwave (600-1000w)
1/2-in. Reversible Drill (700w)
10-Gallon Wet/Dry Vacuum (1000w)
Circular Saw (800-1000w)
Router (500-1000w)

*Based on typical wattage or wattage range. For sump pumps, wattages reflect startup/continuous operation wattage.
