Technical Details
- PowerVerter Plus Heavy-Duty Inverter, industrial-strength power for heavy-duty applications
- 2000 Watts continuous output power; up to 4000 watts instantaneous power
- Extended peak surge power handles heavy connected loads
- 2 AC outlets rugged moisture-resistant polycarbonate housing
- 1 Year warranty
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
Are you tired of filling heavy gas cans? Are you looking for a clean, reliable alternative to a portable generator? The PV2000FC PowerVerter® Plus Inverter is the solution you seek! The PV2000FC powers the equipment you commonly use at home or work—power tools, pumps, portable lighting, notebook computers and more—wherever life takes you. It's the ideal power solution for RVs, commercial and fleet vehicles, emergency vehicles, construction sites, remote worksites and any other application that requires a clean, quiet AC power source. The PV2000FC efficiently converts DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers. And unlike portable generators, the PV2000FC requires no fuel and produces no noise or fumes. With its 2000-watt capacity, this inverter can handle heavy-duty loads like drills, saws and pumps with ease. The PV2000FC also features OverPower™ and DoubleBoost™ capability, providing extra power when required for heavy loads and power-hungry equipment start-ups.

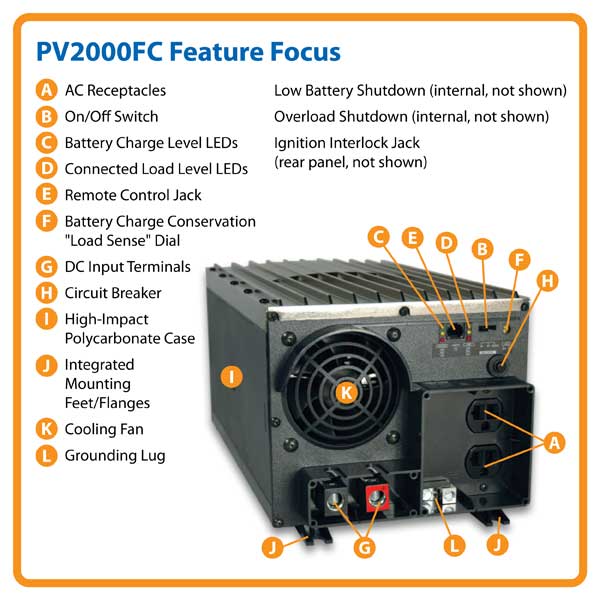

Feature Focus
|
Click here for a larger image
Click here for a larger image
Industrial-Strength Output Power
The PV2000FC efficiently converts DC power from a vehicle battery into 120V AC power for any type of equipment, from heavy-duty drills, saws and pumps to computers and sensitive monitoring equipment. The PV2000FC provides safe, stable, AC output power to help connected equipment perform at its peak. A frequency control feature ensures that devices dependent on tightly regulated AC line frequency, such as computers, VCRs and DVD/CD players, receive clean computer-grade power.
Extended Peak Surge Power
Many tools, appliances and printers require extra power for start-up. Others, such as refrigerators and pumps, have fluctuating power demands. The PV2000FC accommodates these peak surge demands by providing up to 200% more output power than its continuous rating of 2000 watts. In OverPower mode, the PV2000FC can deliver 3000 watts for up to an hour, providing ample reserve power to keep tools and equipment running longer. In DoubleBoost mode, it can deliver 4000 watts for up to 10 seconds to support power-hungry equipment start-ups and motor cycling requirements.
Diagnostic LEDs
The PV2000FC features two sets of diagnostic LEDs to indicate load level (high, medium and low) and battery charge (high, medium and low).
Automatic Overload Shutdown
To prevent damage to the inverter and connected equipment, the PV2000FC will shut down automatically if an overload is detected at the inverter outlets. The red Load Level Indicator LED will flash to alert you that an overload has occurred.
Efficient and Safe for Batteries
With its 90%+ efficiency rating, the PV2000FC maximizes battery performance to run connected equipment longer. It also features a Load Sense (battery charge conservation) setting to prevent overtaxing your batteries. An automatic low-battery shutdown feature ensures you'll always have sufficient battery power available to start your vehicle.
Heavy-Duty Construction
The PV2000FC features a rugged, moisture-resistant polycarbonate housing that's built to withstand vibration and impact—ideal for use at remote worksites, in trucks, RVs and other vehicles, on boats or anywhere that reliable AC power is needed.

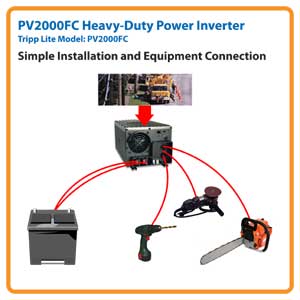

Simple Installation and Equipment Connection
The PV2000FC features integral mounting slots for permanent installation on any rigid, horizontal surface, such as the bed of a pickup truck. Connecting the PV2000FC to your battery system is quick and easy with readily available, user-supplied cables. AC power is provided to connected equipment via two standard 5-15R receptacles on the front of the unit. The PV2000FC is also equipped with an RJ45 port for connection of an optional Remote Control LED/Switch Module (Tripp Lite model APSRM4), enabling you to control and monitor the inverter from virtually anywhere within a vehicle.
Peace of Mind
The PV2000FC comes with a 1-year product warranty and a rapid-response repair/replacement policy that's unmatched in the industry.
Also Available
Tripp Lite manufactures a full line of power and connectivity solutions—UPS systems, power distribution units, surge suppressors, cables and connectivity solutions, rack enclosures and more—for every application, from the desktop to the datacenter.
Technical Specifications
| Model: | PV2000FC |
|---|---|
| Voltage compatibility: | 12 VDC |
| Frequency compatibility: | 60 Hz |
| Output voltage: | 120 VAC |
| Output capacity (continuous): | 2000 watts |
| Output capacity (OverPower): | 3000 watts/1 hour |
| Output capacity (DoubleBoost): | 4000 watts/10 seconds |
| Overload protection: | Output circuit breaker |
| Cooling method: | Fan |
| Input connection: | 2 x DC input terminals (user supplies cables) |
| Outlet quantity/type: | 2 x 5-15R |
| Switches/LEDs/alarms: | 3-positon On/Off/Remote switch 6 x diagnostic LEDs |
| Dimensions (HWD): | 7.25 x 8.5 x 16.25 in. |
| Weight: | 39.0 lbs. |
| Material of construction: | Black polycarbonate |
Equipment Sizing Guide*
The PV2000FC can be used to power a wide range of equipment, including:
| Power Tools | Pumps | Audio/Video | Appliances | Mobile Office |
|---|---|---|---|---|
| Finishing Sander (200-225w) | 1/6-hp Submersible Sump Pump (1200/800w) | Game System (10-200w) | Can Opener (200w) | Battery Charger (25w) |
| Bench Grinder (240-1000w) | 1/4-hp Submersible Sump Pump (1300/900w) | VCR/DVD Player (50w) | 3-Speed Fan—12 in. (250w) | Inkjet Printer (100w) |
| 1/4-in. Drill (250w) | 1/3-hp Submersible Sump Pump (1600/1050w) | CD Changer/Mini System (50w) | Mixer/Blender (200-400w) | Laptop Computer (75-150w) |
| Heat Gun (500-1500w) | 1/2-hp Submersible Sump Pump (1400w) | LCD TV—13-19 in. (50-100w) | Food Processor (400w) | Fax Device (150w) |
| Jigsaw (450-600w) | LCD TV—25-36 in. (120-135w) | Portable Vacuum (800w) | Computer/Monitor (250w) | |
| Standard Reciprocating Saw (450-600w) | LCD TV—43-60 in. (200-250w) | Toaster Oven (1200w) | Portable Laser Printer (350w) | |
| Disk Grinder (600w) | Stereo Amplifier (240w) | Coffeemaker (800-1200w) | ||
| 1/2-in. Reversible Drill (700w) | Microwave (600-1800w) | |||
| 10-Gallon Wet/Dry Vacuum (1000w) | ||||
| Circular Saw (800-1000w) | ||||
| Router (500-1800w) | ||||
| 14-in. Chain Saw (1200-1600w) |
*Based on typical wattage or wattage range. For sump pumps, wattages reflect startup/continuous operation wattage.
Keep Your Equipment Powered with Tripp Lite
APSRM4 Remote Control Module
The APSRM4 remotely controls and monitors select Tripp Lite PowerVerter Inverters from any location inside a vehicle or boat. The module connects to the inverter with an included 50-ft. cord, providing multiple installation options for a wide range of vehicles and boats. An on/off switch controls inverter operation. Two sets of intuitive "traffic light" LEDs indicate battery charge, inverter load level and other operational conditions. An attractive face plate is provided for front-panel mounting in vehicles. Lifetime warranty.
PV1800HF PowerVerter® Ultra-Compact Inverter
The PV1800HF converts DC (battery) power into 120V AC (household) power to run any type of equipment. With its 1800-watt capacity, the PV1800HF efficiently powers TVs, DVD players, game systems, computers, microwaves, coffeemakers, tools and pumps. Provides 3600-watt instantaneous power to support equipment start-up. Four standard 5-15R outlets deliver power to connected equipment. Compact, lightweight metal case with integrated mounting flanges provides multiple installation options. 1-year warranty.
PV3000HF PowerVerter® Ultra-Compact Inverter
The PV3000HF converts DC (battery) power into 120V AC (household) power to run any type of equipment. With its 3000-watt capacity, the PV3000HF efficiently powers TVs, DVD players, game systems, computers, microwaves, coffeemakers, tools and pumps. Provides 3600-watt instantaneous power to support equipment start-up. Four AC outlets (2 x 5-15/20R, 2 x 5-15R) deliver power to connected equipment. Compact, lightweight metal case with integrated mounting flanges provides multiple installation options. Includes Remote Control Module (Tripp Lite model APSRM4) and 25-ft. cable. 1-year warranty.
PV2400FC PowerVerter® Plus Heavy-Duty Inverter
The PV2400FC efficiently converts DC (battery) power into 120V AC (household) power to run any type of equipment, from power tools to computers. With its 2400-watt capacity, the PV2400FC powers heavy-duty loads like drills, saws and pumps with ease. Two standard 5-15R outlets deliver power to connected equipment. OverPower™ and DoubleBoost™ capabilities provide extra power when required for heavy loads and power-hungry equipment start-ups. Rugged moisture-resistant polycarbonate housing stands up to harsh environments. 1-year warranty.
P022-001 18AWG Power Extension/Adapter Cable—1 ft.
Attaches to an existing power cord to extend its length by 1 ft. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Standard 5-15R receptacle and 5-15P plug. Lifetime warranty.
P022-001-2 18AWG Power Extension/Adapter Y Cable—1 ft.
Enables two devices to be powered from a single wall, power strip or surge suppressor outlet. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Two standard 5-15R receptacles; 5-15P plug. Lifetime warranty.
Product Description
Customer Reviews
|
Share your thoughts with other customers:
|
||||||||||||||||||||||
|
Most Helpful Customer Reviews
3 of 3 people found the following review helpful:
5.0 out of 5 stars
Great deal,
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite PV2000FC PV 2000W 12V DC to AC Inverter Plus with Charge/Load LED's (Electronics)
I purchased this unit for my new truck so I didn't need to un-install the inverter from my other truck. I am running this unit off of two six volt golf cart batteries run in sequence to get 12 volts. I have the batteries charging from my main battery with a constant duty silonoid between them. I installed the remote switch for it and I love this set up. I can leave my inverter on overnight and even though it will drain the golf cart batteries, it does not affect my main truck battery. I can even run my Lincon 140 welder from this inverter. This is the best deal that you will find!
1 of 1 people found the following review helpful:
5.0 out of 5 stars
Works great, but don't leave turned on overnight,
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite PV2000FC PV 2000W 12V DC to AC Inverter Plus with Charge/Load LED's (Electronics)
I purchased this for my work truck. A co-worker also has one on his. They work great. So far we have had no problems with them. I ran 25 feet of two gauge wiring from battery to inverter. I ran about 5 feet of two gauge for ground. Our truck's are diesels and have two batteries. My co-worker left his on the other night and it ran the batteries dead. The load adjust function seams to work, but not real good when set to the least sensitive setting.
