Technical Details
- Protects PCs, home entertainment systems and media centers by preventing data loss, viewing interruptions, lost recordings
- Automatic voltage regulation corrects brownouts without draining battery
- Rotatable LCD screen displays operating conditions and more
- Tel/DSL and coaxial line surge protection
- Free PowerAlert software for safe unattended computer shutdown and file saves
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
Power problems—including blackouts, brownouts, power surges and line noise—threaten your investment! They can damage or destroy PCs and other expensive equipment, wipe out valuable data and files, and degrade component performance. Get protected against these all-too-common power threats with Tripp Lite's SMART1000LCD Digital UPS System. It provides reliable battery backup that can keep entry-level PC systems operational for up to 60 minutes during blackouts. Automatic voltage regulation (AVR) corrects low-voltage conditions (brownouts) back to safe 120V power without draining the UPS battery. Surge suppression and EMI/RFI line noise filtering prevent hardware damage and performance problems such as poor-quality audio and video output. A large illuminated LCD screen with dimmer switch shows incoming power conditions and UPS operations in real time. Plus, the SMART1000LCD comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 3-year warranty.
Key Features
|
Ideal for Protection for Home or Office PCs and Home Theaters
Click here for a larger image
Click here for a larger image
Rotatable LCD Status Screen
Click here for a larger image
Click here for a larger image

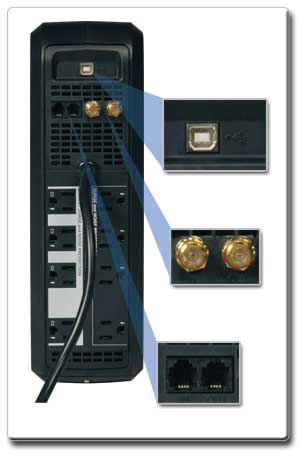

USB Port and Coaxial and Tel/DSL Surge Suppression
Click here for a larger image
Click here for a larger image
Ideal for Protection for Home or Office PCs and Home Theater
Featuring reliable battery backup, automatic voltage regulation, surge suppression, line noise filtering, USB communication port, plus tel/DSL and coaxial line surge protection, the SMART1000LCD offers a complete power protection solution for PCs, A/V components and all home and office electronics. The SMART1000LCD features a split-outlet design with 8 total AC outlets: 4 to provide battery backup support and surge protection for computers, monitors and other critical components; 4 to provide surge protection only for peripherals such as printers and scanners that do not need battery backup.
Reliable Battery Backup
UPS battery backup support enables you to work through short power failures, and provides time to save files and perform an orderly system shutdown in case of a prolonged blackout. The SMART1000LCD features a large internal battery that provides 3 min. of battery support for a full load (500 watts), 10 min. for a half-load (250 watts) or 60 min. for a single PC. During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.
Automatic Voltage Regulation (AVR)
AVR protects your equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions, commonly known as brownouts. The SMART1000LCD can correct brownouts as low as 89V back to 120V without drawing on battery backup power that may be needed to support your equipment during a blackout.

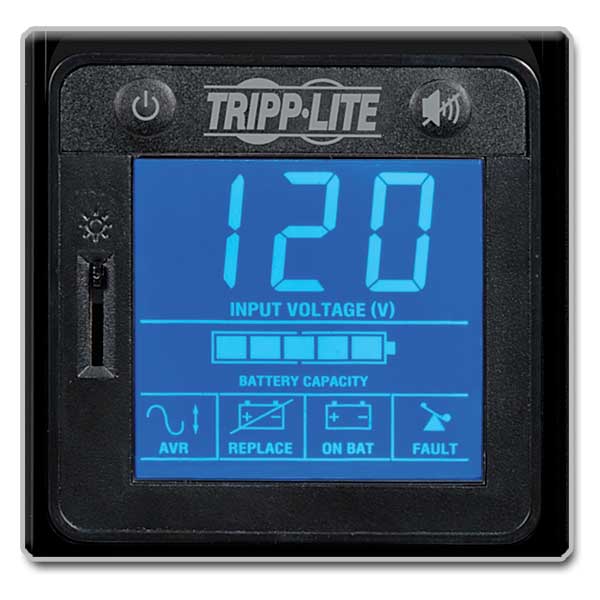

Rotatable LCD Status Screen
The SMART1000LCD features a large illuminated LCD screen with dimmer switch that alerts you to potential power problems. This screen shows input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status at a glance. It can be rotated for easy viewing in both horizontal and vertical UPS installations.
AC Line, Coaxial and Tel/DSL Surge Suppression
A sudden power surge or spike on an AC, phone or network line can damage or destroy electronic components and wipe out irreplaceable data. The SMART1000LCD features a 480-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/DSL (RJ11) jacks with included cable to protect a standard dialup/DSL phone connection, and one set of coaxial jacks to protect CATV, satellite or broadcast antenna connections.
EMI/RFI Line Noise Filtering
Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART1000LCD incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.
EMI/RFI Line Noise Filtering
Click here for a larger image
Click here for a larger image
PowerAlert software enables network monitoring and management

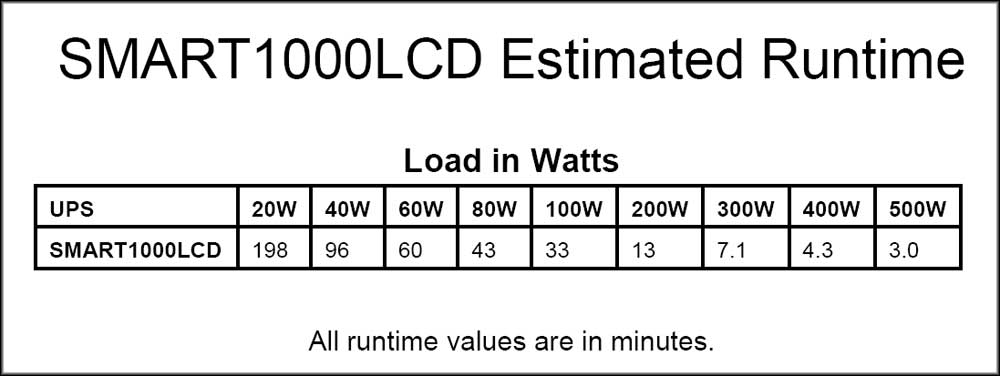

SMART1000LCD Runtime Chart
Click here for a larger image
Click here for a larger image
USB Port and Free PowerAlert Software
The SMART1000LCD features an HID-compliant USB port (USB cable included). Used with Tripp Lite's free PowerAlert software (available from Tripp Lite as a Web download), this USB port enables safe unattended system shutdown and file saves in the event of a prolonged power failure. The USB port also enables integration with built-in power management and auto shutdown features of Windows® and Mac OS® X.
Versatile Installation Options
The compact SMART1000LCD is easily adaptable to vertical (tower) or horizontal installations with no special hardware required. Its 6-ft power cord features a space-saving right-angle plug that allows furniture to be placed flush against the wall. For rackmount installation, an optional 2U shelf (model SRSHELF2P) is available.
Environmentally Responsible
The SMART1000LCD's efficient design conserves electricity, saves money and reduces CO2 emissions. This UPS System is manufactured in compliance with strict RoHS (Reduction of Hazardous Substances) guidelines to minimize the use of hazardous materials, and its replaceable internal battery is 100% recyclable.
Ultimate Peace of Mind
The SMART1000LCD comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only) and a 3-year product warranty.
Technical Specifications
Tripp Lite SMART1000LCD Digital UPS System
| Model: | SMART1000LCD |
|---|---|
| Voltage compatibility: | 120 V (AC) |
| Frequency compatibility: | 60 Hz |
| VA/Wattage Capacity: | 1000/500 |
| Battery runtimes (half/full): | 10 min./3.5 min. |
| Outlet quantity/type: | 8 x 5-15R (4 UPS/surge, 4 surge only) |
| Signal line protection: | RJ11 tel/modem jacks (1 set); coaxial jacks (1 set) |
| Communications ports: | 1 x HID-compliant USB |
| Input cord: | 6 ft. |
| Input plug: | 5-15P right-angle |
| Switches/LEDs/alarms: | On/Off switch Alarm cancel/self-test switch LCD display Audible alarm |
| Dimensions (HWD): | 3.7 x 12 x 7.2 in. |
| Weight: | 15.5 lb |
| Material of construction: | Plastic |
| Agency approvals: | UL 1778 (US) / CSA (Canada) NOM (Mexico) FCC Part 15 Category B (EMI) FCC Part 68 / Industrie Canada (telecom) RoHS |

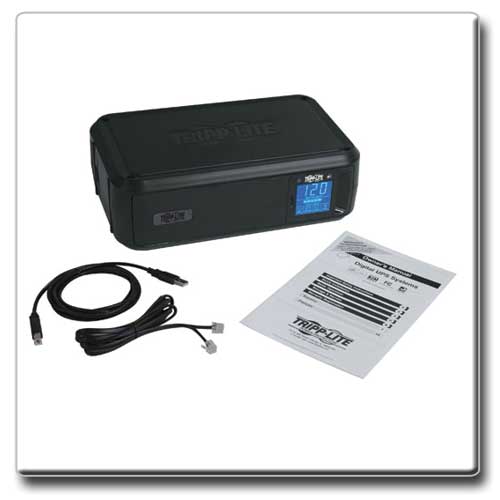

What's in the Box
- SMART1000LCD Digital UPS System
- USB Cable
- Phone Cord
- Owner's Manual
Tripp Lite Keeps You Protected and Connected
Tripp Lite UPS Systems, Surge Suppressors and accessories are available with a wide range of features to provide reliable, cost-effective power protection for all electronics.
SMART1500LCD Smart Digital UPS System
Advanced automatic voltage regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1500LCD provides 1500VA/900W power capacity with 8 UPS-supported outlets plus single-line tel/DSL/Ethernet protection. A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port and one DBP port with included cables and PowerAlert monitoring software enable safe unattended system shutdown and file saves. The SMART1500LCD supports entry-level PCs for up to 75 minutes during power failures. $250,000 Ultimate Lifetime Insurance (USA/Canada only); 3-year product warranty.
SMART1200LCD Smart Digital UPS System
Advanced automatic voltage regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1200LCD provides 1200VA/700W power capacity with 8 UPS-supported outlets plus single-line tel/DSL/Ethernet protection. A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port and one DB9 port with included cables and PowerAlert monitoring software enable safe unattended system shutdown and file saves. The SMART1200LCD supports entry-level PCs for up to 70 minutes during power failures. $250,000 Ultimate Lifetime Insurance (USA/Canada only); 3-year product warranty.
U222-004-R 4-Port USB 2.0 Certified Ultra-Mini Hub
Connects up to four USB devices to a single USB port on a PC, Mac or notebook computer. This hub is certified to support high-speed data transmission rates up to 480Mbps, and is ideal for both the desktop and the mobile user.
TLP810NET Protect It!™ A/V Surge Suppressor
Economical protection for A/V components and all electronics. This surge suppressor features a high-impact plastic housing, 3240-joule surge protection rating, 8 outlets with built-in safety covers, gold coaxial surge protection, tel/DSL (RJ11) surge protection and tel/Ethernet (RJ45) surge protection, and 10-ft. power cord with right-angle plug. $250,000 Ultimate Lifetime Insurance; lifetime warranty.
SRSHELF2P 2U Cantilever Fixed Shelf
Supports monitors and other equipment up to 60 lbs. 2- or 4-post compatible, 18-in. shelf depth. Install two shelves back to back to create a deep fixed shelf in 2-post racks. Cold rolled steel with black finish; mounting hardware included.
Product Description
SMART 1000LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs for up to 60 minutes or individual VCR/DVR component for as long as 3 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Offers complete power protection in an attractive black tower configuration.
Customer Reviews
Most Helpful Customer Reviews
56 of 58 people found the following review helpful
We are using this unit more and more in the field. I have one on my desk and one for my rack of networking and satellite equipment at the house. The battery display is great when the power is out. Imagine this, I was able to goto the website for my power company to get their phone number when the power went out last time.
As for the previous reviews, here's a couple things to consider. Like most ups, half of the outlets are surge and battery backup, the other half are just surge protection. Now the surge protection only side is great for things like speakers and printers, but if you plug your computer into the wrong side, you won't get the battery backup feature. APC actually started putting big yellow stickers on their UPS because of this.
And the power and heat. Yeah, it gets hot, when it's charging. It's warm when its fully charged.. But it doesn't continously pull 1A of power. I'm sure it does when it's charging, but my fully charged unit only pulls 5 to 20w of power or 50 to 160 Milliamps of power (.05A - .16A). Checked it myself with my power meter.
In all, this is a great unit and for 1000VA, it's a good deal.
As for the previous reviews, here's a couple things to consider. Like most ups, half of the outlets are surge and battery backup, the other half are just surge protection. Now the surge protection only side is great for things like speakers and printers, but if you plug your computer into the wrong side, you won't get the battery backup feature. APC actually started putting big yellow stickers on their UPS because of this.
And the power and heat. Yeah, it gets hot, when it's charging. It's warm when its fully charged.. But it doesn't continously pull 1A of power. I'm sure it does when it's charging, but my fully charged unit only pulls 5 to 20w of power or 50 to 160 Milliamps of power (.05A - .16A). Checked it myself with my power meter.
In all, this is a great unit and for 1000VA, it's a good deal.
28 of 28 people found the following review helpful
This UPS is more than adequate for my needs. Like other reviewers here, I was annoyed at the audible alarm when power was lost in the middle of the night. Here is how to turn off the alarm. Works for Windows and *nix.
Download and run the PowerAlert software from tripp-lite. Under the Settings>>Schemes section change it to Business Device Management System. On the Action section, select the Set Audible Alarm task. In the Parameters below change the Value to 3. Then click Execute Command.
No more alarm and a UPS with a cool blue LCD that provides battery backup for my computer, router, cable modem, and VOIP gizmo.
In answer to one review below, a log of power events etc. is available in the Business Device of the software mode in the logs section.
Download and run the PowerAlert software from tripp-lite. Under the Settings>>Schemes section change it to Business Device Management System. On the Action section, select the Set Audible Alarm task. In the Parameters below change the Value to 3. Then click Execute Command.
No more alarm and a UPS with a cool blue LCD that provides battery backup for my computer, router, cable modem, and VOIP gizmo.
In answer to one review below, a log of power events etc. is available in the Business Device of the software mode in the logs section.
30 of 32 people found the following review helpful
I have owned APC, Conxet which is the same company and many othere but none have come close to the features that this line that Tripplite has come out with. It has a very decent backup time but its real strengths are it's power conditioning I.E. clean sine wave which the inverter does not even require the battery unless the voltage drops below around 80VAC. Basically the inverter supplies a clean power source all the time weather using the wall outlet or the 12V battery. And the LCD has all the information you would need including a nice power loss mute button and the special part is the clean interface with a USB hookup on Windows XP. It gives you shutdown battery level settings along with anything you could possibly want and you don't even have to download their software is works that cleanly with XP Pro. The interface with the Computer is the best I have seen even on high end server systems. Only one thing to watch out for is make sure the unit has space for ventilitation around it as it is a heat machine because it runs off the inverter all the time to give you a clean 60HZ Sinewave no matter what you stick in the plug. Best buy. 3 Units to choose from all with the same interface. 900VA 475Watt, 1000VA 500Watt, 1200VA 700Watt your choice all under $200. Pete
Most Recent Customer Reviews
Does the job - but read first!
I have the older, no longer made SMART900LCD (900 VA / 400 W) and also this one SMART1000LCD (1000 VA / 500 W). I bought the 1000 model a year ago. Read more
Published 2 months ago by A. Crisci
Failures Similar to Other
After about 14 months, this unit began shutting itself complete off for no apparent reason. This happened mostly at night (so it wasn't while under heavy load). Read more
Published 3 months ago by Dale in Tenn
Easy setup and it does it jobs well
Bought this unit from Costco during 2011 X'mas and used it as UPS/Surge Protector for my TV and Home entertainment.
Having 8 outlets is good for all the boxes needed. Read more
Having 8 outlets is good for all the boxes needed. Read more
Published 3 months ago by NSIW3687
Very good...works as advertised
I am with J. Proffitt here: I find this unit quite good, notwithstanding some of the negative reviews. Read more
Published 5 months ago by Colonel Panic
Not for electronics with "bricks"
I have liked the Tripp Lite UPS's that I've worked with before, but this is an exception, and I probably would not buy it again. Read more
Published 7 months ago by StillSearching
Avoid this product, Fails in less than a year, More landfill waste
Complete avoid this product, and I would say this company as well. Cheap made in China device that will fail in less than a year. Read more
Published 7 months ago by Jeffrey S. Alek
Stinks - very serious
Just bought this UPS (from a local large wholesaler) and after couple of days of using it , it will go back to the store as it releases some chemical fumes which I cannot hold onto... Read more
Published 7 months ago by B.O.
Great product
This is a great product, I own three of these, i like the quality of tripp lite have not have any issues so far.
Published 8 months ago by Alexandro N. Villalobos
Tripp-Lite smart 1000 battery backup
Much nicer piece than I expected. Smaller than my past backups and more powerful-must have metal battery technology. Very heavy for the size. Read more
Published 8 months ago by pressureangle
It worked for more than 5 years, then shut off for no reason
My model is TRIPPLITE OMNI1000LCD. It uses the same manual as SMART1000LCD, so I guess the two products should be nearly the same, hence my review should be appropriate for... Read more
Published 9 months ago by davidmathgreen
