Technical Details
- 550VA/300W power capacity; compact mini-tower design
- Automatic voltage regulation, battery backup and surge protection
- $200,000 Ultimate Lifetime Insurance; 3-year warranty
- 6 AC outlets (3 UPS/surge, 3 surge only); tel/DSL (RJ11) line protection; 6-ft cord
- USB communication port and FREE PowerAlert software (Web download)
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
Power problems—including blackouts, brownouts, power surges and line noise—threaten your investment! They can damage or destroy PCs and other expensive equipment, wipe out valuable data and files, and degrade component performance. Get protected against these all-too-common power threats with Tripp Lite's SMART550USB UPS System. It provides reliable battery backup that can keep a basic desktop PC operational for up to 30 minutes during blackouts. The SMART550USB features automatic voltage regulation to correct brownouts, assuring that connected equipment receives safe, regulated 120V nominal output, plus surge suppression and EMI/RFI line noise filtering to prevent hardware damage and performance problems such as poor-quality audio and video output. Free PowerAlert UPS software (available via Web download) enables safe unattended file saves and an orderly system shutdown in the event of a prolonged power failure.

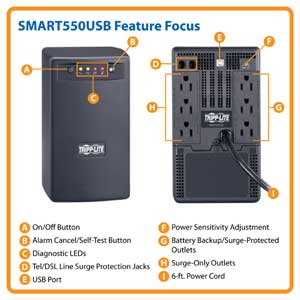

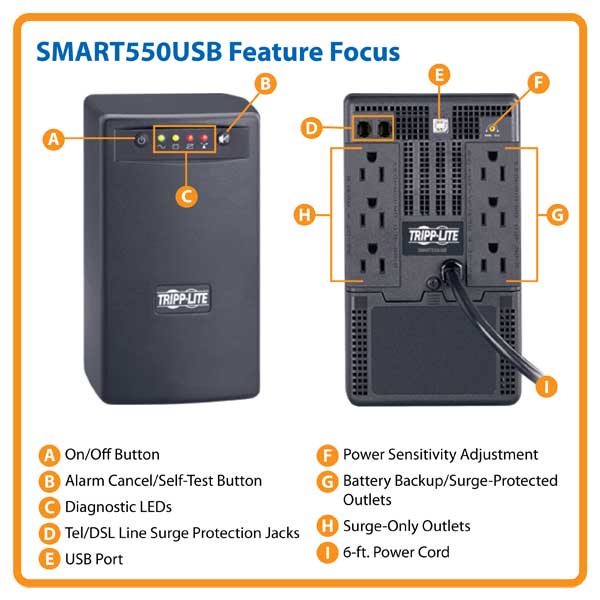

Key Features
|
Click here for a larger image
Click here for a larger image
Ideal Protection for Home or Office PCs and Peripherals
With reliable battery backup, tel/DSL jacks and an HID-compliant USB port, the SMART550USB offers a complete power protection solution for a wide range of home and office electronics. The SMART550USB features a split-outlet design with six total AC outlets: three to provide battery backup support and surge protection for computers, monitors and other critical components; three to provide surge protection only for peripherals such as printers and scanners that do not require battery backup.
Automatic Voltage Regulation (AVR)
AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions, commonly known as brownouts. The SMART550USB corrects brownouts as low as 89V to a nominal 120V, providing safe, computer-grade power to all connected components, without consuming battery power needed to support equipment through blackouts.
Reliable Battery Backup

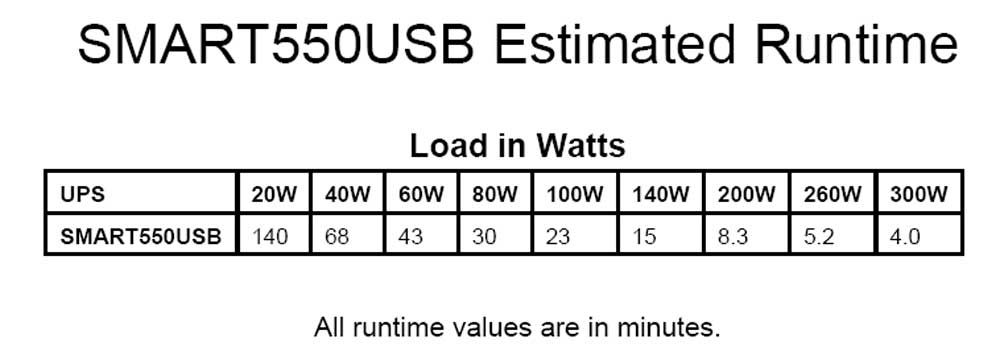

UPS battery backup support enables you to work through short power failures, and provides time to save files and perform an orderly system shutdown in case of a prolonged blackout. The SMART550USB features an internal battery that provides 4 min. of battery support for a full load (300 watts), 15 min. for a half-load (150 watts) or 30 min. for a basic desktop PC. During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available when needed.
Tel/DSL Surge Suppression
A sudden power surge or spike on a phone or network line can damage or destroy electronic components and wipe out irreplaceable data. The SMART550USB features one set of tel/DSL (RJ11) jacks that provide surge protection for a standard phone connection (cable included). Its 480-joule surge suppression rating protects connected components and data from the harmful effects of power surges.
EMI/RFI Line Noise Filtering
Various electromagnetic and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART550USB incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

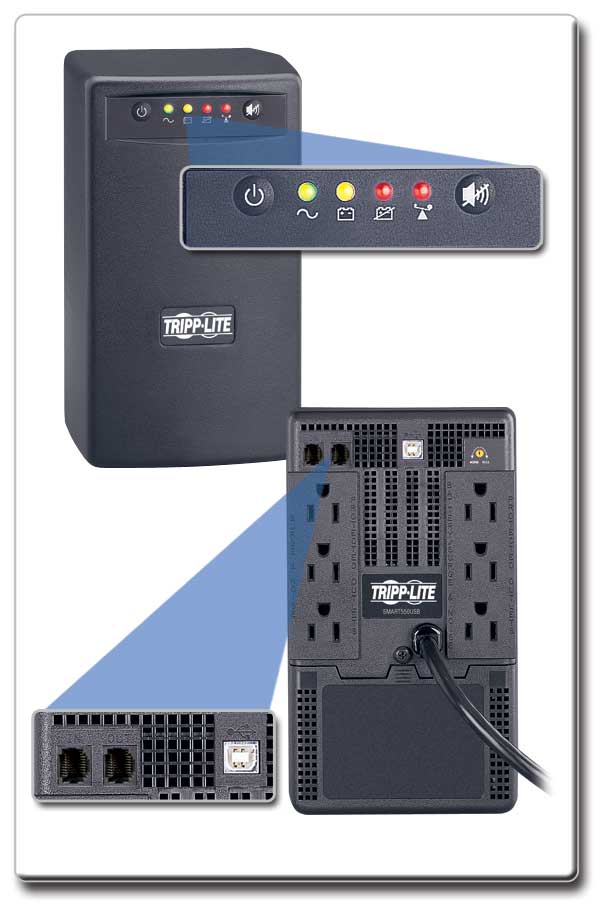

Click here for a larger image
USB Port and Free PowerAlert Software
The SMART550USB features an HID-compliant USB port (USB cable included). Used with Tripp Lite's free PowerAlert software (available from Tripp Lite as a Web download), this USB port enables safe unattended system shutdown and file saves in the event of a prolonged power failure. The USB port also enables integration with built-in power management and auto shutdown features of Windows®, Linux® and Mac OS® X.
Versatile Installation Options
The SMART550USB features a compact tower housing that's easy to integrate into a wide range of applications. An optional bracket (Tripp Lite model UPSWM) enables the UPS to be securely wall mounted.
Ultimate Peace of Mind
The SMART550USB comes with $200,000 Ultimate Lifetime Insurance coverage for connected equipment and a 3-year warranty.
Technical Specifications
Tripp Lite SMART550USB AVR UPS System
| Model: | SMART550USB |
|---|---|
| Voltage compatibility: | 120 VAC |
| Frequency compatibility: | 60 Hz |
| VA/Wattage Capacity: | 550/300 |
| Battery runtimes (half/full): | 15 min./4 min. |
| Outlet quantity/type: | 6 x 5-15R (3 UPS/surge, 3 surge only) |
| Signal line protection: | RJ11 tel/DSL jacks (1 set) |
| Communications ports: | 1 x USB |
| Input cord: | 6 ft. |
| Input plug: | 5-15P |
| Switches/LEDs/alarms: | On/Off switch Alarm cancel/self-test switch 4 diagnostic LEDs Audible alarm |
| Dimensions (HWD): | 8.5 x 5.0 x 6.5 in. |
| Weight: | 14.4 lbs. |
| UPS housing material: | PVC |
| Agency approvals: | UL 1778 (US) / CSA (Canada) NOM (Mexico) FCC Part 15 Category B (EMI) RoHS |

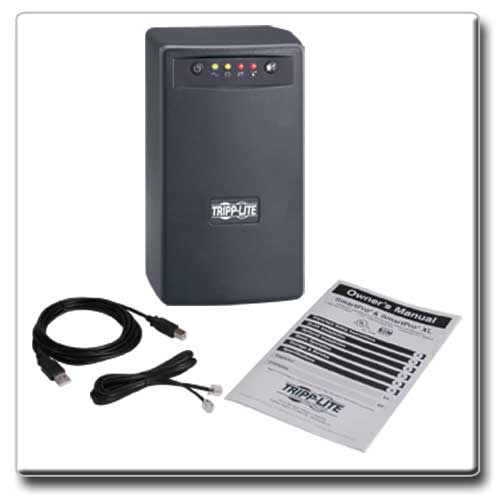

What's in the Box
- SMART550USB UPS System
- 1 x 6-ft. USB Cable
- 1 x 6-ft. RJ11 Cable
Protect, Power, Organize and Control with Tripp Lite
Tripp Lite UPS Systems, Power Management Accessories, Power Distribution Units, Rack Enclosures, KVM Switches and Rackmount Consoles are available with a wide range of features and options to meet the needs of any data center or networking application.
SMART750USB UPS System
Automatic voltage regulation and battery backup protection for PCs and all electronics. The SMART750USB provides 750VA/450W power capacity with 6 outlets (3 UPS/surge, 3 surge only) plus single-line tel/Ethernet surge protection. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The SMART750USB supports a basic desktop PC for up to 45 minutes during power failures. $200,000 Ultimate Lifetime Insurance; 3-year warranty.
OMNI650LCD Digital UPS System
Automatic voltage regulation and battery backup protection for PCs and all electronics. The OMNI650LCD provides 650VA/350W power capacity with 8 outlets (4 UPS/surge, 4 surge only). A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The OMNI650LCD supports a basic desktop PC for up to 40 minutes during power failures. $200,000 Ultimate Lifetime Insurance; 3-year warranty.
U022-010 USB 2.0 A/B Gold Device Cable—10 ft.
Connects USB devices to USB computers. Supports data transfer rates up to 480 Mbps. Premium double shielding; gold-plated connectors with gold-plated copper contacts assure positive connectivity. Lifetime warranty.
UPSWM UPS Wallmount Bracket
Sturdy metal bracket enables compatible UPS systems to be mounted on any wall or suitable vertical surface. Includes all required mounting hardware (4 x washers, 4 x screws, 1 x Velcro safety strap). Also compatible with Tripp Lite's external battery pack model BP24V14.
TLP810NET Protect It!™ A/V Surge Suppressor
Economical protection for A/V components and all electronics. This surge suppressor features a high-impact plastic housing, 3240-joule surge protection rating, 8 outlets with built-in safety covers, gold coaxial surge protection, tel/DSL (RJ11) surge protection and tel/Ethernet (RJ45) surge protection and 10-ft. power cord with right-angle plug. $250,000 Ultimate Lifetime Insurance; lifetime warranty.
P022-001 18 AWG Power Extension/Adapter Cable—1 ft.
Attaches to an existing power cord to extend its length by 1 ft. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Standard 5-15R receptacle and 5-15P plug. Lifetime warranty.
