- 750VA/450W power capacity; compact mini-tower design
- Automatic voltage regulation, battery backup and surge protection
- 6 AC outlets (3 UPS/surge, 3 surge only); tel/Ethernet (RJ45) line protection; 6-ft cord
- USB communication port and FREE PowerAlert software (Web download)
- $200,000 Ultimate Lifetime Insurance; 3-year warranty
What Other Items Do Customers Buy After Viewing This Item?
Technical Details
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
Power problems—including blackouts, brownouts, power surges and line noise—threaten your investment! They can damage or destroy PCs and other expensive equipment, wipe out valuable data and files, and degrade component performance. Get protected against these all-too-common power threats with Tripp Lite's SMART750USB UPS System. It provides reliable battery backup that can keep a basic desktop PC operational for up to 45 minutes during blackouts. The SMART750USB features automatic voltage regulation to correct brownouts, assuring that connected equipment receives safe, regulated 120V nominal output, plus surge suppression and EMI/RFI line noise filtering to prevent hardware damage and performance problems such as poor-quality audio and video output. Free PowerAlert UPS software (available via Web download) enables safe unattended file saves and an orderly system shutdown in the event of a prolonged power failure.
Key Features
|

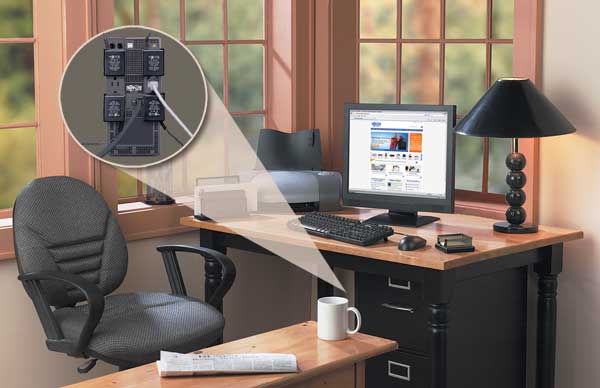

Ideal Protection for Home or Office PCs and Peripherals
Click here for a larger image
Click here for a larger image

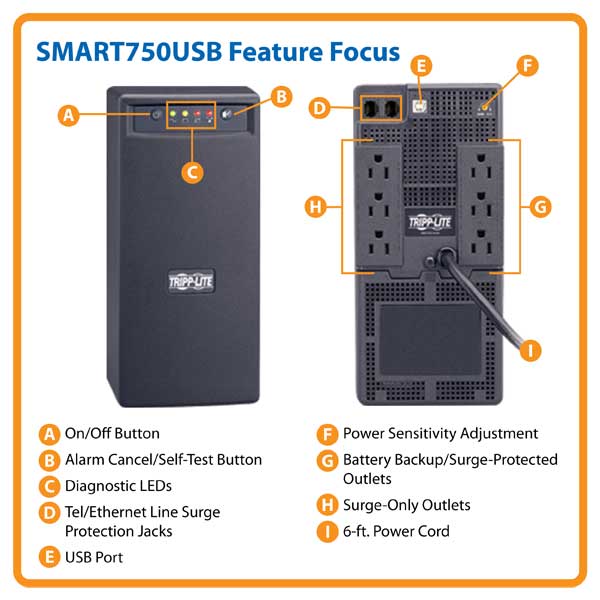

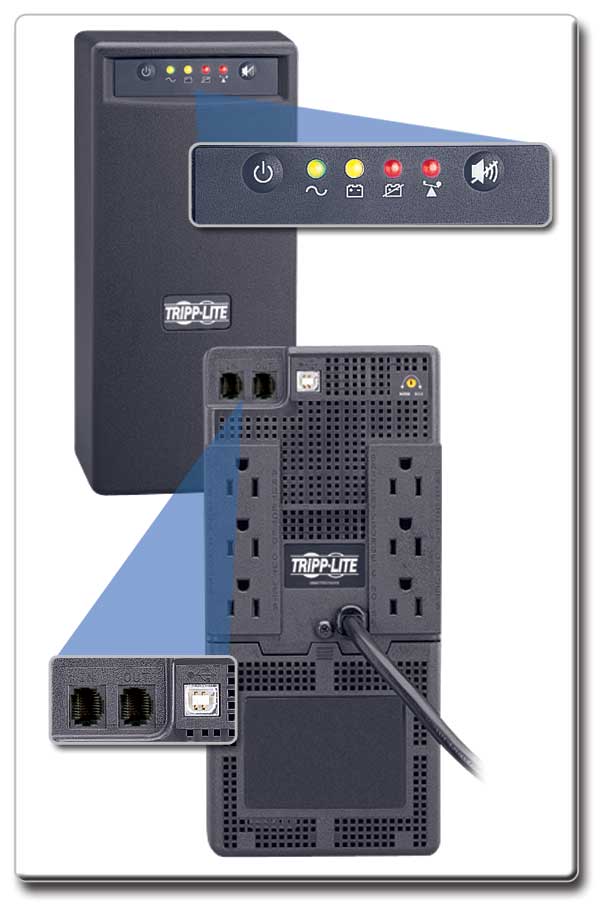

SMART750USB Tel/Ethernet Surge Suppression and LEDs
Click here for a larger image
Click here for a larger image
Ideal Protection for Home or Office PCs and Peripherals
With reliable battery backup, tel/Ethernet jacks and an HID-compliant USB port, the SMART750USB offers a complete power protection solution for a wide range of home and office electronics. The SMART750USB features a split-outlet design with six total AC outlets: three to provide battery backup support and surge protection for computers, monitors and other critical components; three to provide surge protection only for peripherals such as printers and scanners that do not require battery backup.
Automatic Voltage Regulation (AVR)
AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions, commonly known as brownouts. The SMART750USB corrects brownouts as low as 89V to a nominal 120V, providing safe, computer-grade power to all connected components, without consuming battery power needed to support equipment through blackouts.
Reliable Battery Backup
UPS battery backup support enables you to work through short power failures, and provides time to save files and perform an orderly system shutdown in case of a prolonged blackout. The SMART750USB features an internal battery that provides 3 min. of battery support for a full load (450 watts), 11 min. for a half-load (225 watts) or 45 min. for a basic desktop PC. During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available when needed.
Tel/Ethernet Surge Suppression
A sudden power surge or spike on a phone or network line can damage or destroy electronic components and wipe out irreplaceable data. The SMART750USB features one set of tel/Ethernet (RJ45) jacks that provide surge protection for a standard phone or network connection (cable included). Its 510-joule surge suppression rating protects connected components and data from the harmful effects of power surges.
PowerAlert

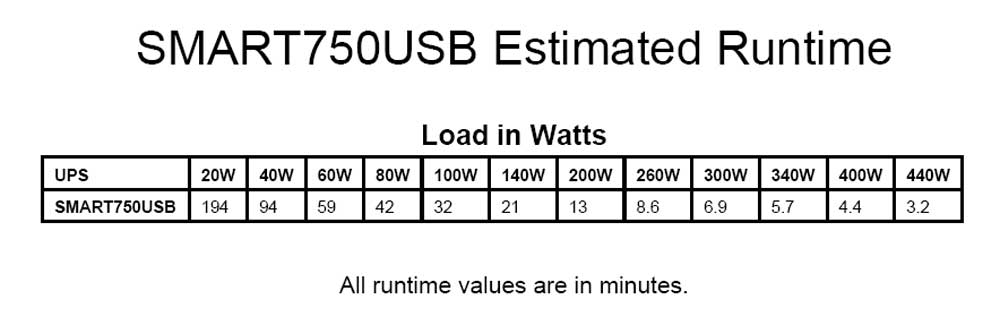

SMART750USB Runtime Chart
Click here for a larger image
Click here for a larger image
EMI/RFI Line Noise Filtering
Various electromagnetic and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART750USB incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.
USB Port and Free PowerAlert Software
The SMART750USB features an HID-compliant USB port (USB cable included). Used with Tripp Lite's free PowerAlert software (available from Tripp Lite as a Web download), this USB port enables safe unattended system shutdown and file saves in the event of a prolonged power failure. The USB port also enables integration with built-in power management and auto shutdown features of Windows®, Linux® and Mac OS® X.
Versatile Installation Options
The SMART750USB features a compact tower housing that's easy to integrate into a wide range of applications. An optional bracket (Tripp Lite model UPSWM) enables the UPS to be securely wall mounted.
Ultimate Peace of Mind
The SMART750USB comes with $200,000 Ultimate Lifetime Insurance coverage for connected equipment and a 3-year warranty.
Technical Specifications
Tripp Lite SMART750USB AVR UPS System
| Model: | SMART750USB |
|---|---|
| Voltage compatibility: | 120 VAC |
| Frequency compatibility: | 60 Hz |
| VA/Wattage Capacity: | 750/450 |
| Battery runtimes (half/full): | 11 min./3 min. |
| Outlet quantity/type: | 6 x 5-15R (3 UPS/surge, 3 surge only) |
| Signal line protection: | RJ45 tel/Ethernet jacks (1 set) |
| Communications ports: | 1 x USB |
| Input cord: | 6 ft. |
| Input plug: | 5-15P |
| Switches/LEDs/alarms: | On/Off switch Alarm cancel/self-test switch 4 diagnostic LEDs Audible alarm |
| Dimensions (HWD): | 10.8 x 5.2 x 7.5 in. |
| Weight: | 20 lbs. |
| UPS housing material: | PVC |
| Agency approvals: | UL 1778 (US) / CSA (Canada) NOM (Mexico) FCC Part 15 Category B (EMI) RoHS |

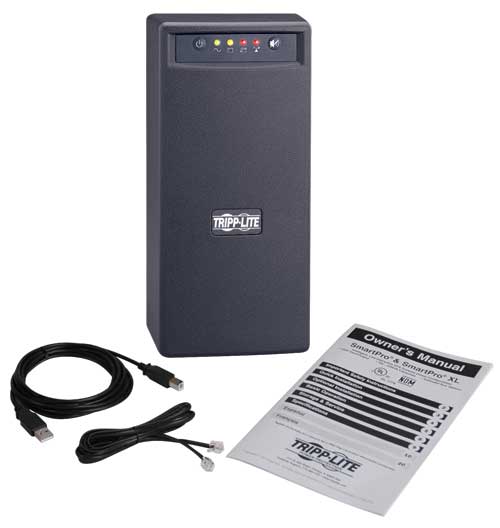

What's in the Box
- SMART750USB UPS System
- 1 x 6-ft. USB Cable
- 1 x 6-ft. RJ45 Cable
Protect, Power, Organize and Control with Tripp Lite
Tripp Lite UPS Systems, Power Management Accessories, Power Distribution Units, Rack Enclosures, KVM Switches and Rackmount Consoles are available with a wide range of features and options to meet the needs of any data center or networking application.
SMART1000LCD Digital UPS System
Advanced Automatic Voltage Regulation and battery backup protection for PCs, A/V components and all electronics. The SMART1000LCD provides 1000VA/500W power capacity with 8 outlets (4 UPS/surge, 4 surge only) plus single-line tel/DSL (RJ11) and coaxial protection. A large illuminated LCD display shows power and UPS operating conditions in real time. One USB port with included cable and PowerAlert monitoring software enables safe unattended system shutdown and file saves. The SMART1000LCD supports entry-level PCs for up to 60 minutes during power failures. $250,000 Ultimate Lifetime Insurance; 3-year warranty.
SMART1500LCD Digital UPS System
Automatic voltage regulation and battery backup protection for PCs and all electronics. The SMART1500LCD provides 1500VA/900W power capacity with 8 UPS/surge outlets plus single-line tel/Ethernet (RJ45) surge protection. A large illuminated LCD display shows power and UPS operating conditions in real time. USB and DB9 ports with included cabling and PowerAlert monitoring software enable safe unattended system shutdown and file saves. The SMART1500LCD supports a basic desktop PC for up to 75 minutes during power failures. $250,000 Ultimate Lifetime Insurance; 3-year warranty.
UPSWM UPS Wallmount Bracket
Sturdy metal bracket enables compatible UPS systems to be mounted on any wall or suitable vertical surface. Includes all required mounting hardware (4 x washers, 4 x screws, 1 x Velcro safety strap). Also compatible with Tripp Lite's external battery pack model BP24V14.
U222-010-R 10-Port USB 2.0 Hub
Connects up to 10 USB 2.0 devices to a computer through a single USB port. Supports data transfer rates up to 480 Mbps. Plug-and-play convenience; requires no complicated setup procedures or external power. Connected devices can be hot-swapped without powering down the computer. Two hinged ports accommodate flash drives and similar devices. 1-year warranty.
U222-007-R 7-Port USB 2.0 Hub
Connects up to 7 USB 2.0 devices to a computer through a single USB port. Supports data transfer rates up to 480 Mbps. Plug-and-play convenience; requires no complicated setup procedures or external power. Connected devices can be hot-swapped without powering down the computer. 1-year warranty.
P022-001 18 AWG Power Extension/Adapter Cable—1 ft.
Attaches to an existing power cord to extend its length by 1 ft. Can also be used to connect AC adapters and transformers, preventing them from blocking other outlets on a surge suppressor or power strip. Standard 5-15R receptacle and 5-15P plug. Lifetime warranty.
Product Description
750VA 450W - 5 Minute(s) Full-load - 6 x NEMA 5-15R
