Tripp Lite SRCOOL12K Portable Cooling / Air Conditioner Stand Alone Spot Air Cooler 120V, 60Hz, 12K BTU

by Tripp Lite

Product Details

• Product Dimensions: 27.1 x 13.6 x 34 inches ; 80 pounds
• Shipping Weight: 69 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B002XITVCK
• Item model number: SRCOOL12K
• Average Customer Review: 4.2 out of 5 stars  See all reviews (6 customer reviews)
• Amazon Best Sellers Rank: #6,902 in Electronics (See Top 100 in Electronics)
• Date first available at Amazon.com: November 16, 2009

Product Description

From the Manufacturer

Don't let excessive heat compromise the performance and reliability of your mission-critical systems! Tripp Lite's SRCOOL12K Self-Contained Portable Air Conditioning Unit lets you bring cold air to every nook and cranny of your facility: overheating racks, hot spots inside racks or isolated areas where facility air conditioning can't reach. With 12,000 BTU of cooling power, it's ideal for use in data centers, wiring closets, industrial facilities, warehouses, offices or anyplace where portable cooling is needed.

The SRCOOL12K not only adjusts ambient room temperature, but also dehumidifies and filters the air, providing better air quality for enhanced equipment performance with minimal noise and power consumption. Unlike other portable air conditioning units, it requires no floor drain, drain tube, drain pan or water collection tank. Its unique, zero-maintenance design incorporates a built-in evaporator that expels condensate directly into the exhaust air stream. The SRCOOK12K features a built-in timer for automatic unattended startup and shutdown—perfect for unattended or off-hour cooling applications. It can be configured with a standard louvered vent for general room cooling or a ducted cooling vent to direct cold air where needed most. The SRCOOL12K uses EPA-compliant R410a Freon.

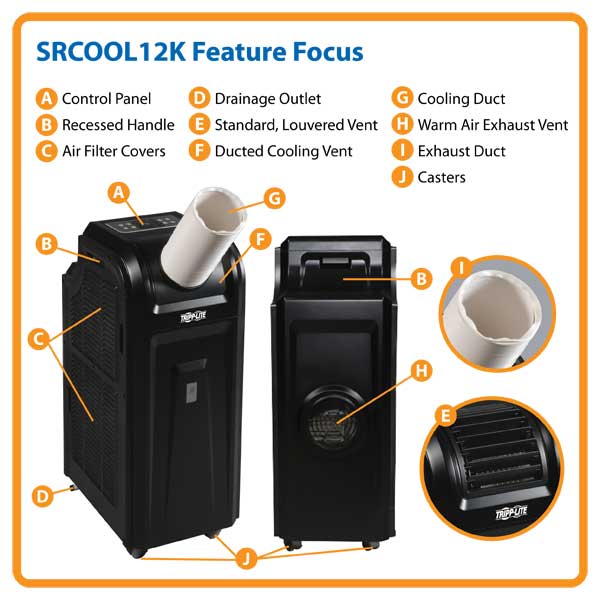

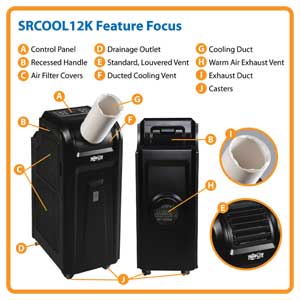

Key Features

Compact, Portable and Flexible Cooling Solution
Click here for a larger image

12,000 BTU of Cooling Power
Click here for a larger image

Improves Air Quality

Easy-to-Use Controls
Click here for a larger image

No Water Collection Tank to Empty

Compact, Portable and Flexible Cooling Solution

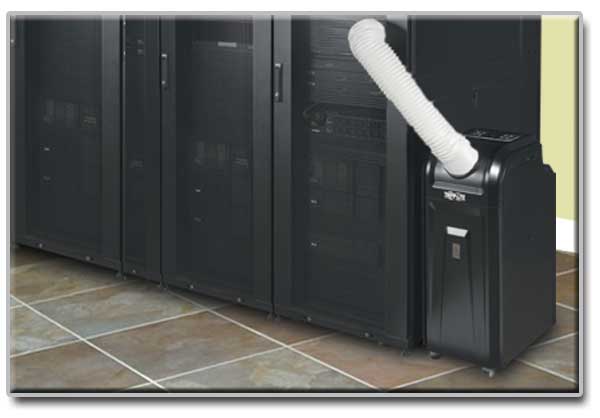

The SRCOOL12K is designed for portability and ease of use. Its light weight (68 lb) and compact size (less than 3 feet in height) make it a perfect cooling solution for wiring closets and similar space-critical locations. It can be configured with a standard louvered vent for general room cooling or a ducted vent to direct cold air into a rack or an area that needs it most. An included window/drop ceiling installation kit provides multiple installation options. A built-in on/off timer enables the SRCOOL12K to be used for off-hour or unattended cooling applications.

No Water Collection Tank to Empty

The SRCOOL12K's unique zero-maintenance design incorporates a built-in evaporator that expels condensate directly into the exhaust air stream. This eliminates the need for a floor drain, drain tube, drain pan or water collection tank—saving you time and money.

12,000 BTU of Cooling Power

The SRCOOL12K's high BTU rating makes it ideal for a wide range of IT, industrial and commercial applications that require a portable cooling solution.

Improves Air Quality

The SRCOOL12K not only adjusts ambient room temperatures, but also improves air quality by dehumidifying and filtering the air. Better air quality promotes more efficient equipment performance with minimal noise and less power consumption.

Easy-to-Use Controls

The SRCOOL12K features a convenient top-mounted control panel including diagnostic LEDs and an LCD screen to display the temperature. The touch of a button enables users to power the unit on and off, control the mode of operation (Cool, Dehumidify or Fan), set the automatic timer, and lock settings to prevent an accidental interruption of operation.

EPA Compliant

The SRCOOL12K uses R410a refrigerant. R410a contains no ozone-depleting R22 refrigerant, which has been banned by the US EPA in new equipment after January 1, 2010. R410a is also widely accepted around the world.

Convenient Standard Plug

Equipped with a standard 120V NEMA 5-15P plug, the SRCOOL12K connects to all standard wall outlets without an adapter. This allows the unit to be located wherever cooling is needed without any add-ons or costly rewiring.

Peace of Mind

The SRCOOL12K comes with a 1-year warranty.

Technical Specifications

Tripp Lite SRCOOL12K Protect It!™ Surge Suppressor

Click here for a larger image

Model:	SRCOOL12K
Voltage compatibility:	120 V (AC)
Frequency compatibility:	60 Hz
BTU rating:	12,000
Dehumidifier capacity:	475 gal./hour
Refrigerant type:	R410a (non-ozone depleting)
Refrigerant amount:	22 oz.
Air supply tube length:	71”
Air exhaust tube length:	118”
Input cord:	6'
Input plug:	5-15P
Buttons/displays/LEDs:	On/Off button, Mode button, Temperature Control buttons, Fan Speed button, Timer button, Lock button, LCD screen, 9 LEDs
Form factor:	Compact tower
Dimensions (HxWxD):	32.6” x 12.6” x 19.75”
Weight:	68 lb
Material of construction:	ABS Plastic
Agency approvals:	ETL UL484

What's in the Box

• SRCOOL12K Portable Cooling Unit
• Louvered Front Vent
• Directional Front Vent
• Cold Air Directional Delivery Tube
• Hot Exhaust Air Removal Tube
• Dropped Ceiling/Window Heat Ventilation Kit
• Owner's Manual

Tripp Lite Keeps You Protected and Connected

Tripp Lite UPS Systems, Surge Suppressors and accessories are available with a wide range of features to provide reliable, cost-effective power protection for all electronics.

SMART1500RM2U SmartPro® UPS System

Advanced automatic voltage regulation and battery backup protection for servers, storage devices and telecom equipment. The SMART1500RM2U provides 1500VA/1000W power capacity with 8 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert power management software provide complete power network monitoring and control. The SMART1500RM2U supports connected equipment for 17 minutes during power failures at a half load of 500 watts. $250,000 Ultimate Lifetime Insurance (USA/Canada only); 2-year product warranty.

SU2200RTXL2Ua SmartOnline™ UPS System

True on-line operation and battery backup protection for mission-critical servers, storage devices and telecom equipment. The SU2200RTXL2Ua provides 2200VA/1600W power capacity with 7 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert power management software provide complete power network monitoring and control. The SU2200RTXL2Ua supports connected equipment for 14 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs. $250,000 Ultimate Lifetime Insurance (USA/Canada only); 2-year product warranty.

SR42UB SmartRack™ Enclosure

Premium 42U rack enclosure organizes and secures all standard rack equipment. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. The SR42UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

PDUMH15 Power Distribution Unit

Basic rackmount PDU provides 15A 120V capacity with 13 NEMA 5-15 outlets. Rugged all-metal housing and switchless design to prevent accidental shutoff. Supports 1U rackmount installation with included hardware; also suitable for 0U vertical installation in the cable management area of many rack enclosures. 2-year product warranty. 2-year product warranty.

PDUMH15ATNET Switched/Metered Power Distribution Unit with ATS

Switched/metered PDU with automatic transfer switching (ATS). Provides full remote power monitoring and control via a secure network or web browser interface. Features 8 5-15R outlets, individually controllable to enable load shedding and remote rebooting of locked-up network devices. Digital meter enables PDU load to be monitored on site. Rugged all-metal housing and switchless design to prevent accidental shutoff. Supports 1U rackmount installation with included hardware; also suitable for 0U vertical installation in the cable management area of many rack enclosures. 2-year product warranty.

B020-U08-19-K NetDirector™ Console KVM Switch

Controls an entire network in just 1U of rack space. The B020-U08-19-K combines a keyboard, 19-in. LCD screen, touch pad, numeric keypad, and 8-port KVM switch in a 1U slide-out unit. It is USB or PS/2 compatible with 8 included PS2/USB Combo Cable Kits to connect switch to servers. Controls up to 504 servers by daisy-chaining additional KVMs. Includes two front-mounted USB ports: one for attachment of a separate USB mouse and one to connect USB peripherals (flash drive, external hard drive, etc.) that can be shared between connected servers.

Product Description

Tripp Lite's SRCOOL12K is a next-generation air conditioner designed for supplemental area cooling, emergency cooling and off-hour cooling applications. The SRCOOL12K uses environmentally friendly R410a refrigerant, which complies with EPA standards. The SRCOOL12K has a built-in evaporator that expels the condensed water through the exhaust duct, so there is no need for a drain tube, drain pan or water collection tank. The SRCOOL12K not only adjusts ambient room temperatures, but can also dehumidify and filter the air, providing better air quality with minimal noise and power consumption. Both a standard louvered vent (for general room cooling) and a directional ducted cooling vent (to direct cold air where most needed) are provided. A directional exhaust duct safely removes hot air from the room. A built-in timer enables the unit to be programmed for unattended start-up and shutdown. An included window/drop ceiling kit provides multiple installation options.

Customer Reviews

Most Helpful Customer Reviews

9 of 9 people found the following review helpful:

4.0 out of 5 stars Wiring Closet or Small Computer Room Cooling, January 3, 2011

By

J. Robbins (Northern CA) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Tripp Lite SRCOOL12K Portable Cooling / Air Conditioner Stand Alone Spot Air Cooler 120V, 60Hz, 12K BTU (Personal Computers)

We purchased the Tripp-Lite Air cooler for our small firm (15 people) when we upgraded from 2 to 4 servers. They are located in a small closet with our phone switching and it was getting warm inside the closet even with an exhaust fan into the plenum. This is probalby more than we need, but it really works well, and I investigated just about every small cooler on the market, and this was the best cost and size I could find. Also it did not need a drain as the design gets rid of condensation using the heat generated by the unit, not the case with most others I reviewed. Installation of the hot air hose into the plenum was done by our contractor while doing some other minor work on our office, and the start up and operation was seconds after opening the box. Only comlaint is its size, about 2 computers high.

The mfg. is a well known company and the set up was really easy. And the cost ($650 range) was way below the next level cooling unit. We orderd the unit through Amazon (who knew after all the special web sites I went to) and it was there in 3 days. Great vendor follow up also.

2 of 2 people found the following review helpful:

5.0 out of 5 stars Perfect solution for hot server rooms, June 6, 2011

By

crashbox - See all my reviews

Amazon Verified Purchase

This review is from: Tripp Lite SRCOOL12K Portable Cooling / Air Conditioner Stand Alone Spot Air Cooler 120V, 60Hz, 12K BTU (Personal Computers)

Pro's:
This is one high output portable a/c unit. Has an easy to read thermostat, easy to program and has reusable filters. The accessories included were a nice touch, you can either use it to cool the server room down or use the included duct and deliver the cold air directly to the hotspots in your server room. Also the fact that there is no water collection tray is a breath of fresh air. It has a built in evaporator that removed the condensation and expels it with the hot air off the compressor.

Con's:
It can be a pain in the you know what to route the exhaust air out of the room, it comes with a plate for using in either a suspended ceiling or window but my server room has none of these so we had to get a little creative with the exhaust routing.

Other Thoughts:

If your server room is have issues staying cool and you dont want to spend your budget on new hvac equipment get this, before in the summers the server room would stay around 76F now with this installed not only does it stay at 72f but the main unit doesnt have to work as hard and that will save your company a few bucks on the electric bill.

1 of 1 people found the following review helpful:

5.0 out of 5 stars Great cooling, nice price, March 18, 2011

By

ADJ - See all my reviews

Amazon Verified Purchase

This review is from: Tripp Lite SRCOOL12K Portable Cooling / Air Conditioner Stand Alone Spot Air Cooler 120V, 60Hz, 12K BTU (Personal Computers)

Plain and simple: This unit works very well for cooling a small IT closet, and is attractively priced. Arrived as promised.
