Tripp Lite SRW12US 12U Wall Mount Rack Enclosure Server Cabinet

by Tripp Lite

Product Details

• Product Dimensions: 21.6 x 23.6 x 25 inches ; 90 pounds
• Shipping Weight: 65 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B001TGUYI2
• Item model number: SRW12US
• Average Customer Review: 4.5 out of 5 stars  See all reviews (2 customer reviews)
• Date first available at Amazon.com: February 18, 2009

Product Description

From the Manufacturer

Product Description

Tripp Lite’s SRW12US Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space. Constructed with a hinged wall mounting bracket and a sturdy steel frame, it can accommodate up to 140 lbs. of equipment in 12U of rack space. Four adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment. To allow easy access to rackmounted equipment, the enclosure cabinet is hinged to swing away from the wall mounting bracket. The SRW12US also features perforated lockable side panels and front door, assuring generous airflow to keep equipment operating safely. The front door is reversible and the side panels are removable for easy access to equipment. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW12US ships fully assembled and comes with a 5-year manufacturer’s product warranty.

Key Features

Supports up to 140 lbs of rack equipment
Click here for a larger image

Simple Equipment Installation

Front and rear pairs of rails adjust in one-inch increments. Adjustment is quick and convenient – simply unscrew the rails, slide them to the desired depth and restore the screws. Square mounting holes and included hardware support up to 140 lbs. of standard 19-inch rack equipment. Rack spaces are numbered for easy reference.

Easy, Secure Equipment Access

The wall bracket includes a sturdy hinge that allows the SRW12US to swing away from the wall for convenient access to equipment and cabling. The swing direction of the enclosure and door can be reversed by rotating the enclosure 180 degrees before installation. The wall bracket locks to provide secure access. The front door locks to provide secure access and is perforated to promote efficient airflow.

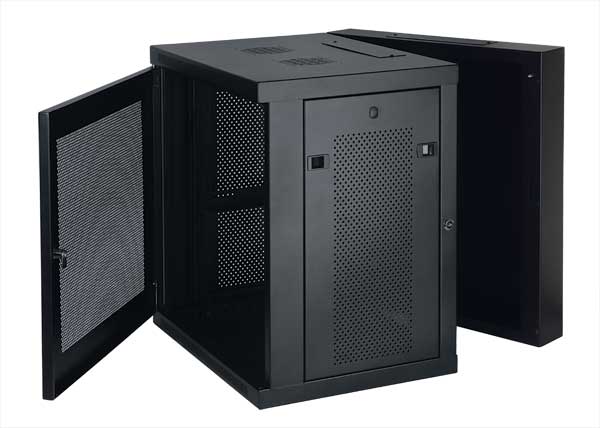

Hinged cabinet swings away from wall bracket for easy equipment access
Click here for a larger image

Modular Side Panels

The SRW12US includes two lockable, removable side panels for ease of installation and service access. The side panels are perforated to allow generous airflow.

Vented Top and Bottom Panels with Cable Ports

The top and bottom panels of the SRW12US are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels are also provided with ports for cable routing through the movable portion of the enclosure or the fixed wall bracket. Removable covers block unused cable ports.

SmartRack Accessories Adapt, Enhance and Expand Enclosures

The optional SRCASTER rolling caster kit adapts the enclosure to floor-standing and roll-away applications under desks, tables or counters. Additional SmartRack Cooling Solutions and Rack Accessories are available for a variety of applications: air conditioning, heat removal, airflow management, cable management, rack shelves, security & monitoring, mounting and power.

Peace of Mind

The SRW12US comes with a 5-year manufacturer’s product warranty.

Technical Specifications

Tripp Lite SRW12US SmartRack™ Wall Mount Rack Enclosure Cabinet

Rack spaces:	12
Load capacity:	140 lbs.
Mounting depth:	3 to 20.5 in.
Mounting holes:	Square (mounting hardware included)
Door:	Lockable/reversible/perforated
Side panels:	Lockable/removable/perforated
Top & bottom panels:	Vented
Cable ports:	Top and bottom panels (removable covers)
Height:	24.75 in.
Width:	23.63 in.
Depth:	21.75 in.
Weight:	60 lbs.
Material of construction:	Steel



Organize and Protect Rack Equipment with Tripp Lite

Tripp Lite SmartRack™ Enclosures and UPS Systems and accessories are available with a wide range of features to provide reliable, cost-effective power protection and connectivity solutions for all electronics.

SRW6U SmartRack™ Enclosure

Premium 6U wall-mountable rack enclosure cabinet with locking, reversible front door and locking, removable side panels. The space-saving SRW6U mounts on a sturdy wall bracket. Door and side panels are perforated to provide efficient ventilation; adjustable front and rear vertical rackmount rails facilitate quick, simple equipment installation. The SRW6U ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SRW10US SmartRack™ Enclosure

Premium 10U wall-mountable rack enclosure cabinet with locking, reversible front door and locking, removable side panels. The space-saving SRW10US mounts on a hinged wall bracket that enables the unit to be swung out for easy equipment access. Door and side panels are perforated to provide efficient ventilation; adjustable front and rear vertical rackmount rails facilitate quick, simple equipment installation. The SRW12US ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SRW12USG SmartRack™ Enclosure

Premium 12U wall-mountable rack enclosure cabinet with locking, reversible front door and locking, removable side panels. The space-saving SRW12USG mounts on a hinged wall bracket that enables the unit to be swung out for easy equipment access. Door features a Plexiglas window for convenient visual monitoring of equipment readouts; side panels are perforated to provide efficient ventilation. Adjustable front and rear vertical rackmount rails facilitate quick, simple equipment installation. The SRW12USG ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SR25UB SmartRack™ Enclosure

Premium 25U rack enclosure with doors and side panels. The SR25UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load rating. The SR25UB ships fully assembled and comes with a 5-year repair/replacement warranty. A full range of rackmount accessories is also available.

SMART1000RM1U SmartPro® UPS System

Advanced automatic voltage regulation and battery backup protection for mission-critical servers, storage devices and telecom equipment. The SMART1000RM1U provides 1000VA/640W power capacity with 6 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SMART1000RM1U supports connected equipment for 15 minutes during power failures at a half load of 320 watts. $250,000 Ultimate Lifetime Insurance (USA/Canada only); 2-year product warranty.

Product Description

The TrippLite SRW12US Smartrack 12U Wall Mount Enclosure has adjustable front and rear vertical rackmount rails, ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 140 lbs of equipment. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.

Customer Reviews

Most Helpful Customer Reviews

3 of 3 people found the following review helpful:

4.0 out of 5 stars Nice enclosure, January 15, 2010

By	J. Nichols - See all my reviews (REAL NAME)

Amazon Verified Purchase

This review is from: Tripp Lite SRW12US 12U Wall Mount Rack Enclosure Server Cabinet (Electronics)

Front and side access doors that lock as well as a swing-out for rear access. The front door could easily be pried open so this is not a security box. The box itself can be mounted so that the hinge swings either way.
Has holes for wheel mount on bottom and top, holes for fan mounts, and removable panels for cable access top and bottom. Lockable side doors also.
All in all a nice versatile box. Mine arrived dented and had to return.

2 of 2 people found the following review helpful:

5.0 out of 5 stars Tripp Lite SRW12US, June 18, 2010

By	Jason A. Smith (Hendersonville, NC) - See all my reviews (REAL NAME)

Amazon Verified Purchase

This review is from: Tripp Lite SRW12US 12U Wall Mount Rack Enclosure Server Cabinet (Electronics)

I upgraded to this after purchasing the Norco W-609 cabinet. This is an extremely nice enclosure and it shows. The rails inside are neatly numbered and the paint looks high quality and thick. The edges on the cabinet are also rounded so you don't cut yourself on them accidentally. The cage nuts are VERY easy to install too, you can just pop them in with your fingers.

The only downside I can even think of is, if you buy the optional caster set it is pretty annoying to mount them to the bottom of it because the holes are in kind of an odd place which makes it difficult to put the screws in properly.

Bottom line: This is the second Tripp Lite product I've purchased, and I will definitely buy more in the future. They have both been very high quality.
