Tripp Lite SU1500XL Smart Online 1500VA UPS with Extended Runtime (6 Outlets)

by Tripp Lite

Product Details

• Product Dimensions: 19.5 x 9 x 10.2 inches ; 48.9 pounds
• Shipping Weight: 55 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B000RW5GQY
• Item model number: SU1500XL
• Average Customer Review: 5.0 out of 5 stars  See all reviews (4 customer reviews)
• Date first available at Amazon.com: May 26, 2006

Product Description

From the Manufacturer

Do you need to protect mission-critical electronic equipment such as servers, networking equipment and telecom systems against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges? Tripp Lite's SU1500XL SmartOnline™ Tower UPS System is the solution! Featuring true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. The SU1500XL's large internal battery set supports connected equipment during blackouts, and runtime is expandable with optional external battery packs. The SU1500XL has two three-outlet load banks that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert power management software supports an unlimited number of network UPS systems.

Key Features

SU1500XL UPS System Offers: The highest level of protection for servers, telecom systems and more True on-line operation with pure sine wave output and zero transfer time to battery 6 battery-supported AC outlets Included PowerAlert software for complete network power management and control $250,000 Ultimate Lifetime Insurance; 2-year warranty

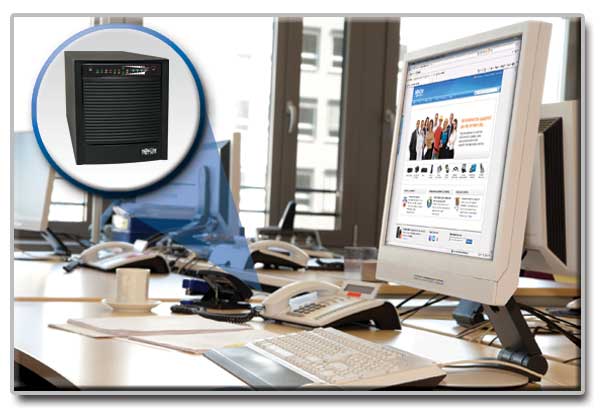

Ideal for Protection of Mission-Critical Equipment
Click here for a larger image

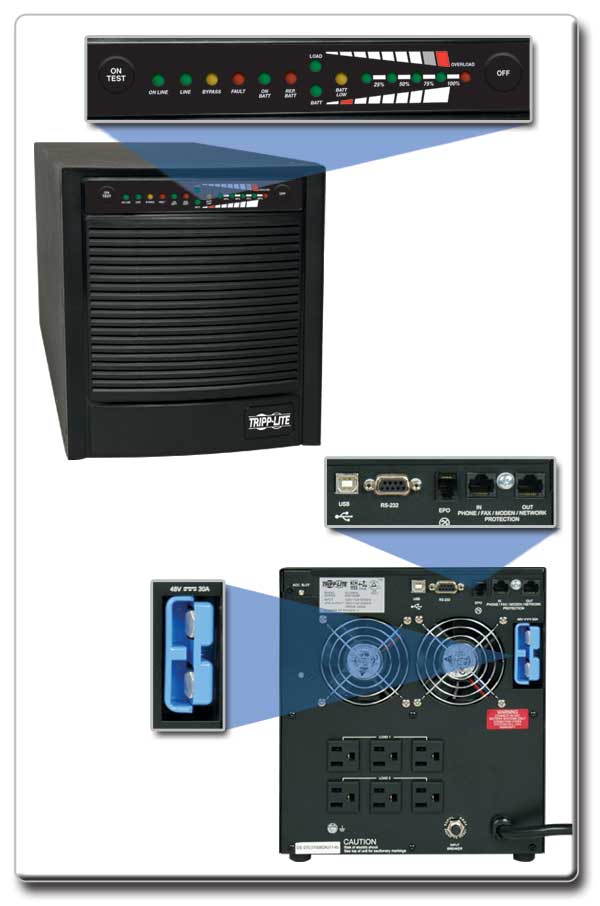

LEDs, USB/DB9 Ports and Tel/Ethernet Surge Suppression
Click here for a larger image

Ideal for Protection of Mission-Critical Equipment

The SU1500XL provides true on-line operation, reliable battery backup and comprehensive power management capability in a compact tower form factor. Featuring six 5-15R outlets, USB/DB9 ports and a slot for an optional SNMPWEBCARD, the SU1500XL offers a complete power protection solution for servers, storage devices, telecom systems and other mission-critical applications.

True On-Line Operation with Zero Transfer Time

The SU1500XL provides the highest level of protection available for mission-critical equipment. It actively converts raw incoming AC power to DC, then re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems. Zero transfer time between AC and battery operation maintains continuous output and further protects connected equipment from the disruptive effects of blackouts and severe low-voltage conditions. Sine wave output guarantees compatibility with all equipment types.

Controllable Load Banks

The SU1500XL'S six 5-15R outlets are arranged in two three-outlet load banks that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment.

Reliable, Expandable Battery Backup

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU1500XL features a large internal battery set that provides 4.5 minutes of battery support for a full load (1200 watts) and 14 minutes for a half-load (600 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed. For mission-critical applications demanding continuous uptime, the fully scalable SU1500XL can provide expandable runtime with optional external battery packs, sold separately. Compatible battery packs: BP48V24-2U (limit 1) and BP48V60RT3U (multi-pack compatible).

AC Line and Tel/Ethernet Surge Suppression

A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SU1500XL features a 570-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. One set of tel/Ethernet (RJ45) jacks provides surge protection for a standard phone or network connection (cable not included).

PowerAlert

SU1500XL Runtime Chart
Click here for a larger image

EMI/RFI Line Noise Filtering

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SU1500XL incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

LED Status Display and Audible Alarm

The SU1500XL features a front-panel, 14-LED display that enables IT personnel to monitor line power, on-line mode, bypass mode, on-battery, overload, battery low, replace battery and fault status information. The LEDs are supplemented by an audible alarm that signals UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions.

USB/DB9 Ports, SNMP Capability and Included PowerAlert Software

The SU1500XL features an HID-enabled USB port and a DB9 port (cables included). Used with Tripp Lite's included PowerAlert software these communication ports provide comprehensive network power monitoring and control. Capabilities include UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The SU1500XL also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.

Emergency Power-Off (EPO) Capability

The SU1500XL features an EPO (RJ11) interface port that supports emergency shutoff in large facilities (cable included).

Versatile Installation Options

The SU1500XL's compact tower form factor makes it easy to integrate with a wide range of home, business, commercial, industrial and IT applications.

Peace of Mind

The SU1500XL comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 2-year warranty.

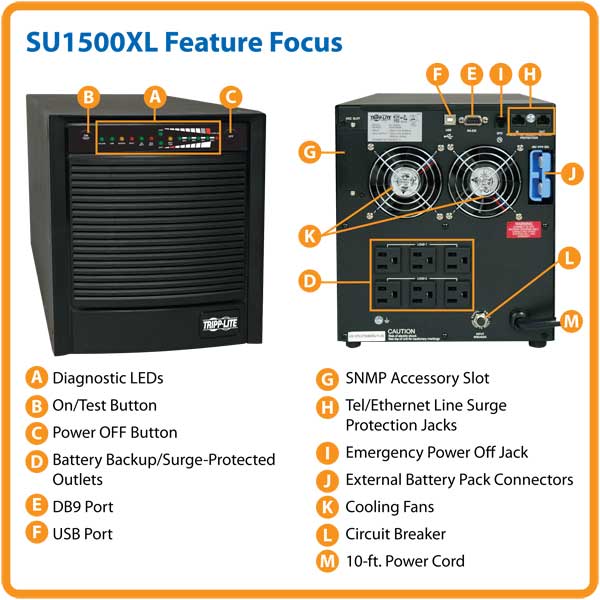

Technical Specifications

Tripp Lite SU1500XL SmartOnline™ Tower UPS System

Click here for a larger image

Model:	SU1500XL
Voltage compatibility:	100/110/120 VAC
Frequency compatibility:	50/60 Hz
VA/Wattage Capacity:	1500/1200
Battery runtimes (half/full):	14 min./4.5 min. (expandable)
Outlet quantity/type:	6 x 5-15R (2 controllable 3-outlet load banks)
Signal line protection:	RJ45 tel/Ethernet jacks (1 set)
Communications ports:	1 x USB (HID enabled), 1 x DB9 SNMP slot
Input cord:	10 ft.
Input plug:	5-15P
Switches/LEDs/alarms:	On/Off switch Alarm cancel/self-test switch 14 LEDs Audible alarm
Dimensions (HWD):	10.2 x 9 x 19.5 in. (compact tower)
Weight:	49.3 lb
Material of construction:	Steel
Agency approvals:	UL 1778 (US/Canada) NOM (Mexico) FCC Class A RoHS

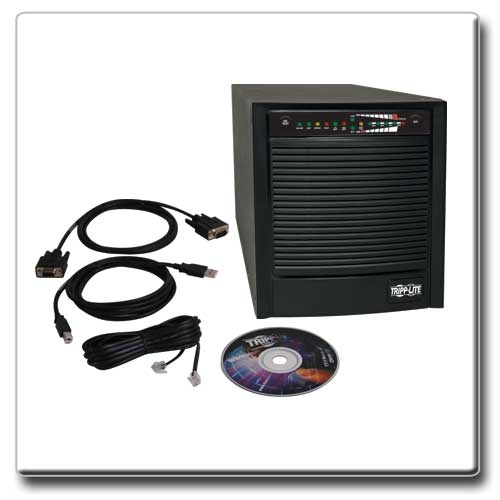

What's in the Box

• SU1500XL SmartOnline™ Tower UPS System
• 6-ft. USB Cable
• 6-ft. DB9 Cable
• 6-ft. EPO Cable (RJ11)
• PowerAlert Software CD

Protect, Power, Organize and Control with Tripp Lite

Tripp Lite UPS Systems, Power Management Accessories, Power Distribution Units, Rack Enclosures, KVM Switches and Rackmount Consoles are available with a wide range of features and options to meet the needs of any data center or networking application.

Extended Runtime Options

Tripp Lite battery packs extend runtime in battery mode when used in conjunction with the SU1500XL and other compatible Tripp Lite systems. Supports stacking, upright tower and rackmount installation. Heavy-gauge cabling with high current DC connectors for simple installation. 2-year warranty.

BP48V24-2U (Limit 1) • BP48V60RT-3U (Multi-pack compatible)

SU2200XLA SmartOnline™ UPS System

True on-line operation and battery backup protection for mission-critical servers, storage devices and telecom equipment in a compact tower format. The SU2200XLA provides 2200VA/1600W power capacity with 7 outlets (6 x 5-15/20R outlets; 1 x L5-20R outlet) including 2 load banks, each with 3 outlets, that are individually controllable for remote equipment reboots or load shedding. Single-line tel/Ethernet (RJ45) surge protection safeguards equipment on a network connection. USB and DB9 ports, an SNMP accessory slot and PowerAlert monitoring software provide complete power network monitoring and control. The SU2200XLA supports connected equipment for 14 minutes during power failures at a half load of 800 watts. Runtime is expandable with optional external battery packs, sold separately. $250,000 Ultimate Lifetime Insurance; 2-year warranty.

SU1500RTXL2Ua SmartOnline™ UPS System

True on-line operation and battery backup protection for servers, storage devices and telecom equipment. The SU1500RTXL2Ua provides 1500VA/1200W power capacity with 6 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SU1500RTXL2Ua supports connected equipment for 14 minutes during power failures at a half load of 600 watts. Runtime is expandable with optional external battery packs. $250,000 Ultimate Lifetime Insurance (USA/Canada only); 2-year product warranty.

SNMPWEBCARD SNMP/Web Management Accessory Card

Allows any expansion slot-equipped Tripp Lite UPS system to operate as a managed device on the network. The SNMPWEBCARD enables remote monitoring and control of UPS and site electrical conditions using the SNMP network management platform or a web browser. The SNMPWEBCARD also supports selective rebooting of locked network equipment without disrupting power to other devices when used with customized load management receptacles available on select Tripp Lite UPS systems. 2-year warranty.

PDUMH15AT Metered Power Distribution Unit with ATS

Metered 1U rackmount PDU with 8 x 5-15R outlets, dual 12-ft. power cords with 5-15P plugs and integrated automatic transfer switching (ATS) to support connected equipment from a secondary power source if primary input fails. The PDUMH15AT provides 15A 120V capacity and a digital amp meter for on-site monitoring of total PDU load. Built-in card slot accepts an optional SNMPWEBCARD for permanent upgrade to a switched PDU. Switchless, circuit breaker-free design prevents accidental shut-off. Lifetime warranty.

Product Description

Tripp Lite's SmartOnline SU1500XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. This large-capacity 1.5kVA/1200W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). It removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time provide guaranteed compatibility with all equipment types. It includes 6 UPS-supported outlets. Two load banks, each with 3 outlets, can be independently controlled via a software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery backup time can be extended with the addition of multiple external battery packs. This unit includes a slot for an internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. The HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. It also includes Tripp Lite's PowerAlert UPS Power Management Software and is compatible with Tripp Lite's Watchdog Service Monitoring/Rebooting Software.

Customer Reviews

Most Helpful Customer Reviews

5.0 out of 5 stars Clean backup power, November 10, 2011

By

Mike Szabados (Germantown, MD, US) - See all my reviews

Amazon Verified Purchase

This review is from: Tripp Lite SU1500XL Smart Online 1500VA UPS with Extended Runtime (6 Outlets) (Electronics)

I live in an area that often loses power during storms. I have a Dewalt gas power generator that I use as a backup. I have an expensive computer system and need to run it off the generator. I spoke with Dewalt technical support and they do not recommend running computes off a generator. So I need to "clean" the power line. After several days research, this was the best choice. It is a dual converter that does not bye-pass the system at any time. AC to DC, then DC back to A.C. Output, clean power. It comes with monitoring software that is very good. It can monitor the input and output frequency and voltage. The documentation recommends not using it off a generator (?), but I did not find this a problem. The software on the disk did not support Windows 7, not a problem went to their web site and down loaded the latest version that supports Windows 7. Also spoke to technical support on setting up the software. I give them the best rating for technical support. He gave me a ticket number for future support that would refer me back him if needed.

Used it for a week now, here are the results. Power company input 123.5 V, 59.8 Hz, Output 119.9 & 60 Hz. Gas Generator input 113 V & 62.1 Hz, Tripp Lite SU1500XL output 119.9 V and 61.1 Hz. The results fluctuated, but this was the worst case. Yes the dual fans are noticeable, but can live with it knowing my computer system is protected. Technical support help me set up the software that will shut down my computer if there is a total loss of power, then it will shut itself off, then when it sensors power again it will turn on and reboot the computer. (have not tested this scenario yet). Recommend this system.

5.0 out of 5 stars Works great on generator, November 8, 2011

By

Joseph J. Liebezeit "Big Joe" (Lehigh Valley, PA) - See all my reviews
(REAL NAME)

This review is from: Tripp Lite SU1500XL Smart Online 1500VA UPS with Extended Runtime (6 Outlets) (Electronics)

This UPS works great with no problems on my generator. Definitely worth the money. I tried cheaper UPS units and they won't operate on AC power (they switch to battery) when the generator is lightly loaded and the frequency approaches 63 HZ. Thanks Tripp Lite for designing this great UPS, and I also really appreciate the professional software. And, thanks again to Amazon for the best price and fast shipping!

5.0 out of 5 stars A good online UPS, August 19, 2011

By

rigurat - See all my reviews

Amazon Verified Purchase

This review is from: Tripp Lite SU1500XL Smart Online 1500VA UPS with Extended Runtime (6 Outlets) (Electronics)

This is at the moment one of the most affordable, double conversion UPS available at this writing.

This product is of high quality build, and of course its performance is good as well. Output power is very clean and consistent.

Of course as with other double conversion UPS, the cooling fans on this device is rather loud, and they run at all times, even if the load is powered off, and even if the UPS is powered off. They can only be shutoff if the UPS is powered off and unplugged.

For those who plan to mod the fans there are a couple things to know first. They are standard 80mm fans. They have a proprietary pin connector and wire arrangement. The new fan RPM can't be too low or the system will detect a fault.
