Technical Details
- 2200VA/1600W power capacity in 2U of rack space
- True on-line operation with pure sine wave output; expandable battery backup
- 7 AC outlets (2 individually controllable load banks) plus tel/Ethernet line protection
- USB/DB9 communication ports; SNMPWEBCARD slot
- $250,000 Ultimate Lifetime Insurance; 2-year warranty
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
From the Manufacturer
Requiring only two rack spaces (2U) in a standard rack enclosure, Tripp Lite's SU2200RTXL2Ua SmartOnline™ UPS System protects connected equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Featuring true on-line operation with pure sine wave output and zero transfer time to battery, it provides the highest level of power protection for mission-critical equipment. Internal batteries support connected equipment during blackouts, and runtime is expandable with optional external battery packs. The SU2200RTXL2Ua has seven outlets arranged in two individually controllable load banks that can be used to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems.
Key Features
|
Click here for a larger image
Click here for a larger image
Click here for a larger image

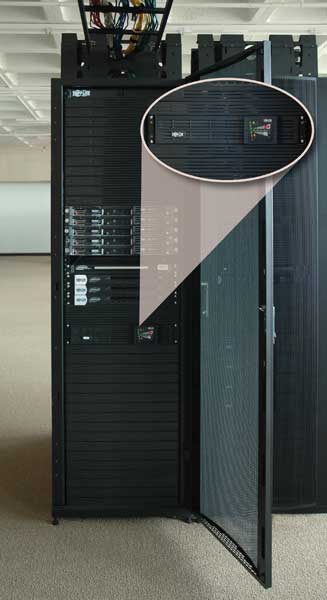

Ideal for Protection of Mission-Critical Rackmount Equipment
The SU2200RTXL2Ua provides true on-line operation, reliable battery backup and comprehensive power management capability in just 2U of rack space. Featuring seven outlets, USB/DB9 ports and a slot for an optional SNMPWEBCARD, the SU2200RTXL2Ua offers a complete power protection solution for servers, storage devices, telecom systems and other mission-critical applications.
True On-Line Operation
The SU2200RTXL2Ua provides the highest level of protection available for mission-critical equipment. It actively converts raw incoming AC power to DC, then re-converts it back to regulated, filtered AC output with a pure sine wave, completely isolating connected components from all power problems.
Reliable, Expandable Battery Backup

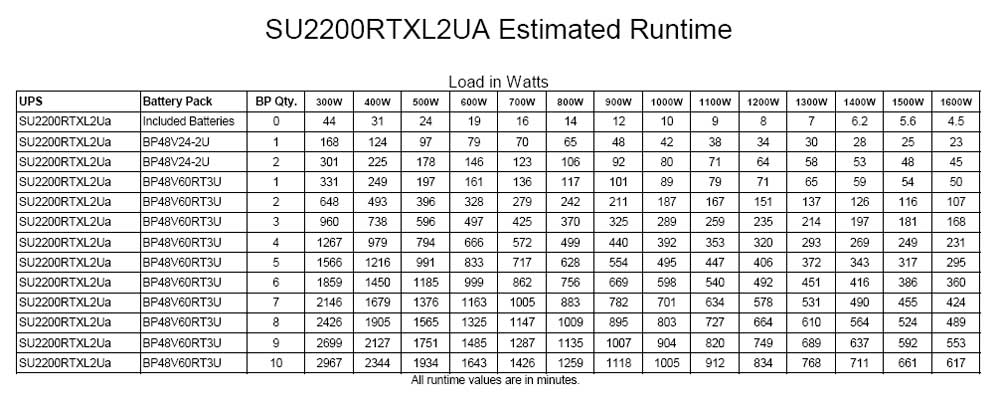

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SU2200RTXL2Ua's internal battery set provides 4.5 min. of battery support for a full load (1600 watts) and 14 min. for a half-load (800 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed. For mission-critical applications demanding continuous uptime, the fully scalable SU2200RTXL2Ua can provide expandable runtime with optional external battery packs, sold separately.
Highly Efficient Operation Reduces BTU Output
The SU2200RTXL2Ua features an optional, highly efficient economy mode setting that can significantly reduce a facility's energy costs. In economy mode, the UPS operates with 94% efficiency, minimizing heat output, reducing cooling requirements and consuming less electricity.

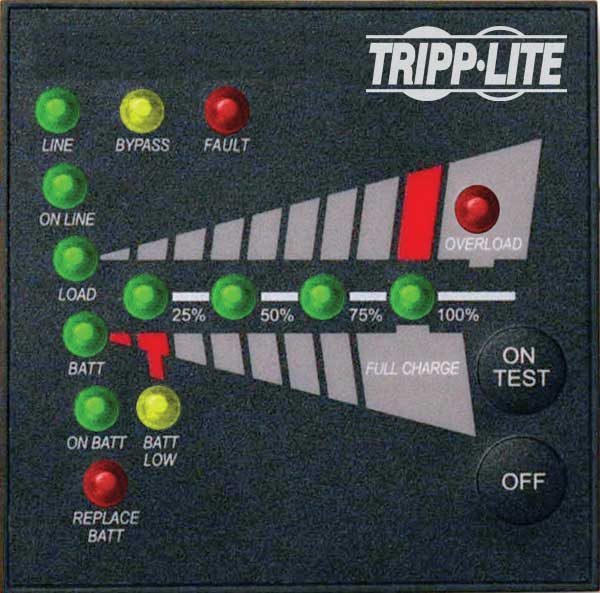

LED Status Display and Audible Alarm
The SU2200RTXL2Ua features a front-panel, 14-LED display that enables IT personnel to monitor line power, on-line mode, bypass mode, on-battery, overload, battery low, replace battery and fault status information. The LED panel rotates for viewing in horizontal rack or vertical tower installations. The LEDs are supplemented by an audible alarm that signals UPS startup, power failure, low battery, overload, UPS fault and remote shutdown conditions.
Click here for a larger image

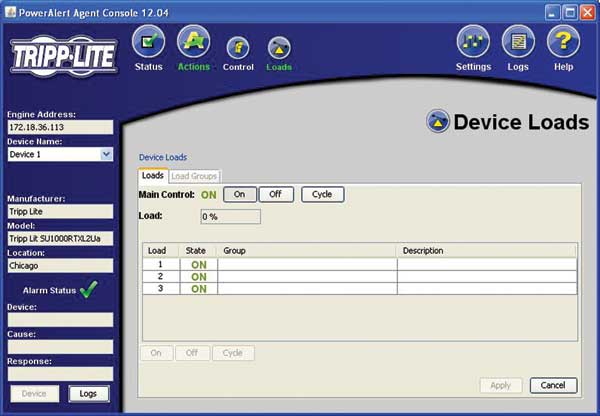

USB/DB9 Ports, SNMP Capability and Included PowerAlert Software
The SU2200RTXL2Ua features a USB port and a DB9 port (cables included). Used with Tripp Lite's included PowerAlert software these communication ports provide comprehensive network power monitoring and control. Capabilities include UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity) timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The SU2200RTXL2Ua also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device via the SNMP network.
Individually Controllable Load Banks
The SU2200RTXL2Ua features two load banks, each with three outlets. These load banks are individually controllable via a software interface to reboot locked-up equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment.
Tel/Ethernet Surge Suppression
A sudden power surge or spike on a phone or network line can damage or destroy electronic components and wipe out irreplaceable data. The SU2200RTXL2Ua features one set of tel/Ethernet (RJ45) jacks that provide surge protection for a standard phone or network connection (cable not included). Its 480-joule surge suppression rating protects connected components and data from the harmful effects of power surges.
Click here for a larger image
EMI/RFI Line Noise Filtering
Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and performance problems. By providing regulated, filtered, pure sine wave AC output, the SU2200RTXL2Ua completely isolates connected equipment from disruptive line noise.
Versatile Installation Options
The SU2200RTXL2Ua requires only 2U of rack space in a standard 4-post rack enclosure (mounting accessories included). It can also be installed in a 2-post rack using the optional 2POSTRMKITWM accessory, or in an upright tower configuration with the optional 2-9USTAND accessory.
Ultimate Peace of Mind
The SU2200RTXL2Ua comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 2-year warranty.
Technical Specifications
Tripp Lite SU2200RTXL2Ua SmartOnline™ UPS System
| Model: | SU2200RTXL2Ua |
|---|---|
| Voltage compatibility: | 120 VAC |
| Frequency compatibility: | 50/60 Hz |
| VA/Wattage Capacity: | 2200/1600 |
| Battery runtimes (half/full): | 14 min./4.5 min. (expandable) |
| Outlet quantity/type: | 6 x 5-15/20R, 1 x L5-20R (2 individually controllable load banks) |
| Signal line protection: | RJ45 tel/Ethernet jacks (1 set) |
| Communications ports: | 1 x USB; 1 x DB9 SNMP slot |
| Input cord: | 10 ft. |
| Input plug: | 5-20P |
| Switches/LEDs/alarms: | On/Off switch Alarm cancel/self-test switch 14 LEDs Audible alarm |
| Dimensions (HWD): | 3.5 x 17.5 x 19.0 in. (2U RM) |
| Weight: | 47.4 lbs. |
| Material of construction: | Steel |
| Agency approvals: | UL 1778 (US) / CSA (Canada) NOM (Mexico) FCC Part 15 Category A (EMI) RoHS |

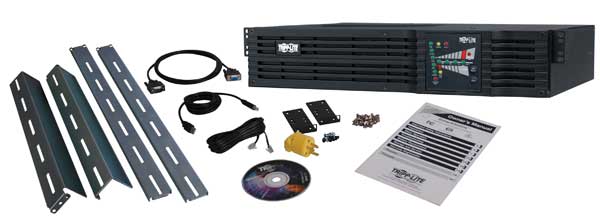

What's in the Box
- SU2200RTXL2Ua UPS System
- PowerAlert Software CD
- 1 x 6-ft. USB Cable
- 1 x 6-ft. DB9 Cable
- 4-Post Rackmounting Hardware
Protect, Power, Organize and Control with Tripp Lite
Tripp Lite UPS Systems and accessories are available with a wide range of features to provide reliable, cost-effective power protection for all electronics.
SU3000RTXL3U SmartOnline™ UPS System
True on-line operation and battery backup protection for servers, storage devices and telecom equipment in 3U of rack space. The SU3000RTXL3U provides 3000VA/2400W power capacity with 9 outlets arranged in 2 load banks. One USB port and one DB9 port with included cables and PowerAlert monitoring software provide complete power network monitoring and control. The SU3000RTXL3U supports connected equipment for 14 minutes during power failures at a half load of 1200 watts. Runtime is expandable with optional external battery packs. $250,000 Ultimate Lifetime Insurance; 2-year warranty.
PDUMH20ATNET Power Distribution Unit
Switched/metered 1U rackmount PDU with integrated automatic transfer switching (ATS). The PDUMH20ATNET provides 20A 120V capacity with 16 NEMA 5-15/20R outlets, sequential outlet power-on capability to prevent inrush-related equipment interaction on startup, programmable or real-time monitoring and outlet power control via secure web/network interface, and ATS to provide power from a secondary input source when primary input fails. 2-year warranty.
SRCOOL12K Self-Contained Portable Air Conditioning Unit
Compact, portable air conditioning unit is ideal for wiring closets and other space-critical locations where facility air conditioning can't reach. 12,000 BTU of cooling power. Connects to a standard 5-15R receptacle; no adapter required. Uses EPA-compliant, @ R410a refrigerant. Standard louvered vent for general room cooling; ducted vent to direct cold air where needed. Requires no floor drain or water collection tank. 1-year warranty.
B020-U08-19-K NetDirector™ Console KVM Switch
Controls an entire network in just 1U of rack space. The B020-U08-19-K combines a keyboard, 19-in. LCD screen, touch pad, numeric keypad, and 8-port KVM switch in a 1U slide-out unit. It is USB or PS/2 compatible with 8 included PS2/USB Combo Cable Kits to connect the switch to servers. Controls up to 504 servers by daisy-chaining additional KVMs. Includes two front-mounted USB ports: one for attachment of a separate USB mouse and one to connect USB peripherals (flash drive, external hard drive, etc.) that can be shared between connected servers.
SR42UB SmartRack™ Enclosure
Premium 42U rack enclosure. The SR42UB features locking, removable, reversible front and rear doors; locking, removable side panels keyed alike with doors; 4 interior vertical posts with unthreaded square-hole openings; toolless vertical mounting for PDUs and cable managers; preinstalled casters and leveling feet; and 3000-lb. stationary/2250-lb. rolling load capacity. Ships fully assembled. 5-year warranty.
SNMPWEBCARD Internal SNMP Card for Runtime Management
Allows any expansion slot-equipped Tripp Lite UPS system to operate as a managed device on the network. The SNMPWEBCARD enables remote monitoring and control of UPS and site electrical conditions using the SNMP network management platform or a web browser. The SNMPWEBCARD also supports selective rebooting of locked network equipment without disrupting power to other devices when used with customized load management receptacles available on select Tripp Lite UPS systems. 2-year warranty.
Product Description
Customer Reviews
|
Share your thoughts with other customers:
|
||||||||||||||||||||||
|
Most Helpful Customer Reviews
5 of 5 people found the following review helpful:
4.0 out of 5 stars
Nice UPS for the money,
By Michael Doyle (Baltimore, MD) - See all my reviews
This review is from: Tripp Lite SU2200RTXL2UA Smart Online 2200VA 2U Rackmount UPS (7 Outlets) (Electronics)
We have bought a fair amount of these units for network closets in various buildings. They seem to work well and the management cards seem to give us a good handle on the UPS status.
Our favorite feature is that there are basically 3 breakers within the unit you can plug devices into. With the management card you can cycle or turn on/off any one of these breakers remotely, which is fantastic for rebooting gear through the network. The only complaint so far is that the front panel isn't super clear. When you plug in the UPS and hit the power button several lights come on. You then have to hold the power button for several seconds in order to start providing power to devices. Its not a big issue once you are used to it, but it was less than straightforward for first time users to power the unit up.
3.0 out of 5 stars
Extremely loud fans...,
By
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite SU2200RTXL2UA Smart Online 2200VA 2U Rackmount UPS (7 Outlets) (Electronics)
This was recommended to me by a certified electrician who has used them, unfortunately the volume level of the fan is so high that this needs to be in a separate room or machine room. There is no way of changing it.
5.0 out of 5 stars
Power all the time,
By
Amazon Verified Purchase(What's this?)
This review is from: Tripp Lite SU2200RTXL2UA Smart Online 2200VA 2U Rackmount UPS (7 Outlets) (Electronics)
This is a great double-conversion UPS system for critical server, network and telecommunications equipment. This unit converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. It is particularly suited for locations that have brownouts. It is a rack mount, but can be mounted vertically. You will need the stand which is purchased separately. Also, it requires a 20A plug receptacle.
