WEN 56352 3500-Watt 208cc 7-HP OHV Gas-Powered Portable Generator with Wheel Kit

by WEN

• 3500 peak, 3000 running watts
• 4 Gallon fuel tank with fuel gauge
• 11 hrs. Run time at half load
• Automatic low oil engine shutdown
• Non-CARB Compliant/Not For Sale In California

Product Details

• Shipping Weight: 104 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• Shipping Advisory: This item must be shipped separately from other items in your order. Additional shipping charges will not apply.
• ASIN: B003N9AT5G
• Item model number: 56352
• Average Customer Review: 4.6 out of 5 stars  See all reviews (76 customer reviews)
• Amazon Best Sellers Rank: #2,818 in Patio, Lawn & Garden (See Top 100 in Patio, Lawn & Garden)
  • #5 in Patio, Lawn & Garden > Generators & Portable Power > Generators
  • #5 in Automotive > RV Parts & Accessories > Power & Electrical > Generators

Product Description

Amazon.com

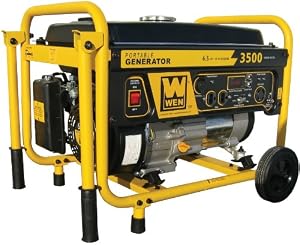

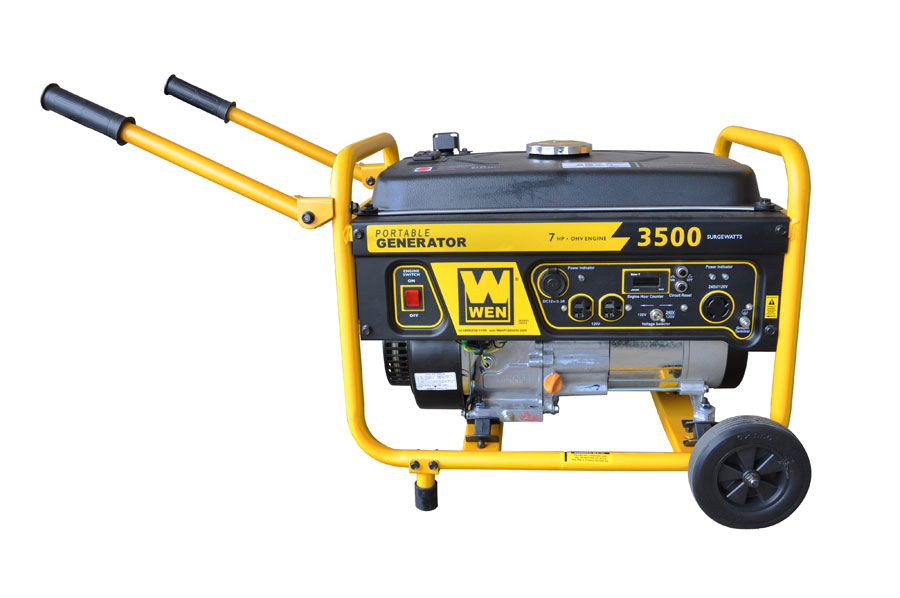

All-purpose 3500-watt generator with wheel kit for smooth portability. view larger

Panel includes 2 120-volt, 20 amp, 3-prong receptacles, a 120/240-volt, 30 amp, twist-lock outlet, and a cigarette-lighter-style 12V DC outlet. view larger

WEN 56352 3500-Watt Gas-Powered Portable Generator

If you are looking for an all-purpose portable electric generator, take a look at the WEN 3500 (model 56352) as the solution to your needs. The compact gas-powered generator features a rugged 212cc, 7HP air-cooled OHV engine that supplies the necessary muscle to turn the alternator at 3600RPM for 3000 rated watts of power. For the time you need extra power to start an appliance, the generator delivers 3500 watts. Look at the chart below for information on starting and running watts for the most common household and job site equipment.

The job site requires a generator that will power the equipment necessary to make building easier and stronger. This generator will power the saws, drills, and other equipment a worker needs. If an emergency arises and power is needed in and around the house, the WEN 3500-watt generator is there to supply electricity to the critical appliances. The generator can also be used at sporting and social events, as well as outdoor recreation activities. The generator is EPA approved and with its quiet muffler and spark arrestor, it is perfect for use in U.S. National Parks.

Power Outlets and Features

The WEN 3500 has a number of power receptacles. There are two 120-volt, 20 amp, three-prong receptacles and a 120/240-volt (L14-30), 30 amp, twist-lock outlet for use when either voltage is required. A selector switch lets the user go from one voltage to the other. The cigarette-lighter-style 12V DC outlet is for battery charging and powers any 12V DC piece of equipment with a cigarette-lighter-style plug.

The power indicator light, directly above the receptacles, informs the user of the status of the receptacle. If the light is on, the power is on. No need to look at a meter. A digital hour counter, which accumulates the run time hours, helps in deciding on required maintenance.

Starting the WEN 3500 generator is as easy as pulling a couple of times on the manual starter. In most cases one pull is all that is necessary. Once running, the generator stays stable on the ground thanks to the two rubber motor mounts, two wheels, and the solid 1-inch tubular frame. The 4-gallon fuel tank holds enough gas for 11 hours of run time at half load. The included mobility kit makes moving the generator a breeze. Should routine check of the lubricating oil level be missed, the low oil automatic shutdown feature prevents damage to the engine.

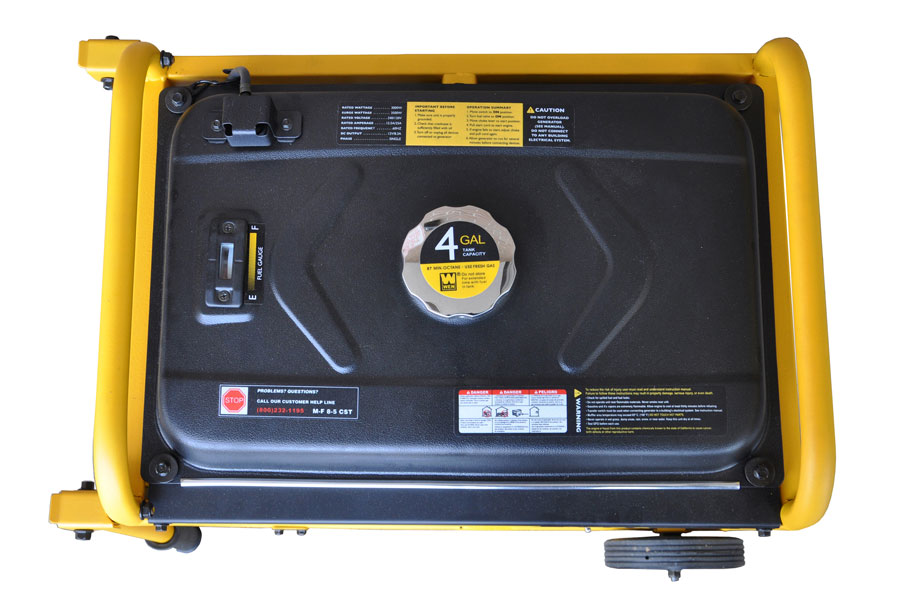

Gas-powered generator with 4-gallon fuel tank (top view). view larger

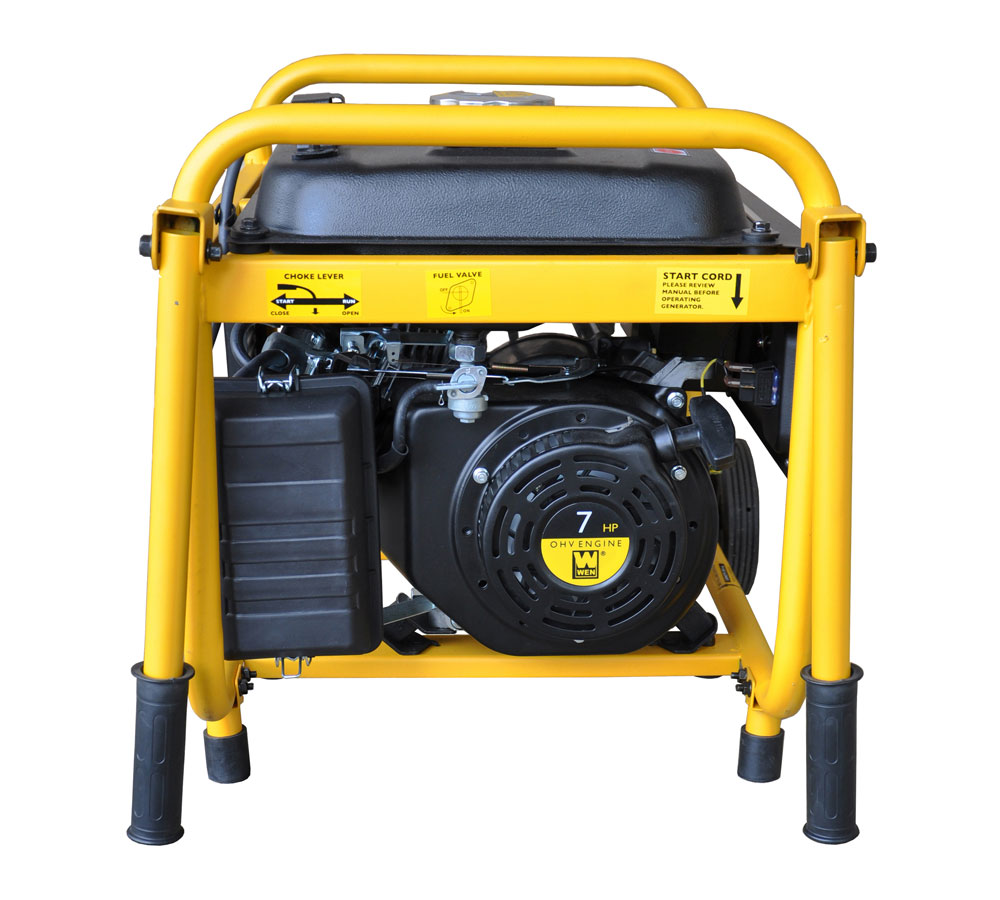

Smooth-rolling wheel kit with space-saving fold-down handles (back view). view larger

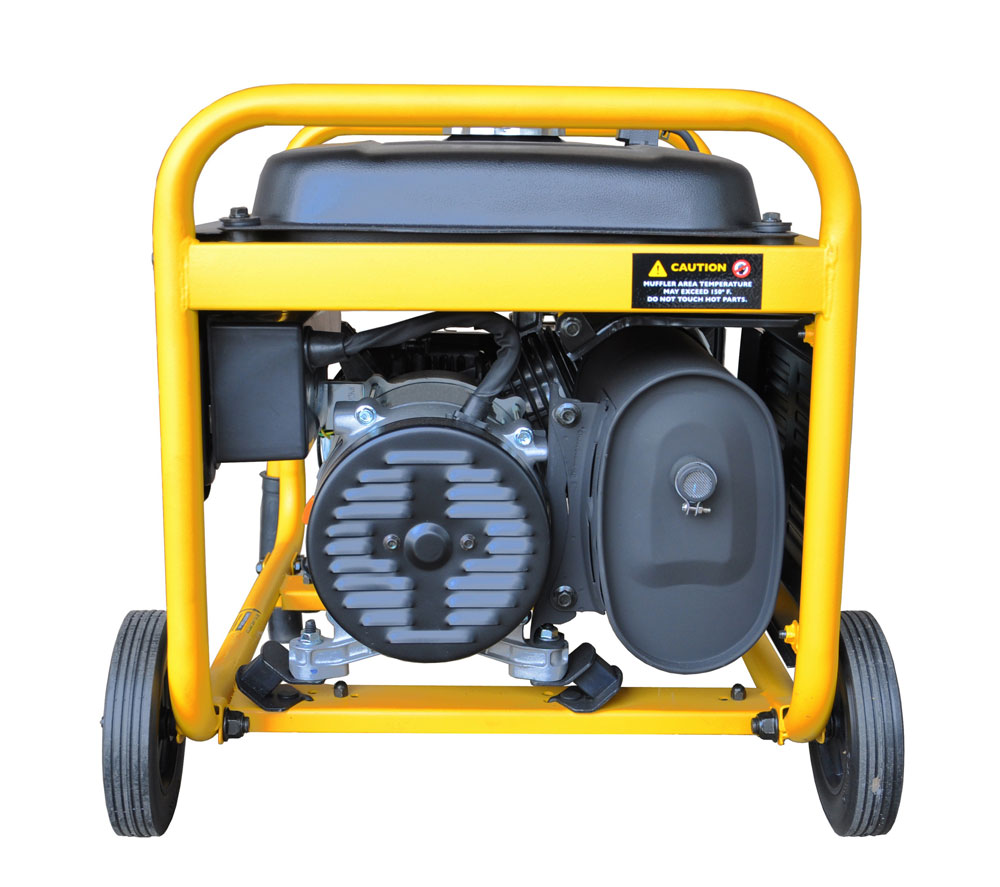

Muffler with spark arrester reduces engine noise (right-side view). view larger

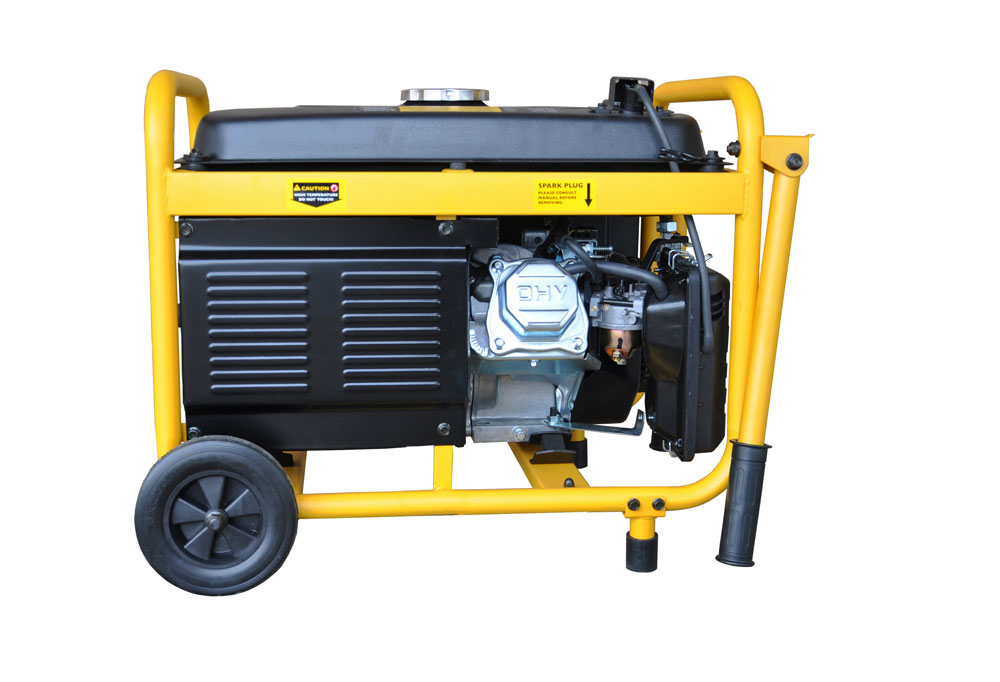

Powerful 212cc, 7HP air-cooled OHV engine (left-side view). view larger

Note for California residents: This model is not CARB compliant. Units sold in California must be CARB compliant.

Compare Models of WEN Generators
Model #	56352	56551	56682	56877
Engine
Displacement	212cc	389cc	390cc	420cc
Horse Power	7	13	13	15
Starting Method	Manual	Manual	Electric/Manual	Electric/Manual
Hour Counter	Yes	Yes	Yes	Yes
Low Oil Auto Shutdown	Yes	Yes	Yes	Yes
CARB	No	No	No	No
Fuel Tank Capacity	4 gallon	6.5 gallon	6.5 gallon	6.5 gallon
Run Time 1/2 Load	11 Hours	11 Hours	10 Hours	9 Hours
Noise Rating @ 23 ft	67 dB	74 dB	74 dB	82 dB
Spark Arrestor	Yes	Yes	Yes	Yes
Generator
Voltage	120V/240V	120V/240V	120V/240V	120V/240V
Starting Watts	3500	5500	7000	9000
Running Watts	3000	5000	5500	7000
Outlets	(2) 120V, 20A, 3-prong (1) 120/240V, 30A twist lock (1) 12V DC 8.3A	(4) 120V, 20A, 3-prong (1) 120/240V, 30A twist lock (1) 12V DC 8.3A	(4) 120V, 20A, 3-prong (1) 120/240V, 30A twist lock (1) 12V DC 8.3A	(4) 120V, 20A, 3-prong (1) 120/240V, 30A twist lock (1) 120V, 30A twist lock (1) 12V DC 8.3A
Mobility Kit	Yes	Yes	Yes	Yes
Warranty	2 Years Limited Warranty	2 Years Limited Warranty	2 Years Limited Warranty	2 Years Limited Warranty

Tool and Appliance Wattage Guide

When choosing a Generator, figure the total wattage of the tools and appliances you will need using this chart.

The Running (Rated) Wattage corresponds to the maximum wattage the generator can output on a continuous basis.

The Starting (Surge) wattage corresponds to the maximum amount of power the generator can output for a short period of time. Many electrical devices such as refrigerators require short bursts of extra power, in addition to the rated wattage listed by the device, to stop and start their motors. The surge wattage ability of the generator covers this extra power requirement.

Critical Home Devices
Device	Running (Rated) Wattage	+	Starting (Surge) Wattage
Electrical Water Heater (40 gal.)	4000	+	0
Hot Plate	2500	+	0
Electric Stove	1500	+	0
Window Air Conditioner	1200	+	1800
Microwave	1000	+	0
Well Water Pump	1000	+	1000
Sump Pump	800	+	1200
Refrigerator Freezer	800	+	1200
Furnace Blower	800	+	1300
Television	500	+	0
Deep Freezer	500	+	500
Box Fan	300	+	600
Clock Radio	300	+	0
Light Bulb	75	+	0
Critical Construction Devices
Device	Running (Rated) Wattage	+	Starting (Surge) Wattage
Radial Arm Saw	2000	+	2000
Circular Saw	1500	+	1500
Air Compressor (1 HP)	1500	+	3000
Miter Saw	1200	+	1200
Reciprocating Saw	960	+	1040
Electric Drill	600	+	900

Note: The above chart is an estimation of common wattage by devices. Your device may have a different wattage requirement than listed on this chart. When allowing for Starting wattage, remember that not all devices will start at the same time.

Product Description

The WEN 3500 Watt Generator is designed to bring power to where you need it the most. Equipped with a powerful 7 HP, 4-Stroke OHV single cylinder engine with forced air cooling system it offers up to 3500 surge watts of power. With two 120 Volt Receptacles and one 240/120 V NEMA L14-30 Receptacle the WEN 3500 Watt Generator is capable of running lights refrigerator and a sump pump at the same time. It is able to run at 71dB for 11 hours at half load. Includes a wheel kit for easy transportation. A must have for any homeowner. 7 HP Engine. 3500 Surge Watts 3000 Running Watts. 4-Gallon Fuel Tank. Low-Oil Automatic Shutdown. Two 120 Volt Receptacles. One 240/120 V NEMA L14-30 Receptacle. Voltage Indicator Lights. Voltage Selector Switch. 12VDC Outlet. Hour Meter. Wheel Kit. 2 Year Limited Warranty. Dimensions ( L x W x H ): 24.4 x 17.7 x 18.5

Most Helpful Customer Reviews

98 of 102 people found the following review helpful

5.0 out of 5 stars Amazon saved the day! May 31, 2011

By Jeff

Amazon Verified Purchase

I'm going to break this review up into 2 parts, one reviewing the product and one for my Amazon experience related to it.

Amazon Experience:
I live in Alabama, which was recently hit extremely hard by tornadoes and severe weather. After the tornadoes hit all around where I live, the power infrastructure had major problems. As expected, generators were in extreme demand, none to be found in probably 100-200 miles. The storms hit Wednesday, on Thursday I had the bright idea to hit up Amazon since I had Amazon Prime. I purchased this generator and had it arrive the next day for only $4 shipping. So I have to give major credit to Amazon and their service. Instead of driving far away, battling insane crowds, and using up precious gasoline at times like these to go find a generator, I got one the next day delivered to my doorstep at a great price and barely any shipping costs!

The Generator:
It got me some basic power back up for my fridge/freezer, charge phones and things like that. I didn't really stress it that much, the priority was my fridge/freezer. But this thing did a great job. It wasn't as loud as I expected to be honest. I was highly pleased with the gas usage, it ran all night and I still had between 1/4 and 1/2 tank the next morning when I checked it. We were out of power for about 5 days, and this generator did it's job nicely. Also it's not all that heavy so it can be portable as needed. Not stout enough to power a ton of things at once, but can definitely get you by in an emergency situation.

94 of 104 people found the following review helpful

5.0 out of 5 stars Very well designed generator October 12, 2010

By wisconsin-knight

Amazon Verified Purchase

I purchased this generator because I wanted a small generator that would provide both 120 and 240 volts. You have to read the generator descriptions very carefully because they are generally written by someone who has little electrical knowledge or they are written by the company and are sometimes misleading. For instance, this generator would be rated at the surge capacity of 3500 watts by many manufacturers instead of the 3000 watts that Amazon lists. The generator started at the first pull and I purchased an RV plug to connect to the circular twistlock plug that comes with the generator. This plug costs about twenty dollars but is included with the generator. I wanted to be able to get the full output at 120 volts so I put in a call to the phone number painted on the generator and found the people manning the phones didn't know what they were talking about. I put in an inquiry at Wen's website and got a call the next day from someone who was very helpful. So here is the deal: When the 120/240 switch is set at 120, the full 25 amps is available at either of the 120 receptacles. When the switch is set at 240, 120 volts is available at the twistlock and so is 240 volts. But, since the two outputs of the generator are now in series, you can only pull reduced amperage of about 13 amps from either the 120 or 240 volts, but not both. This is a very good design and so far the generator has never failed to start on the first pull. I am very pleased with it. I have an associate degree in electronics and have a good deal of experience in this are.

52 of 59 people found the following review helpful

5.0 out of 5 stars Wen 3500 Watt Generator June 26, 2010

By Stephen Alexander North

I bought this generator at Menards in December '08. We always have power outages and the sump pit fills up quick. I wanted something small to take care of this, so I went into Menards and threw down $299 and took it home. It has been a great generator. 3500 watt surge, 3000 watt cont. It got us through a major storm in May of '09 when we were without power for about 5 days. I couldn't be happier with it. My only regret is not getting the 5500 watt unit. You MUST take care of it. Always use stabil fuel stabilizer in it. Start it once a month and run for about 15 minutes on half load. Always shut it down by turning off fuel supply and let it run out of gas. Use only synthetic oil and change and check REGULARLY. Remember, this is a chinese knockoff of a honda engine and you MUST take care of it or you won't have it as long as you should.
Also, DO NOT BACKFEED YOUR BREAKER BOX. This can and WILL KILL A LINE WORKER. You will then be held liable and spend a very long time in jail. If you don't know what backfeeding is, do a search. They make a device called a transfer switch, that is what I got and installed and it works great. It is about as much as the generator but well worth the expense. I bought a relliance unit. Product recommended.
