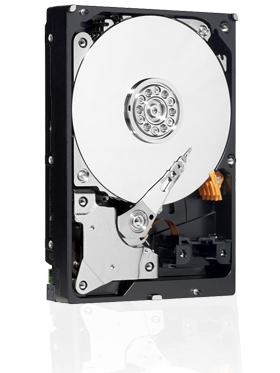

Western Digital 1 TB AV-GP SATA 3 Gb/s Intellipower 32 MB Cache Bulk/OEM AV Hard Drive- WD10EVDS

by Western Digital

Product Details

• Product Dimensions: 5.8 x 4 x 1 inches ; 1.4 pounds
• Shipping Weight: 1.5 pounds
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B002P3KO74
• Item model number: WD10EVDS
• Average Customer Review: 4.5 out of 5 stars  See all reviews (41 customer reviews)
• Date first available at Amazon.com: December 19, 2005

Product Description

From the Manufacturer

Surveillance Storage Solutions from WD.

WD hard drives designed for digital video surveillance.

Life in a desktop computer doesn't compare to the extreme environment in today's always-on, capacity-consuming digital video surveillance systems. What's needed is a hard drive engineered to thrive in a system that's running 24x7 while still offering exceptional dollars-per-gigabyte value. That's why WD has designed a line of hard drives perfect for digital video surveillance and its many unique environments and application sets.

WD's surveillance hard drives enable SDVR , CCTV , IPTV, and other digital video surveillance systems to deliver a comprehensive range of features and capabilities such as high resolution image quality, streaming video from multiple cameras, and video archiving with ultra-fast data access and on-demand video playback. Regardless of the surveillance environment, whether it's banking, casino, retail, commercial, corporate, government, or law enforcement, WD surveillance-based hard drives deliver the performance, added capacity, and enhanced reliability that surveillance applications require.

High capacity enables higher resolution

WD offers drives with up to 2 TB capacity designed for surveillance. This ground breaking capacity point enables surveillance systems with two or more cameras to record high levels of clarity (30 frames per second) at a broad range of resolution settings and still store 30 days or more of video footage.

High resolution video provides far greater detail when compared with standard low resolution video. This table illustrates the ideal capacity hard drive for a surveillance system based on resolution, video standards, recording hours, and the number of cameras being used.

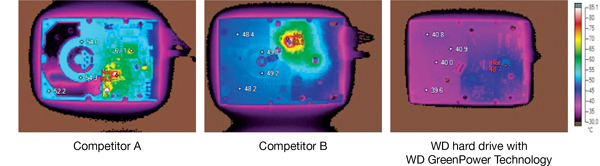

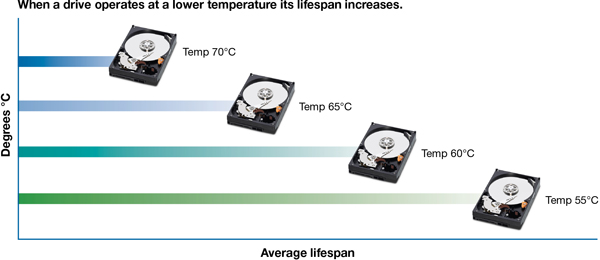

Lower temperature means greater reliability

In addition to high levels of clarity, long term reliability and low power consumption are equally critical to surveillance systems. Designed for 24x7 operation, WD drives with WD GreenPower Technology™ consume less power during spin-up and operation, minimize heat dissipation and vibration, and operate reliably without compromising performance. Reducing heat, noise, and vibration enables surveillance applications to operate more reliably over longer periods of time.

The right drive for the right application.

WD AV-GP is the perfect choice for mainstream surveillance for small businesses. Using these high-capacity drives optimized for video streaming with low power consumption and cool quiet operation enables 24x7 reliability for surveillance systems.

Features at a glance 24x7 reliability Cool running Whisper quiet

WD AV-GP is ideal for set top boxes, media servers, media centers, and mainstream surveillance systems.

Long-term reliability- these drives are designed to last in high temperature always-on streaming digital audio/video environments such as PVR/DVR, DVR recorders and surveillance video recorders.

Quiet - Noise levels have been optimized to less than one sone* - virtually below the threshold of human hearing.
* A sone is a subjective unit of loudness as perceived by a person with normal hearing.

Reduced power consumption - WD has reduced power consumption by up to 40 percent compared to competitors’ drives with the combination of WD's IntelliSeek, IntelliPark, and IntelliPower technologies.

Compatible - Tested for compatibility in a broad range of AV products including set top boxes, DVD recorders, and mainstream surveillance systems.

View IntelliSeek demo here.

SilkStream™ - Optimized for smooth, continuous digital video playback of up to twelve simultaneous HD streams. SilkStream is compatible with the ATA streaming command set so CE customers can use standard streaming management and error recovery options.

IntelliSeek™ - Calculates optimum seek speeds to lower power consumption, noise and vibration.

IntelliPower™ - A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance.

Preemptive Wear Leveling (PWL) - The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio video streaming applications.

Ideal For
Set-top boxes (PVR, DVR and IPTV), media servers, media centers, surveilance.

Product Description

Power-conserving WD AV-GP hard drives are based on the WD GreenPower Technology platform designed to deliver power savings as the primary attribute. These SATA drive are equipped with IntelliPower technology, fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance. With power reduction of up to 40 percent, they deliver cool and quiet operation and reliability that is perfect for audio video applications such as PVRs, DVRs, set-top boxes (STBs) as well as surveillance video recording.

Customer Reviews

Most Helpful Customer Reviews

34 of 35 people found the following review helpful:

5.0 out of 5 stars Good Drive for Tivo HD Upgrade - But Extra Effort Required, January 31, 2010

By

Paul Kackert - See all my reviews
(REAL NAME)

This review is from: Western Digital 1 TB AV-GP SATA 3 Gb/s Intellipower 32 MB Cache Bulk/OEM AV Hard Drive- WD10EVDS (Personal Computers)

When I ordered a WD10EVDS drive to upgrade my Tivo HD, I was aware of the hanging soft reboot issue with drives manufactured after October 2009. The drive I received was manufactured in December 2009. Before putting the drive into service, I disabled the Intellipark feature that is reportedly causing the issue. I used the wdidle3.exe program from Western Digital to disable it based on info posted at [...] as a guideline. I deviated from the instructions posted on the forum by putting the wdidle3.exe program on a bootable USB drive rather than a bootable CD. Also, the instructions stated that running "wdidle3 /D" would disable Intellipark. This did NOT work on my WD10EVDS drive. However, I experimented and found that running "wdidle3 /S0" did successfully disable the Intellipark feature. I had no issues executing the actual drive upgrade instructions shown on the same forum page. I used a USB/SATA adapter to connect the Tivo drives while running the WinMFS program. I verified that the Tivo does not hang during soft reboots.

I recommend this drive for Tivo HD upgrade only if you are computer savvy. I suspect that most folks willing to tackle a Tivo drive upgrade also have enough computer experience to disable Intellipark. The hardest part of disabling the Intellipark feature was creating bootable media to run wdidle3.exe. The instructions posted on the forum implied (or at least I inferred) that simply burning the ISO image to a CD would create a bootable disk. This was not my experience. None of the system files required for bootable media were present on the ISO. At that point I elected to put wdidle3.exe on a DOS bootable USB drive that I created.

I am VERY satisfied with this drive. It is extremely quiet and has performed well to date. I plan to purchase another WD10EVDS to upgrade a second Tivo HD unit.

6 of 6 people found the following review helpful:

5.0 out of 5 stars Great TiVo HD upgrade, January 31, 2010

By

TechShopper1 "TechShopper1" (Portland, OR) - See all my reviews

Amazon Verified Purchase

This review is from: Western Digital 1 TB AV-GP SATA 3 Gb/s Intellipower 32 MB Cache Bulk/OEM AV Hard Drive- WD10EVDS (Personal Computers)

I have a TiVo HD with My DVR Expander. "My DVR Expander" broke after 1 yr. Decided to replace the internal 160GB with this. It's awesome!

PRO:
* Taking out My DVR Expander so 1 less power cord to deal with, less clutter in area
* Lower power consumption than the 160GB drive it replaced.
* Technically, according to spec, lower noise than the orig 160GB drive.
* TiVo UI is more responsive (though possibly, it may be bec the 1 TB drive is not full yet so TiVo is not busy doing background work to optimize).

CON
* None (other than the hassle of setting up your PC to do WinMFS).

This is the right type of hard drive for this type of application (DVR).

5 of 5 people found the following review helpful:

5.0 out of 5 stars Random Reboots on a TiVO HD - this is just what the doctor ordered, January 27, 2011

By

Daniel G. Lebryk (Chicago) - See all my reviews
(TOP 50 REVIEWER)    (REAL NAME)

Amazon Verified Purchase

This review is from: Western Digital 1 TB AV-GP SATA 3 Gb/s Intellipower 32 MB Cache Bulk/OEM AV Hard Drive- WD10EVDS (Personal Computers)

After two years, my 500Gb WD DVR Extender started to give up the ghost - the TiVO would randomly reboot about twice a day while watching television. So I decided to go down the path of internal drive replacement. There are other options to purchase a drive with the TiVO system installed, but they have their own bear traps.

This is exactly the drive to buy for a TiVO HD or Series 3. 1Tb is the simple size limit. There are incredibly detailed instructions on how to do the swap at TiVO Community. Critical pieces, you need Torx #10 and #15 drivers to open the case and remove the hard drive from the bracket.

There's one small nuance with this drive, it is a Green drive so it has a firmware setting that makes it slow down or idle when it is not in use. If this setting is not disabled, any time you restart the TiVO from the Settings Menu, it will not start properly. Simply unplugging the TiVO and plugging it back in will work just fine. It causes absolutely no other issues - if you can live with restart by unplugging, don't bother with the firmware setting.

The hard part of fixing the firmware is finding a computer with SATA that can boot from a DOS CD. Once you download wdidle with the bootable CD image, burn the CD, connect the drive to a spare SATA port, boot the computer from that CD, and type in the correct run string; the fix is incredibly simple. I think it took about 30 seconds to fix the idle setting.

Using the copy tools listed at TiVO Community couldn't be easier. It's scary when the instructions are accurate to the letter. The place where the software is posted is kind of ancient and requires registration. It took about an hour or two before I finally got the registration activation email. It's a good idea to download all this before you open up your TiVO.

If you've ever upgraded a graphics card on a PC, you can very easily do this job. The cheapest path is to use a stray SATA port on your computer and not monkey with SATA to USB adapters. However, if you don't want to open your computer case, the adapters work just fine.

Opening the TiVO is pretty easy. There are a set of #10 Torx screws on the back. The cover pops off easily. You'll be amazed how little stuff is inside a TiVO. I was also surprised my 3 year old TiVO wasn't full of dust bunnies - it was amazingly clean. The SATA / power supply secure connector pops right of the hard drive. Four #10 Torx screws hold the drive bracket down. Flip that over and four #15 Torx screws hold the drive to the bracket (there are rubber grommets to quiet the drive somewhat). Reverse all that with the new drive. Plug in the TiVO and it will be back up like new.

Honestly, the most difficult part of this project, trying to decide when to unmarry my extender from my TiVO. You lose all your recorded programs when you do this. There is no way around it. If you want to keep any programs, you have to use TiVO desktop, copy them to your computer, then copy them back when you do the upgrade. There is absolutely no way to save your recorded programs otherwise.

This is an upgrade I should have done long ago. The drive is fantastic, it flat out just works. And I have a bunch more hours of HD recording now.
