- Portable gas-powered generator with 292cc XP Series engine
- 4,500 running watts of power and maximum starting output of 5,600 watts
- All-steel control panel with full enclosure; certified by EPA for emissions compliance
- High-efficiency alternator with low-loss laminations that increase electrical output
- Measures 20.5 x 22 x 27.2 inches (W x H x D); weighs 152 pounds; 3-year limited warranty
Product Features |
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
Amazon.com Product Description
Powerful, efficient, and reliable, the Westinghouse WH4500 portable gas-powered generator keeps the electricity flowing regardless of the circumstance. House remodel requires the power to be shut off? Your refrigerator and freezer will keep foods cold. Downed power lines from a snowstorm? Your lights will stay on and your house warm. Even remote projects are possible with the WH4500.

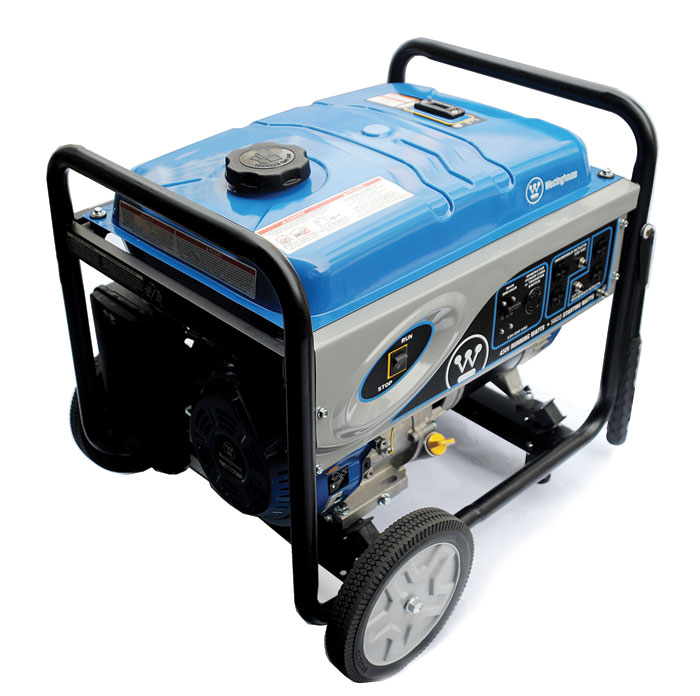

The WH4500 generator is compact enough to bring to the jobsite or other remote locations. (View larger).
Keep Your Motor Running
EPA emissions certified, the WH4500 delivers 4,500 running watts of power and a maximum starting output of 5,600 watts, making it ideal for items with moderate power needs. Powered by a 292cc Westinghouse XP Series engine, the WH4500 includes such features as an easy-access air filter element that allows for quick servicing, a comfort-grip recoil handle and compression release for easy starting, and an overhead valve design to ensure performance and durability. The contractor-proven engine is also built to last, with cast-iron cylinder sleeves, forged pistons and connecting rods, and a transistorized ignition. (Westinghouse also sells a model that's both EPA and CARB compliant, the WH4500C).

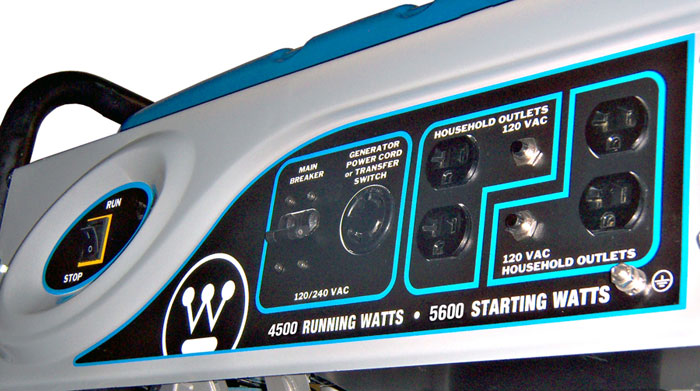

The all-steel control panel holds up against debris and nasty weather. (View larger).
High-Performance Alternator
The WH4500's alternator is extremely efficient, with low-loss, high-efficiency laminations that increase electrical output and decrease fuel consumption. Westinghouse also added high-performance alternator varnish to guarantee superior heat-resistance, along with cast-iron fan guards to ensure safe operation. Best of all, the generator handles the toughest tasks without pause. The generator's maintenance-free brush excitation eliminates down time, while the automatic voltage regulation helps the generator accommodate more demanding applications.
Tough Control Panel
Portable generators need to handle tough conditions, which is why Westinghouse equipped the WH4500 with an all-steel control panel with a full enclosure to protect it from debris and nasty weather. The panel enjoys additional corrosion-resistance thanks to the two-part primer and powder coat finish. Other features include a 1/4-turn Nema twist lock connector, a toggle mainline 240-volt circuit breaker for safety, and two 120-volt pushbutton circuit breakers for overcurrent protection.
Easy Operator Features
The WH4500 is easy to use and transport. The generator includes an intuitive interface with color-coded touch points, along with ergonomically designed dual folding handles and never-flat tires. Whether the terrain is flat or wildly uneven, the WH4500 rolls easily to the job site.
What's in the Box
WH4500 gas-powered generator, wheel and handle kit, tool kit, oil, funnel, and owner's manual
Selecting the Right Generator
Portable generators can handle all sorts of tasks--from managing power outages to powering home appliances, power tools, electronics, and more. However, it's important to select the right generator for your needs. Start by determining the starting watts for the item you want to start. Why? Some devices draw additional power when starting, which you need to add to the power needs of the other items running at the same time.
Westinghouse Generator Comparison
WH4500 /WH4500C  | WH6000 /WH6000C  | WH7000 /WH7000C  | WH7000E /WH7000EC  | |
| Rated watts | 4,500 | 6,000 | 7,000 | 7,000 |
| Starting watts | 5,600 | 7,500 | 8,500 | 8,500 |
| Engine displacement | 292cc | 357cc | 420cc | 420cc |
| Engine type | OHV, 4-stroke | OHV, 4-stroke | OHV, 4-stroke | OHV, 4-stroke |
| Engine rpm | 3,600 | 3,600 | 3,600 | 3,600 |
| Engine lubrication | Oil splash | Oil splash | Oil splash | Oil splash |
| Fuel shutoff | Manual | Manual | Manual | Manual |
| Choke | Manual | Manual | Manual | Manual |
| Starting | Manual | Manual | Manual | Manual |
| Engine protection | Low oil shutdown | Low oil shutdown | Low oil shutdown | Low oil shutdown |
| Emissions | EPA (default); CARB (C model) | EPA (default); CARB (C model) | EPA (default); CARB (C model) | EPA (default); CARB (C model) |
| Outlets (4) | 5-20R, 120V | 5-20R, 120V | 5-20R, 120V | 5-20R, 120V |
| Outlets (1) | L14-30R, 120/240 twist | L14-30R, 120/240 twist | L14-30R, 120/240 twist | L14-30R, 120/240 twist |
| Fuel capacity | 6.6 gallons | 6.6 gallons | 6.6 gallons | 6.6 gallons |
| Fuel type | Regular unleaded | Regular unleaded | Regular unleaded | Regular unleaded |
| Run time (50% load) | 16 hours | 12 hours | 11 hours | 11 hours |
| Oil capacity | 1.05 quarts | 1.05 quarts | 1.05 quarts | 1.05 quarts |
| Frame thickness | 32mm | 32mm | 32mm | 32mm |
| Ground | Bonded neutral | Bonded neutral | Bonded neutral | Bonded neutral |
| Outlet protection | Circuit breaker | Circuit breaker | Circuit breaker | Circuit breaker |
| Wheel type | Solid | Solid | Solid | Solid |
| Dimensions | 20.5 x 22 x 27.2 inches (W x H x D) | 20.5 x 22 x 27.2 inches | 20.5 x 22 x 27.2 inches | 20.5 x 22 x 27.2 inches |
| Weight | 152 pounds | 174 pounds | 178 pounds | 194 pounds |
| Warranty | 3 year limited | 3 year limited | 3 year limited | 3 year limited |
Product Description
Model WH4500 includes the Westinghouse, 292 cc, OHV engine, designed for power and durability with oversized muffler and catalyst for quiet operation. Unit also includes EZ start, color-coded starting controls and customer service at 1-855-WH-HELP-1 (944-3571). Easy to operate with simplified power control center and a 3-year limited warranty. Includes never-flat tires, high-leverage handles, tool kit, first liter of oil and funnel to get you started.
