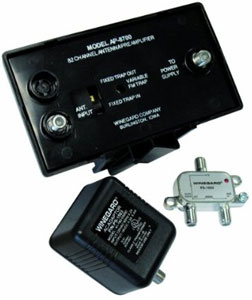

Winegard ANWI8700 Winegard AP Signal Amplifier

by WINEGARD

Product Details

• Product Dimensions: 1 x 11 x 9 inches ; 1.2 pounds
• Shipping Weight: 2 pounds (View shipping rates and policies)
• Shipping: This item is also available for shipping to select countries outside the U.S.
• ASIN: B001DFZ5EW
• Item model number: ANWI8700
• Average Customer Review: 3.9 out of 5 stars  See all reviews (130 customer reviews)
• Amazon Best Sellers Rank:
  • #5 in Electronics > Accessories & Supplies > Audio & Video Accessories > Antennas > TV Antennas
  • #62 in Electronics > Televisions & Video > Television Accessories

Product Description

From the Manufacturer

Winegard HDTV Antenna Preamplifiers are engineered to the highest specifications ensuring consistent signal amplification performance. The Winegard AP-8700 preamplifier is specifically designed to amplify DTV signals at the antenna 17 dB on VHF frequencies, and 19 dB on UHF frequencies, boosting the digital signal to overcome any cable or splitter loss in your TV antenna system and minimize dropouts.

Boost digital signal to overcome any cable or splitter loss in your TV antenna system

In a low signal area, a setup with long cable runs, or a multiple TV system, the AP-8700 preamp may be the solution you need for a perfect digital picture. Winegard AP series preamps are constructed of tough, high-impact ABS material and the zinc plated steel hardware ensure electronic parts are safe from the elements. They feature a selectable and tunable FM trap to reduce strong local FM stations from interfering with your perfect digital picture. They also employ specialized circuitry featuring an ultra-fast recovery diode. A power supply and mounting hardware are included.

Minimize HDTV Signal Dropouts

The Winegard series of pre-amplifiers feature a 75-Ohm input with flexible polyethylene boot covers for convenience and easier installation. The universal housing can be used with any off-air TV antenna. Made of high-impact ABS material, the Winegard pre-amplifier can be mast mounted for easy installation. The AP8700 comes with zinc-plated steel hardware, and all mounting hardware is included.

A selectable FM trap reduces FM signals (88-108 MHz) by -15 dB to prevent overload. A tunable FM trap reduces a 3 MHz band width by -12 dB. Both are adjustable and switchable without opening the housing.

Transistor burn-out is virtually eliminated with specialized circuitry featuring a fast recovery diode that protects against lightning-caused pulses. The pre-amplifier has an operating temperature range of -40 to +140 degrees F, and a 117 VAC, UL, and CSA-approved power supply is included. (Does not include F-connectors.)

Note: Preamplifiers and/or amplifiers only amplify the signal your antenna receives. They cannot extend the receiving range of an antenna or help pull in signal. Also, do not use the higher gain models within 35 miles of your transmitters.

What's in the Box?

Winegard AP-8700 Pre-Amplifier, PS-1403 power supply, power injector, 6-foot coax cable, mounting hardware, instructions.

Product Description

Features 75 or 300 ohm input for convenience and easier installation. Universal housing can be used with any off-air TV antenna. Made of high impact ABS material, mast mounted for easy installation. Flexible polyethylene boot covers on 75 ohm; hinged cover on 300 ohm models keep connections clean, dry, weather-protected. Zinc-plated steel hardware.General Information--Product Model--AP-8700::General Information--Product Name--AP-8700 Signal Amplifier::Miscellaneous--Country of Origin--United States::Warranty--Standard Warranty--90 Day::Technical Information--Frequency Range--88 MHz to 108 MHz::Technical Information--Impedance--75 Ohm::Technical Information--Signal Loss--3 dB::Technical Information--Gain--17 dB - VHF, 19 dB - UHF::

Customer Reviews

Most Helpful Customer Reviews

195 of 200 people found the following review helpful:

5.0 out of 5 stars Do it right, April 27, 2010

By

Clyde Havard (DALLAS) - See all my reviews
(REAL NAME)

Amazon Verified Purchase

This review is from: Winegard ANWI8700 Winegard AP Signal Amplifier (Electronics)

TV Antenna Source said this about install of TV antenna amplifier.
The TV signal from your TV antenna becomes weaker as it travels through the coax cable to your TV.The farther it must travel the weaker it becomes. Signal splitters also weaken the signal. The more times the signal is divided the weaker it becomes. The splitter itself creates the signal loss, it doesn't matter if the TV's are on or off or even if all of the connections on the splitter are used the loss still occurs, it's called insertion loss. The line loss that occurs getting the signal from the TV antenna to the TV or TV's can be overcome by installing a preamplifier near the TV antenna amplifying the signal before the signal loss occurs.

The degree a signal amplifier increases the signal strength is measured in decibels (dB). The higher the amplifiers dB rating is the greater the strength of the signal is increased. "Wait a minute, I know what your thinking "I'll just get the biggest high output amplifier I can get and that will solve all my problems. I have one word for you, OVERLOAD. When too much signal is present overload can and does happen. Signal overload can occur in the amplifier, the TV tuner or both. Use the guidelines below, to select the proper amplifier for your system.

Selecting the correct TV antenna amplifier is a simple mathematical process.

Add-up the total amount of signal decibel loss that will occur as the signal travels from the TV antenna to the TV with the longest cable run. Add the signal loss from the cable length and any splitters between the antenna and the TV. Choose the amplifier with the dB gain rating that is from 5 to 10dB greater then the total loss. EXAMPLE: 100 feet of coax cable and a 2 way splitter have a signal dB loss of 8.7 dB. Also VCR's and other such devices that the signal travels through create minor signal losses. A perfect amplifier match for the above example would be the Winegard AP 8700. The 8700 amplifier has a gain rating of 19dB.

AVERAGE LOSS PER 100 FEET OF RG6 COAX CABLE IS 5 dB
2 way splitter 3.7 db
3 way splitter 7.5 db
4 way splitter 7.5 db
6 way splitter 13 db
8 way splitter 13.5 db
