Technical Details
- Simple installation: the installation of network cameras is very simple, only power and networks connection are needed.
- Scope of applications: apply to home, offices, enterprises, supermarkets, schools and other public places.
- Supporting multiple protocols: Embedded operation system supports the TCP / IP, SMTP (simple mail protocol), HTTP, UPNP, etc.
- Alarm Monitoring: Through external alarm device, the alarm information can be sent to your e-box or your mobile phone.
- If WIFI wireless connection is used, only power is a must.
Product Details
Would you like to update product info or give feedback on images?
|

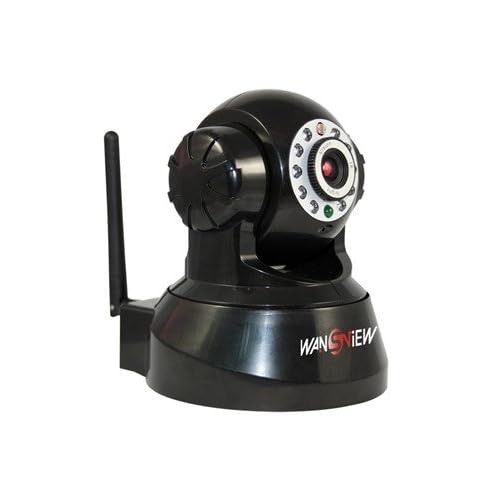

Product Description
Specs:
Image Compression Format: M-JPEG standard
Image Resolution: VGA(640x480) / QVGA(320x240)
Sensor: 1/4 inch CMOS, 300,000 Pixels
Light frequency: 50Hz, 60Hz or Outdoor
Audio compression: ADPCM
Data rate: 802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.)
Ethernet: One 10/100Mbps RJ-45
Viewing angle: 67?
Horizontal Rotating Angle: 0~270?
Vertical Rotating Angle: 0~120?
Alarm Mode: motion detection alarm and I/O alarm
Video Display: Microsoft Media Player
Image Transfer Velocity: 30fps @ VGA
Image Display: single / quad
Minimum Illumination: 0LUX
Video Format: AVI
Network Interface: Wi-Fi/RJ-45 10-100 Base T
Network Protocol: TCP/IP, FTP,SMPT, HTTP, ICMP, PPPoE
Monitor Mode: Firefox
Software Upgrade: Automatic upgrade
Security: User management system, password protection
Password Setting: administer, monitor, scrutiny
Working Condition: -10?C~ 50?C , 20% - 80%PH
Power Adapter: DC5V/2A 50/60Hz
Operating System: Windows 2000/Windows XP/Windows 7 and Apple MAC
?
Package includes:
1 x IP Camera
1 x Antenna
1 x Base
1 x Power Adapter
1 x Network Cable
1 x CD Driver
Screws
Review
Works under both Apple MAC and Safari. However, browser must be run under Firefox. To choose your browser, please enter into the IP camera home page and select Firefox
Customer Reviews
Most Helpful Customer Reviews
172 of 181 people found the following review helpful
Amazon Verified Purchase
The camera I got was branded EasyN, but the box art shown on the product info page matches the box I got. Some people claim they have Foscam, Apexis, Hootoo, etc. brand, but I think it's the same camera branded in different brands to accommodate different markets. I admit, it would HELP if you are tech savvy or at least have some knowledge in network configuration to expedite the set up and get the camera running, but that's not required. This camera isn't exactly the most fool-proof camera in the market, but its feature make up for it.
The instructions are readable, albeit choppy due to the poor Chinese-to-English translation. OK here's the deal. I'm going to write a lengthy semi-review, semi-how-to for this awesome IP camera seeing the need for an instruction for Mac users. First of all, I am a Mac user running on OS X 10.7.2 Lion and I got this bad boy up and running within an hour. For all you Mac users out there, you'll need to have temporary access to a Windows machine.
If you don't have a Windows machine, see UPDATE 4 at the end of this review - then follow steps 3 and forward. I'm writing this review under the presumption that the typical user has no knowledge of MAC access control list or WiFi DHCP client table from your router to set-up the camera it via WiFi. You need it to run the application that allows you to detect and configure the camera's IP. Unfortunately, this application is written for Windows only. But that's all you need a Windows machine for. Once you configure the camera's IP address to work with your LAN, then you can use the web interface and configure a whole sleuth of other options, including the alarm feature, FTP, Mail and other. So without adieu, let's do this!
I've taken screenshots to help accommodate the mini guide below. So check out the user-submitted images for 7+ images I've added for directions on how to proceed. The instruction is for connecting the camera to a LAN - I chose this route because my WiFi network is secured over several layers of security (Sonic Wall fire wall, MAC control, etc.) and it's just easier to get the cam up and running through the LAN.
0.) Connect your IP camera to your LAN via ethernet and plug in the power supply.
1.) Get access to a Windows machine. I dual-booted to Windows Vista via Boot Camp. Make sure this Windows machine has access to your LAN.
2.) Run the application with the file name, DevFind.exe - you can find it in the directory, /EasyN F2 series IP camera installation CD/software. My included install disc was a blank CD-R disc!!! so I had to download the CD content ZIP from the manufacturer's web site: "easyntech . com / ShowDownload . asp ? id = 34" you can download the manuals in PDF format from the site too).
3.) Run the DevFind.exe to locate your camera, then modify the camera's IP address so that it matches your LAN's IP range structure, subnet mask and gateway. The default IP address assigned to the camera should be indicated in a silver sticker located underneath the camera. The same sticker can also be found on the exterior of the box. Basically, the default IP should be something along the line of 192 . 168 . 1 . 126 and access port 81 (it could be different). Since my LAN's IP range structure is 192.168.0.x, I have assigned the camera an IP address of 192 . 168 . 0 . 155. I changed out the default port of 81 to 310. Understand me so far? Once you got that down, click on the "APPLY" button to make the changes.
4.) Click on the "OTHERS" tab under the Equipment Information field. Take note of the information located in the "MAC" field, it should be a 12 letter/number string of characters.
5.) If you have access controlled enabled in your router, then follow this step. If not, you can skip. What access control means is you only allow certain network devices permission to connect to your LAN. Even if the connecting client knows your WEP/WPA/WPA2 password, they still will not be able to connect to your Wi-Fi unless their device is registered to the access control list. The unique identifier of the network device is its MAC address. If you have this enabled, then add the camera's MAC address you've just jotted down in the previous step to your router's access control list. The convention should be XX:XX:XX:XX:XX:XX where X is a number or a character from the alphabet. So if your camera's MAC address is 00A8F700F341, enter it as 00:A8:F7:00:F3:41 Update and restart your router after entering. If you have the means to reserve IP address designation on your router, I would do so. Since I assigned the camera an IP address of 192 . 168 . 0 . 155, I would reserve this address on the router to the camera's MAC address so that this IP doesn't get reassigned by the DHCP to another network device by accident.
6.) You'll definitely need to port-forward your camera if you plan to remote view from outside. In your router setup, go to the "Port Forwarding" page - it's usually under "Advanced setup" or something similar. Since I assigned the camera a custom port of 310, I would enter the port range starting and ending at 310 to be forwarded to the camera's IP address of 192 . 168 . 0 . 155 .
7.) Next, you should be able to punch in the IP address and port number you've assigned to the camera as noted on step #3 onto your web browser and launch the web-based utility app e.g. http:// 192 . 168 . 0 . 155:310. When you first try to access the camera through a web browser, it will ask you for a username and a password. This information is located underneath the camera and also on the box. It's usually "admin" for the username and a blank password, but double check your equipment.
8.) Select the viewing method; if you are using IE select the first link, if you're using Firefox, select the second link, etc.
9.) View your camera, control it, etc
10.) Click on the OPTIONS icon to access the web-based configuration app, or punch in http:// 192 . 168 . 0 . 155:310 /admin2.htm to access it directly
11.) Configure all sorts of other goodies, such as FTP access, Email, alarm, DDNS, Alias, etc.
12.) If you want to view your camera from remote (i.e. outside of your home network), assuming you have a static IP, then you need to punch in your ISP assigned IP address, followed by your port. You can find out your ISP assigned address by going into your router and looking at the information located in the "basic setting" area. Thanks to daniel for pointing this out. If you have a dynamic IP address, then I recommend signing up for a dynamic DNS server, such as dyndns.org. Be sure to update the DDNS area of the web utility with the appropriate login credential to your dynamic DNS provider.
I'm working on the wireless LAN setup, so I'll edit this review once I have a sure fire way to set it up so I can append a simple how-to to help folks get started. Any question, just comment. Again, this is from a Mac OS X Lion 10.7.2 user (at the time of this writing).
Since I am a Mac user, the IP Camera utility is USELESS (unless you're using Parallel or Fusion to run Windows). I rely solely on the web-based interface to view the camera. It works like a charm so far. The camera's pan and tilt feature is SUPER fast. Of course, that's because I set it at the fastest level; you can set it according to your taste. You can set up the Alarm feature so that its motion detector can pick up motion contingent on how sensitive you set the camera to behave. Once the alarm mode is triggered, you can further instruct the camera to upload screenshots at set intervals to an FTP server and/or email you the screenshots to an email address (see pictures). You certainly don't need to be Cisco or A+ certified to get this camera to work.
EDIT: As for scheduling the motion-detector, it works if you set it correctly. From the web-configuration utility, click on "Alarm Service Setting." Set the sensitivity level, etc., then check if you want to have the camera email you and/or take screenshots of events triggering the alarm and upload to a designated FTP server. I checked both. For the scheduler, check "Scheduler" to bring up a week calendar with hour. Click on the hours you'd like the camera to trigger its motion-detector, then press "Set". Note that the alarm mode won't go into affect after about 30 seconds after rebooting. I didn't know this at first and thought this feature was defunct from factory. I'm guessing the camera is giving you time to evacuate the premise before arming itself. The scheduling calendar is very cumbersome, so it's probably easier to just turn on or turn off the motion detector.
Also since you need Internet Explorer to use the ActiveX enabled web interface, Mac users will luck out. The IE version of the web interface allows you to record video (AVI format), take a snapshot, listen and talk through your camera, along with the ability to command multiple cameras. It also appears that the remote on/off switch works with the ActiveX IE control interface, but doens't for the other interfaces. I haven't had time to fully test them.
UPDATE 2: I live in an apartment complex where I gave permission to the leasing staff to deliver packages into my apartment when I am not home to sign for it. I set up the camera for motion detection and it picked up the delivery, snap a few shots and emailed to me in addition to continuously snapping shots in 5 seconds interval and uploading it to the FTP server. Simply awesome for $5x.00.
I'm so impressed with this camera I'll be purchasing two more units, possibly in white so they can blend with the white walls.
UPDATE 3: For WiFi, make sure your router is 802.11 a/b/g compatible and set at 2.4ghz frequency. The IP camera will not pick up your router if it's set at 5 ghz at N-mode only. Read more ›
The instructions are readable, albeit choppy due to the poor Chinese-to-English translation. OK here's the deal. I'm going to write a lengthy semi-review, semi-how-to for this awesome IP camera seeing the need for an instruction for Mac users. First of all, I am a Mac user running on OS X 10.7.2 Lion and I got this bad boy up and running within an hour. For all you Mac users out there, you'll need to have temporary access to a Windows machine.
If you don't have a Windows machine, see UPDATE 4 at the end of this review - then follow steps 3 and forward. I'm writing this review under the presumption that the typical user has no knowledge of MAC access control list or WiFi DHCP client table from your router to set-up the camera it via WiFi. You need it to run the application that allows you to detect and configure the camera's IP. Unfortunately, this application is written for Windows only. But that's all you need a Windows machine for. Once you configure the camera's IP address to work with your LAN, then you can use the web interface and configure a whole sleuth of other options, including the alarm feature, FTP, Mail and other. So without adieu, let's do this!
I've taken screenshots to help accommodate the mini guide below. So check out the user-submitted images for 7+ images I've added for directions on how to proceed. The instruction is for connecting the camera to a LAN - I chose this route because my WiFi network is secured over several layers of security (Sonic Wall fire wall, MAC control, etc.) and it's just easier to get the cam up and running through the LAN.
0.) Connect your IP camera to your LAN via ethernet and plug in the power supply.
1.) Get access to a Windows machine. I dual-booted to Windows Vista via Boot Camp. Make sure this Windows machine has access to your LAN.
2.) Run the application with the file name, DevFind.exe - you can find it in the directory, /EasyN F2 series IP camera installation CD/software. My included install disc was a blank CD-R disc!!! so I had to download the CD content ZIP from the manufacturer's web site: "easyntech . com / ShowDownload . asp ? id = 34" you can download the manuals in PDF format from the site too).
3.) Run the DevFind.exe to locate your camera, then modify the camera's IP address so that it matches your LAN's IP range structure, subnet mask and gateway. The default IP address assigned to the camera should be indicated in a silver sticker located underneath the camera. The same sticker can also be found on the exterior of the box. Basically, the default IP should be something along the line of 192 . 168 . 1 . 126 and access port 81 (it could be different). Since my LAN's IP range structure is 192.168.0.x, I have assigned the camera an IP address of 192 . 168 . 0 . 155. I changed out the default port of 81 to 310. Understand me so far? Once you got that down, click on the "APPLY" button to make the changes.
4.) Click on the "OTHERS" tab under the Equipment Information field. Take note of the information located in the "MAC" field, it should be a 12 letter/number string of characters.
5.) If you have access controlled enabled in your router, then follow this step. If not, you can skip. What access control means is you only allow certain network devices permission to connect to your LAN. Even if the connecting client knows your WEP/WPA/WPA2 password, they still will not be able to connect to your Wi-Fi unless their device is registered to the access control list. The unique identifier of the network device is its MAC address. If you have this enabled, then add the camera's MAC address you've just jotted down in the previous step to your router's access control list. The convention should be XX:XX:XX:XX:XX:XX where X is a number or a character from the alphabet. So if your camera's MAC address is 00A8F700F341, enter it as 00:A8:F7:00:F3:41 Update and restart your router after entering. If you have the means to reserve IP address designation on your router, I would do so. Since I assigned the camera an IP address of 192 . 168 . 0 . 155, I would reserve this address on the router to the camera's MAC address so that this IP doesn't get reassigned by the DHCP to another network device by accident.
6.) You'll definitely need to port-forward your camera if you plan to remote view from outside. In your router setup, go to the "Port Forwarding" page - it's usually under "Advanced setup" or something similar. Since I assigned the camera a custom port of 310, I would enter the port range starting and ending at 310 to be forwarded to the camera's IP address of 192 . 168 . 0 . 155 .
7.) Next, you should be able to punch in the IP address and port number you've assigned to the camera as noted on step #3 onto your web browser and launch the web-based utility app e.g. http:// 192 . 168 . 0 . 155:310. When you first try to access the camera through a web browser, it will ask you for a username and a password. This information is located underneath the camera and also on the box. It's usually "admin" for the username and a blank password, but double check your equipment.
8.) Select the viewing method; if you are using IE select the first link, if you're using Firefox, select the second link, etc.
9.) View your camera, control it, etc
10.) Click on the OPTIONS icon to access the web-based configuration app, or punch in http:// 192 . 168 . 0 . 155:310 /admin2.htm to access it directly
11.) Configure all sorts of other goodies, such as FTP access, Email, alarm, DDNS, Alias, etc.
12.) If you want to view your camera from remote (i.e. outside of your home network), assuming you have a static IP, then you need to punch in your ISP assigned IP address, followed by your port. You can find out your ISP assigned address by going into your router and looking at the information located in the "basic setting" area. Thanks to daniel for pointing this out. If you have a dynamic IP address, then I recommend signing up for a dynamic DNS server, such as dyndns.org. Be sure to update the DDNS area of the web utility with the appropriate login credential to your dynamic DNS provider.
I'm working on the wireless LAN setup, so I'll edit this review once I have a sure fire way to set it up so I can append a simple how-to to help folks get started. Any question, just comment. Again, this is from a Mac OS X Lion 10.7.2 user (at the time of this writing).
Since I am a Mac user, the IP Camera utility is USELESS (unless you're using Parallel or Fusion to run Windows). I rely solely on the web-based interface to view the camera. It works like a charm so far. The camera's pan and tilt feature is SUPER fast. Of course, that's because I set it at the fastest level; you can set it according to your taste. You can set up the Alarm feature so that its motion detector can pick up motion contingent on how sensitive you set the camera to behave. Once the alarm mode is triggered, you can further instruct the camera to upload screenshots at set intervals to an FTP server and/or email you the screenshots to an email address (see pictures). You certainly don't need to be Cisco or A+ certified to get this camera to work.
EDIT: As for scheduling the motion-detector, it works if you set it correctly. From the web-configuration utility, click on "Alarm Service Setting." Set the sensitivity level, etc., then check if you want to have the camera email you and/or take screenshots of events triggering the alarm and upload to a designated FTP server. I checked both. For the scheduler, check "Scheduler" to bring up a week calendar with hour. Click on the hours you'd like the camera to trigger its motion-detector, then press "Set". Note that the alarm mode won't go into affect after about 30 seconds after rebooting. I didn't know this at first and thought this feature was defunct from factory. I'm guessing the camera is giving you time to evacuate the premise before arming itself. The scheduling calendar is very cumbersome, so it's probably easier to just turn on or turn off the motion detector.
Also since you need Internet Explorer to use the ActiveX enabled web interface, Mac users will luck out. The IE version of the web interface allows you to record video (AVI format), take a snapshot, listen and talk through your camera, along with the ability to command multiple cameras. It also appears that the remote on/off switch works with the ActiveX IE control interface, but doens't for the other interfaces. I haven't had time to fully test them.
UPDATE 2: I live in an apartment complex where I gave permission to the leasing staff to deliver packages into my apartment when I am not home to sign for it. I set up the camera for motion detection and it picked up the delivery, snap a few shots and emailed to me in addition to continuously snapping shots in 5 seconds interval and uploading it to the FTP server. Simply awesome for $5x.00.
I'm so impressed with this camera I'll be purchasing two more units, possibly in white so they can blend with the white walls.
UPDATE 3: For WiFi, make sure your router is 802.11 a/b/g compatible and set at 2.4ghz frequency. The IP camera will not pick up your router if it's set at 5 ghz at N-mode only. Read more ›
35 of 38 people found the following review helpful
Amazon Verified Purchase
Now that I have it configured, this product performs admirably. Had a heckuva time getting it to work with my wireless LAN - every time that the Ethernet (Cat 5) cable was pulled the connection died because the router wouldn't assign a wireless LAN IP. Turns out that the unit will not enable the assigning of a wireless IP if the router has MAC filtering enabled. Disabled MAC filtering and Voila! - the wireless IP was assigned and the camera is working perfectly locally as well as over the Internet via dyndns. Satisfied customer.
14 of 14 people found the following review helpful
Amazon Verified Purchase
Camera is awesome! I read all the reviews and was not too concerned about not having audio. I do want to say I got HOOTOO brand and it works flawlessly with the Iphone CamViewer (free app).
I didn't even need to read the instructions because it was that easy to setup.
I have all MAC computers works fine with them. You just need to know networking.
After plugging into the router (you must do this to setup the wireless), checked out DHCP Clients Table. It was listed as IPCam_#### (where #### is the wired interface's mac address). Send browser to that IP and login (I guessed admin and no password.... voila).
You also do not have to leave your MAC filter off... add this things MAC address to your filter then turn it back on.
If you can setup a router, you can set this up.
I didn't even need to read the instructions because it was that easy to setup.
I have all MAC computers works fine with them. You just need to know networking.
After plugging into the router (you must do this to setup the wireless), checked out DHCP Clients Table. It was listed as IPCam_#### (where #### is the wired interface's mac address). Send browser to that IP and login (I guessed admin and no password.... voila).
You also do not have to leave your MAC filter off... add this things MAC address to your filter then turn it back on.
If you can setup a router, you can set this up.
Most Recent Customer Reviews
Great !
Good product, does what the item description says - very pleased. use it at home and it works fine. Thinking about getting another one, as a add on unit.
Published 11 hours ago by Weldon R. Desouza
DO NOT BUY
Short version - It took me so long to actually get this working due to the technical hurdles that when it broke, my return window expired and I'm stuck with it. Read more
Published 1 day ago by Jeff
Pleased with Camera
As other reviewers note, instructions are not terribly clear, but coupled with other reviewers guidance, I had this up and running withing 10 mins. Read more
Published 2 days ago by cmontana
wireless ip cam
I got the Wireless IP pan/tilt/Night vision internet surveillance camera. The product was a little tricky to install; but if you follow the directions ( A little broken as... Read more
Published 2 days ago by aerospaced
Really is good for the money
Yes, the directions are awful. However, if you know a thing or two about network setup and are patient, it's really not that bad at all. Read more
Published 3 days ago by T. Codella
Do not buy from BetterStuff Lowerprice!!!
They do not fulfill their warranty requests. They gave me the run around on a warranty request for over 4 months now. Read more
Published 3 days ago by Michael Daly
Wansview NCB-541W IP Camera
Although this kind of IP cameras are all similar just with different brands, I still care about a good brand, at least there should be some website with some sales and customer... Read more
Published 4 days ago by e1e
Doesn't work very well
I've had this product for several weeks now and still don't have it working. As long as it is plugged into a router it is accessible by the network but if you try to use it as a... Read more
Published 7 days ago by Steve Yates
Complete waste of money - doesn't work out of box
This product has very complicated set up instructions for what should be a plug-and-play device. If you don't follow the instructions precisely then THE PRODUCT WILL NEVER WORK. Read more
Published 10 days ago by NHBuyer
Works great!
I set this camera up for motion detection and dynamic DNS use. Setting up to work with the wireless network was straight forward with the enclosed manual. The image is very clear. Read more
Published 10 days ago by obachan, CA
