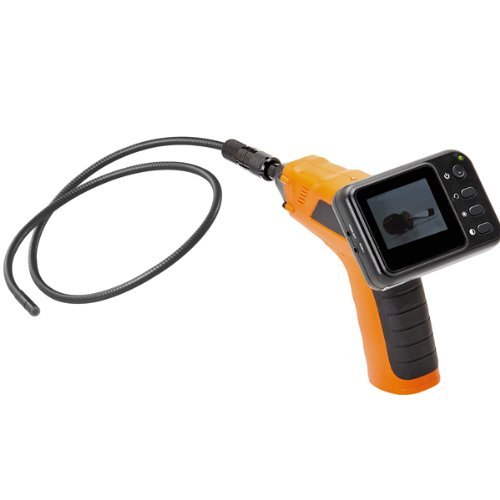

- This innovative new inspection tool allows for easy visual inspections in hard-to-reach areas, even in total darkness or under water.
- Its comfortable pistol grip design and forward facing controls make it easy to detect and diagnose the unreachable.
- Wireless Inspection Camera with LCD Monitor be your eyes and hands while you look inside walls without tearing them apart.
- Mini water-proof camera with 1m(3") flexible extended tube,2.5 TFT-LCD wireless monitor with rechargeable Li-battery
- Waterproof Level: IP67 with Underwater,Night Vision Range:1.5m,Lightweight
What Other Items Do Customers Buy After Viewing This Item?
Technical Details
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
This innovative new inspection tool with super-bright LED, the lightweight, handheld design helps you easily find, diagnose, and solve problems quickly. The unique wireless feature allows you to place the camera where you need it and the monitor where you can see it....!!
Usage Samples:
Checking for internal leaks around chimney flashing.
Reading the Model number off a furnace fan motor.
Retrieve a screw lost under the refrigerator.
Checking the teeth on a kitchen garbage disposal.
Reading the Service tag on a hard-to-reach rearplate of a server.
Inspecting inside of 2" heat exchanger tubes (boiler)
Examining AC coils in a residential furnace.
Finding Romex installed in a closed wall cavity.
Exploring the insides of a VCR.
Checking Cold Air Return for debris.
Checking for Lint Buildup past the primary filter in a dryer.
Checking sink connections in a crowded sink space.
Checking the gas connections under an installed stove.
Camera specifications:
* Image Sensor: CMOS
* Total Pixels: 704576 (PAL); 712486(NTSC)
* Horizontal View Angle: 50 degree
* Transmission Frequency: 2468MHz
* Minimum Illumination: 0 Lux
* Modulation Type: FM
* Bandwidth: 25MHz
* Power Supply: 4 x AA
* Dimensions(WDH):8614541(mm)(Exclude Flexible Tube) * Weight(about): 530g
Monitor parameters:
* LCD Screen Type: 2.36" TFT-LCD
* Effective Pixels: 480 x 240
* Video System: PAL/NTSC
* Transmission Frequency: 2468MHz
* Consumption Current (Max): 450mA
* Video Output Level: 0.9-1.3VP-P@75ohm
* Dimensions (W x D x H): 100 x 70x 30(mm)
* Weight(About): 140g
Operating Humidity (Max.): 15 to 85%RH
Customer Reviews
Most Helpful Customer Reviews
5 of 5 people found the following review helpful
Amazon Verified Purchase
There's little more to say about this inspection camera. The shaft is flexible and covered in plastic, so it is really water proof. I've done some slight testing of this, because I really have no need for the water proofing. The handle houses 4 AA batteries that power the camera led and the wireless transmitter. There's a rotary "trigger" that lets you control the brightness of the leds near the camera. This is important to improve image quality.
The camera is mounted in the back of the handle. It allows the rotation of the image in 90 degree increments, which is useful. I've not done extensive testing of the wireless range of the camera, but it works up to a few feet.
The unit came in a plastic case with room for a shaft extension -- that I bought as well -- and the transformer. It also includes a cable that allows sending the video to an analog monitor or receiving composite video into the wireless monitor. I still don't know about battery life, but the charging time is pretty fast. I would say under 2 hours.
Also included where a set of attachements (a mirror, a hook and a magnet) that can be attached to the tip and can be used to recover small items or to inspect really hard to reach places. These accessories look particularly cheap and the attachment to the tip of the shaft seem fragile, however this is only my impression, as I've not tested them.
The camera and the shaft that comes included are pretty thin. They can go through 1/2" pipe with ease. However, don't expect to be able to push the camera beyond an elbow.
I'm happy with this unit because I bought it for ocasional use. If you're looking for a professional grade tool, this is not it.
The camera is mounted in the back of the handle. It allows the rotation of the image in 90 degree increments, which is useful. I've not done extensive testing of the wireless range of the camera, but it works up to a few feet.
The unit came in a plastic case with room for a shaft extension -- that I bought as well -- and the transformer. It also includes a cable that allows sending the video to an analog monitor or receiving composite video into the wireless monitor. I still don't know about battery life, but the charging time is pretty fast. I would say under 2 hours.
Also included where a set of attachements (a mirror, a hook and a magnet) that can be attached to the tip and can be used to recover small items or to inspect really hard to reach places. These accessories look particularly cheap and the attachment to the tip of the shaft seem fragile, however this is only my impression, as I've not tested them.
The camera and the shaft that comes included are pretty thin. They can go through 1/2" pipe with ease. However, don't expect to be able to push the camera beyond an elbow.
I'm happy with this unit because I bought it for ocasional use. If you're looking for a professional grade tool, this is not it.
4 of 4 people found the following review helpful
I was skeptical of this product because of the price vs other competition, but it was better than i had anticipated. It still has some "cheesy feel" to it but so far it looks like it will do its job. After several emails to manufacturer, i found out that the battery in the screen unit is unreplaceable (which i havent had an issue with but....kind of worries me for the future). But with that being said the camera is only 9mm around and I thought the rest was decent. With the screen off the main unit I found in some areas the wireless reception a little hit or miss,but was workable. I havent used any other of these type of cameras, but i will say that it doesnt have like a "wide angle" at all, if you put it down into a hole or something to look for something, its got a fixed focus for right in front of the camera, which I guess is what you would want for a lot of things but if you were gonna try to locate something you dropped in a larger area plan on doing a lot of moving around to see everywhere, similar if you were looking for something in a microscope.
2 of 2 people found the following review helpful
Amazon Verified Purchase
Very good quality. Liked the fact that it came with a hard case. Can be tricky to get the picture oriented correctly and focal distance can be a drawback if you are trying to read a label.
Most Recent Customer Reviews
Inspection camera
This is definitely a good item to have. For that price I actually did not expect all that much; however I do recommend it highly. Read more
Published 3 months ago by Peter Eggers
Cool Item
Very good for the price.. the resolution is a bit grainy for close ups but it is worth the price. Comes with a short snake.. extensions may be needed for applications. Read more
Published 3 months ago by Christopher
