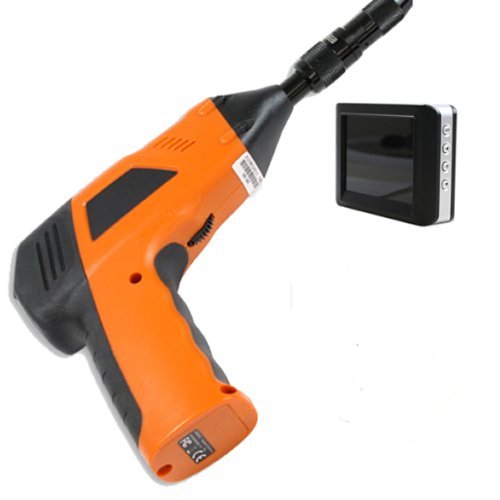

- Allows for easy surveying of small, hard-to-reachplaces, Mini 9mm waterproof LED lens, 5.0 meterflexible tube
- Manufactured and tested to IP67 waterproofstandard, 3.5ˇ± TFT-LCD detachable/mountable monitor,built-in rechargeable Li-battery
- Video recording capability, supports up to32GB microSD card, Adjustable brightness on lens-mounted LED light
- 3 useful accessories included: Hook, mirrorand magnet, Lightweight, handheld design, flexible andconvenient to use
- Application:Appropriate for use in surveying pipes or other hard-to-reach places,epuipment or furnishing installation,car repair,etc.
What Other Items Do Customers Buy After Viewing This Item?
Technical Details
Product Details
Would you like to update product info or give feedback on images?
|
Product Description
Specifications:
CAMERA:
Items: Specifications
Imaging Sensor: CMOS
Total Pixels: 640X480
Horizontal View Angle: 45 degree
Transmission Frequency: 2468Mhz
Minimum illumination: 0 Lux
Modulation Type: FM
Bendwidth : 18MHz
Power Supply: 4x AA batteries
Unobstructed Effective Range: 10m
Waterproof Capacity: IP67(only for imager head)
Dimensions(WxDxH) : 186x145x41(mm)(Exclude Flexble Tube)
Weight(about) : 450g
MONITOR:
LCD Screen Type : 3.5" TFT-LCD
Effective Pixels : 960x240
Video System : PAL/NTCS
Transmission Frequency: 2414MHz,2432MHz,2450MHz,2468MHz
Exterior Supply Voltage: 5V(DC)
Consumption Current(Max.) : 500mA
Charge Time : 3 hours
Work time: 2 hours
Picture/Video Pixels : 640x480
Video Size : 27M byte/minute
Frame Rate : 30 frame/second
Video Output Level : 0.9-1.3V(pp)@75ohm
Receiving Sensitivity : ˇÜ-85dBm
Dimensions(WxDxH): 100x70x25(mm)
Weight(About) : 140g
Packing list:
Camera x1
Hnadle x1
LCD Monitor x1
Power Adapter x1
Video Output Cable x1
USB Cable x1
CD-ROM x1
Hook x1
Magnet x1
Mirror x1
Customer Reviews
Most Helpful Customer Reviews
2 of 2 people found the following review helpful
Amazon Verified Purchase
The small diameter of the imager/snake and the long length make this far more useful than a 3' video snake. The down side is the package is far more cumbersome and the snake can't be stored in the case. Rated as waterproof but would like to know how deep. Have used it to route wires in a 9 foot wall (top and bottom plates with one set-up), look at critters in animal dens, examine drain tile for sediment build-up and find an antifreeze leak above a skid plate in the middle of a vehicle.
2 of 4 people found the following review helpful
One of the best Wireless Inspection Camera systems I have seen out in the market. I have done an unboxing from this seller and have made 2 other videos on possible battery/DC wall outlet mod and a mod to protect the camera head.
Thanks!!
