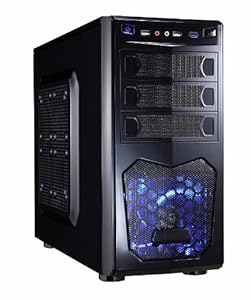

Xion Performance Meshed mATX USB 3.0 Tower Case XON-560_BK Black/Blue

by Xion
| 23 answered questions

Price: $64.32 & FREE Shipping
In Stock.
Ships from and sold by PC Parts Depot.
  • Unique Hybrid Mesh High performance Mid-Tower case, 13"(330mm)VGA card and bottom PSU supported. Easy install 3x SSD shelf and large storage capacity for 3 HDDs.
  • Top support 1x120mm FAN for easy airflow. Supreme cooling capacity up to 7xFans (3x120mm &4x80mm, or 3x120mm&1x200/220mm) fans
  • Features support for larger heat sinks (up to 6.5") and Graphics cards (up to 13"). HD Audio, USB 3.0 x1, and USB 2.0 x 2 external support.
  • Wire Routing Cable management, Cable compartment enable tidy cable and unimpeded airflow for stable system operation. Bottom mounted PSU (Standard ATX (PS2 form factor) power supply. Black Internal finish and whole shiny UV coating outlooks for sleek look.
  • Type: ATX Mid Tower. Color: Black with Blue LED Light. Case material: Steel/ Plastic, Meshed Front Panel design. Power Supply: not included. Power Supply mounted: Bottom. (Standard ATX (PS2 form factor) power supply).
  • Case Dimensions: 16.3" x7.3"x 14.6" (412*185*370mm), (H x W X D). Package Dimension: 19.7" x 9.5" x 16.6"(500*240*420mm) (H x W X D). Weight: 10.4 Lbs ( 4.5 Kg ). VGA Clearance maximum: 13" (330mm). CPU Heat sink Support: 6.5" (155mm)
  • Cooling system : Front, 1 X 120mm Blue LED Fan with Filters (included) ,Rear, 1 X 120mm (included), Side , 1X 200/220mm Fan (Optional) or (4*80mm Fan, Optional ), TOP : 1x120mm (Optional )
  • Motherboard Compatibility: Micro ATX/Mini ITX. External 5.25" Drive Bay: 2 (with Anti-vibration rubber-pad). Internal 3.5" (2.5" SSD) HDD Bays: 3. PCI Slots: 4. Front Ports: USB3.0 x1,USB2.0X2, AC97+HD Audio.
2 new from $54.98

Frequently Bought Together

Xion Performance Meshed mATX USB 3.0 Tower Case XON-560_BK Black/Blue + WD Blue 1 TB Desktop Hard Drive: 3.5 Inch, 7200 RPM, SATA 6 Gb/s, 64 MB Cache - WD10EZEX + Asus 24x DVD-RW Serial-ATA Internal OEM Optical Drive DRW-24B1ST (Black)
Price for all three: $139.83

These items are shipped from and sold by different sellers.

Buy the selected items together



Product Details

  • Product Dimensions: 16.3 x 14.6 x 7.3 inches ; 11 pounds
  • Shipping Weight: 11 pounds (View shipping rates and policies)
  • Shipping: This item is also available for shipping to select countries outside the U.S.
  • ASIN: B00B19L8LO
  • Item model number: XON-560_BK
  • Average Customer Review: 4.4 out of 5 stars  See all reviews (45 customer reviews)
  • Date first available at Amazon.com: January 4, 2013
  •  Would you like to update product info, give feedback on images, or tell us about a lower price? .


Product Description

Xion Gaming Series XON-560_BK Black Steel/Plastic Micro ATX/Mini ITX Slim Desktop Computer Case

Customer Questions & Answers

Customer Reviews

It is very quiet and looks nice.
Robert
I didn't remove the front one because it's a bit of a pain but I put my own, much better one on the back and also mounted a new one on the top for more exhaust.
BlackLotus
Too good to be true Looks better then expensive computer case in my opinion can't beielve I got it for 40 Dollars that was a steal Buy it !!!
Ra'Shard

Most Helpful Customer Reviews

7 of 7 people found the following review helpful By C. Gall on March 1, 2013
Verified Purchase
Pros:
- Price.
- Two fans included (1 front, 1 back) with lots of ventalation.
- Amazingly roomy inside for a mATX case yet has a small footprint.
- Quiet.
- Lots of SSD mounts. No need for 3.5" converters
- Plenty of room for a graphics card (though I dont use one).

Cons:
- 3.5" drives mount width-wise leaving the power/data cables crunched against the side of the case.
- Also, the tooless 3.5" mount trays are flimsy plastic and hard to snap in but seem to work.
- LED on front fan. I knew it would be there so not a suprise. Just don't understand using a LED fan at this price point.
- Shiny exterier makes it look cheap.
- Motherboard mounting standoffs don't take standard screws. I had to use the ones included. Not a big deal, just odd since I was transfering from another case.

Other thoughts: I would recommend this to someone on a small budget looking for a small case that provides ample room for graphics cards, SSDs, etc. and provides good cooling. I use it for a home server so small, quiet and cool is ideal and the case does that. If you are a gamer or particular about looks/construction you get what you pay for, so pay more.
1 Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
6 of 6 people found the following review helpful By NLWPS on February 25, 2013
Verified Purchase
I love the air flow this case offers! The only thing I was uncertain about was the blue LED fan in the front. Happily I was able to remove it! I am certain that a light up fan is a very popular item among some of the computer building crowd however I was not liking the idea at all! I did test the fan and it seemed to work as intended but I was most happy to find I could remove it! The light in the power button is a dark blue that does not light up my room at night like a beacon when I am using my PC to watch a movie! I have two hard drives and a Blu-Ray drive installed along with my ATX-M motherboard. I have a 6 core AMD processor and the temps within the case even after the PC has been running for a few hours are just a few degrees higher than room temp in my home office. (We keep the house at 67 in the winter so the CPU temp after a few hours of installing programs and surfing the internet as well as trying out a few games was 71) I'm considering buying another of this case to replace the noisy case I used for an earlier build for a family member. I was concerned with so much mesh involved that my new PC would be noisy however it is not nearly as noisy as my older build that belongs to a family member. This case features rolled edges so no cuts. It has two plastic brackets for the hard drives and a special place for a Solid State hard drive. (Did find that the SD drive bay door rattled so I did remove it) The provided screws are black and go nicely with the black case. I'll include pictures if given the option as I took pictures during my build process to show friends how to build their own PC's via a social networking site I use.
3 Comments Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
3 of 3 people found the following review helpful By Rolle on March 17, 2013
Verified Purchase
Very nice case for mATX build. USB 2.0/3.0 up front is a plus and the interior is nicely laid out and finished. Case is small, stylish, and attractive.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
2 of 2 people found the following review helpful By rsb on July 21, 2013
Verified Purchase
Pros:
Easy to work with
Lots of room inside for this size tower
Good drive bays
Screws and a SATA cable included
Great ventilation
Cool look (the front blue fan light is easy to disconnect but I didn't find it too bright so I left it on)

Cons:
Front panel hard to take off but ultimately I didn't need to
Side panels aren't hinged (you may have to work them a little to get them back on) but thumb screws make on and off easier.

Would definitely buy again.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
2 of 2 people found the following review helpful By George Miller on July 18, 2013
Verified Purchase
I originally was going to use my old computer for a new upgrade, however, there were some issues with that. So I ordered this case after looking at almost every tower on Amazon. This was the first time I've used a case with a bottom mount for the power supply, but everything went in this case with no problems. The only down side is the instructions that come with the case is just a sheet of paper with drawings that pretty much only tell you how to take off the front cover, but all the case wiring is marked. I didn't encounter any sharp edges, and the case looks really nice. Some have said they removed the front fan and replaced it due to the blue lighting on the front case fan. I left that in, but did add a 3 case fan, although I didn't add it to the side panel, I mounted it on the top.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By ducky on August 7, 2013
Verified Purchase
some cheap parts, cant beat the price though. I would recommend to anyone. Plus a dedicated spot for an ssd
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback. If this review is inappropriate, please let us know.
Sorry, we failed to record your vote. Please try again
1 of 1 people found the following review helpful By James Griggs on July 18, 2013
Verified Purchase
Looks like it has or could support 3 5.25" Drives but only supports two and a 3.5" drive. However it does support a corsair H60 with 120mm fan on the back exhaust port, also supports a 220mm fan on the side panel plus a 120mm fan on the front and one on the top. Overall the ventilation is great. I have a 3770K modestly overclocked to 4.2Ghz, along with a Radeon HD 7950 w/ 3GB GDR5, and 16GB DDR3 RAM clocked @ 2400Mhz. I also have 2 DVDRW’s, Two 1.5TB HDDs, and a 2.5" SSD. I highly recommend using liquid cooling and a modular power supply so you can reduce the number of cables and heat inside the case. Overall temps when not gaming are 97-103 case, and 106 to 110CPU. When Gaming they are 114-120 Case and 122-151 CPU. Max when rendering Video 100% CPU, 100%GPU are 125-137 Case and 154-162 CPU. Ambient temperature in my office is 74 but will go to 79 with CPU at Max. This Rig can play WOW at 36-82FPS MAX Settings across three monitor’s @1080P in Eyefinity mode for a 6 mega pixel map. This case satisfies all the needs for a MATX gaming machine.
