![Amprobe 38XR-A Prof DMM True RMS with Optical PC Interface]({"http://ecx.images-amazon.com/images/I/41SSFElf7EL._SY445_.jpg":[445,290],"http://ecx.images-amazon.com/images/I/41SSFElf7EL.jpg":[500,326]})

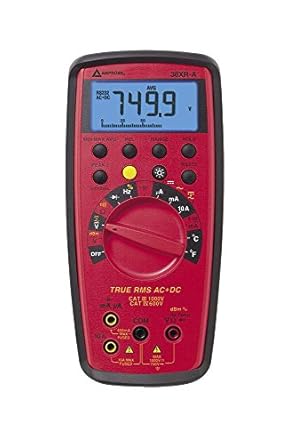

Amprobe 38XR-A Prof DMM True RMS with Optical PC Interface
by
Amprobe
| List Price: | $199.95 |
| Price: | $168.56 & FREE Shipping. Details |
| You Save: | $31.39 (16%) |
Only 9 left in stock (more on the way).
Want it Saturday, April 2?
Order within and choose Saturday Delivery at checkout.
Details
Ships from and sold by Amazon.com.
Gift-wrap available.
- Enter your model number above to make sure this fits.
- Frequency To 10 MHz, Capacitance To 400 microF, Temperature To 2372 F
- Duty Cycle, dBm and 4 To 20 mA Loop Current Test
- 1000V/750V DC/AC True RMS, AC + DC Input
- 10 Amps AC/DC, Fully Safety Fused
- Resistance To 40Mohm
Product Specifications
| Part Number | 2727824 |
|---|---|
| Style Name | 38XR-A: TRMS DMM w/PC Interface |
| UPC | 013227036776 , 095969365413 |
| Additional Features | Automatic, positive implied, negative polarity indication |
| Display | Liquid Crystal Display (LCD) with a Maximum Reading of 1999 |
| EAN | 0013227036776 , 0095969365413 |
| Included Components | TL36 - Test Leads, Holster , Temp Adaptor, Spare Fuse , Type K Probe - TP255 |
| Item Weight | 1.76 pounds |
| Manufacturer Warranty Description | Three Year Warranty |
|---|---|
| Measurement Accuracy | +/- 5 C |
| Number of Items | 1 |
| Overall Height | 155 mm |
| Overall Length | 32 mm |
| Overall Width | 72 mm |
| Temperature Range | 0/50 Degrees Celsius |
Specification for this product family
| Brand Name | Amprobe |
|---|
| UNSPSC Code | 41113600 |
|---|
$168.56
& FREE Shipping. Details
Only 9 left in stock (more on the way).
Ships from and sold by Amazon.com.
Gift-wrap available.
Frequently Bought Together
Customers Who Bought This Item Also Bought
Page 1 of 1 Start overPage 1 of 1
From the Manufacturer
Key Features
- Backlight, True-rms with component and logic test.
- Inductance to 40 H, frequency to 40 MHz, capacitance to 400 μF, logic to 20 MHz.
- Input warning tone when test leads are in wrong jack.
- 10 Amps AC/DC, fully safety fused.
- Continuity beeper
- Min/max, average, relative, peak, and data hold.
- Auto power off to save battery life.
- Separate door for easy battery and fuse access.
- Magne-Grip Holster with magnetic hanging strap.
- Autoranging; display: 4-3/4 digit LCD, 10,000 counts with 41-segment analog bar graph.
- Display Update Rate: 2/sec, nominal.
- Power Battery: 9 V NEDA 1604, JIS 006P, IEC 6F22.
- Operating temperature: 0 °C to 45 °C at < 70 % R.H.

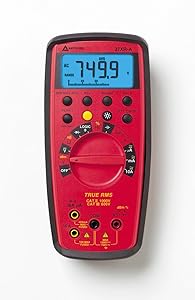

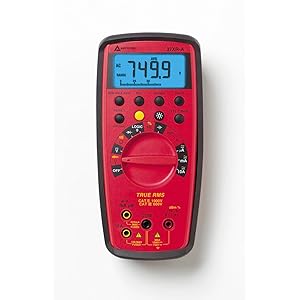

37XR-A True RMS Digital Multimeter with Component Logic Test
Feature packed, rugged and reliable
The Amprobe 37XR-A Digital Multimeter is a feature packed, rugged and reliable multimeter. It displays true-rms measurement on a low-light backlit LCD screen. Component and logic testing is used for troubleshooting electronics at the bench or on the job site. This multimeter features auto and manual ranging for measuring current, voltage, resistance, capacitance, frequency, inductance, duty cycles, logic states, and dBm function.
The meter comes with a set of detachable test leads with two alligator clips for measuring measure alternating current (AC) and direct current (DC) to 10 amp, AC voltage to 750 volts (V), DC voltage to 1,000V, resistance to 40 megaohms, capacitance to 400 microfarads, frequency to 10 megahertz (MHz), inductance to 40 henrys (H), duty cycles to 90%, and power to 50 decibels relative to miliwatts (dBm).
It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category II installations up to 1,000V (which covers large household appliances and devices connected to a fixed power supply, such as refrigerators and air conditioners), and category III installations up to 600V (which covers items used with enclosed building circuit installations, such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply). The meter comes with a magnetic strap that can be used to hang the meter on metal doors or fixtures.
Features:
The meter offers two ranging modes, auto or manual. When turned on, the meter is in auto-ranging mode and automatically selects the correct operating range for the measurement being taken. It can be switched to manual-ranging mode for applications where an instantaneous meter response is needed. True-rms sensing provides accurate reading when measuring both linear and non-linear loads.
The logic test reports the logic state of transistor-to-transistor (TTL) or complementary metal-oxide-semiconductor (CMOS) digital circuits in electronics. The maximum or minimum reading mode displays the highest or lowest reading in a session to track a sudden increase or decrease in readings, and the average function displays the average of the recorded maximum or minimum values.
The peak + or - function records peak positive or negative values for AC current and AC voltage. The relative zero mode stores a reading in memory to use as a zero point for subsequent readings, allowing for quick comparison of readings. An audible continuity sensor confirms that the circuit conducts electricity, and a diode test detects whether the circuit's diodes work properly. The hold function keeps a reading on the display, even after the meter is disconnected. An auto power-off mode turns off the unit after 30 minutes of non-use to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|

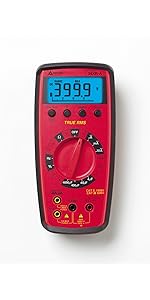

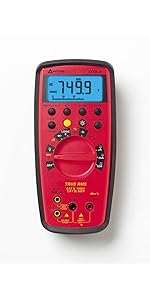

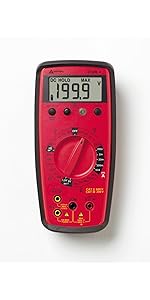

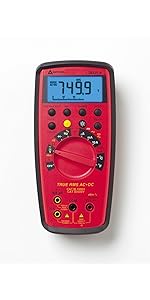

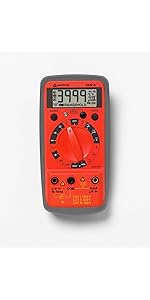

| 30XR-A: TRMS DMM with Non-Contact Volt Tester | 33XR-A: TRMS DMM with Temperature & Capacitance | 34XR-A: TRMS DMM True RMS with Temperature & Backlight | 35XP-A: TRMS DMM with Temperature, Frequency, and Capacitance | 37XR-A: TRMS Digital Multimeter with Component Logic | 38XR-A: TRMS DMM with Optical PC Interface | |
| Resistance | 200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO | 400.0 O, 40.00 kO, 4.000 MO | 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO. 40.00 MO | 400 W, 4 kW, 40 kW, 400 kW, 4 MW | 1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO | 1000.0 O, 10.000 kO, 100.00 kO, 1000.0 kO, 10.00 MO , 40.00 MO |
| Continuity | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Diode | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| VolTect Non-Contact Voltage Detection | ✓ | - | - | - | - | - |
| Capacitance | - | 4.000 µF, 40.00 µF, 400.0 µF, 4000 µF | 4.000 µF, 40.00 µF, 400.0 µF, 4000 µF | 4 nF, 40 nF, 400 nF, 4 μF, 40 uF, 400 uF | 40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF | 40.00 nF. 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF |
| Frequency | - | 4.000 kHz, 40.00 kHz, 400.0 kHz, 1 MHz | 4.000 kHz, 40.00 kHz, 400.0 kHz, 1 MHz | 4.000 k, 40.00 k, 400.0 k, 1 MHz | 100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz | 100.00 Hz, 1.0000 kHz, 10.000 kHz, 100.00 kHz, 1.0000 MHz, 10.000 MHz |
| Temperature | - | 1832 °F (1000 °C) | 1832 °F (1000 °C) | 1832 °F (1000 °C) | - | 2372 °F (1300 °C) |
| Duty cycle | - | - | 0.0 % → 90.0 % | - | 0.00 % → 90.0 % | 0.00 % → 90.0 % |
| Logic test | - | - | - | - | ✓ | - |
| Inductance | - | - | - | - | 40 H | - |
What's in the box?
Amprobe 37XR-A TRMS digital multimeter
(1) Set test leads
(2) Alligator clips
(1) 9V battery (installed)
(2) 0.5 amp/1,000V fast-blow ceramic fuse (1 installed, 1 spare)
(1) 10 amp/1,000V fast-blow ceramic fuse (installed)
Magnetic strap holster
Instructions
Product DetailsStyle: 38XR-A: TRMS DMM w/PC Interface
Would you like to give feedback on images or tell us about a lower price?
|
Customers Who Viewed This Item Also Viewed
Page 1 of 1 Start overPage 1 of 1
Sponsored Products Related To This Item (What's this?)
Page 1 of 1 Start over
Customers Viewing This Page May Be Interested In These Sponsored Links
(What's this?)
1.
Rigol Digital Multimeters
|
-
|
5.5 & 6.5 Digit DMMs, Tons of Features. Compare low cost of €399!
|
|
|
2.
38xr a
|
-
|
Fournitures Industrielles Pour Les Professionnels - Livraison Sous 24H
|
|
|
3.
True RMS Multimeter
|
-
|
Trouver des Résultats de True RMS Multimeter
|
Customer Reviews
| 5 star |
|
77% |
| 4 star |
|
23% |
| 3 star |
|
0% |
| 2 star |
|
0% |
| 1 star |
|
0% |
Top Customer Reviews
By
Jesse Bock
on February 9, 2015
Style Name: 34XR-A: TRMS DMM w/Temp + Backlight
Verified Purchase
I am an aircraft mechanic and needed a reliable meter that can perform all the functions this meter has. It was between this and a much more expensive Fluke meter. After using this meter extensively I must say it does everything it supposed to and works as well as the more expensive Fluke's. The meter is rated to 1000v and 10 amps which makes it useful for just about any application. I personally like the the dial selector more then the multifunction buttons found on the Fluke meters.
The problem I have found with this meter is high interference when measuring without the covers on the leads. The leads come with 2 unscrewable covers over the ends of the leads for, I asumme, more accurate readings since in areas where other voltage sources are close by, inaccurate readings can occur. These ends prevent from measuring something inside a hole and must be removed if you need a longer tip. The meter comes with alligator clips for the end of the leads and a temperature probe.
One other problem I had is with the temperature probe. It is a straightforward design of a small box that plugs into the probe receptacles of the meter. My probe arrived broken but I dismantled the box by simply popping the box apart, it comes apart in halves, and reattaching the wires that had come off their proper positions.
The meter comes with an extra fuse located under the panel of the rear of the meter. There is a small fuse and a large fuse. The large fuse is only accessible by completely removing the outer case and taking the back panel of the meter off. The smaller fuse is the only one that includes a replacement. The small fuses are the ones likely to go if measuring basic currents/voltages. I've found replacements for under 5 dollars.Read more ›
The problem I have found with this meter is high interference when measuring without the covers on the leads. The leads come with 2 unscrewable covers over the ends of the leads for, I asumme, more accurate readings since in areas where other voltage sources are close by, inaccurate readings can occur. These ends prevent from measuring something inside a hole and must be removed if you need a longer tip. The meter comes with alligator clips for the end of the leads and a temperature probe.
One other problem I had is with the temperature probe. It is a straightforward design of a small box that plugs into the probe receptacles of the meter. My probe arrived broken but I dismantled the box by simply popping the box apart, it comes apart in halves, and reattaching the wires that had come off their proper positions.
The meter comes with an extra fuse located under the panel of the rear of the meter. There is a small fuse and a large fuse. The large fuse is only accessible by completely removing the outer case and taking the back panel of the meter off. The smaller fuse is the only one that includes a replacement. The small fuses are the ones likely to go if measuring basic currents/voltages. I've found replacements for under 5 dollars.Read more ›
