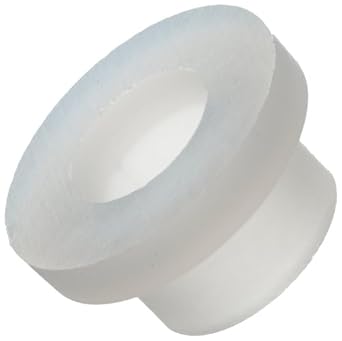

Nylon 6/6 Shoulder Washer, 0.2" Hole Size, 0.2000" ID, 0.0620" Nominal Thickness (Pack of 100)

3.3 out of 5 stars 7 customer reviews
Price: $8.47 ($0.08 / washer) & FREE Shipping on orders over $49. Details
Only 2 left in stock (more on the way).
Want it tomorrow, April 7? Order within and choose One-Day Shipping at checkout. Details
Ships from and sold by Amazon.com. Gift-wrap available.
100
  • Enter your model number above to make sure this fits.
  • Shoulder washer offers a bearing surface and provides a protective barrier around a fastener to help minimize corrosion
  • Nylon 6/6 provides resistance to abrasion, corrosion, and many chemicals, is nonconductive, and is a strong yet lightweight plastic
  • Color is off-white
Product Specifications
Inside Diameter 0.2000  inches
Washer Size 0.2"
Flange Diameter 0.3700  inches
Flange Thickness 0.0620  inches
Inside Diameter Tolerance +/-0.005  inches
Length Tolerance +/-0.015  inches
Number of Items 100
Outside Diameter Tolerance +/-0.005  inches
Shape Round
Shoulder Diameter 0.2600  inches
Shoulder Length 0.4370  inches
Thickness Tolerance +/-0.015  inches
Specification for this product family
Brand Name Small Parts
Part Number B00DHVCF9I
Material Type Nylon
System of Measurement Inch
Color Off-White
Grade 6/6
UNSPSC Code 31161815
2 new from $3.44
A Full Selection of Hydraulic, Pneumatic & Plumbing Products
pipe fittings
Pipe Fittings 		seals
Seals 		hydraulic valves
Hydraulic Valves 		flow control and filtration products
Shop all
$8.47 ($0.08 / washer) & FREE Shipping on orders over $49. Details Only 2 left in stock (more on the way). Ships from and sold by Amazon.com. Gift-wrap available.

Customers Who Viewed This Item Also Viewed

Page 1 of 1 Start overPage 1 of 1
This shopping feature will continue to load items. In order to navigate out of this carousel please use your heading shortcut key to navigate to the next or previous heading.
Back
  1. Nylon 6/6 Shoulder Washer, Plain Finish, Off-White, Inch, Made in US
    5.0 out of 5 stars 1
    $3.05 - $25.94
  2. Nylon 6/6 Shoulder Washer, Natural, Inch
    1.0 out of 5 stars 2
    $5.21 Prime
  3. Nylon 6/6 Shoulder Washer, Off-White, Inch
    3.3 out of 5 stars 7
    $2.34 - $29.95
  4. Round Spacer, Nylon, Inch
    4.8 out of 5 stars 22
    $0.84 - $19.22
Next

Product Details

Number of Items: 100
  • Shipping Weight: 1 ounces (View shipping rates and policies)
  • Domestic Shipping: Item can be shipped within U.S.
  • International Shipping: This item can be shipped to select countries outside of the U.S. Learn More
  • ASIN: B00137NJXE
  • Average Customer Review: 3.3 out of 5 stars 7 customer reviews
  • Amazon Best Sellers Rank: #961,524 in Industrial & Scientific (See Top 100 in Industrial & Scientific)

    •  Would you like to give feedback on images or tell us about a lower price?

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)
1.  Nylon 6 opens new browser window
  -
We are made from high quality recycled waste
www.pa6chips.com/
2.  Nylon-6 opens new browser window
  -
Nylon-6 supplier from China best price good quality
www.ever-chemical.com/
3.  Nylon 6; pellets opens new browser window
  -
physical form: pellets density: 1.084 g/mL at 25 C
www.sigmaaldrich.com/
4.  b-plastic plastic ferrule opens new browser window
  -
caps ferrules ball knobs dip-moulded ferrules
webshop.b-plastic.com/
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

4.0 out of 5 starsNot quite right but still useful
By Nicholas Jarak on September 16, 2013
Number of Items: 100 Verified Purchase
These washers are hard to find in stores, but they can be quite useful. I had a specific purpose in mind for them that required general shape and dimensions specified for this washer. Unfortunately, it appears that who ever was responsible for listing shoulder washers on Amazon did not understand how to list them properly or simply made some serious mistakes. I bought two different sets of shoulder washers one with a shoulder diameter of 1.25 inches and another with a shoulder diameter of 2 inches. Well... neither were what they were supposed to be. Both had a shoulder diameter of 0.72 inches. At first, I thought it might be a mistake (as in I had been sent the wrong item), but when I realized that both washers had the same shoulder diameter, I realized that this is probably what they are all like being that not only were they the wrong shoulder diameter, but they both happen to have the exact same (although incorrect) shoulder diameter. I am pretty sure Amazon did not send me the wrong items because all of the other dimensions match up correctly, which would have been unlikely if they had simply sent the wrong items, and it would have been especially unlikely for it to happen twice. I am not sure how they messed up the listings on these because the shoulder diameter is right on the packaging of one of items. At one point, I thought I might have misunderstood the definition of a shoulder diameter, but I confirmed my definition with a little of research, and besides, there is not a single way that you could measure these that would result in a measurement of 1.25 or 2 inches on either product. I decided to make due with what I got and modified them by combining them with more common stainless steel fender washers to attain a suitable diameter for my application.Read more ›
2 Comments 3 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsWorked as planned
By Gra-man on May 23, 2011
Number of Items: 100 Verified Purchase
We replaced a standard and (ugly) picket railing on my above ground deck with a stainless steel cable and pipe railing system. I drilled .250 inch holes in 1 1/2 inch pipe and ran the SS cable vertically through the holes tightening the cable with turn buckles. I used the shoulder washers to keep the cable from rubbing on the holes I drilled in the pipe. The fit was perfect and the washers add a high end finished look to the railing. Folks keep admiring the railing asked "who installed it" or "where I bought the kit from". Got to love it when a plan comes together and these little washers sure helped.
Comment 3 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsjust as described
By fred on June 1, 2012
Number of Items: 100 Verified Purchase
I needed special sized insulators for a deer (electric) garden fence project. The sizing chart was just great. They functioned just as I had designed and now carry the 7000 volt fence charge.
Comment Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsVery consistent between pieces, exactly what I needed!
By Arthur Duane Davidson IV on April 30, 2013
Number of Items: 100 Verified Purchase
I use these on my drum hoops to prevent metal-to-metal contact; the size is absolutely perfect for what I need them for...will put these on every drum I can, from snare drums, toms, and bass drum.
1 Comment One person found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
