Rockford Fosgate Punch 500-Watt Mono Amplifier

Other products by Rockford Fosgate

Product Details

• Product Dimensions: 8.1 x 8.4 x 13.5 inches ; 10 pounds
• Shipping Weight: 10 pounds (View shipping rates and policies)
• Shipping: Currently, item can be shipped only within the U.S.
• ASIN: B001CSQGES
• Item model number: P500-1BD
• Average Customer Review: No customer reviews yet. Be the first.
• Amazon.com Sales Rank: #3,707 in Electronics (See Bestsellers in Electronics)

  Popular in this category: (What's this?)

  #45 in

  Electronics > Car Electronics > Car Audio & Video > Amplifiers > Mono Amplifiers

Product Description

From the Manufacturer

Manufacturer's Review (December 30, 2008)
With its super efficient Class-BD circuit topology, the P500-1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease. Crank out 200 Watts at 4 Ohms RMS, 400 at 2 Ohms, and 500 at 1 Ohm.

The P500-1bd is optimized for mid-bass speakers or subwoofers. Click to enlarge.

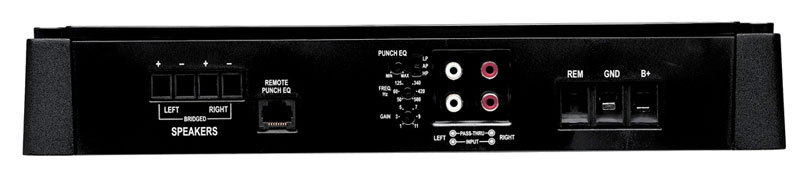

All connections are recessed into the amplifier's chassis and located on the bottom edge of the P500-1bd, for a clean, uncluttered install that looks great in any car. Click to enlarge.

The Punch EQ on-board equalization circuit helps correct for common acoustical deficiencies in the vehicle listening environment. Click to enlarge.

Class-bd amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers. Click to enlarge.

Features:

• 12dB/octave crossover
• 4 Gauge power/ground terminals
• Audiophile grade speaker connections
• Infrasonic filter
• MOSFET output stage
• MOSFET power supply
• RCA pass-thru
• Top Mounted LED Indicators

CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Class bd
Rockford Fosgate bd topology is a revolutionary patented design, integrating a technology that is more efficient than typical class AB and has lower distortion than class D designs. POWER bd amplifiers are 75-80% efficient vs. 20-60% efficient class ab amplifiers. What does that mean? More power from your amplifier with less drain on your vehicle's electrical and charging system.

Differential Inputs
Differential input circuitry measures the voltage of both the (+) and (-) input signal. The circuitry subtracts the voltage common to both conductors (noise) resulting in only the clean signal. This allows only clean signal to enter the amplifier.

DSM (Discrete Surface Mount)
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

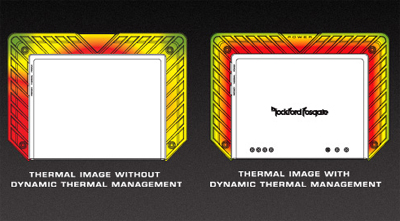

Dynamic Thermal Management
Evenly distributes excess heat across entire amplifier heatsink.

MEHSA³
MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.

NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.

Punch EQ2
Onboard equalizer with up to +18dB @ 35Hz and/or up to +12dB boost at 12kHz.

What's in the Box
P500-1bd Amplifier, manual

Product Description

Rockford Fosgate 500 Watt Mono amplifer with on-board adjustable crossover, gain control, and Patented Punch EQ. Amplifier features DTM Thermal management circuitry and MOSFET technology for clean performance that does not shut down. CEA Certified RMS Power Rating 200 watts x1 @ 4 Ohms, 400 watts x1 @ 2 Ohms, 500 watts x1 @ 1 Ohms. Visit www.RockfordFosgate.com 24 hours a day for technical support or call [phone] M-F 7 am to 5 pm MST.
