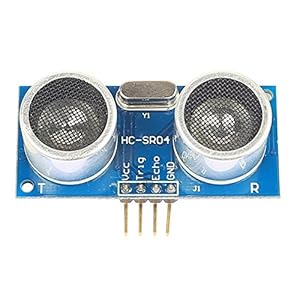

SainSmart HC-SR04 Ranging Detector Mod Distance Sensor (Blue)

4.3 out of 5 stars 291 customer reviews
| 29 answered questions
List Price: $12.00
Price: $4.52 & FREE Shipping on orders over $49. Details
You Save: $7.48 (62%)
In Stock.
Want it Tuesday, April 19? Add it to a qualifying order within and choose Two-Day Shipping at checkout. Details
Ships from and sold by Amazon.com.
Standard Packaging
  • Using IO trigger for at least 10us high level signal
  • The Module automatically sends eight 40 kHz and detect whether there is a pulse signal back
  • IF the signal back, through high level ,time of high output IO duration is the time from sending ultrasonic to returning. Test distance = (high level time velocity of sound (340M/S) /2
  • Power supply :5V DC, quiescent current : <2mA,effectualangle: <15 ranging distance : 2cm~500 cm resolution : 0.3 cm
Add-on Item
This item is available because of the Add-on program
The Add-on program allows Amazon to offer thousands of low-priced items that would be cost-prohibitive to ship on their own. These items ship with qualifying orders over $25. Details
68 new from $0.99 1 used from $2.17
$4.52 Add-on Item & FREE Shipping on orders over $49. Details In Stock. Ships from and sold by Amazon.com.

Frequently Bought Together

  • SainSmart HC-SR04 Ranging Detector Mod Distance Sensor (Blue)
  • +
  • microtivity IB401 400-point Experiment Breadboard w/ Jumper Wires
  • +
  • Arduino UNO R3 Board Module With DIP ATmega328P(Blue)
Total price: $36.23
Buy the selected items together

Product Features

Product Packaging: Standard Packaging
  • Size (LWH): 1.3 inches, 0.4 inches, 0.05 inches
›  See more technical details

Product Information

Product Packaging:Standard Packaging
Product Dimensions 1.3 x 0.4 x 0.1 inches
Item Weight 0.3 ounces
Shipping Weight 0.3 ounces (View shipping rates and policies)
ASIN B004U8TOE6
Item model number 101-60-142
Customer Reviews
4.3 out of 5 stars 291 customer reviews

4.3 out of 5 stars
Best Sellers Rank #254 in Electronics > Car Electronics > Car Audio

Feedback

Would you like to give feedback on images?
Would you like to tell us about a lower price?

Customers Viewing This Page May Be Interested In These Sponsored Links

  (What's this?)
Customer Questions & Answers
See questions and answers

Customer Reviews

Top Customer Reviews

5.0 out of 5 starsVery cool and easy to use
By iltl32 on January 28, 2013
Package Type: Standard Packaging Verified Purchase
Does exactly as promised. Very accurate. I had to slightly modify the Ping sketch that came with Ardiuno software, so here it is. Look at the constants for the correct pin placement.

/* Ping))) Sensor

This sketch reads a PING))) ultrasonic rangefinder and returns the
distance to the closest object in range. To do this, it sends a pulse
to the sensor to initiate a reading, then listens for a pulse
to return. The length of the returning pulse is proportional to
the distance of the object from the sensor.

The circuit:
* +V connection of the PING))) attached to +5V
* GND connection of the PING))) attached to ground

[...]

created 3 Nov 2008
by David A. Mellis
modified 30 Aug 2011
by Tom Igoe

This example code is in the public domain.

*/

// Pin number constants
const int triggerPin = 5;
const int echoPin = 6;

void setup() {
// initialize serial communication:
Serial.begin(9600);
}

void loop()
{
// establish variables for duration of the ping,
// and the distance result in inches and centimeters:
long duration, feet, inches, cm;

// The PING))) is triggered by a HIGH pulse of 2 or more microseconds.Read more ›
4 Comments 88 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsA bit unintuitive at first, but a a very powerful (non)toy thereafter
By Alexander on September 14, 2012
Package Type: Standard Packaging Verified Purchase
In my physics class, there came an experiment that required measuring the speed of a cheap toy car, with post its, rulers, a timer, and the close coordination of three people.

Needless to say, it wasn't working out.

Unsatisfied with our utter lack of experimental rigor, I bought this sensor.

The library written by cnobile ([...]) is the most important step in getting this running. To an electronics newbie, or a * moderately* experienced coder (myself), banging out the protocol would be a HUGE pain.

If arduino throws an error along the lines of "wiring.h does not exist", look for \HCSR04Ultrasonic\Ultrasonic.h in the library folder, open it in a good text editor, and change wiring.h to "Arduino.h". The Arduino IDE changed a few things since this library was released, and this worked for me.

Lastly, if you want to ditch the breadboard (assuming arduino UNO R3), plug Trig into 12 and Echo into 13. Conveniently this puts GND at the digital ground. To power the module, we can call 'pinMode(11, OUTPUT);' followed by 'digitalWrite(11, HIGH);' in our setup method, which will configure pin 11 to act as a low current source!

If you want to see my source code, throw me an email: alexander@riccio.com
Comment 66 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
4.0 out of 5 starsI like it!
By Ratiocrat on November 15, 2011
Package Type: Standard Packaging Verified Purchase
This was very easy to set up and use with an Arduino Uno board. (Make the following connections from the HC-SR04 to the Arduino, respectively: VCC to 5V; GND to GND; Trig to any digital output; Echo to any digital input.) It was somewhat unstable using the Arduino 5V when running off USB power (it would fluctuate and even dip to a 0 cm reading for no reason), but this was fixed by using a 9v/650mA adapter, instead. I have only had it for a few hours, so I can't vouch for its reliability, but for 13 bucks, it's looking great so far!
4 Comments 51 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
3.0 out of 5 starsGreat sensor, but
By Fernand Ray on June 28, 2013
Package Type: Standard Packaging
These SR-04s are readily available now for under two dollars each. I have a dozen of them from various importers. They work OK with various Arduino libraries. It's an extremely useful sensor for countless project.

As some people noted, they also return garbage data at times, especially right after the distance to the target changes. Some of the units are better than others that way, some are quite bad. What the issue seems to be is not responding fast enough for the software, or not at all. Many example sketches translate the invalid state to "0 cm". A filter in the code to discard bad results helps, but that slows average response. If you use the NewPing library's timer interrupt mode, you get no "0 cm", the code waits, sometimes a second or more. I'm not 100% clear on this yet. It's best to buy several and use the better ones. For me, the more expensive 3 pin "Ping" module, that the SR04 apparently copied, performs much better.
4 Comments 17 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsNot a toy, but a good module
By Mike on September 21, 2011
Package Type: Standard Packaging Verified Purchase
This module should be relisted as something other than a toy (it has to be rated as a toy in the review process). Regardless of that, I bought this module instead of the Ping sensor, mostly because this one was less expensive and cost was an issue for this project. It easily integrated with an Arduino and I quickly coded it up to convert the output to distance. It works quite well so far.
1 Comment 28 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
5.0 out of 5 starsSimple and accurate
By Fabio Santos Franco on October 17, 2011
Package Type: Standard Packaging Verified Purchase
This is a great product that had simplicity in mind when it was developed. Once you get around the initial overhead of setting it up (a learning overhead), its usage is plain and simple.

The distance measurement is fairly accurate to the millimeters. I couldn't in fact determine if the difference in millimeters was my ruler measurement or if it was actual error of the device.

Like many ultrasonic devices, you can't measure the first few centimeters and I think that's expected.
All in all, I recommend this product for any projects. I used it with a netduino board with no hassle.
1 Comment 16 people found this helpful. Was this review helpful to you? Yes No Sending feedback...
Thank you for your feedback.
Sorry, we failed to record your vote. Please try again
Report abuse
